ball valve KH 01 H DFVFM G1 female with filter and magnet, nickel-plated | 40956

ball valve KH 01 H DFVFM with filter and magnet

manufactured goods

  • Shut-off element for universal use with heating systems
  • Integrated filter sieve and magnet as dirt collector
  • Easy cleaning
  • nickel-plated housing

Ideal for all applications in heating systems that require an additional filter function against lime, rust, sludge or other contaminants is required. The installation of shut-off elements in heating systems is essential for subsequent maintenance.

Nickel-plated ball valve as shut-off element with integrated filter sieve and strong magnets. You can clean the unit without unpressurising and draining the system. For cleaning, the ball valve is simply closed and the filter sieve and magnet are cleaned by removing the cap on the underside.

Connection
G1 female
Housing
Brass, nickel-plated
Filter
material:
Stainless steel
Mesh size:
  0.6 mm
Operating pressure
  16 bar (PN 16)
Operating temperature range
-20/+90 °C (short-term 120 °C)
Magnet
  1.2 T
Mounting position
preferably vertical
Kvs
40956:
5.9 m³/h
Options
  • other nominal sizes
  • anderer Griff (Farbe/Form)
  • other connection threads

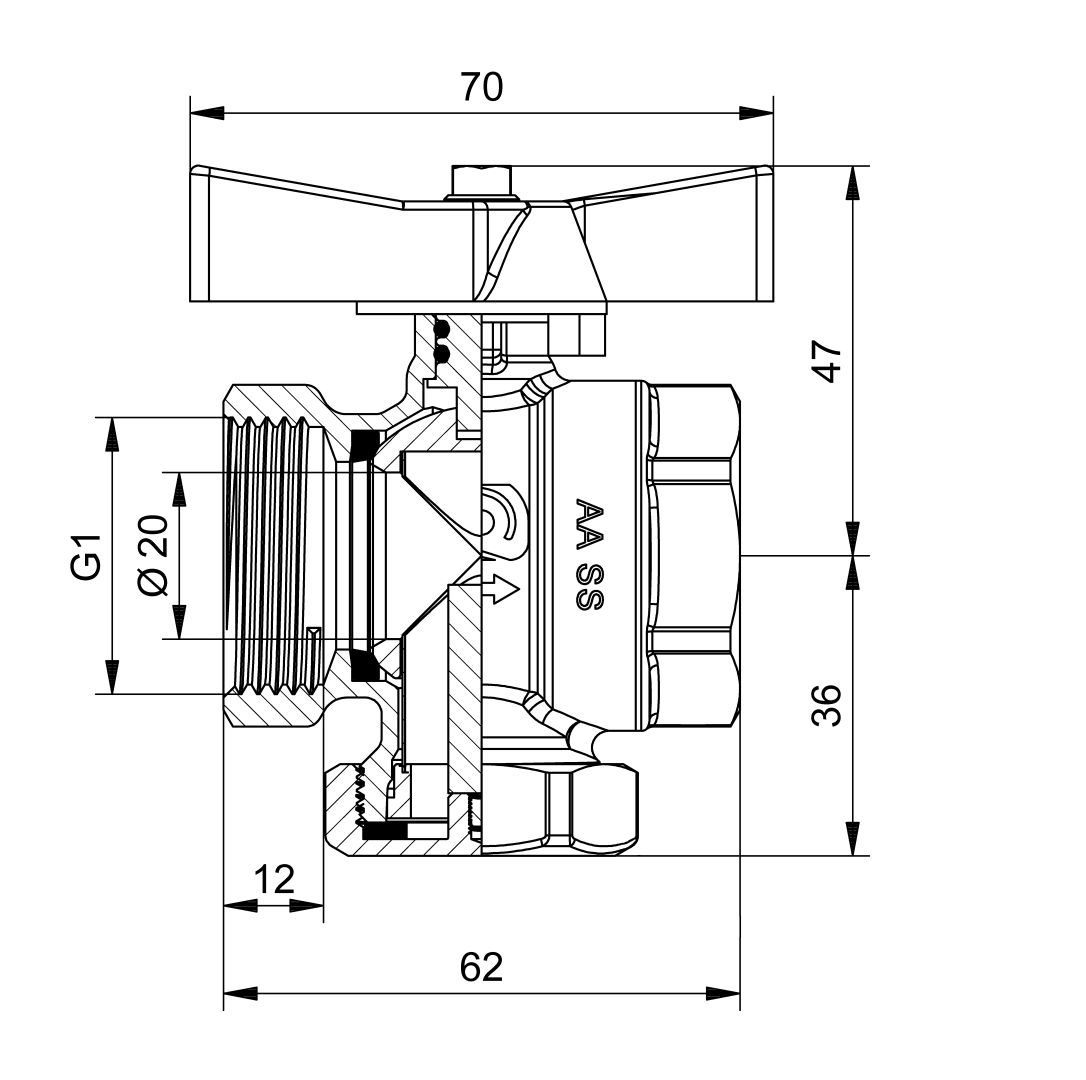

Click the corresponding image for detail views, additional information and dimension tables.

AFRISO_KUGELHAHN-KH-01-H-DFVFM-G1-IG-KUGELHAHN-MIT-FILTER-UND-MAGNET_40956_DEU_CHE.PDF

ball valve KH 01 H DFVFM G1 female 40956
