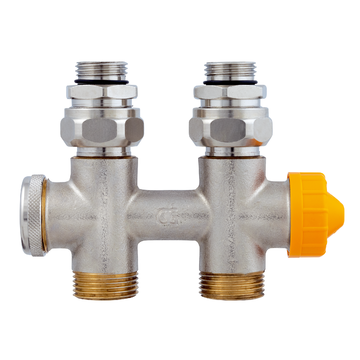

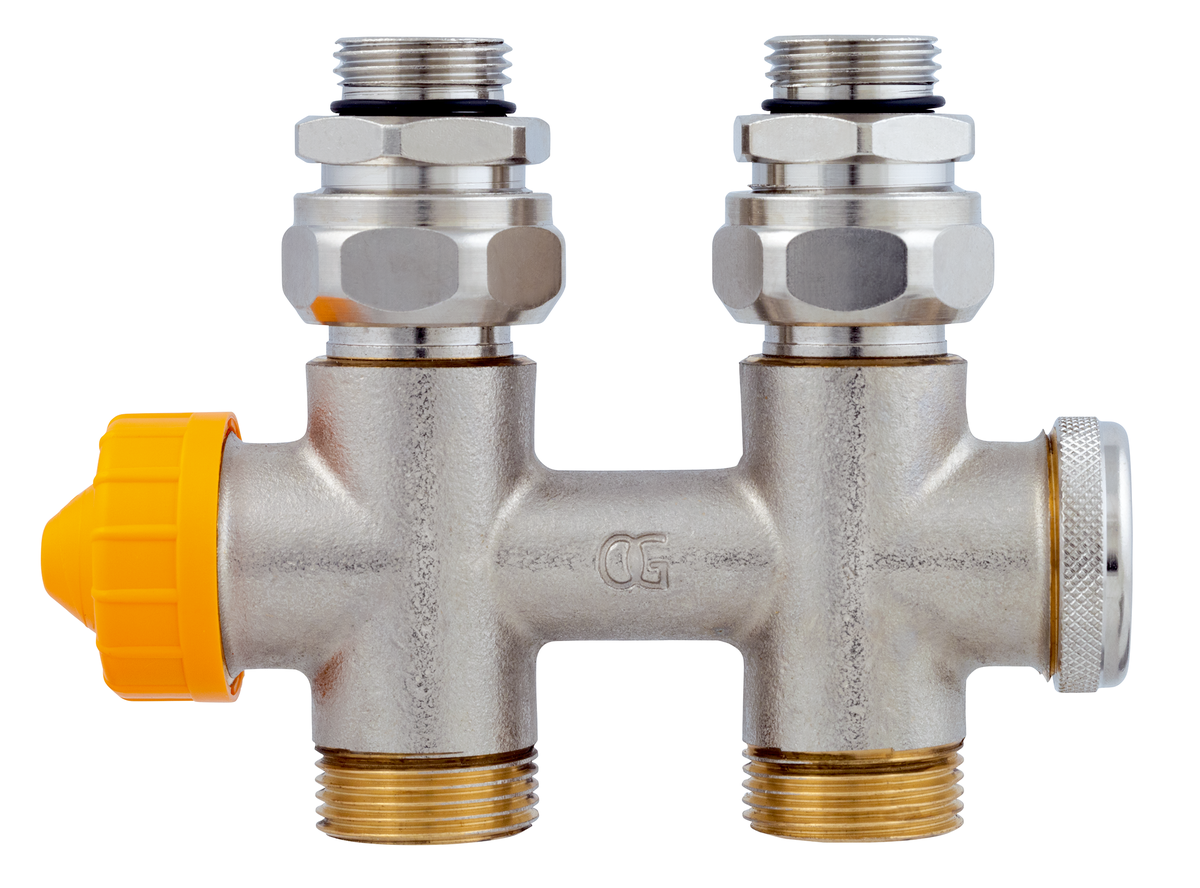

Thermostat-Kombiblock Vario-DP Durchgang G1/2IG
AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG 92520 object_image_56042_de
AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG VOR 92530 AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG VOR 92530

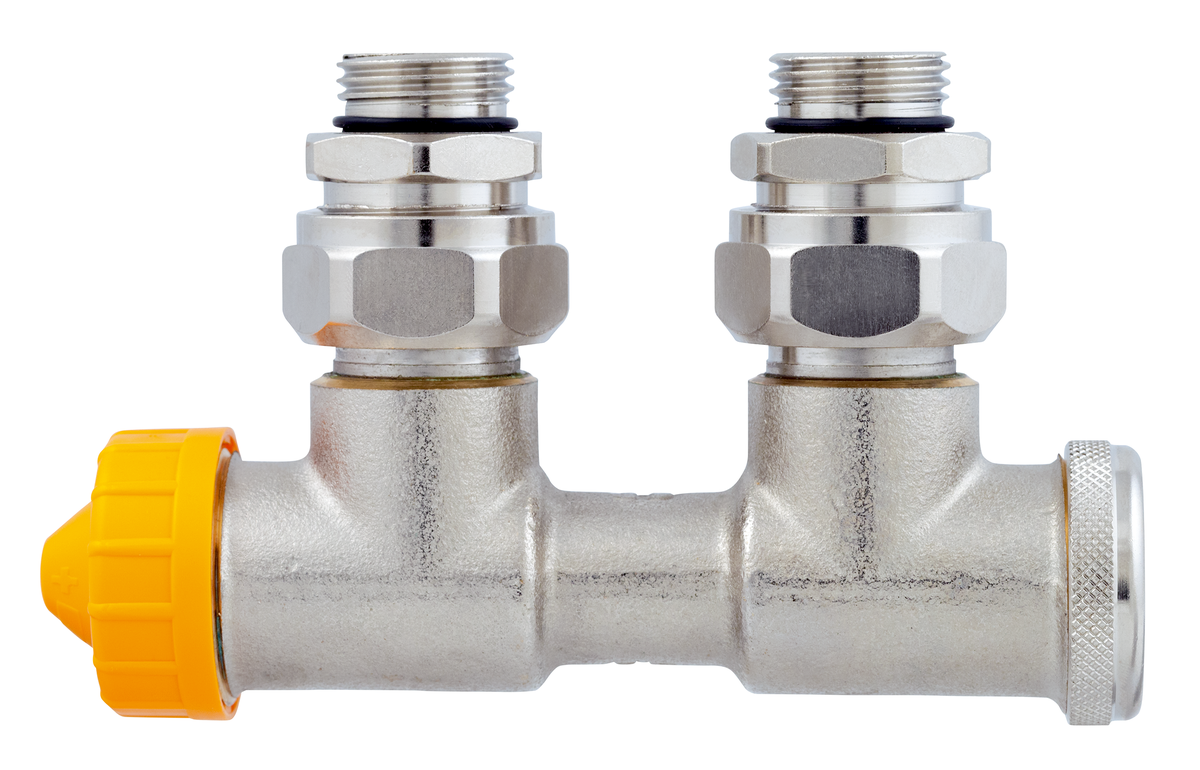

Thermostat-Kombiblock Vario-DP Eck R1/2IG
AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG VOR 92530
AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG RUE 92520 AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG RUE 92520
Thermostat-Kombiblock Vario-DP Durchgang G1/2IG
AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG RUE 92520
AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG RUE 92530 AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG RUE 92530

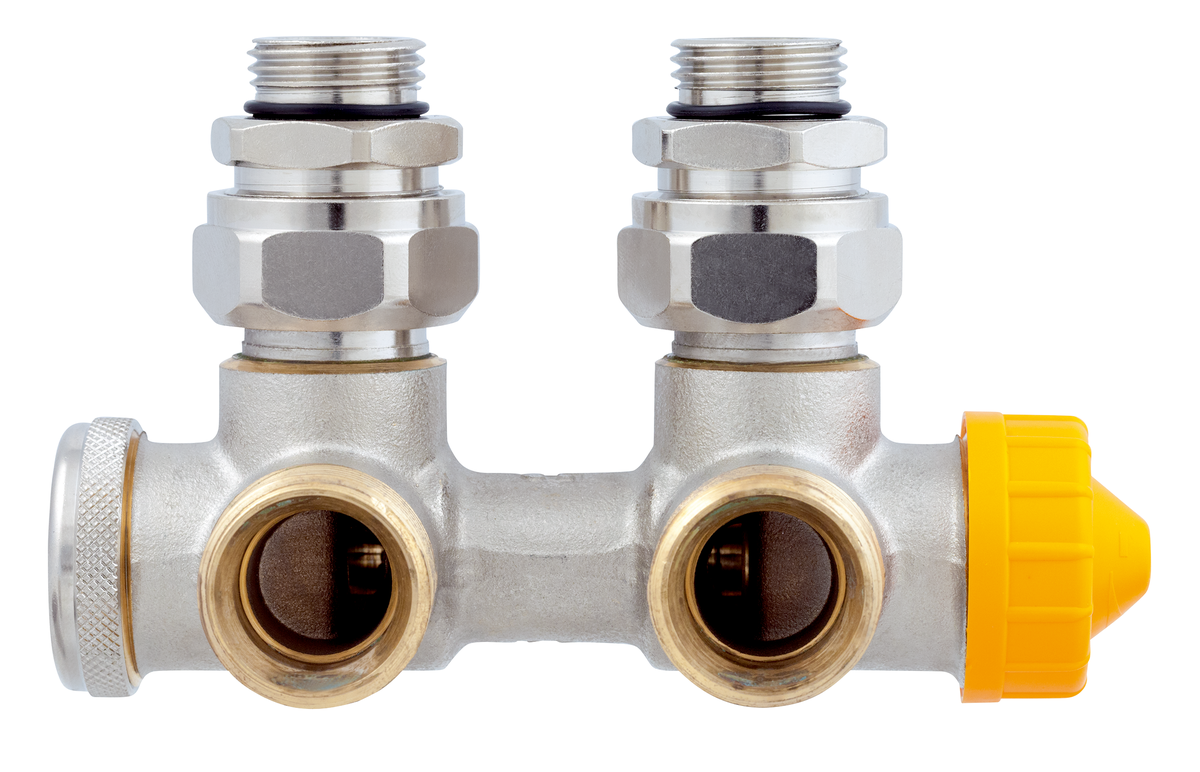

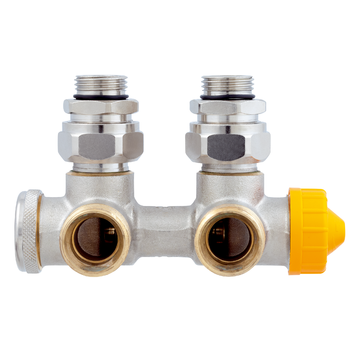

Thermostat-Kombiblock Vario-DP Eck R1/2IG
AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG RUE 92530
AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG ANW 92520 92530 92670 92680 92700 92710 AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG ANW 92520 92530 92670 92680 92700 92710
Thermostat-Kombiblock Vario-DP Durchgang G1/2IG
AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG ANW 92520 92530 92670 92680 92700 92710
AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG BEF 92520 AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG BEF 92520
Thermostat-Kombiblock Vario-DP Durchgang G1/2IG
AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG BEF 92520
AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG BEF 92530 AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG BEF 92530
Thermostat-Kombiblock Vario-DP Eck R1/2IG
AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG BEF 92530
AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG 92520 object_image_56042_de
AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG VOR 92530
AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG RUE 92520
AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG RUE 92530
AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG ANW 92520 92530 92670 92680 92700 92710
AFRISO Thermostat-Kombiblock Vario-DP Durchgang G1/2IG BEF 92520
AFRISO Thermostat-Kombiblock Vario-DP Eck R1/2IG BEF 92530
Datenblatt dynamische Thermostat-Kombiblöcke Vario-DP
Afriso Datenblatt dynamische Thermostat-Kombiblöcke Vario-DP

Ausführungen

Ausführung Nennweite Anschluss Anschluss Art.-Nr. Merken
Zum Heizkörper Zur Rohrleitung

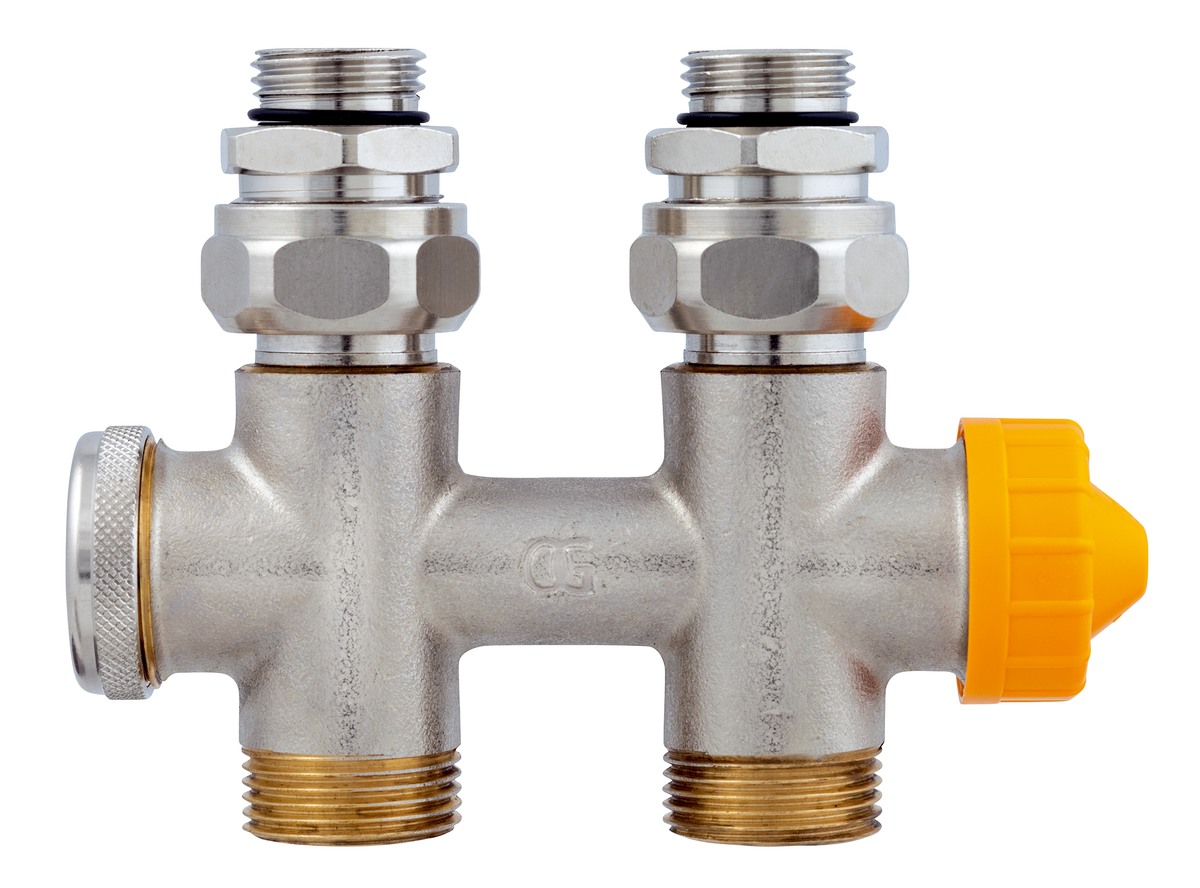

Durchgang DN 15 G½ AG G¾ AG Eurokonus 221 075.100

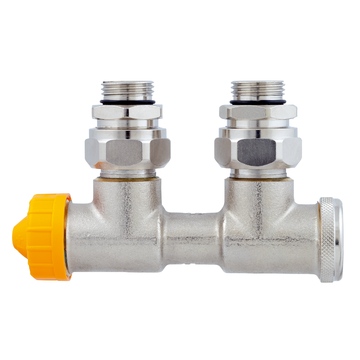

Eck DN 15 G½ AG G¾ AG Eurokonus 221 025.100

Blaue Art.-Nr. = Lagerware

Beschreibung Format Sprache Download / Link
Datenblatt dynamische Thermostat-Kombiblöcke Vario-DP Datenblatt PDF
Afriso Datenblatt dynamische Thermostat-Kombiblöcke Vario-DP

Thermostat-Kombiblock mit Gewindeanschluss M30 x 1,5 mm für Thermostat-Regelköpfe und Antriebe. Montagekappe mit Ventil-Absperrfunktion. Einstellbereich 20–340 l/h, stufenlos einstellbar mit handelsüblichem Heizkörper-Entlüftungsschlüssel. Voreinstellung ohne Zahlenskala direkt ablesbar.

Der patentierte Ventileinsatz mit dynamischem Mengenbegrenzer begrenzt automatisch die am Ventil eingestellte Wassermenge und regelt diese unabhängig von Druckschwankungen in der Heizungsanlage. Das bedeutet, egal wie viele Ventile in der Anlage geöffnet oder geschlossen sind, das Vario-DP sorgt immer für die richtige Wassermenge am Heizkörper. Der Ventileinsatz ist ohne Systementleerung unter Betriebsdruck auswechselbar mit dem Montagegerät MGV.

Systemanschluss
Siehe Bestelltabelle
Anschluss Thermostatkopf/Stellantrieb
Gewindeanschluss M30 x 1,5 mm
Einstellbereich
20/340 l/h
Nenndruck
Max. 10 bar
Differenzdruck (∆p)
Max. 70 kPa
Min. 15 kPa
Nennweite
DN 15
Temperatureinsatzbereich
Medium:
Max. 90 °C
Gehäuse
Messing, vernickelt
