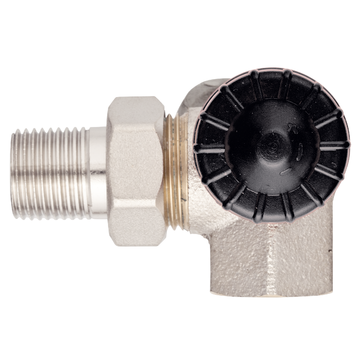

Thermostat-Ventilunterteil Vario M Winkel-Eck rechts DN15 Rp1/2 x R1/2
AFRISO Thermostat-Ventilunterteil Vario M Winkel-Eck rechts DN15 Rp1/2 x R1/2 DRA 93260
AFRISO Thermostat-Ventilunterteil Vario M Winkel-Eck links DN15 Rp1/2 x R1/2 DRA 93280 AFRISO Thermostat-Ventilunterteil Vario M Winkel-Eck links DN15 Rp1/2 x R1/2 DRA 93280

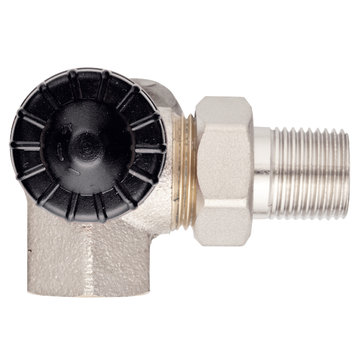

Thermostat-Ventilunterteil Vario M Winkel-Eck links DN15 Rp1/2 x R1/2
AFRISO Thermostat-Ventilunterteil Vario M Winkel-Eck links DN15 Rp1/2 x R1/2 DRA 93280
AFRISO Thermostat-Ventilunterteil Vario M Axial DN15 Rp1/2 x R1/2 DRA 93160 93180 93190 93200 93220 93230 93240 93260 93280 92630 92640 AFRISO Thermostat-Ventilunterteil Vario M Axial DN15 Rp1/2 x R1/2 DRA 93160 93180 93190 93200 93220 93230 93240 93260 93280 92630 92640
Thermostat-Ventilunterteil Vario M Axial DN15 Rp1/2 x R1/2
AFRISO Thermostat-Ventilunterteil Vario M Axial DN15 Rp1/2 x R1/2 DRA 93160 93180 93190 93200 93220 93230 93240 93260 93280 92630 92640
AFRISO Thermostat-Ventilunterteil Vario M Axial DN15 Rp1/2 x R1/2 SAL 93160 object_image_56918_de
AFRISO Thermostat-Ventilunterteil Vario M Durchgang DN10 Rp3/8 x R3/8 SAL 93180 93190 93200
AFRISO Thermostat-Ventilunterteil Vario M Eck DN10 Rp3/8 x R3/8 SAL 93220 93230 93240
AFRISO Thermostat-Ventilunterteil Vario M Winkel-Eck rechts DN15 Rp1/2 x R1/2 DRA 93260
AFRISO Thermostat-Ventilunterteil Vario M Winkel-Eck links DN15 Rp1/2 x R1/2 DRA 93280
AFRISO Thermostat-Ventilunterteil Vario M Axial DN15 Rp1/2 x R1/2 DRA 93160 93180 93190 93200 93220 93230 93240 93260 93280 92630 92640
Datenblatt Thermostat-Ventilunterteile Vario
Afriso Datenblatt Thermostat-Ventilunterteile Vario

Ausführungen

Ausführung Nennweite Anschluss Kv-Wert* Kvs-Wert** Art.-Nr. Merken
Axial DN 15 Rp½ x R½ 0,038 – 0,4 m³/h 0,79 m³/h 143 220.101
Durchgang DN 10 Rp⅜ x R⅜ 0,038 – 0,4 m³/h 0,79 m³/h 141 260.101
Durchgang DN 15 Rp½ x R½ 0,038 – 0,4 m³/h 0,79 m³/h 141 270.101
Durchgang DN 20 Rp¾ x R¾ 0,038 – 0,4 m³/h 0,79 m³/h 141 280.101
Eck DN 10 Rp⅜ x R⅜ 0,038 – 0,4 m³/h 0,79 m³/h 141 210.101
Eck DN 15 Rp½ x R½ 0,038 – 0,4 m³/h 0,79 m³/h 141 220.101
Eck DN 20 Rp¾ x R¾ 0,038 – 0,4 m³/h 0,79 m³/h 141 230.101
Winkel-Eck rechts DN 15 Rp½ x R½ 0,038 – 0,4 m³/h 0,79 m³/h 145 220.101
Winkel-Eck links DN 15 Rp½ x R½ 0,038 – 0,4 m³/h 0,79 m³/h 147 220.101

Blaue Art.-Nr. = Lagerware

Beschreibung Format Sprache Download / Link
Datenblatt Thermostat-Ventilunterteile Vario Datenblatt PDF
Afriso Datenblatt Thermostat-Ventilunterteile Vario
Geräuscharmes Thermostat-Ventilunterteil mit Gewindeanschluss M30 x 1,5 mm für Thermostat-Regelköpfe und Antriebe. Montagekappe mit Ventil-Absperrfunktion. Stufenlos einstellbar mit Einstellschlüssel ES-SV. Ventilspindel mit doppelter O-Ring-Abdichtung. Der Ventileinsatz ist ohne Systementleerung unter Betriebsdruck auswechselbar mit dem Montagegerät MGV.
Systemanschluss
Siehe Bestelltabelle
Anschluss Thermostatkopf/Stellantrieb
Gewindeanschluss M30 x 1,5 mm
Einstellbereich
12 – 250 l/h
Nenndruck
Max. 10 bar
Nennweite
DN 10, DN 15, DN 20
Temperatureinsatzbereich
Medium:
Max. 120 °C
Gehäuse
Rotguss, vernickelt
Für Detailansichten, Zusatzinformationen und Maßtabellen bitte auf das jeweilige Bild klicken.
Vario M – axial
Vario M – axial
Afriso
Maße (mm):
DN D d2 SW1 SW2 b L0 L1 L2 L3 L4 L5
10 Rp⅜ R⅜ 22 27 10,1 23 59 85 26 52 22
15 Rp½ 27 30 13,2 23 66 95 29 58 26
20 Rp¾ 32 37 14,5 23 74 106 34 66 29
H: Höhe Regelkopf
Vario M – Durchgang
Vario M – Durchgang
Afriso
Maße (mm):
DN D d2 SW1 SW2 b L0 L1 L2 L3 L4 L5
10 Rp⅜ R⅜ 22 27 10,1 23 59 85 26 52 22
15 Rp½ 27 30 13,2 23 66 95 29 58 26
20 Rp¾ 32 37 14,5 23 74 106 34 66 29
H: Höhe Regelkopf
Vario M – Eck
Vario M – Eck
Afriso
Maße (mm):
DN D d2 SW1 SW2 b L0 L1 L2 L3 L4 L5
10 Rp⅜ R⅜ 22 27 10,1 23 59 85 26 52 22
15 Rp½ 27 30 13,2 23 66 95 29 58 26
20 Rp¾ 32 37 14,5 23 74 106 34 66 29
H: Höhe Regelkopf

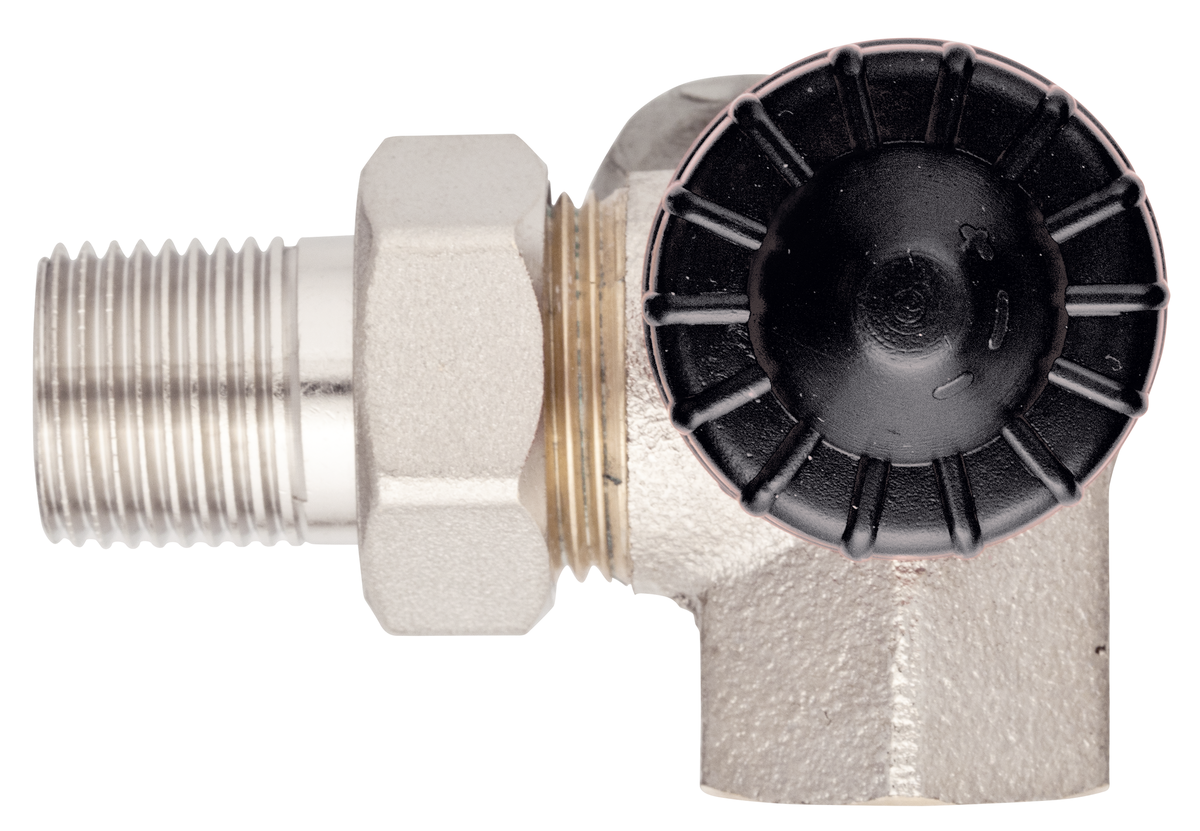

Vario M – Winkel-Eck, rechts
Vario M – Winkel-Eck, rechts
Afriso
Maße (mm):
DN D d2 SW1 SW2 b L0 L1 L2 L3 L4 L5
10 Rp⅜ R⅜ 22 27 10,1 23 59 85 26 52 22
15 Rp½ 27 30 13,2 23 66 95 29 58 26
20 Rp¾ 32 37 14,5 23 74 106 34 66 29
H: Höhe Regelkopf

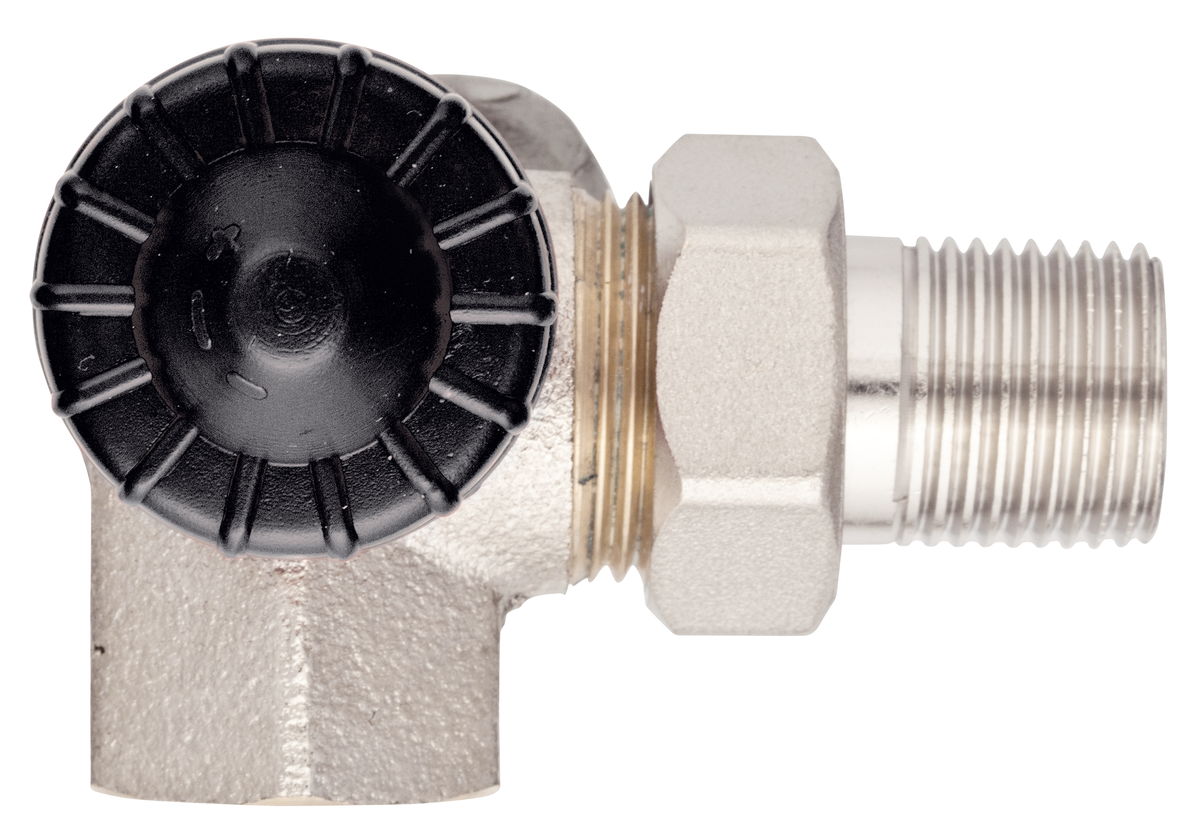

Vario M – Winkel-Eck, links
Vario M – Winkel-Eck, links
Afriso
Maße (mm):
DN D d2 SW1 SW2 b L0 L1 L2 L3 L4 L5
10 Rp⅜ R⅜ 22 27 10,1 23 59 85 26 52 22
15 Rp½ 27 30 13,2 23 66 95 29 58 26
20 Rp¾ 32 37 14,5 23 74 106 34 66 29
H: Höhe Regelkopf
