Datenblatt Thermostat-Ventilunterteile VarioQ
AFRISO Datenblatt Thermostat-Ventilunterteile VarioQ

Ausführungen

Ausführung Nenndruck Nennweite Anschluss Kv-Wert* Kvs-Wert** Art.-Nr. Merken

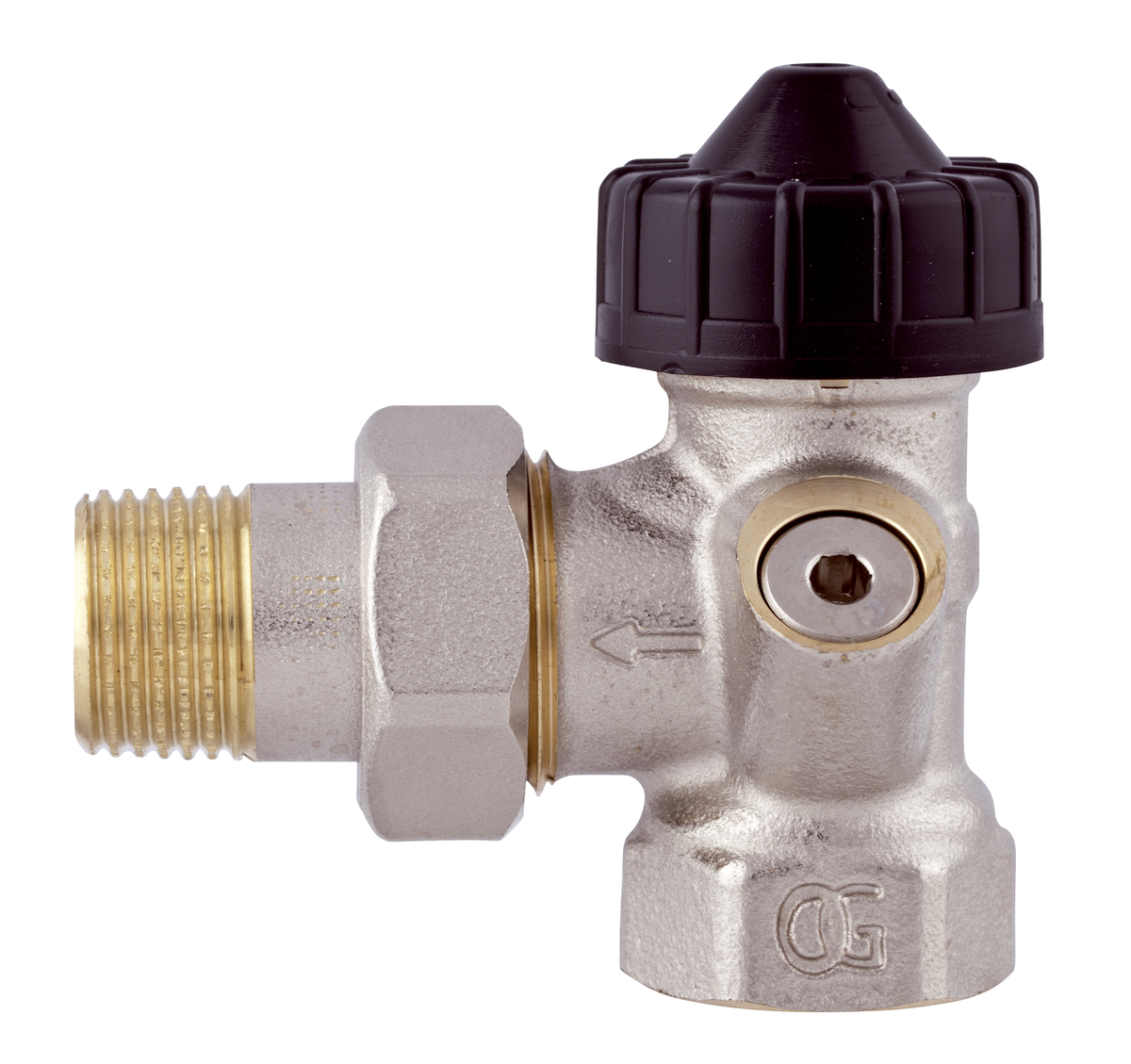

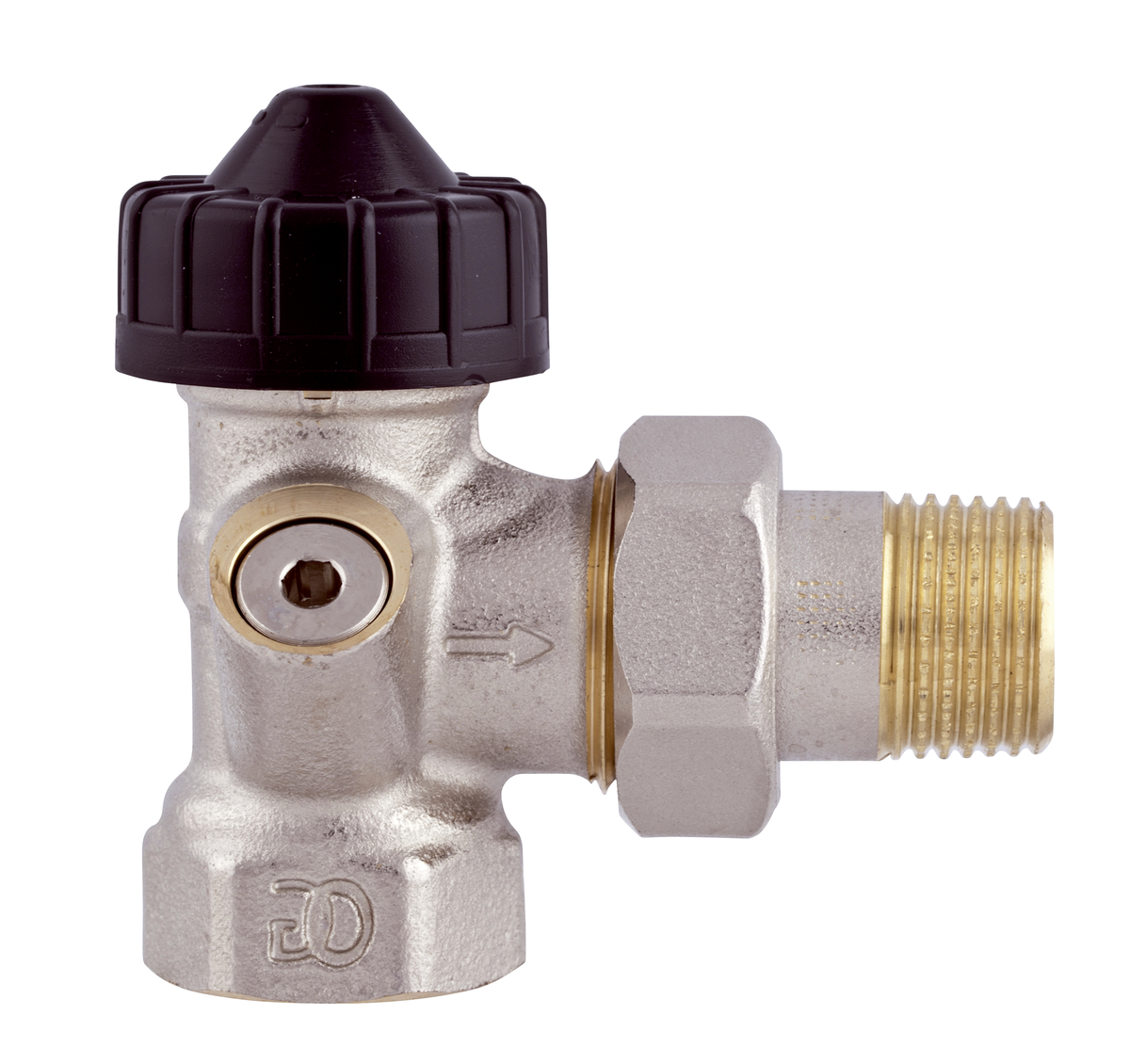

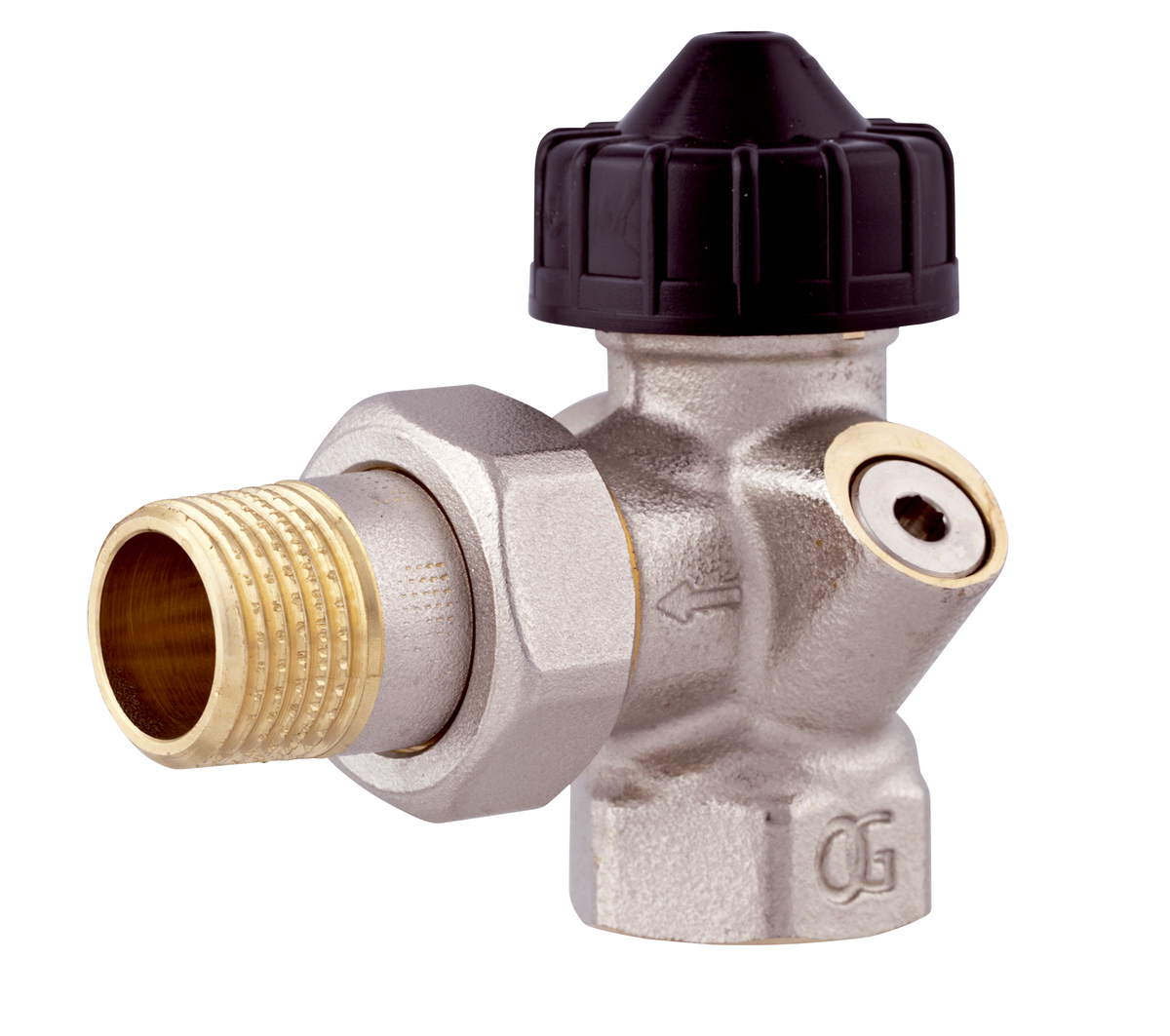

Eck PN 10 DN 10 Rp⅜ x R⅜ 0,019 – 0,24 m³/h 0,25 m³/h 181 110.101

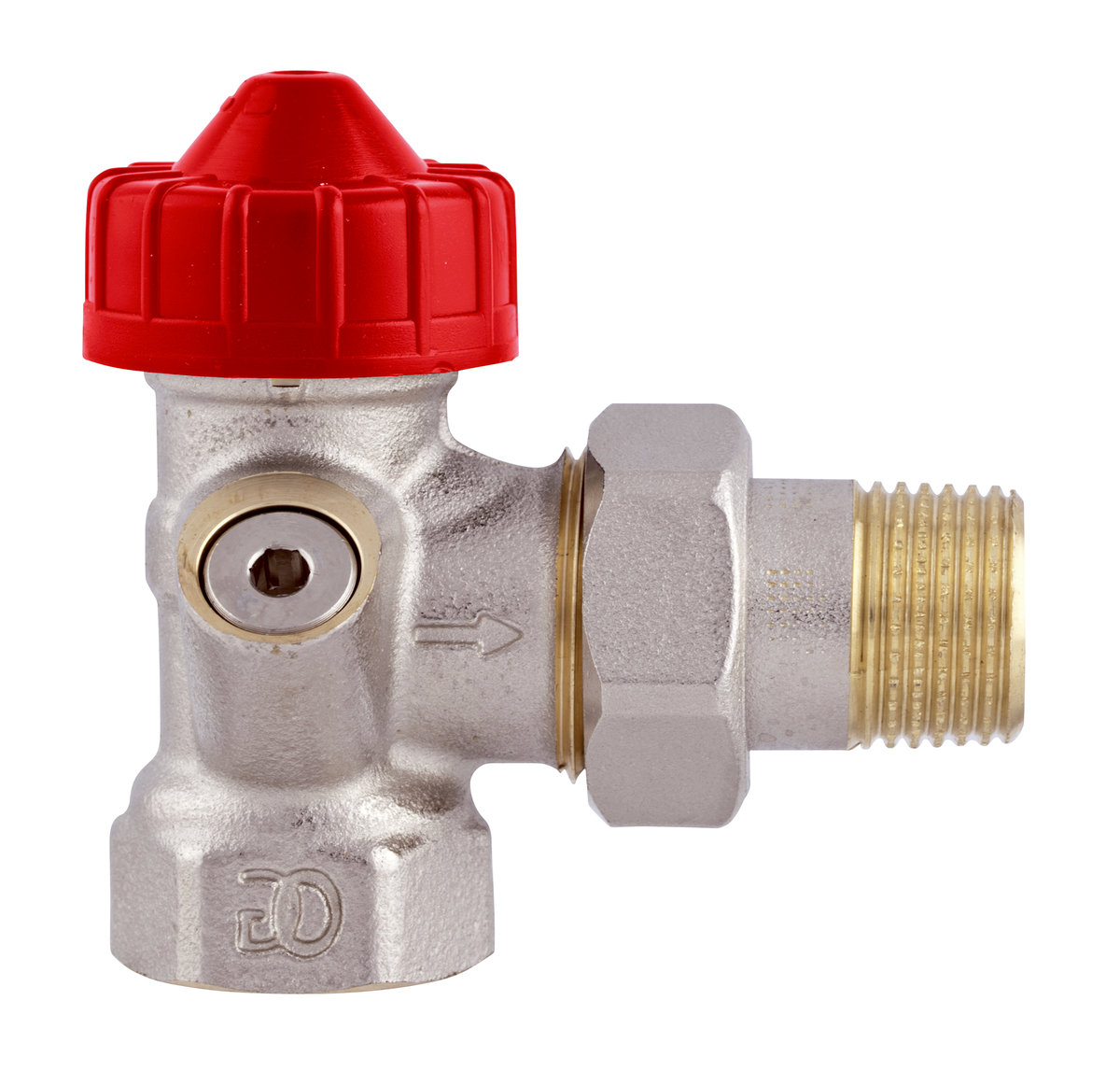

Eck PN 10 DN 15 Rp½ x R½ 0,019 – 0,24 m³/h 0,25 m³/h 181 120.101
Eck PN 10 DN 20 Rp¾ x R¾ 0,019 – 0,24 m³/h 0,25 m³/h 181 130.101

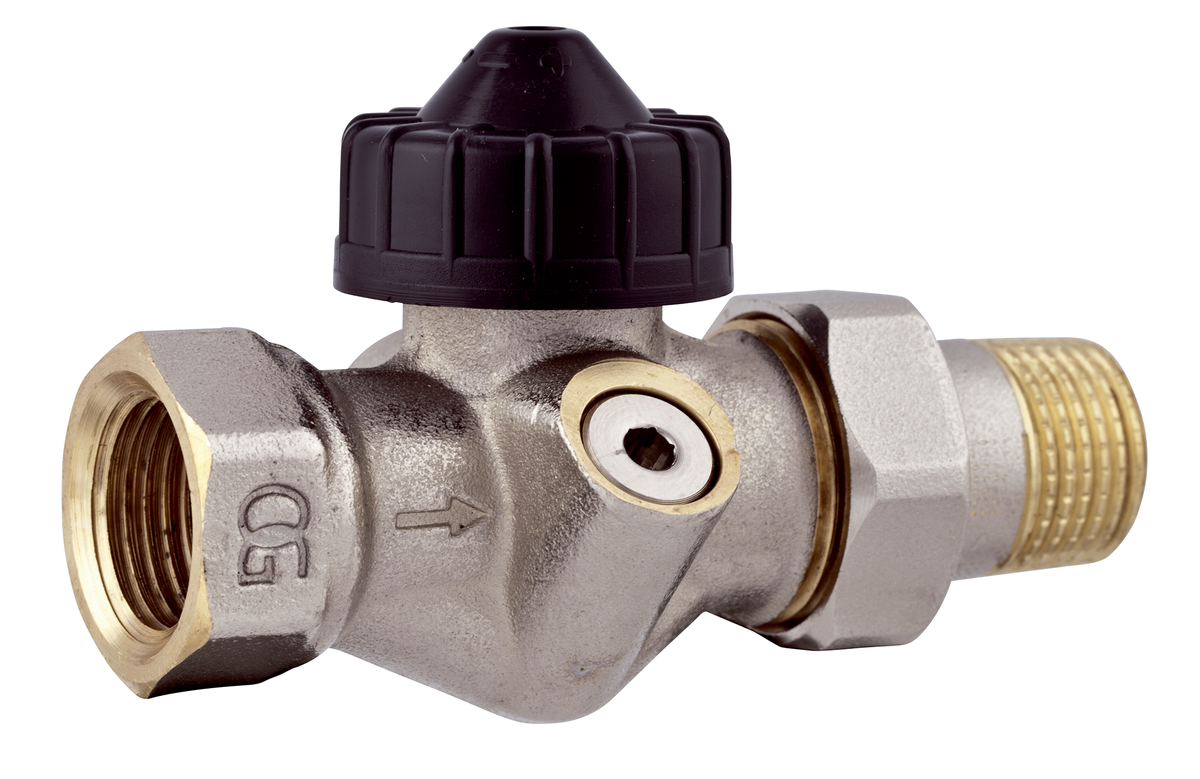

Durchgang PN 10 DN 10 Rp⅜ x R⅜ 0,019 – 0,24 m³/h 0,25 m³/h 181 160.101
Durchgang PN 10 DN 15 Rp½ x R½ 0,019 – 0,24 m³/h 0,25 m³/h 181 170.101
Durchgang PN 10 DN 20 Rp¾ x R¾ 0,019 – 0,24 m³/h 0,25 m³/h 181 180.101

Blaue Art.-Nr. = Lagerware

Ausführung Nenndruck Nennweite Anschluss Kv-Wert* Kvs-Wert** Art.-Nr. Merken

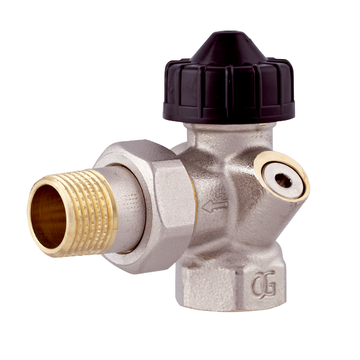

Eck PN 10 DN 10 Rp⅜ x R⅜ 0,044 – 0,46 m³/h 0,68 m³/h 181 210.101

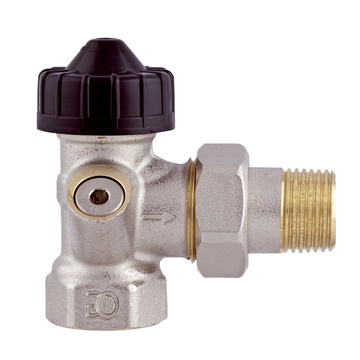

Eck PN 10 DN 15 Rp½ x R½ 0,044 – 0,46 m³/h 0,68 m³/h 181 220.101
Eck PN 10 DN 20 Rp¾ x R¾ 0,044 – 0,46 m³/h 0,68 m³/h 181 230.101
Durchgang PN 10 DN 10 Rp⅜ x R⅜ 0,044 – 0,46 m³/h 0,68 m³/h 181 260.101

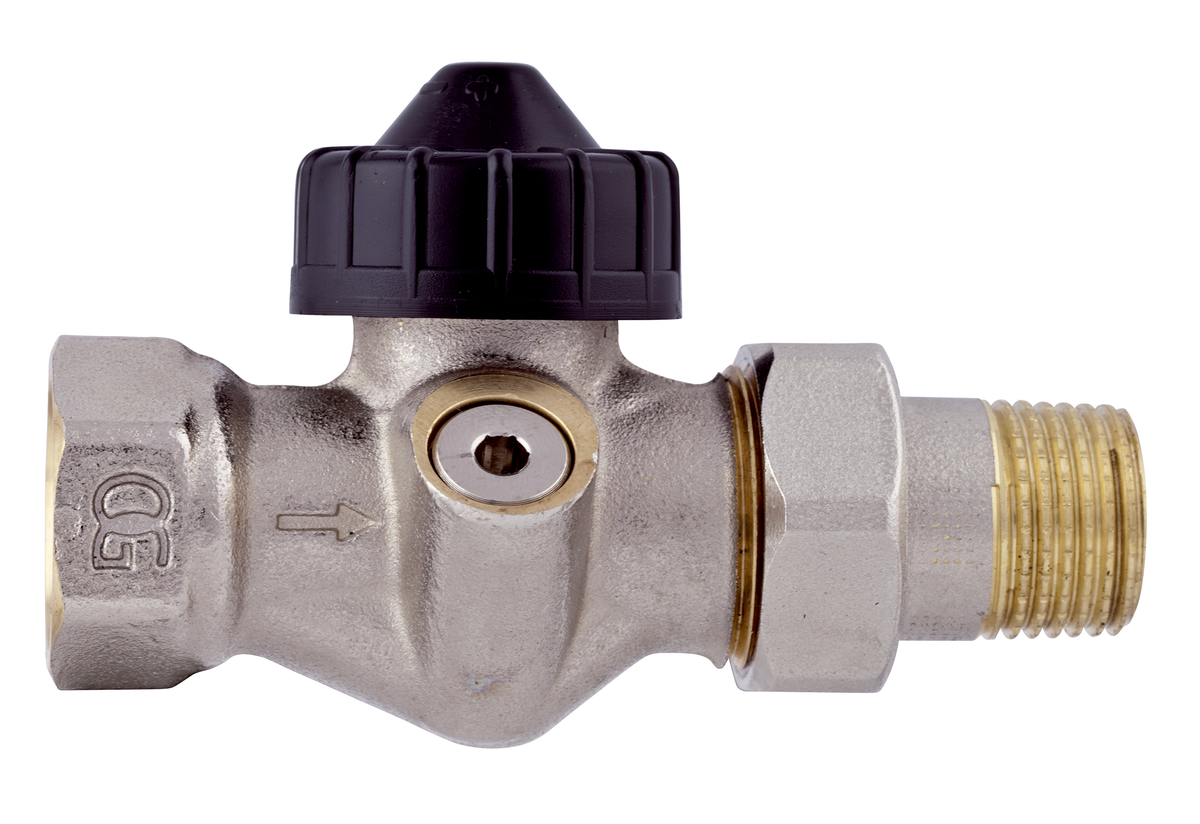

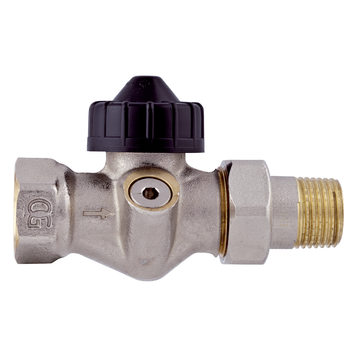

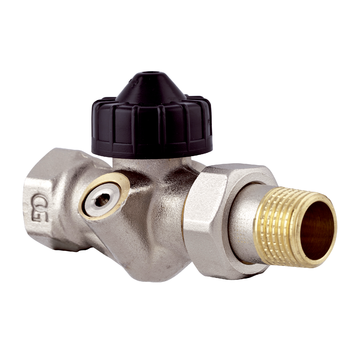

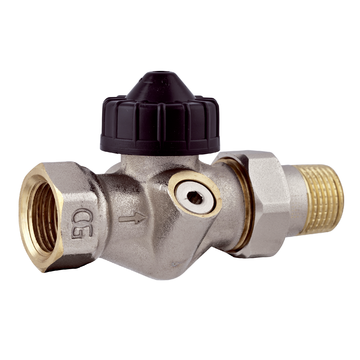

Durchgang PN 10 DN 15 Rp½ x R½ 0,044 – 0,46 m³/h 0,68 m³/h 181 270.101
Durchgang PN 10 DN 20 Rp¾ x R¾ 0,044 – 0,46 m³/h 0,68 m³/h 181 280.101

Blaue Art.-Nr. = Lagerware

Ausführung Nenndruck Nennweite Anschluss Kv-Wert* Kvs-Wert** Art.-Nr. Merken

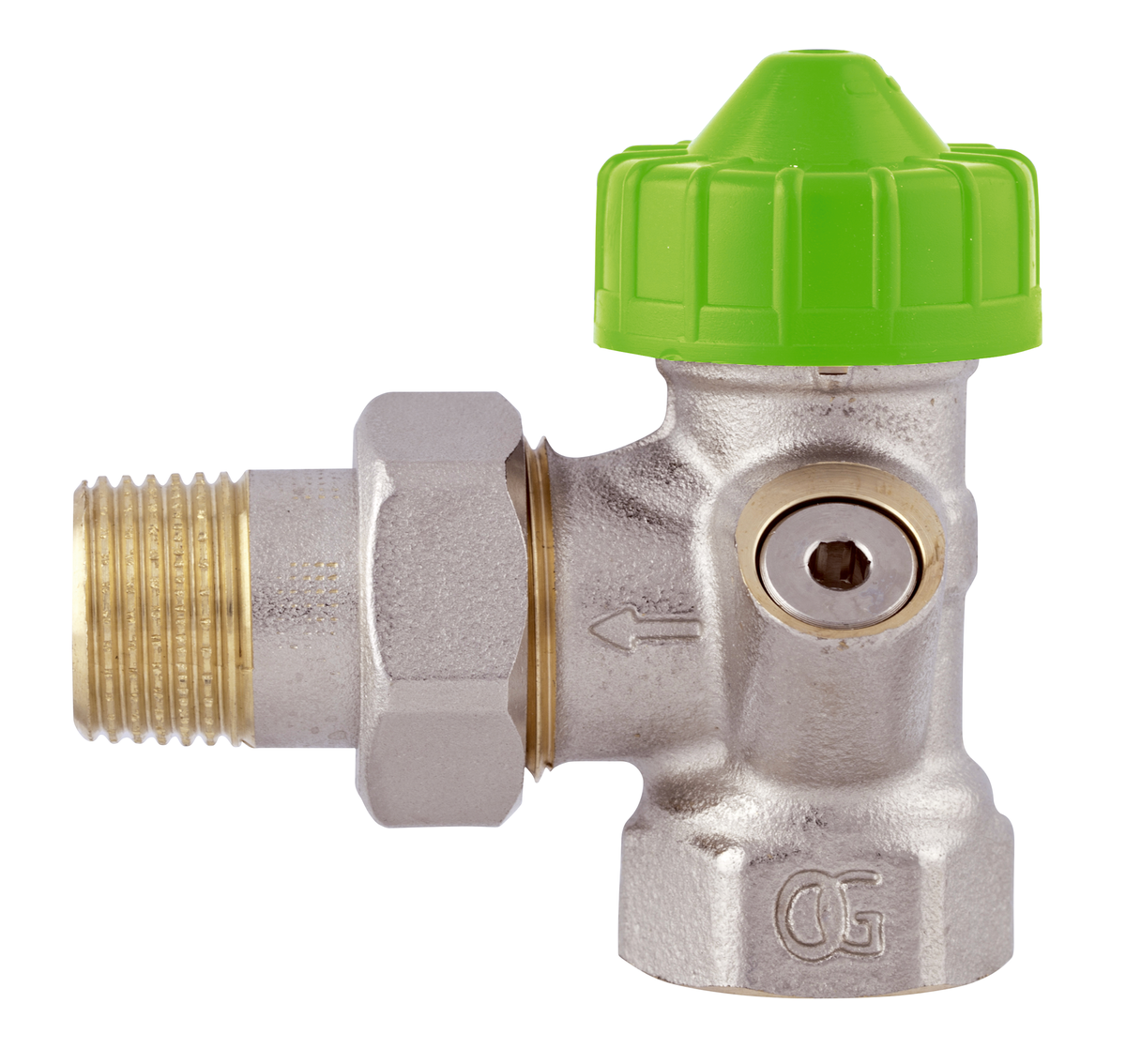

Eck PN 10 DN 10 Rp⅜ x R⅜ 0,125 – 0,51 m³/h 0,94 m³/h 181 310.101

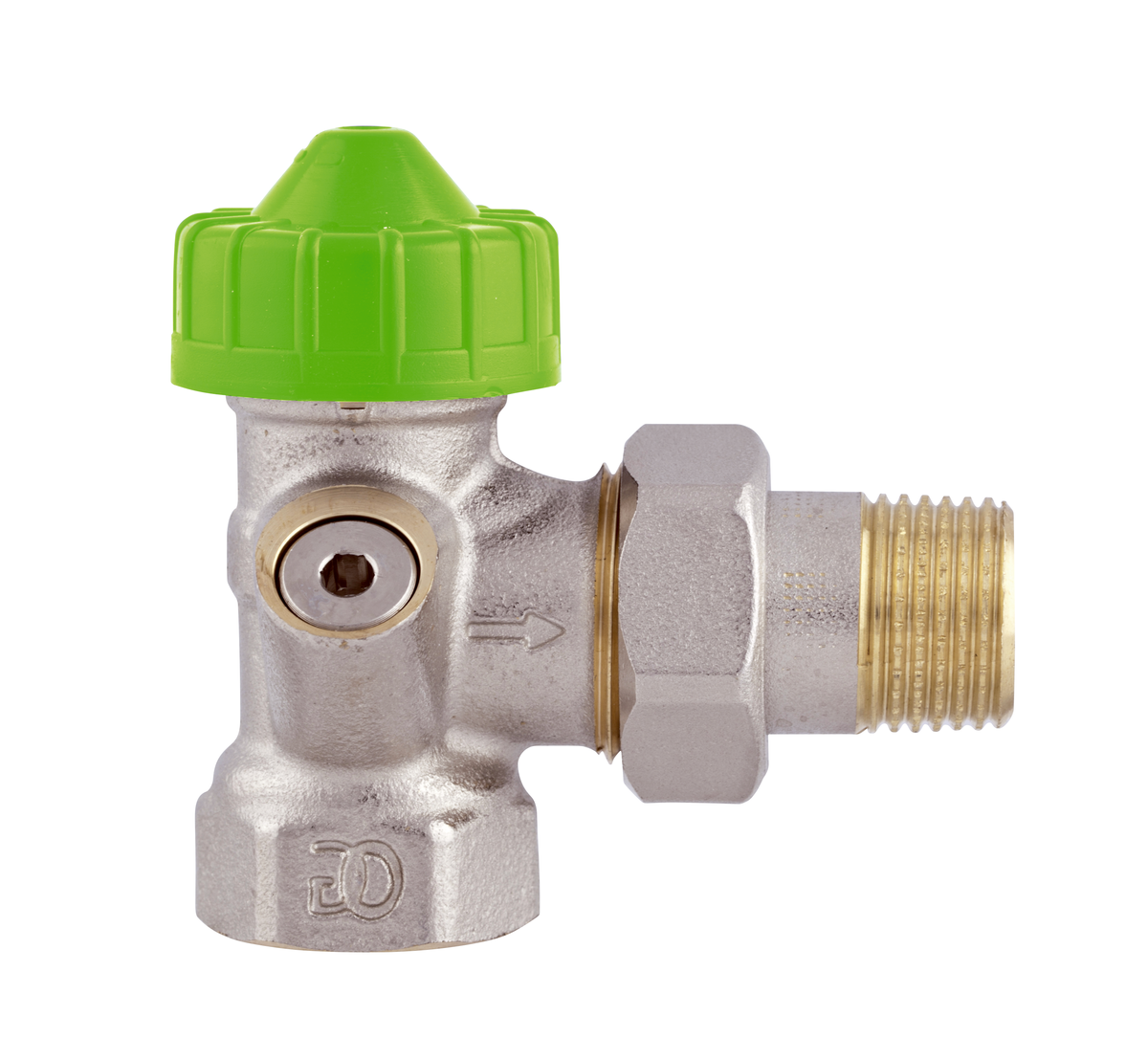

Eck PN 10 DN 15 Rp½ x R½ 0,125 – 0,51 m³/h 0,94 m³/h 181 320.101
Eck PN 10 DN 20 Rp¾ x R¾ 0,125 – 0,51 m³/h 0,94 m³/h 181 330.101
Durchgang PN 10 DN 10 Rp⅜ x R⅜ 0,125 – 0,51 m³/h 0,94 m³/h 181 360.101

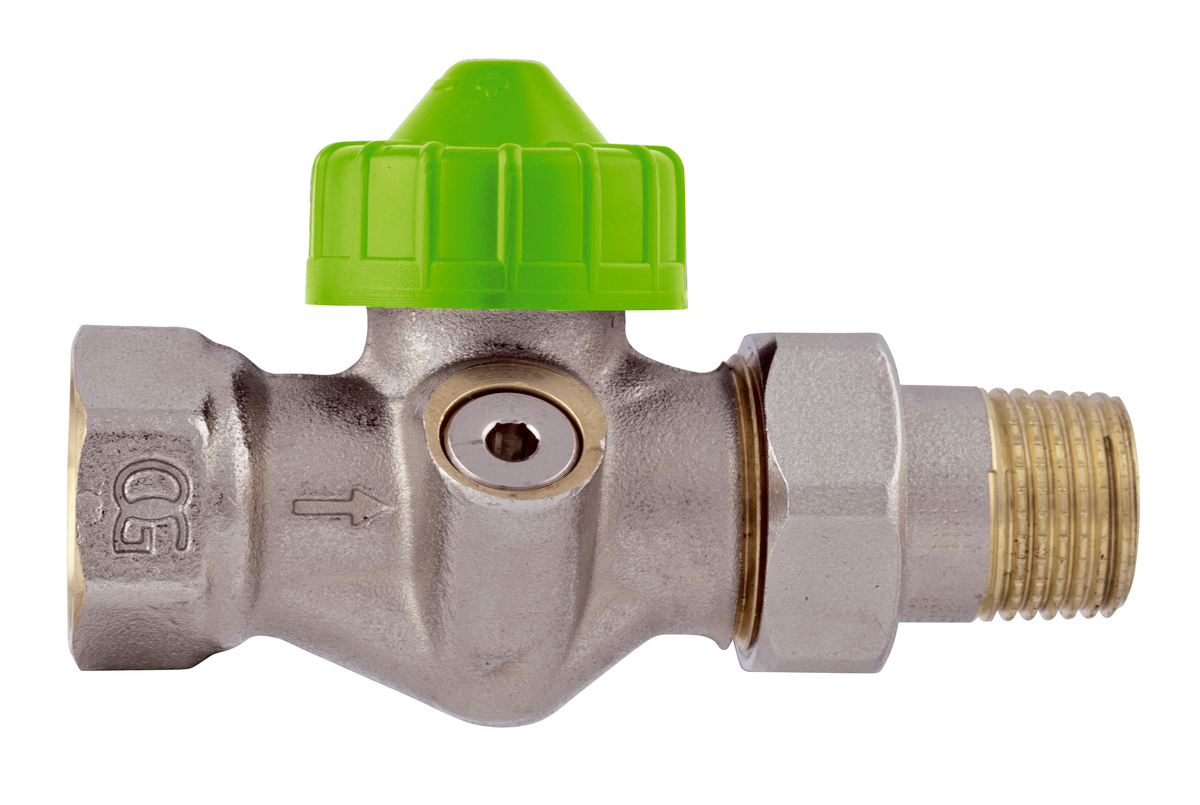

Durchgang PN 10 DN 15 Rp½ x R½ 0,125 – 0,51 m³/h 0,94 m³/h 181 370.101
Durchgang PN 10 DN 20 Rp¾ x R¾ 0,125 – 0,51 m³/h 0,94 m³/h 181 380.101

Blaue Art.-Nr. = Lagerware

Art.-Nr. Merken
Einstellschlüssel ES-SV für Ventilunterteile Vario, VarioQ und Vario-DP 140 110.850
Ventileinsatz S für DN 10 - DN 20 140 110.221
Ventileinsatz M für DN 10 - DN 20 140 210.221
Ventileinsatz L für DN 10 - DN 20 140 310.221

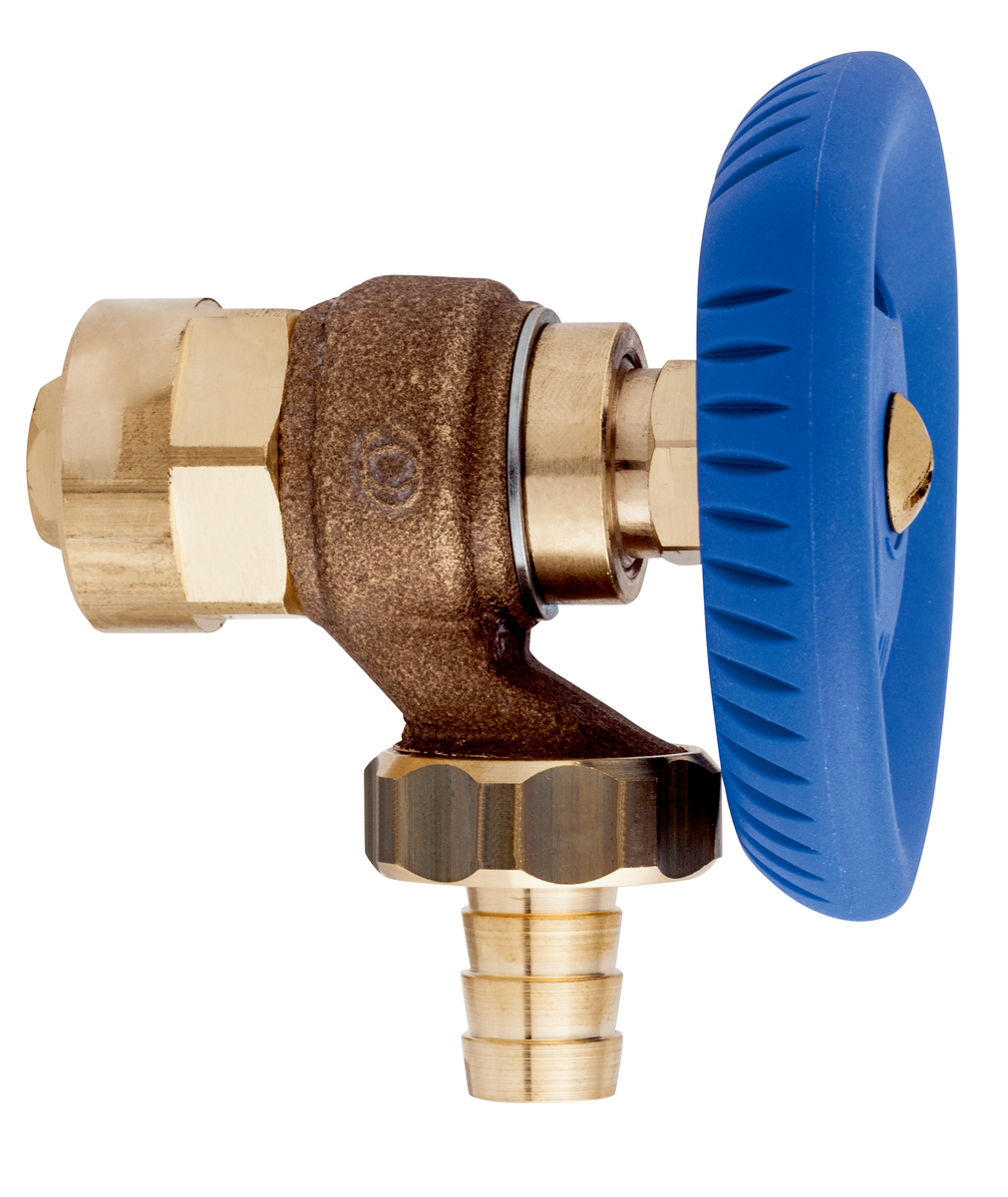

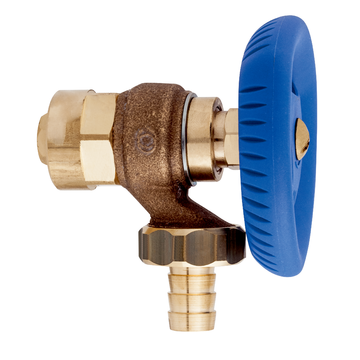

Füll- und Entleervorrichtung FEV 04 für Thermostat-Ventilunterteile Vario/VarioQ und Kombiblöcke Vario THK 140 110.870

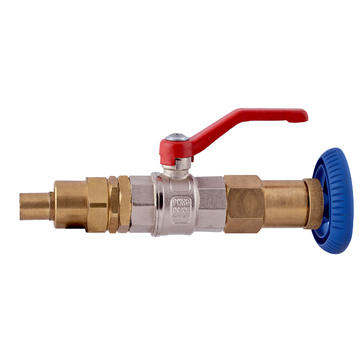

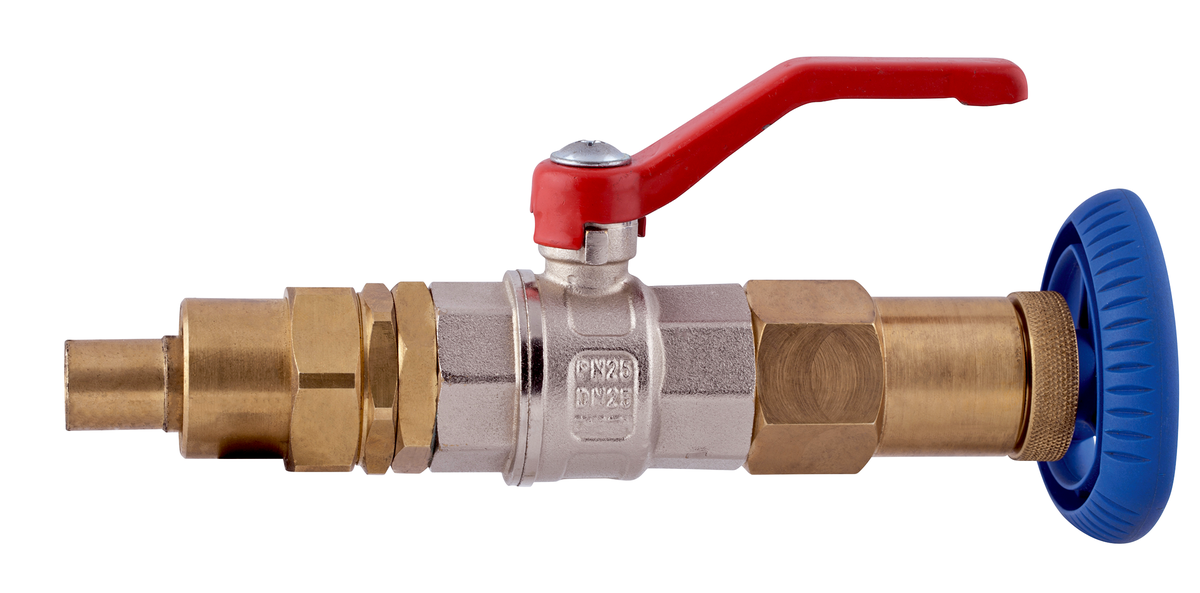

Montagegerät MGV zum Austausch der Ventileinsätze Vario, VarioQ und Vario-DP 140 110.860

Blaue Art.-Nr. = Lagerware

Beschreibung Format Sprache Download / Link
Datenblatt Thermostat-Ventilunterteile VarioQ Datenblatt PDF
AFRISO Datenblatt Thermostat-Ventilunterteile VarioQ
Berechnungssoftware für den hydraulischen Abgleich VarioQCalc - Testversion bis 10 Heizkörper Hydraulischer Abgleich ZIP AFRISO Berechnungssoftware für den hydraulischen Abgleich VarioQCalc - Testversion bis 10 Heizkörper

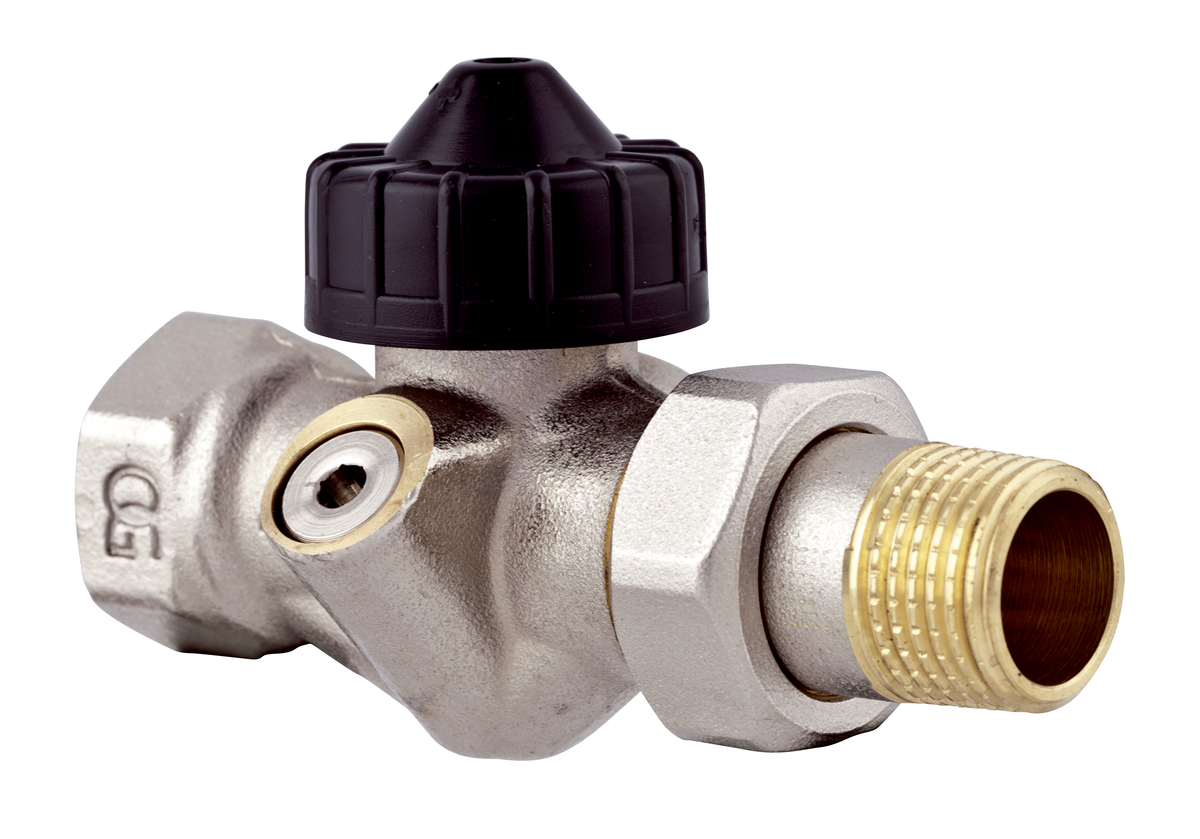

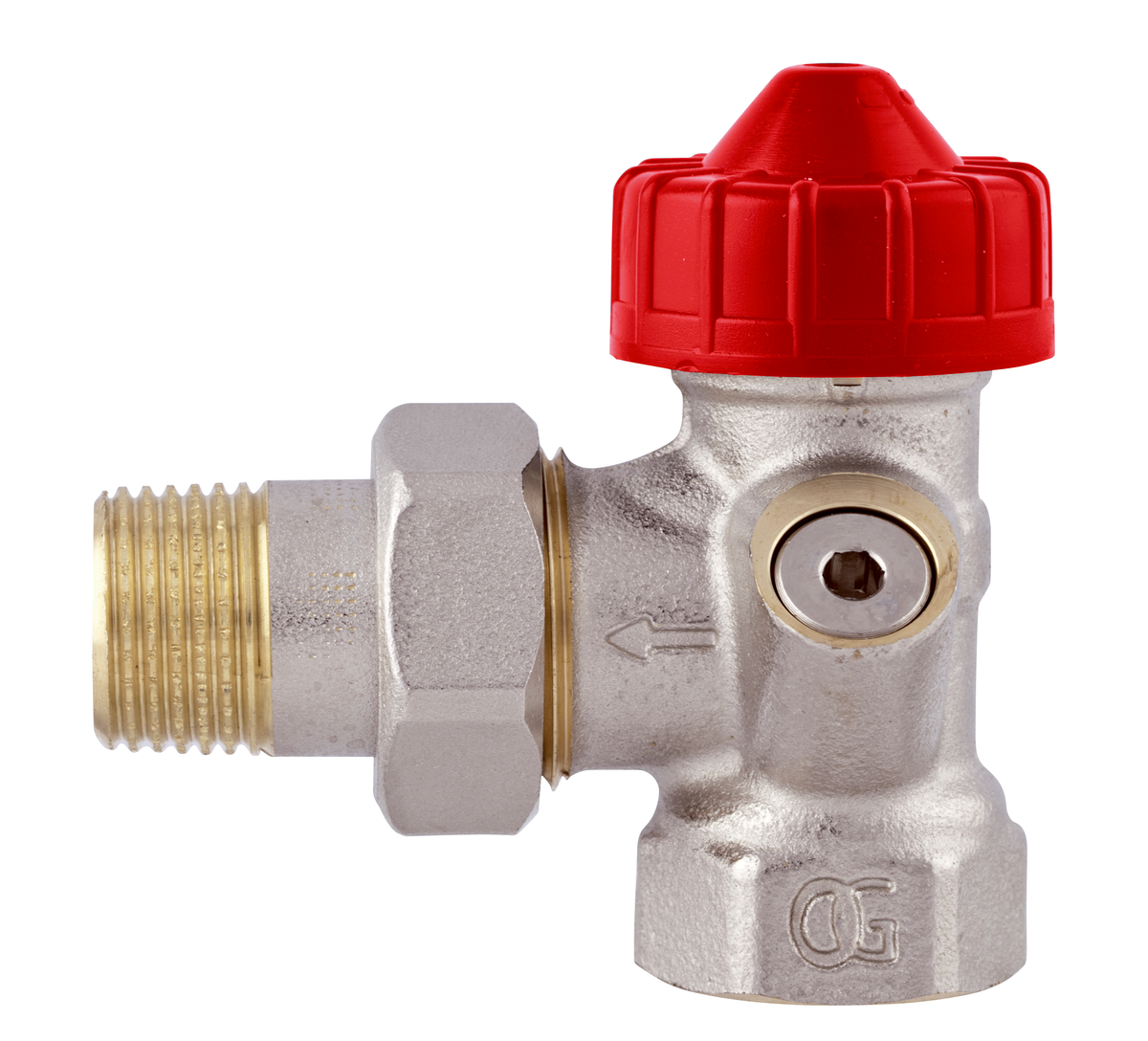

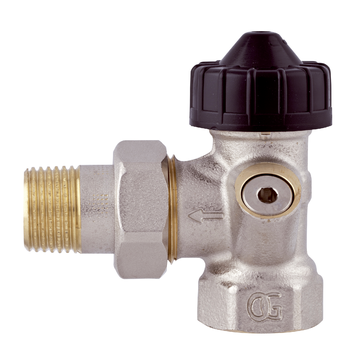

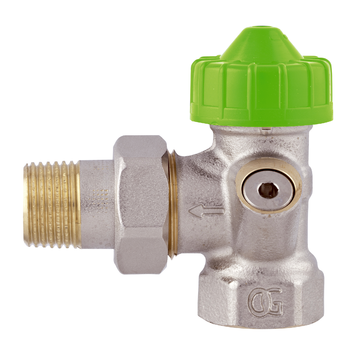

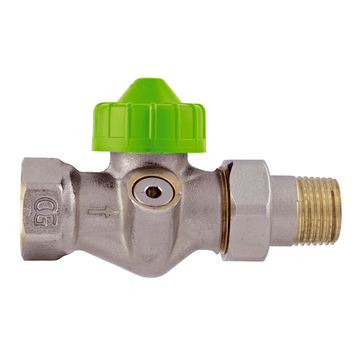

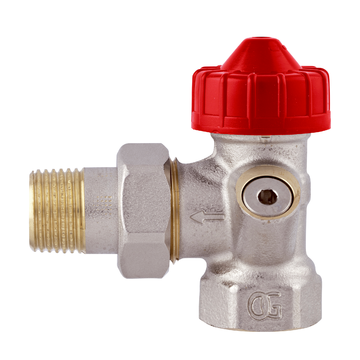

Patentiertes, geräuscharmes Thermostat-Ventilunterteil mit fester, kalibrierter Messblende zur Messung und Einstellung des Volumenstromes direkt am Ventil. Montagekappe mit Ventil-Absperrfunktion. Gewindeanschluss M30 x 1,5 mm für Thermostat-Regelköpfe und Antriebe. Stufenlos einstellbar mit Einstellschlüssel ES-SV. Ventilspindel mit doppelter O-Ring-Abdichtung. Der Ventileinsatz ist ohne Systementleerung unter Betriebsdruck auswechselbar mit dem Montagegerät MGV.

VarioQ ist ein dreistufiges System für den hydraulischen Abgleich, das die Optimierung des Heizungsnetzes durch Berechnung, Messung und Einstellung erreicht. Mit dem CAPBs®-Set Ventilabgleich (Messgerät) wird der Durchfluss in Litern pro Stunde gemessen und die Wassermenge kann ohne Umrechnung problemlos am Ventil angepasst werden. Selbst kleinste Durchflussmengen sind mit diesem System einstellbar.

VarioQ-Thermostatventile sind mittels Einstellschlüssel ES-SV stufenlos einstellbar, ausgehend von offener Stellung (8 = offen), die Zahlen 1–8 befinden sich auf dem Einstellschlüssel. Marke fluchtet mit Markierung. Jede 1/8-Umdrehung entspricht einer Durchflusskennlinie, dargestellt im Diagramm (siehe Betriebsanleitung).

Systemanschluss
Siehe Bestelltabelle
Anschluss Thermostatkopf/Stellantrieb
Gewindeanschluss M30 x 1,5 mm
Einstellbereich
VarioQ S:
6 – 80 l/h
VarioQ M:
14 – 215 l/h
VarioQ L:
39 – 300 l/h
Nenndruck
Max. 10 bar
Nennweite
DN 10, DN 15, DN 20
Temperatureinsatzbereich
Medium:
Max. 120 °C
Gehäuse
Messing, vernickelt
Optionen
  • Ausführung PN 16
Für Detailansichten, Zusatzinformationen und Maßtabellen bitte auf das jeweilige Bild klicken.

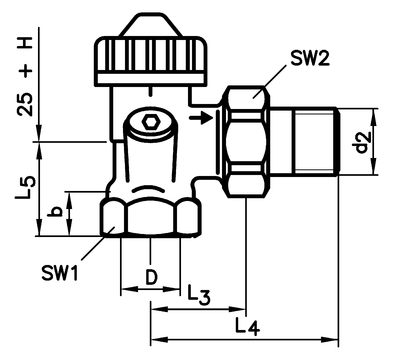

VarioQ S, M, L – Eck
VarioQ S, M, L – Eck
AFRISO
Maße (mm):
DN D d1 d2 SW1 SW2 b L1 L2 L3 L4 L5
10 Rp⅜ - R⅜ 22 27 10,1 59 85 26 52 22
15 Rp½ 27 30 13,2 66 95 29 58 26
20 Rp¾ - 32 37 14,5 74 106 34 66 29
H: Höhe Regelkopf

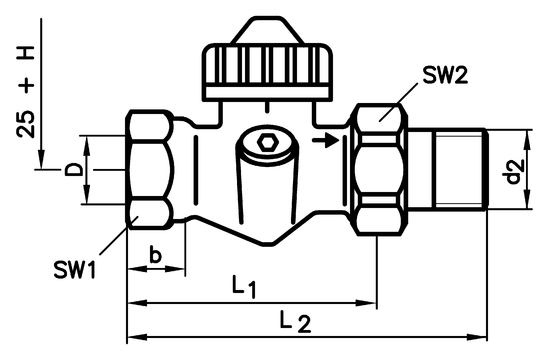

VarioQ S, M, L – Durchgang
VarioQ S, M, L – Durchgang
AFRISO
Maße (mm):
DN D d1 d2 SW1 SW2 b L1 L2 L3 L4 L5
10 Rp⅜ - R⅜ 22 27 10,1 59 85 26 52 22
15 Rp½ 27 30 13,2 66 95 29 58 26
20 Rp¾ - 32 37 14,5 74 106 34 66 29
H: Höhe Regelkopf
