Measuring and control technology for hygienic processes
Titelbild_1500x450px_EN
A comprehensive range of measuring technology for hygienic systems and processes.

Innovation and rapid development characterise the production processes in the cosmetics, beverages, food, biotechnology and pharmaceutical industries. The production processes in these industries are particularly  demanding. Specific product properties need to comply with special hygienic requirements. The products are manufactured in highly complex and sometimes sterile processes.

Measuring and control components in machines and production facilities must therefore meet the highest standards. Sterile process separation, hygienic design of devices, superior quality of materials and maximum measuring accuracy are some of the key factors for maximum process reliability.

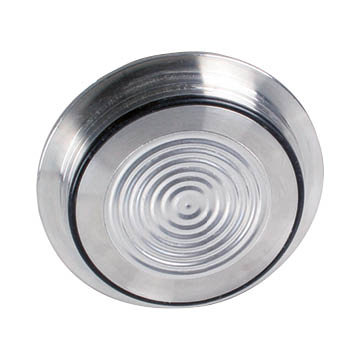

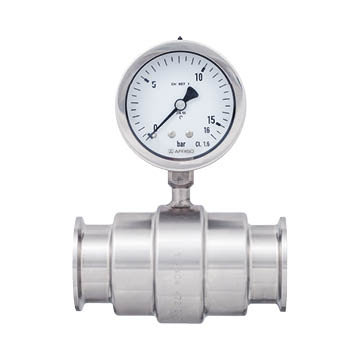

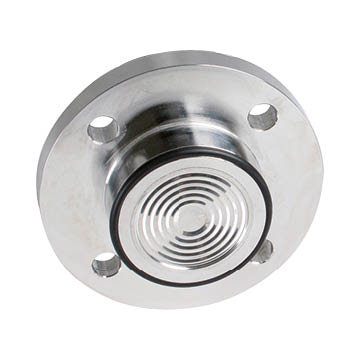

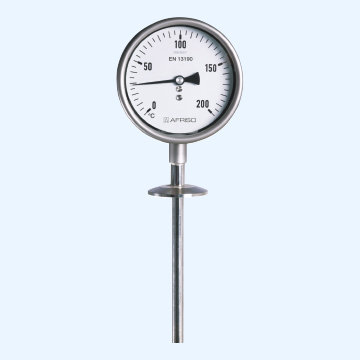

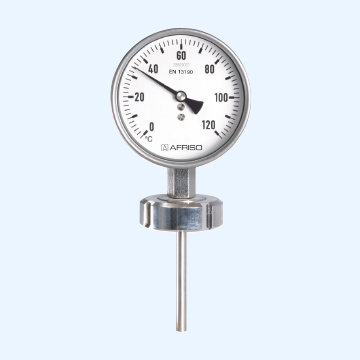

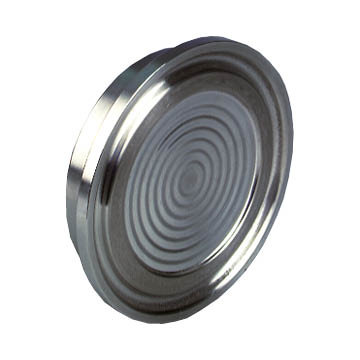

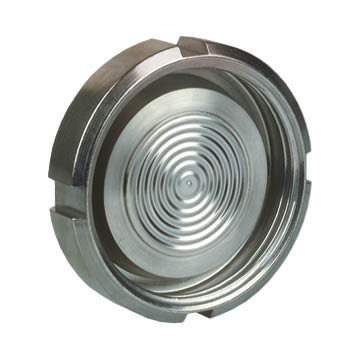

AFRISO components and system solutions are adapted to suit specific production processes and comply with the pertinent hygienic regulations and recommendations to meet stringent requirements. Our robust measuring devices deliver perfect measuring results and reliably monitor and control simple to highly complex processes. Sophisticated kit systems and innovative ideas such as the seal-free design of diaphragm seals, pressure transmitters and thermometers help in the continuous optimisation of production facilities.

Discover new possibilities for your applications. With AFRISO.

Requirements for sterile processes
Anschlüsse EN

Manufacturing and processing food, cosmetics and pharmaceuticals involve highly demanding production technologies. A vast array of standards and stringent directives cover all aspects of the hygienic design of machines,
systems and, of course, peripheral equipment such as measuring instruments. AFRISO products consider these standards. National and international approvals and certificates ensure superior quality.

AFRISO products are subject to stringent requirements
Labeluebersicht


Quality assurance according to ISO 9001 and an environmental management according to ISO 14 001 are self-evident for us an implemented in every process. The certified quality and environmental management system guarantees safety for people, processes and the environment.


(Safety integrity level as per IEC 61508/IEC 61511)


(Pressure Equipment Directive)
Pressure Equipment Directive 97/23/EG


Official certificate for the general use or the operation of measuring instruments in Russia. Issued by the Russian Meteorological Institute.


Organisation of the US Department of Health. Issues recommendations, directives and test methods for the examination of materials.


Specifies directives with characteristics for the hygienic design of devices for processing food. It recommends the design of components and test methods for using and cleaning such devices.


(Product directive 94/9/EG, workplace directive 1999/92/EG)


Non-profit organisation (USA) for product safety in processes of the food and pharmaceutical industries.

Measuring technology for hygienic processes

Hygienic production equipment is designed in such a way as to avoid external contamination and microbiological pollution and to ensure easy cleaning. All wetted parts, i. e. materials coming into contact with the medium, must have been tested and classified as hygienic. The materials used in hygienic AFRISO measuring systems meet FDA requirements for contact with food and drugs as per CFR (Code of Federal Regulations), part 21.
These materials comprise metals as well as elastomers for seals or oils for transmission in diaphragm seals. The EHEDG recommendations are considered in the design of hygienic measuring instruments. AFRISO has
been an EHEDG member since 2010; various process connections are EHEDG-certified (EL - Class I).

Bild 6 EN

Precision turning/polishing assure a surface quality of the wetted parts with a medium roughness of Ra ≤ 0.8 μm. Please enquire for an even higher quality of up to Ra ≤ 0.4 μm.

The cleanability of components in closed systems is ensured by CIP (cleaning in place) or SIP (sterilisation in place) cleaning methods. CIP with circulation or flushing methods involve flushing a plant or parts of a plant with alkaline or acid cleaning agents and alcoholic disinfection agents and then rinsing with ultra-pure water. SIP uses hot steam to kill micro-organisms for sterilisation.

AFRISO components for hygienic processes
  • Hygienic design of wetted parts in view of materials and surface quality: Stainless steel 316 Ti/316 L, Monel, Hastelloy, platinum, titanium, PFA/PFTE coatings, plastic materials
  • FDA-listed materials
  • Device design as per EHEDG recommendations
  • EHEDG certificates: Type EL - Class I
  • Welding seams with a roughness height of Ra ≤ 0.8 μm
  • Perfect external cleanability due to stainless steel housing with a degree of protection of up to IP 69
  • Surface quality with a roughness height of Ra ≤ 0.8 μm (optionally 0.4 μm)
  • Resistance to acid, alkaline and alcoholic cleaning agents
  • Suitable for CIP and SIP
  • High resistance to vibration and temperature
  • Numerous process connections for optimum adaptation to the application
  • Relevant certificates such as EHEDG, SIL, GOST, 3-A, ATEX are available, others such as Kosher,Halal can be optionally provided

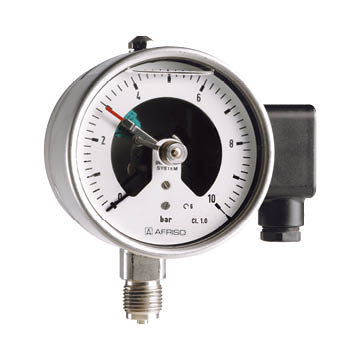

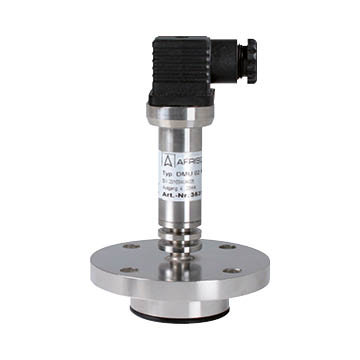

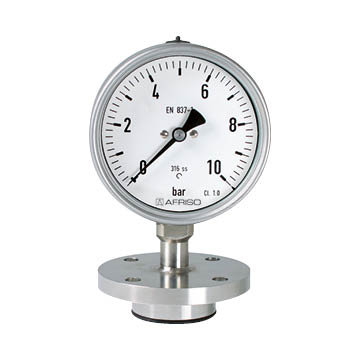

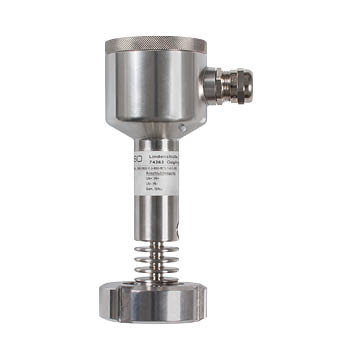

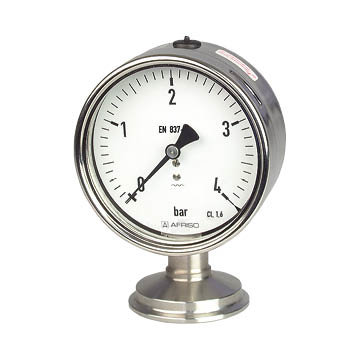

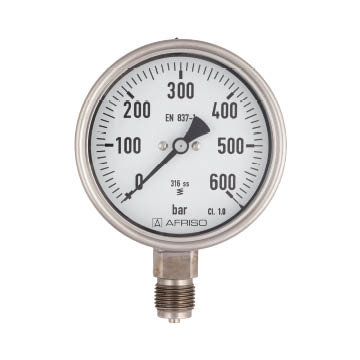

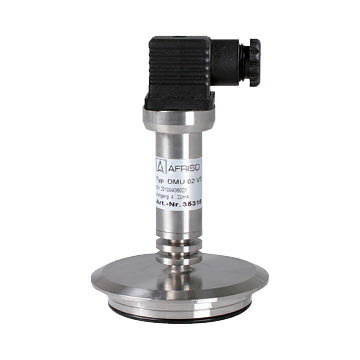

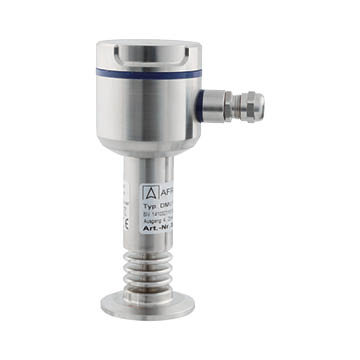

Mechanical and electronic pressure measurement: Robust pressure gauges and high-precision pressure transmittlers
