Versions

Part no. Remember
Wireless rocker switch FT4F-rw 78972

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Wireless rocker switch FT4F-rw Catalog page PDF
Afriso Data sheet Wireless rocker switch FT4F-rw
Wireless rocker switch FT4F-rw Operating instructions PDF
Afriso Wireless rocker switch FT4F-rw
Product range: AFRISO smart home AFRISO Smart Home PDF
Afriso Product range: AFRISO smart home

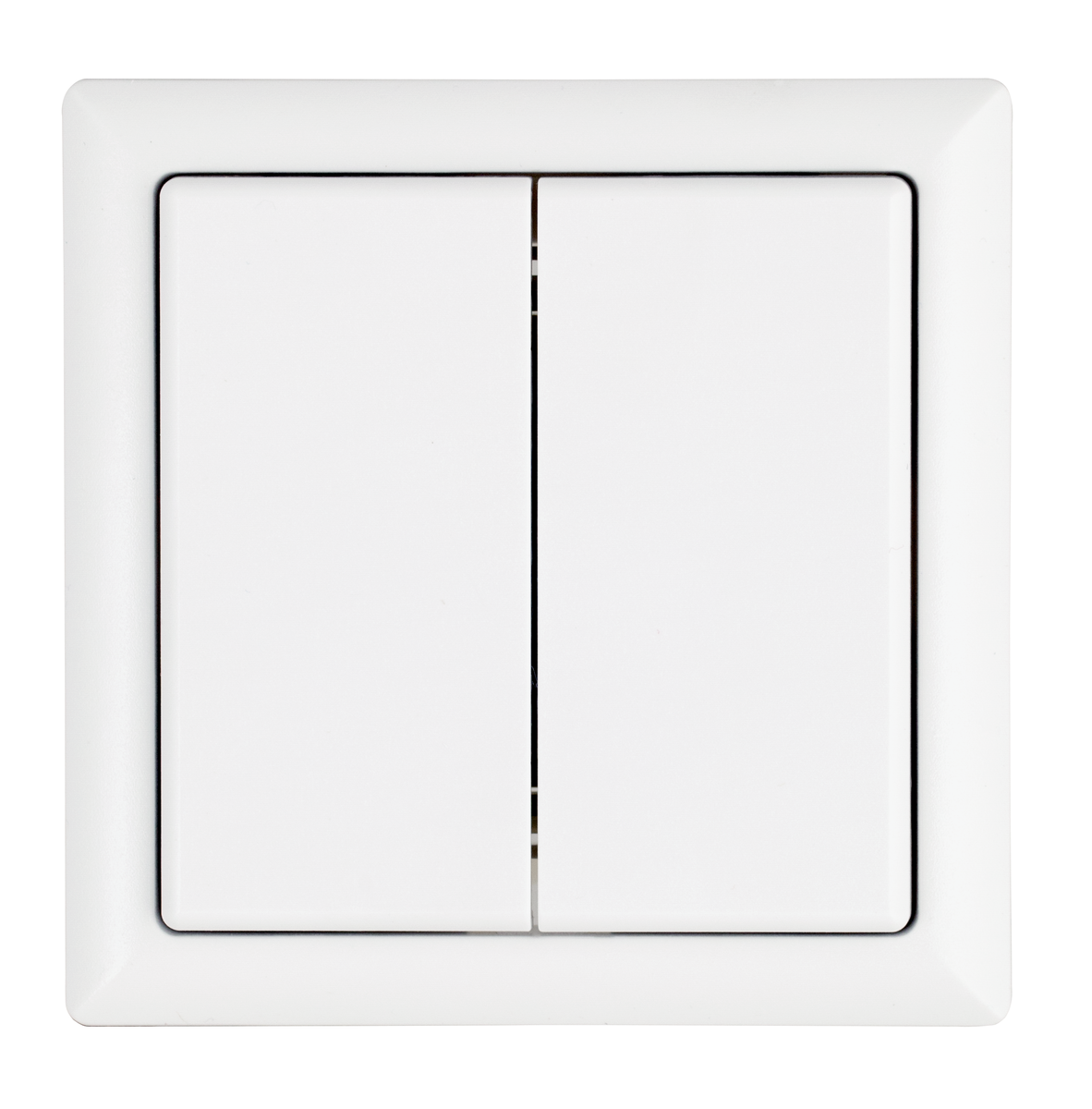

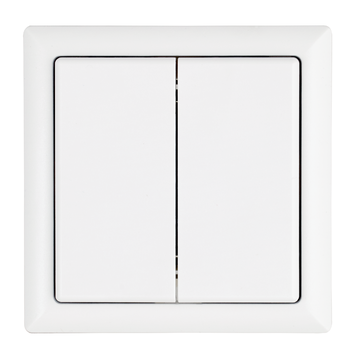

Flexible use with single or dual rocker. If a single rocker is used, two signals can be transmitted: top part of rocker pressed, bottom part of rocker pressed. Switches with dual rockers can transmit four signals: Two rockers, top and bottom parts pressed. The holding plate can be screwed to a plane surface or glued to walls, glass or furniture by means of the enclosed adhesive film. The unit can also be easily screwed to an existing 55 mm switch box using the existing screw sockets. It is possible to directly teach the wireless rocker switch into many EnOcean® actuators such as the water valve WaterControl 01 or indoor siren AIS 10. The wireless rocker switch can also be operated as a component of the AFRISOhome gateway.
Operating temperature range
Ambient:
-20/+50 °C
Supply voltage
Energy harvesting (via press of button)
Housing
Colour:
White, similar to RAL 9003
W x H:
80 x 80 mm
Height:
15 mm
EnOcean<sup>®</sup> wireless
EEP:
RPS
Frequency:
868.3 MHz
Transmission power:
Max. 10 mW
Range:
10 – 30 m
depending on room arrangement and materials in the building
Scope of delivery
  • Frame R1F
  • 1 x rocker WF
  • 1 x dual rocker DWF
  • 1 x frame BRF
  • 1 x plate HP

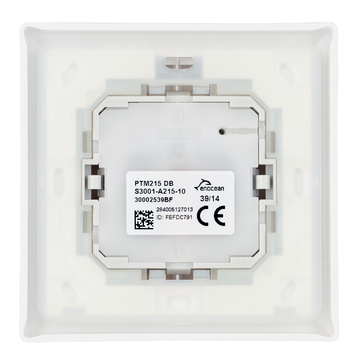

  • 1 x wireless module
