Radiator lockshield valves Type 456

AFRISO Heizkörperrücklaufverschraubung 456 M Eco Eck DN10 Rp3/8 x R3/8 SAL 95130 95140 95150 object_image_57036imagemain_en

AFRISO Heizkörperrücklaufverschraubung 456 M Eco Durchgang DN10 Rp3/8 x R3/8 SAL 95170 95180 95190 95220 95230 95240

AFRISO Heizkörperrücklaufverschraubung 456 M Eck DN10 Rp3/8 x R3/8 SAL 95260 95270 95280

Data sheet radiator lockshield valves Type 456

Benefits

Fully adjustable
Shutting off individual radiators
Reproducible adjustment

Application

To shut off individual radiators so that maintenance work or painting can be performed without having to drain the entire heating system. Suitable for medium water volumes. For installation in single-pipe and dual-pipe heating systems.

Versions

456 M Eco for medium water volumes

Version	Nominal diameter	Connection	Flow coefficient Kvs*	Part no.

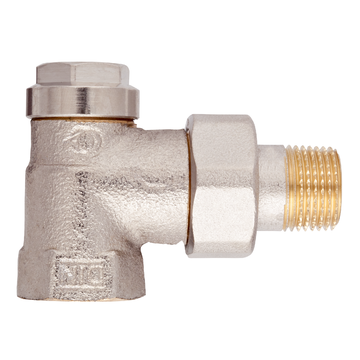

Angled	DN 10	Rp⅜ x R⅜	1.28 m³/h	453 010
Angled	DN 15	Rp½ x R½	1.28 m³/h	453 020
Angled	DN 20	Rp¾ x R¾	1.28 m³/h	453 030

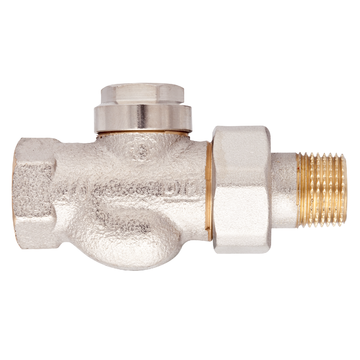

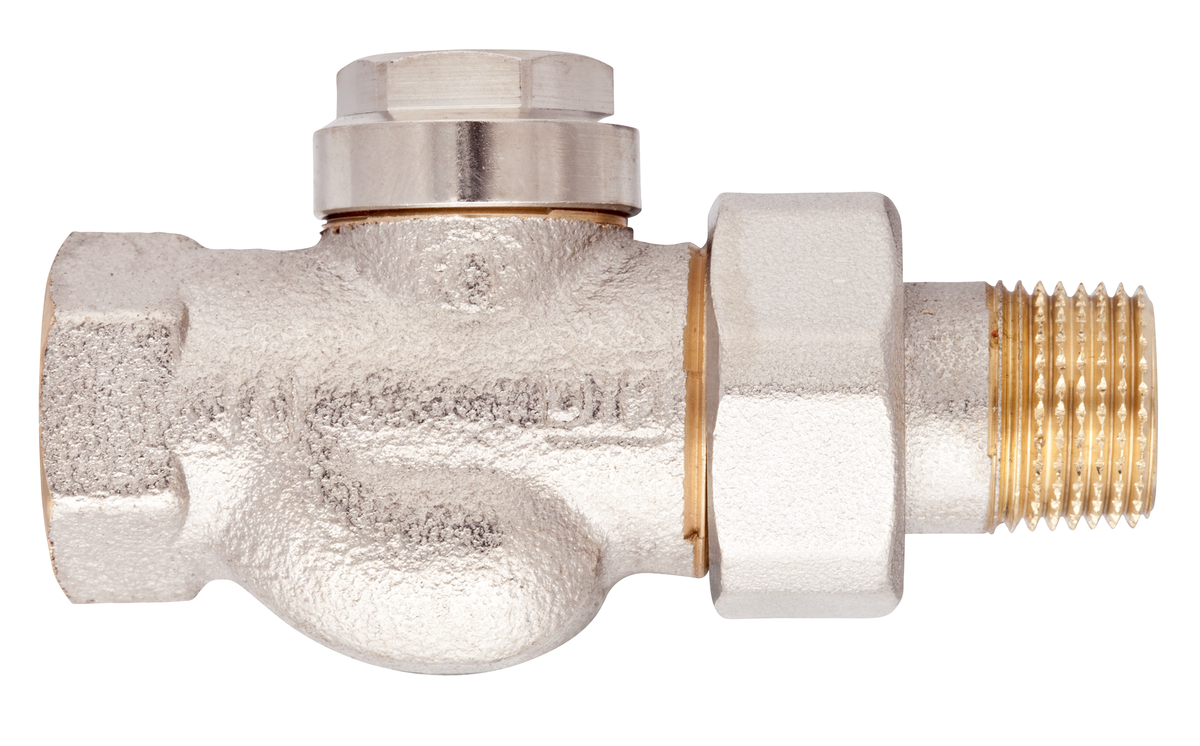

Straight	DN 10	Rp⅜ x R⅜	1.28 m³/h	453 060
Straight	DN 15	Rp½ x R½	1.28 m³/h	453 070
Straight	DN 20	Rp¾ x R¾	1.28 m³/h	453 080

Blue part no. = in-stock items

456 M for medium water volumes

Version	Nominal diameter	Connection	Flow coefficient Kvs*	Part no.
Straight	DN 10	Rp⅜ x R⅜	1.28 m³/h	453 260
Straight	DN 15	Rp½ x R½	1.28 m³/h	453 270
Straight	DN 20	Rp¾ x R¾	1.28 m³/h	453 280

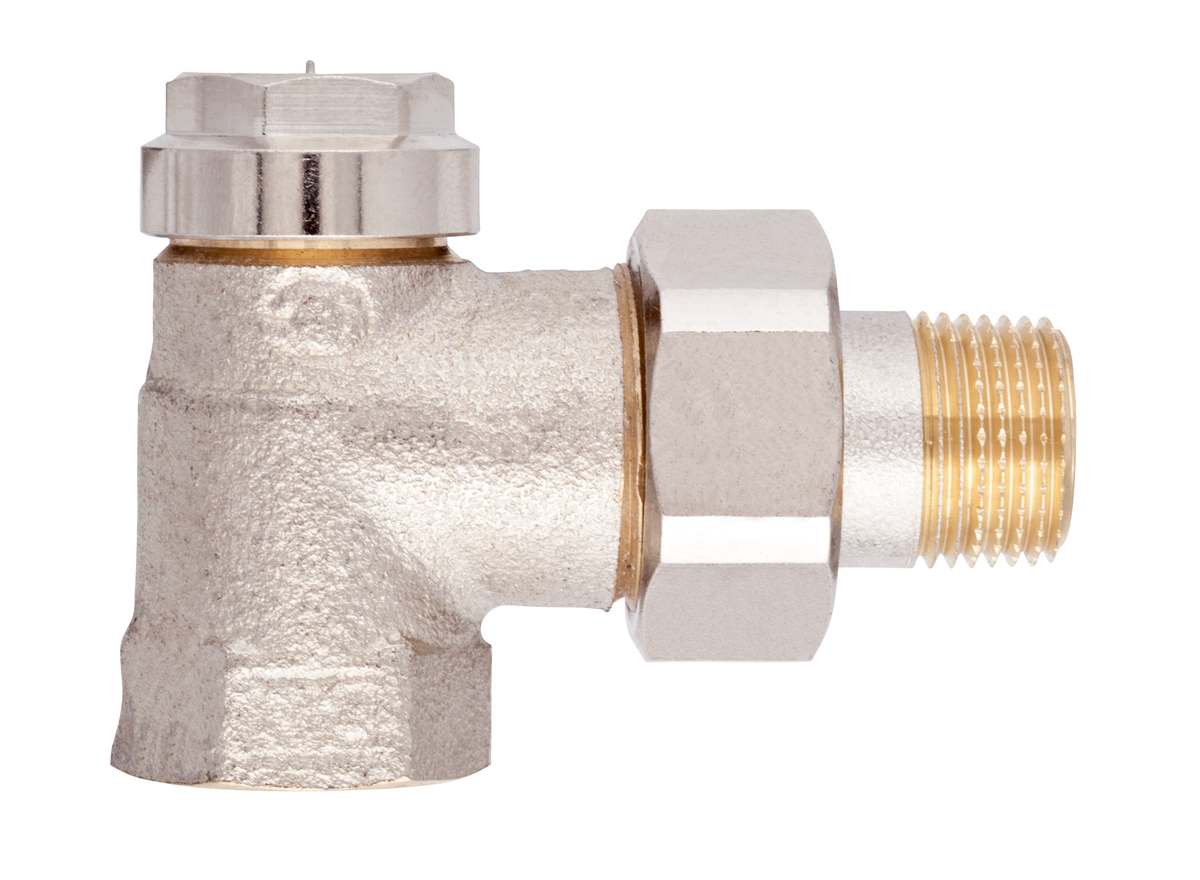

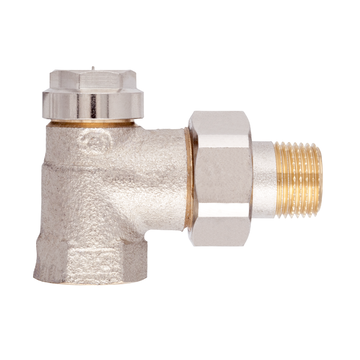

Angled	DN 10	Rp⅜ x R⅜	1.28 m³/h	453 210
Angled	DN 15	Rp½ x R½	1.28 m³/h	453 220
Angled	DN 20	Rp¾ x R¾	1.28 m³/h	453 230

Blue part no. = in-stock items

Downloads

	Description	Format	Language	Download / Link
Data sheet radiator lockshield valves Type 456	Data sheet	PDF

Description

Radiator lockshield valve type 456 with drain, shut-off and adjustment function. With cap (version M) to protect against incorrect operation. Adjustable according to flow diagram (see operating instructions). The selected setting is reproducible due to the integrated stroke limiter/stop (not version M Eco) and thus independent of draining. The optional filling and draining unit FEV with hose connection G½ can be used for easy and fast draining. Draining capacity equal to flow coefficient 1.1. Versions M Eco without stroke limiter.

Technical data

System connection

See ordering table

Adjustment range at 10 kPa

405 l/h

Nominal pressure

Max. 10 bar

Nominal diameter

DN 10, DN 15, DN 20

Operating temperature range

Medium:

Max. 120 °C

Housing

Gunmetal, nickel-plated

Technical drawings

Click the corresponding image for detail views, additional information and dimension tables.

type 456 M – straight

Dimensions (mm):

DN	D	d2	SW1	SW2	b	L1	L2	L3	L4	L5	L8
10	Rp⅜	R⅜	22	27	10,1	49	75	26	52	22	22
15	Rp½	R½	27	30	13,2	51	80	29	58	26	22
20	Rp¾	R¾	32	37	14,5	59	91	34	66	29	22

type 456 M – angled

Dimensions (mm):

DN	D	d2	SW1	SW2	b	L1	L2	L3	L4	L5	L8
10	Rp⅜	R⅜	22	27	10,1	49	75	26	52	22	22
15	Rp½	R½	27	30	13,2	51	80	29	58	26	22
20	Rp¾	R¾	32	37	14,5	59	91	34	66	29	22
