Data sheet Thermostat valve bodies Vario
Afriso Data sheet Thermostat valve bodies Vario

Benefits

  • Fully adjustable
  • Valve insert can be replaced without system having to be drained
  • Various versions and sizes for virtually any application

Application

Suitable for medium water volumes. For installation in dual-pipe central heating systems.

Versions

Version Nominal diameter Connection Flow coefficient* Flow coefficient Kvs** Part no. Remember
Centre back DN 15 Rp½ x R½ 0.038 – 0.4 m³/h 0.79 m³/h 143 220.101
Straight DN 10 Rp⅜ x R⅜ 0.038 – 0.4 m³/h 0.79 m³/h 141 260.101
Straight DN 15 Rp½ x R½ 0.038 – 0.4 m³/h 0.79 m³/h 141 270.101
Straight DN 20 Rp¾ x R¾ 0.038 – 0.4 m³/h 0.79 m³/h 141 280.101
Angled DN 10 Rp⅜ x R⅜ 0.038 – 0.4 m³/h 0.79 m³/h 141 210.101
Angled DN 15 Rp½ x R½ 0.038 – 0.4 m³/h 0.79 m³/h 141 220.101
Angled DN 20 Rp¾ x R¾ 0.038 – 0.4 m³/h 0.79 m³/h 141 230.101
Angled-angled right DN 15 Rp½ x R½ 0.038 – 0.4 m³/h 0.79 m³/h 145 220.101
Angled-angled left DN 15 Rp½ x R½ 0.038 – 0.4 m³/h 0.79 m³/h 147 220.101

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Thermostat valve bodies Vario Data sheet PDF
Afriso Data sheet Thermostat valve bodies Vario
Low-noise thermostat valve body with threaded connection M 30 x 1.5 mm for thermostat control heads and actuators. Mounting cap with valve shut-off function. Fully adjustable with ES-SV adjustment key. Valve spindle with double O ring seal. The valve insert can be replaced with the MGV mounting unit at operating pressure without the system having to be drained.
System connection
See ordering table
Thermostat head/actuator connection
Threaded connection M 30 x 1.5 mm
Adjustment range
12 – 250 l/h
Nominal pressure
Max. 10 bar
Nominal diameter
DN 10, DN 15, DN 20
Operating temperature range
Medium:
Max. 120 °C
Housing
Gunmetal, nickel-plated

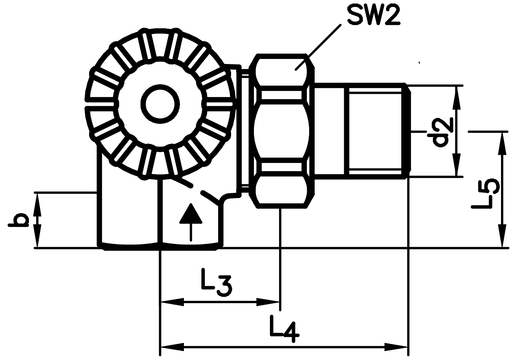

Click the corresponding image for detail views, additional information and dimension tables.
Vario M – axial
Afriso
Vario M – axial
Afriso

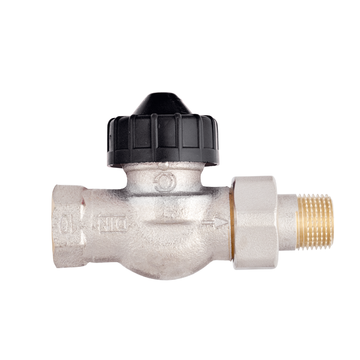

Vario M – straight
Afriso
Vario M – straight
Afriso

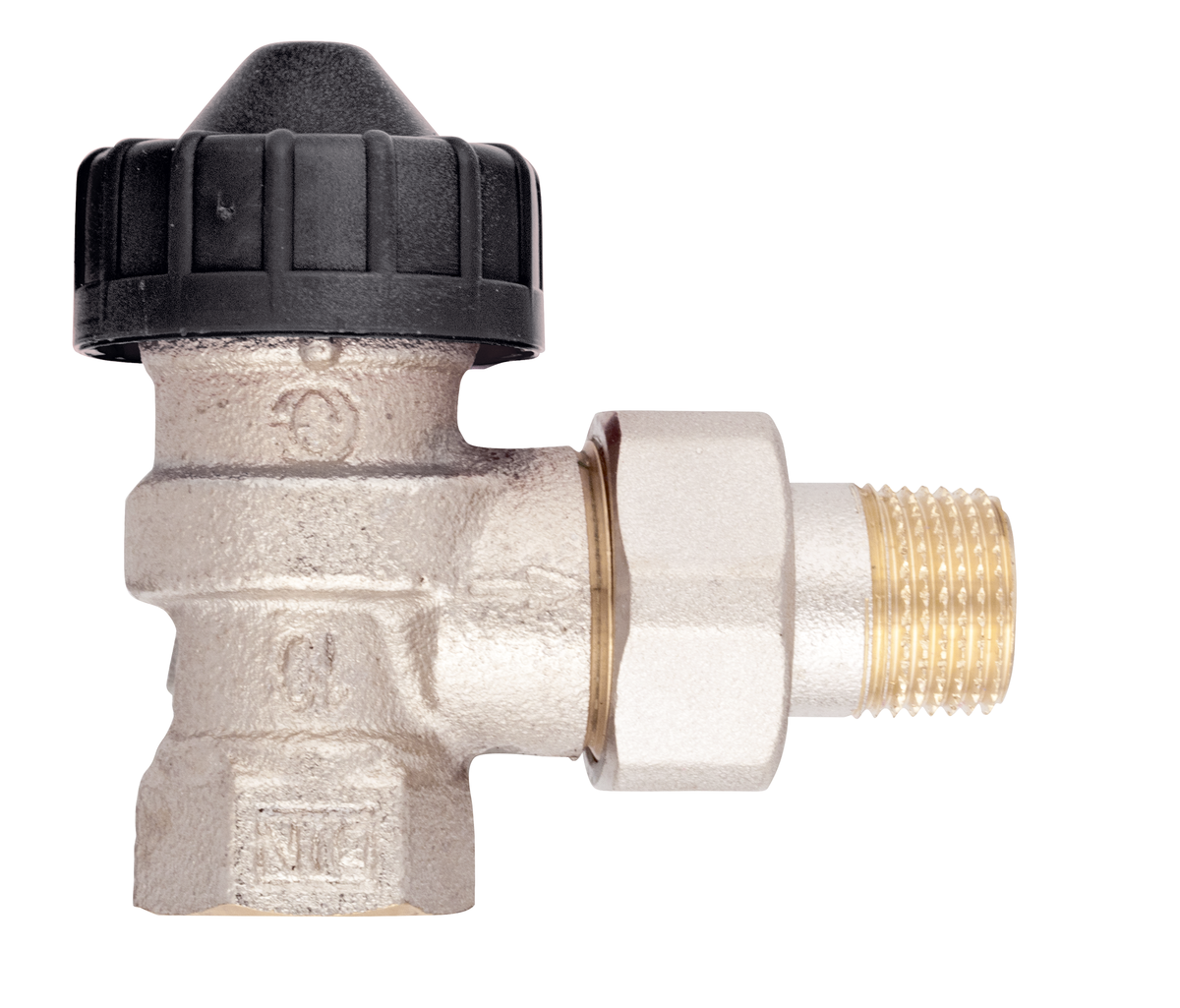

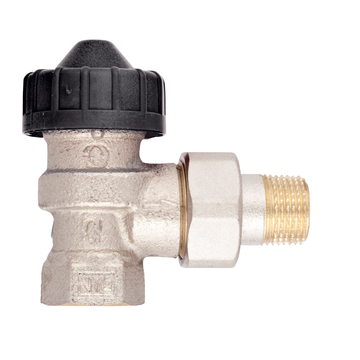

Vario M – angled
Afriso
Vario M – angled
Afriso
Vario M, – angled-angled, right
Afriso
Vario M, – angled-angled, right
Afriso

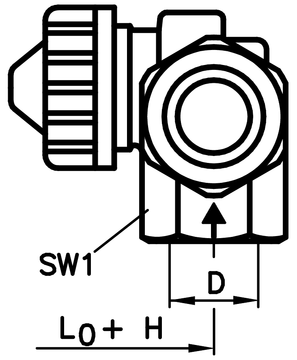

Vario M – angled-angled, left
Afriso
Vario M – angled-angled, left
Afriso
