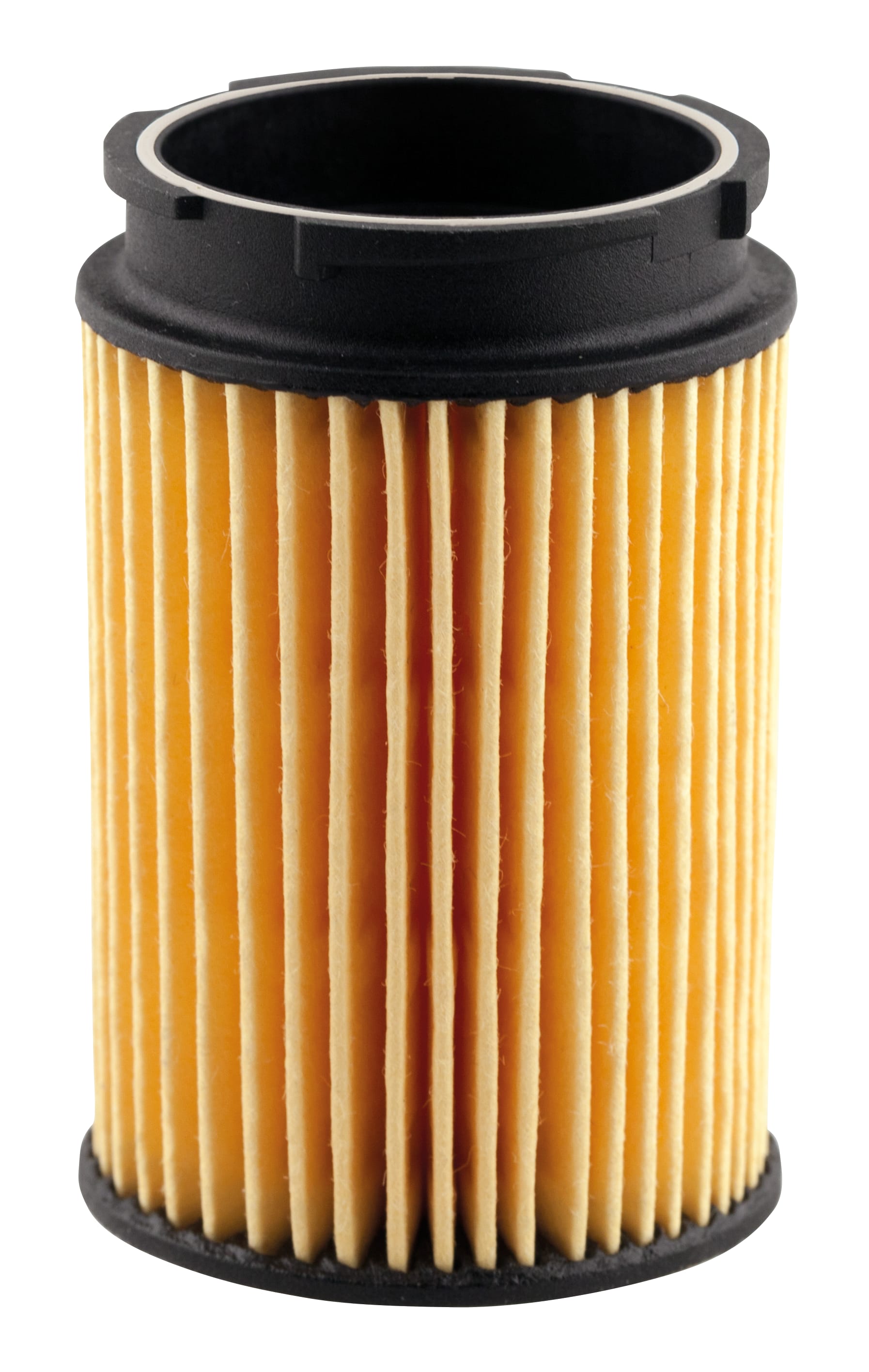

ultra-fine filter insert Opticlean MS-5 | 20308

ultra-fine filter inserts Opticlean

manufactured goods

Downloads

optimum ultra-fine filtering
specially for small and very small burner capacities
preferably for single-line mode

The filter surface of Opticlean ultra-fine filters is up to 37 times greater than that of conventional filter inserts; they excel with an extremely high degree of filtration. Filter fineness of nominal 5 μm (absolute 20 μm) separation is possible. Even the smallest drops of water and emulsion are retained with high reliability. Opticlean filter cartridges can be used in any standard fuel oil filter, they are metal-free and can be recycled in an environmentally protective way.

Filter element: Paper

Mesh size

Opticlean MS-5:: 20 − 35 µm

Filter surface

Opticlean MS-5:: 500 cm²
