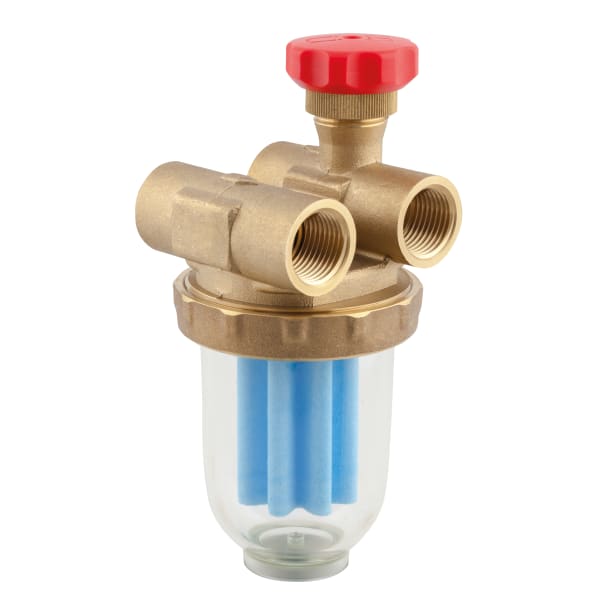

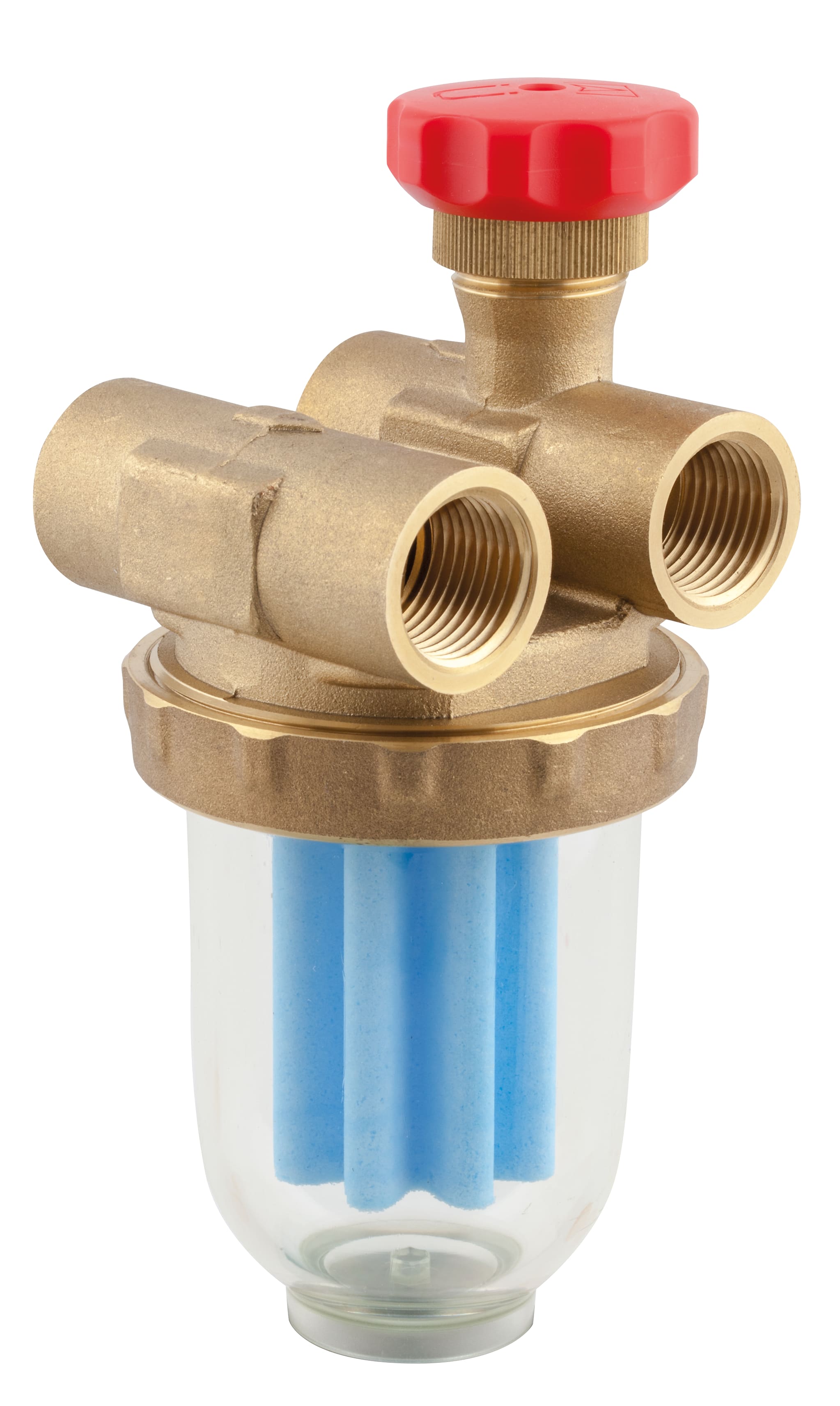

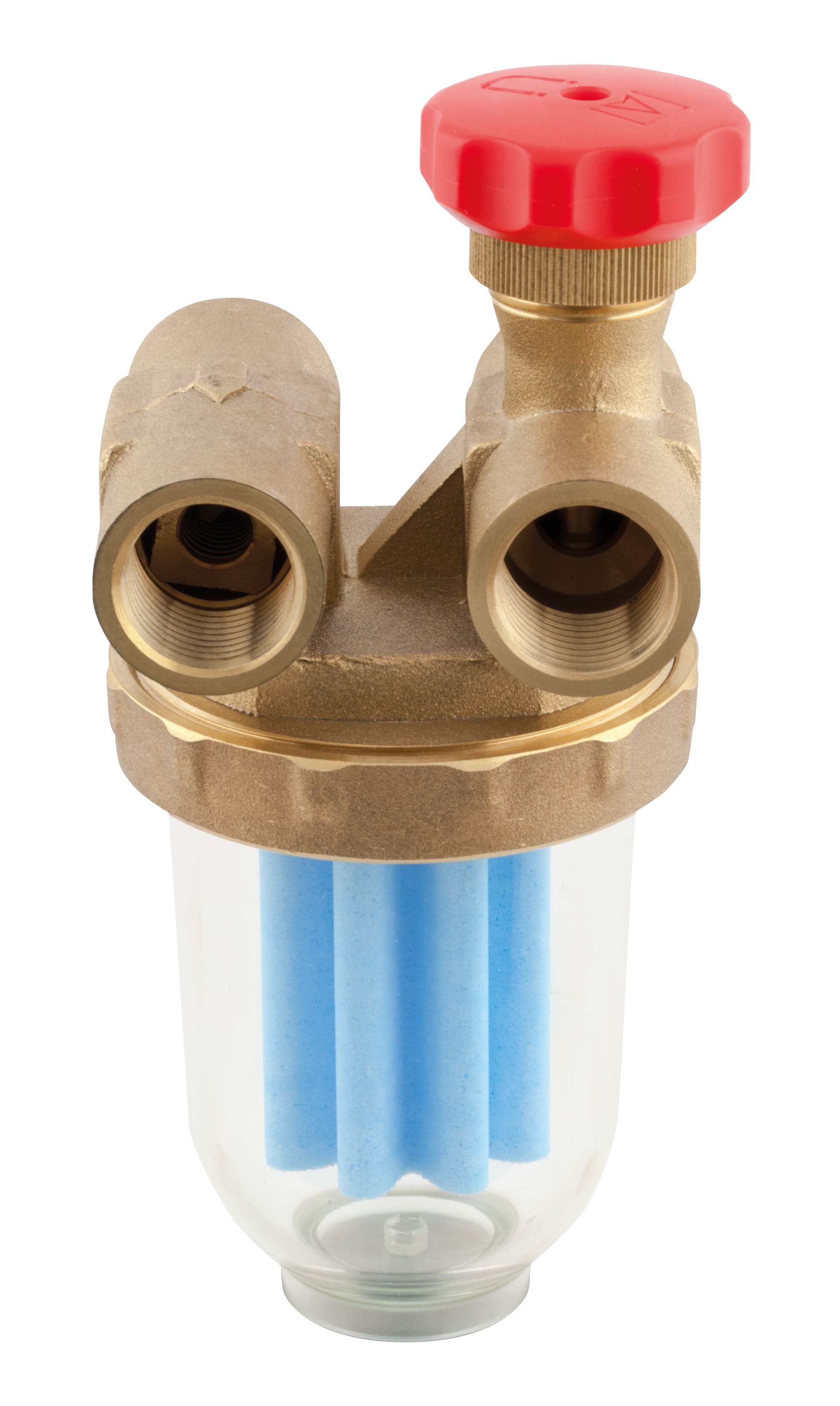

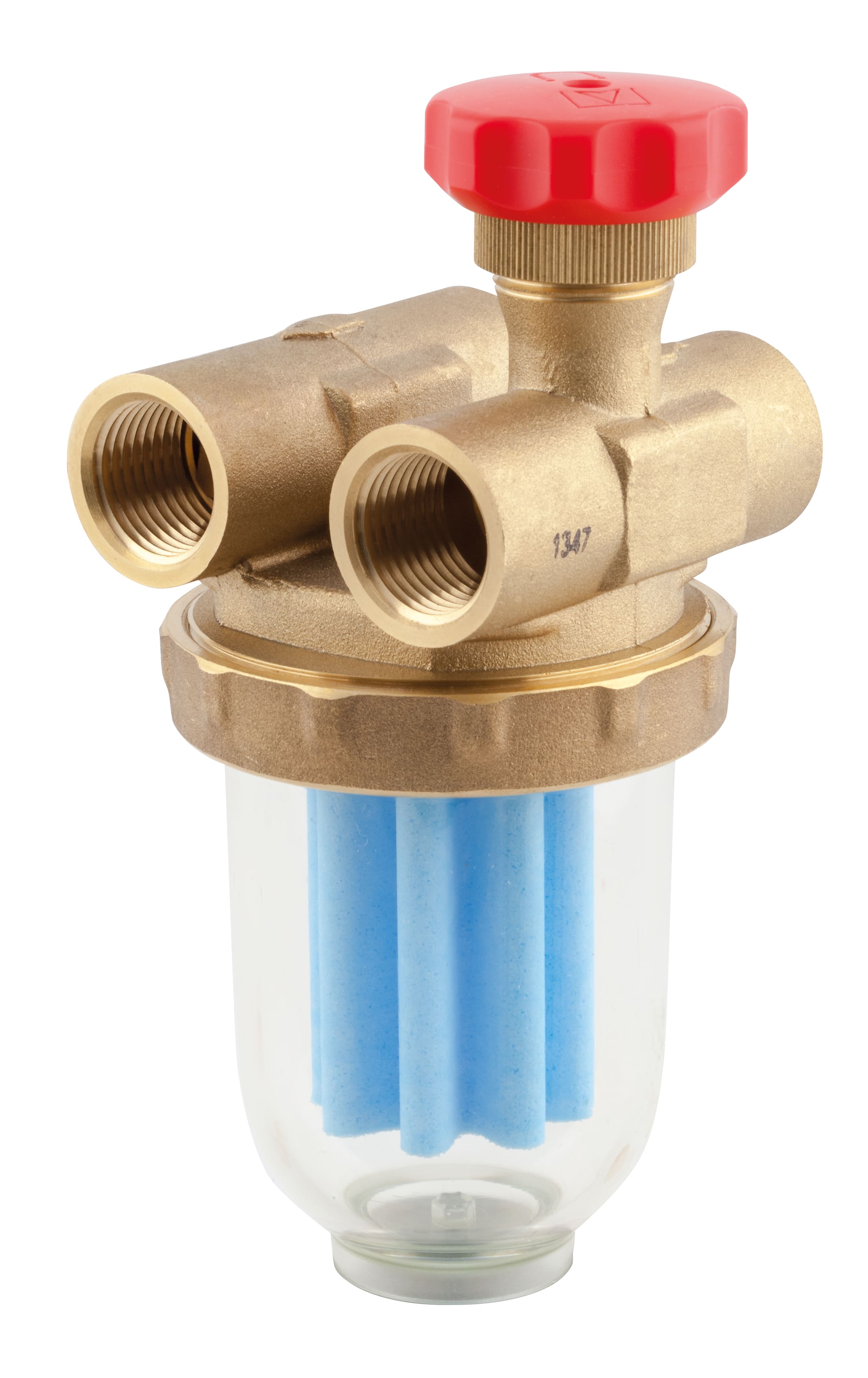

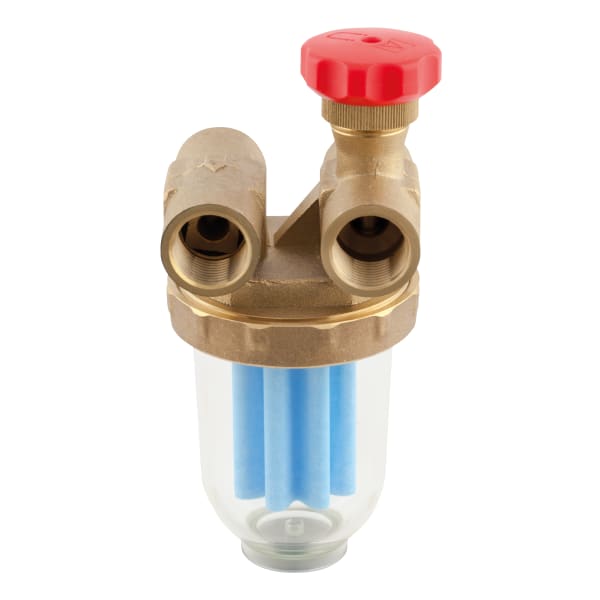

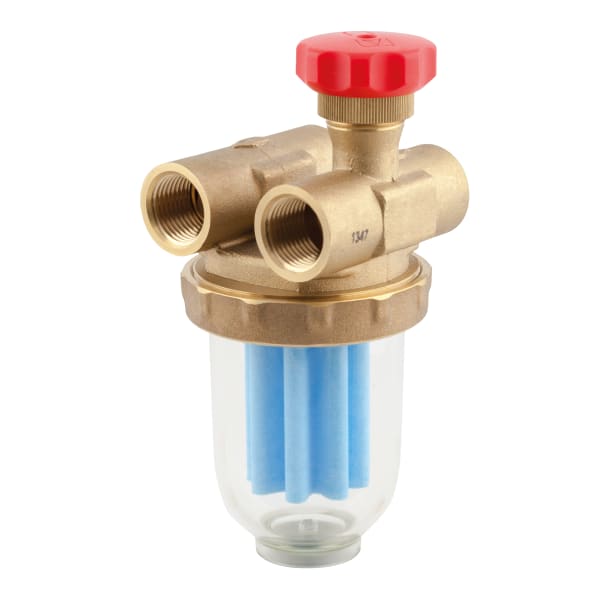

Dual-line filter Z 1/2 500 Si 50–70 µm | 20480

Dual-line filter for fuel oil

manufactured goods
Manuals

  • shut-off valve in the flow line
  • noiseless integrated check valve keeps the oil column in the suction line from being interrupted when the burner is off
  • impact-resistant, shock-resistant and transparent plastic filter cup
  • pipe connection via universal screw connection for pipes with Ø 8/10 mm
  • Proofed Barrier (odour-tight)
  • green fuels ready: suitable for use at tank facilities filed with the new paraffinic fuels HVO or GTL
  • watertight up to 10 m water column - ideal for use in flood hazard areas

For dual-line systems. Suitable for fuel oil EL (DIN 51603-1), diesel fuel (EN 590), liquid fuels as per DIN SPEC 51603-6 and DIN/TS 51603-8. This product is therefore ideal for all ecologically upgraded fuel oil consuming systems that use the new paraffinic fuels HVO or GTL as an admixture or 100 %. Also for use in flood hazard areas and flood risk areas.

Brass filter housing, filter cup made of transparent, impact-resistant plastic. With check valve in the return line and shut-off valve in the flow line. Universal compression fittings for pipes with 8/10 mm outside diameters included. Watertight up to 10 m water column.

connection burner end
see ordering table
Connection tank
see ordering table
Mounting position
filter cup vertically down
Operating temperature range
Medium:
max. 40 °C
Operating overpressure
(suction mode only)
Material
Housing:
Brass
Filter cup:
Plastic, transparent and impact-resistant
approval
Conformity certificate (ÜHP) as per EN 12514
