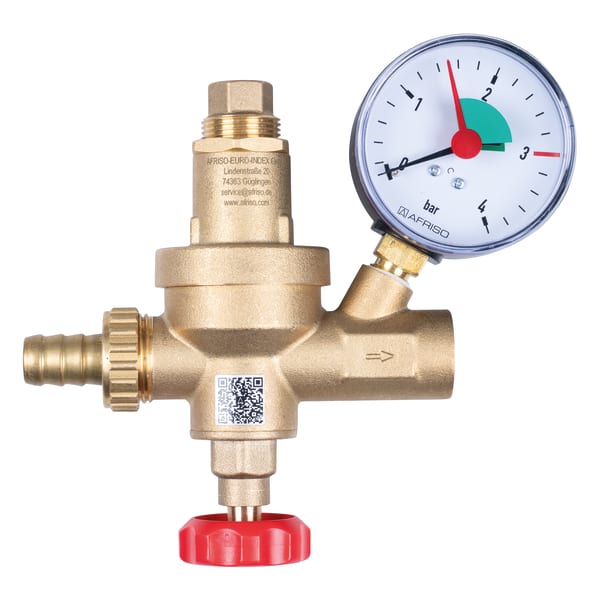

Füllarmatur FA, FAM

Variants Documents

  • combination fitting with pressure reducer, stop valve and backflow preventer
  • version FAM with pressure gauge for direct indication of the system pressure

For sealed heating systems as per EN 12828.

Filling fitting with housing and spring cap made of brass. Inlet for hose inside diameter 12 mm, outlet G½ female thread. With G¼ connection for pressure gauge for heating installations. With pressure reducer, stop valve and backflow preventer. Inlet pressure 6 up to 10 bar, outlet pressure adjustable between 0.5 and 3 bar. Version FAM with pressure gauge for heating installations Ø 63 mm, 0/4 bar, G¼ bottom.

Part no.
filling fitting FA42405
filling fitting FAM42406
  • in-stock items
  • manufactured goods

AFRISO_FILLING-FITTING_ENG_GBR.PDF

AFRISO_FUELLARMATUR_DEU_DEU.PDF

Data sheets
