Room thermostat TA 03 with lamp and on/off switch | 42618X

Room thermostats TA 03 for controller terminal bar WB 01/WB 10 D

in-stock items
Documents

  • mechanical temperature controllers with lamp and on/off switch
  • for room temperature control
  • Switch-off function for the summer months
  • easy surface mounting
  • universal use, also for standard controllers

Mechanical room thermostats for domestic applications. On-wall wall mounting allows for retrofitting.

The temperature measured at the probe causes a change in the volume of the measuring liquid. Electrical switching is triggered by the force acting. For optimum temperature control, the room thermostat should be installed at an inside wall opposing radiators. Install the room thermostat away from heat source of all kinds and from draft and do not expose it to sunlight. The best installation height is approx. 1.5 m above the floor.

Operating temperature range
Ambient:
0/50 °C
Storage:
0/50 °C
Temperature adjustment range
7/30 °C
Switching differential
∆T ≤ 1 K
Temperature change rate
1 K/15 minutes
Setting
Adjustable from the outside
Probe element
liquid-filled
Housing
wall mounting plastic housing (PVC)
Colour:
white (RAL 9016)

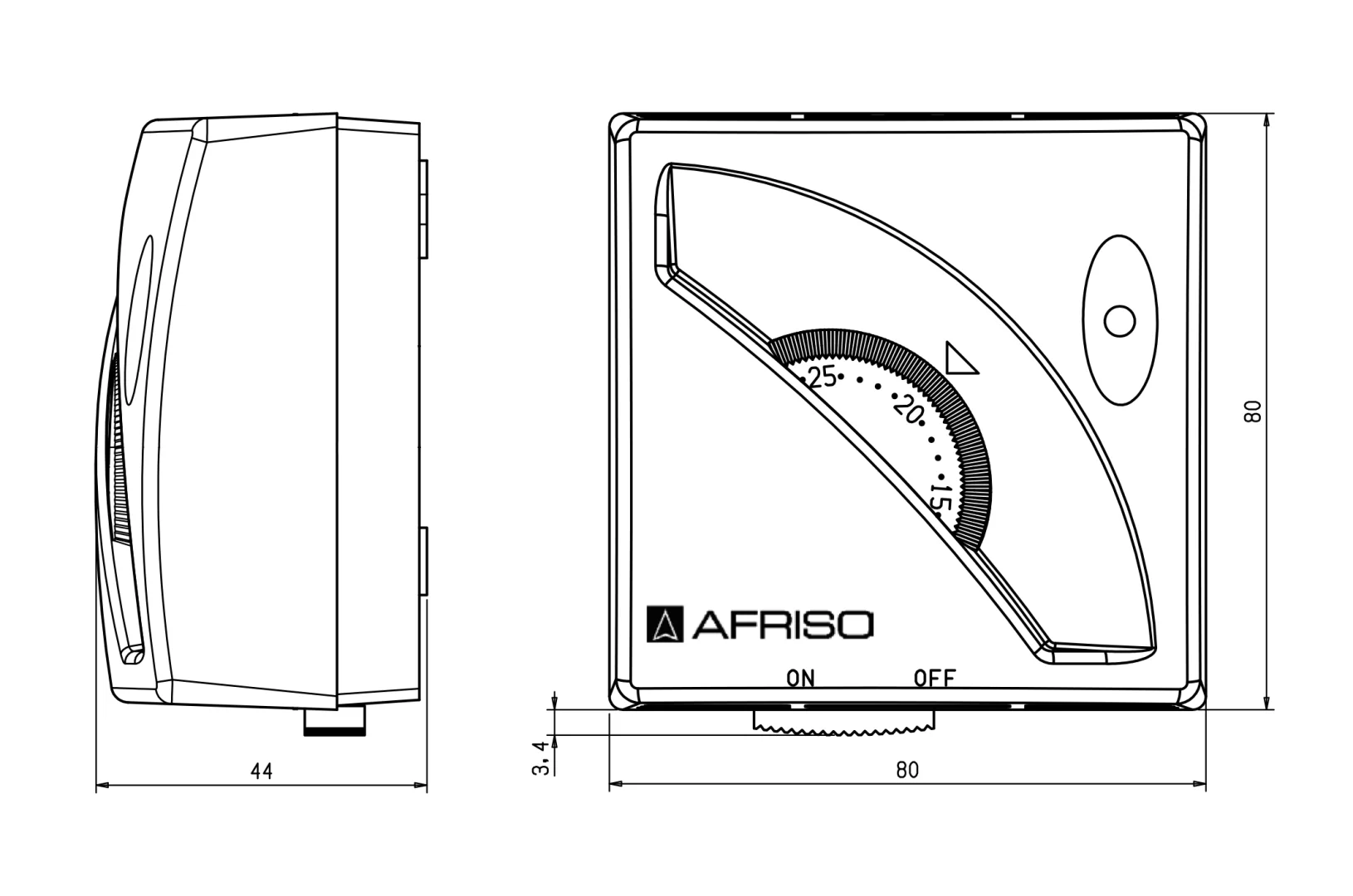

W x H x D:
80 x 80 x 44 mm
Weight:
  134 g 
Degree of protection:
IP 20 (EN 60529)
electrical switching contact
Changeover contact
Contact rating
NC:
AC 250 V, 16 (2.5) A
NO:
AC 250 V, 16 (2.5) A
