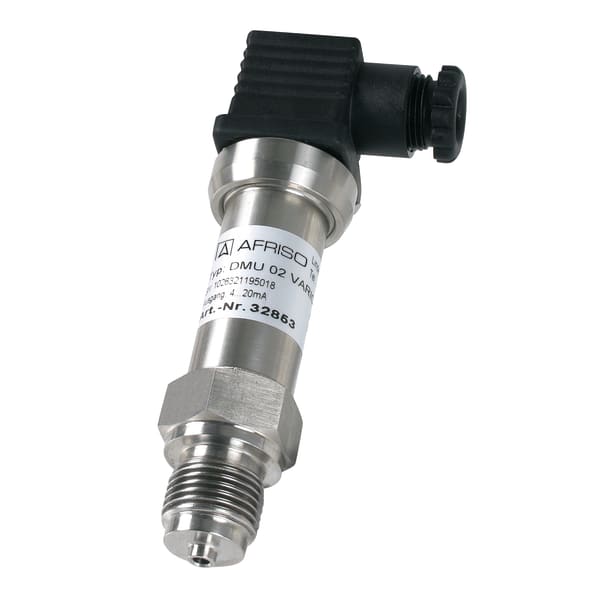

DMU 02 Vario

Pressure transducers

Variants Documents

ConnectionG½B
ConnectionEN 837-1/7.3
Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A)

  • connection technology with numerous versions
  • extremely resistant to shock, pulsation and vibration
  • best dynamic pressure resistance at high load changes
  • measuring cell welded without seals
  • without transmission medium
  • Turn Down 1:4
  • Zero calibration via magnet

For electronic pressure measurement in mechanical and plant engineering, and for gas and medical applications. Particularly suitable for pure media.

Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 02 Vario is equipped with a piezo-resistive polysilicon thin-film measuring cell. All standard electrical connection types are available. The measuring ranges can be changed via optional parameterisation hardware and software. The zero point can be corrected from the outside via a permanent magnet after voltage has been supplied and within a given time window.

RangeMeasuring rangeTypeVersionPart no.
-1/0 barDMU 02 Varioprogrammable32833
-1/+1.5 barDMU 02 Varioprogrammable32834
-1/+3 barDMU 02 Varioprogrammable32835
-1/+5 barDMU 02 Varioprogrammable32836
-1/+9 barDMU 02 Varioprogrammable32837
-1/+24 barDMU 02 Varioprogrammable32838
0/600 mbarDMU 02 Varioprogrammable32841
0/1 barDMU 02 Varioprogrammable32842
0/1.6 barDMU 02 Varioprogrammable32843
0/2.5 barDMU 02 Varioprogrammable32844
0/6 barDMU 02 Varioprogrammable32846
0/10 barDMU 02 Varioprogrammable32847
0/16 barDMU 02 Varioprogrammable32848
0/25 barDMU 02 Varioprogrammable32849
0/40 barDMU 02 Varioprogrammable32850
0/60 barDMU 02 Varioprogrammable32851
0/100 barDMU 02 Varioprogrammable32852
0/160 barDMU 02 Varioprogrammable32853
0/250 barDMU 02 Varioprogrammable32854
0/400 barDMU 02 Varioprogrammable32855
0/600 barDMU 02 Varioprogrammable32856
0/1 000 barDMU 02 Varioprogrammable32857
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< ± 0.3 % FSO
Measuring range
-1/0 bar
Overpressure safety
≤ 250 bar: at least 2 x FS
Burst pressure
≤ 250 bar: at least 3 x FS
Operating temperature range
Medium:
-40/+125 °C
Ambient:
-40/+105 °C
Storage:
-40/+125 °C
Temperature error band
≤ ± 0.15 % FSO/10 K ≤ ± In compensated range -10/+80 °C
dynamic characteristics
Response time:
< 4 ms
Process connection
G½B EN 837-1/7.3
material
Housing:
Stainless steel 304
pressure connection:
stainless steel 630/316 Ti/316 L
electr. measuring cell:
Stainless steel 630/304
Supply voltage
DC 10 − 32 V
Output signal
2-wire, 4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
