Industrial technology Electronic pressure measuring instruments DMU 03 VM
PRO_TEC_SAR_DMU03_FG_31153S.TIF
PRO_TEC_SCD_DMU03_VM.TIF
PRO_TEC_SAR_DMU03_FG_31153S.TIF
PRO_TEC_SCD_DMU03_VM.TIF
Images 2

DMU 03 VM

Druckmessumformer Industrieausführung

Variants Documents

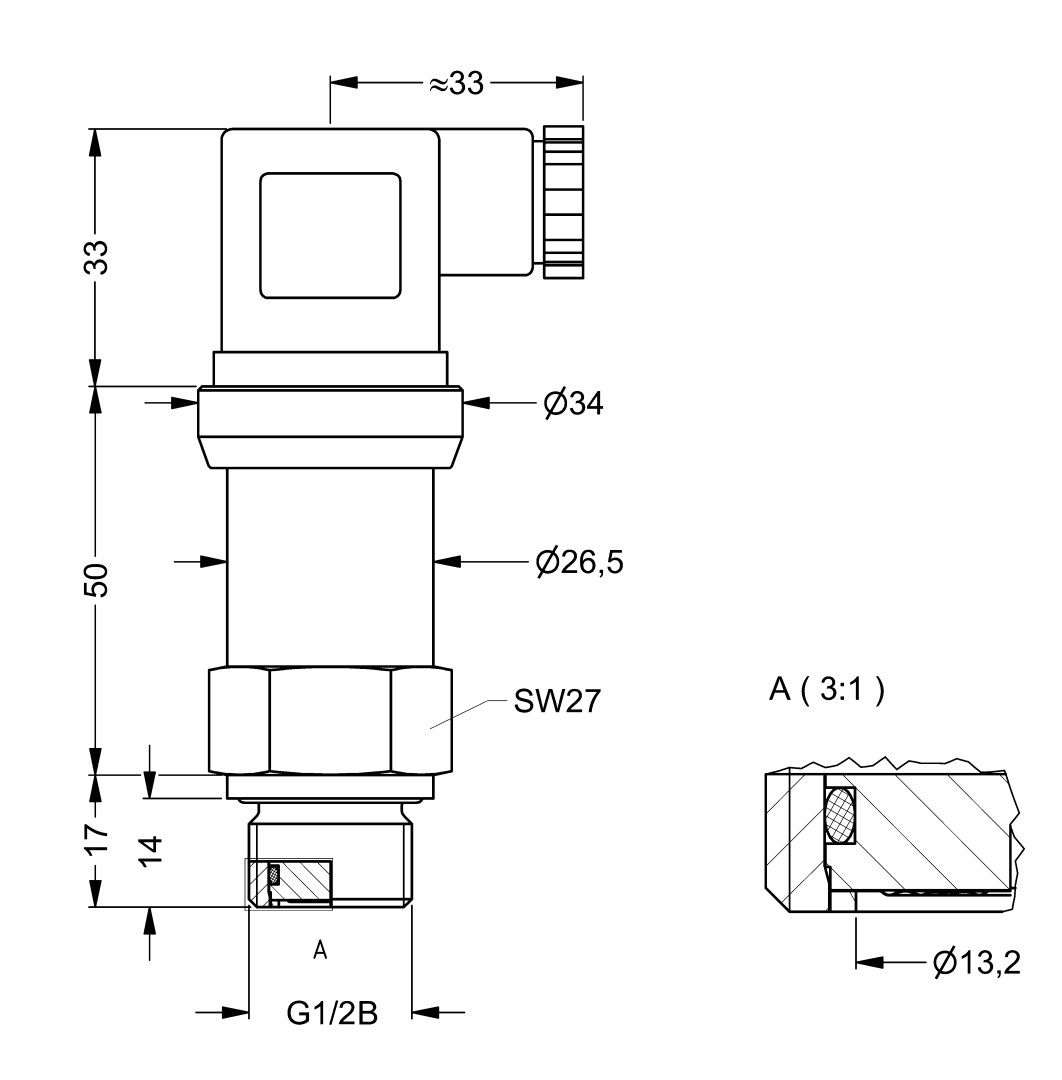

ConnectionG½B
ConnectionDIN 3852 type E
Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A)

  • for low pressure ranges
  • Versions for relative pressure and absolute pressure
  • excellent long-term stability
  • Ex version (optional)
  • Option SIL 2

For electronic pressure measurement in mechanical and plant engineering as well as process engineering applications. With flush diaphragm, the pressure transducers are also suitable for use with viscous, highly viscous media.

Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 03 is equipped with an oil-filled piezo-resistive silicon measuring cell. DMU 03 has safety integrity level SIL 2 (IEC 61508/61511).

RangeMeasuring rangeTypeVersionPart no.
0/100 mbarDMU 03 VM31643
0/160 mbarDMU 03 VM31644
0/250 mbarDMU 03 VM31165
0/400 mbarDMU 03 VM31166
0/600 mbarDMU 03 VM31167
0/1 barDMU 03 VM31168
0/1.6 barDMU 03 VM31169
0/2.5 barDMU 03 VM31170
0/4 barDMU 03 VM31171
0/6 barDMU 03 VM31172
0/10 barDMU 03 VM31173
0/16 barDMU 03 VM31174
0/25 barDMU 03 VM31175
0/40 barDMU 03 VM32026
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
0/100 – 0/400 mbar < ± 0.5 % FSO
Measuring range
0/100 mbar
Overpressure safety
at least 3 x FS
Burst pressure
at least 5 x FS
Operating temperature range
Medium:
-40/+125 °C
Ambient:
-40/+85 °C
Storage:
-40/+100 °C
Temperature error band
PN < 0.4 bar: ≤ ± 1 % FSO ≤ ± In compensated range 0/70 °C
dynamic characteristics
Response time:
≤ 10 ms
Process connection
G½B DIN 3852 type E
material
Housing:
Stainless steel 316 L
pressure connection
DMU 03 VM: Stainless steel 316 L
diaphragm
DMU 03 VM: Stainless steel 316 L
Seal:
FKM (Viton)
pressure transmission liquid
Silicone oil
Supply voltage
DMU 03 VM: DC 8 − 32 V
Output signal
2-wire, 4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
