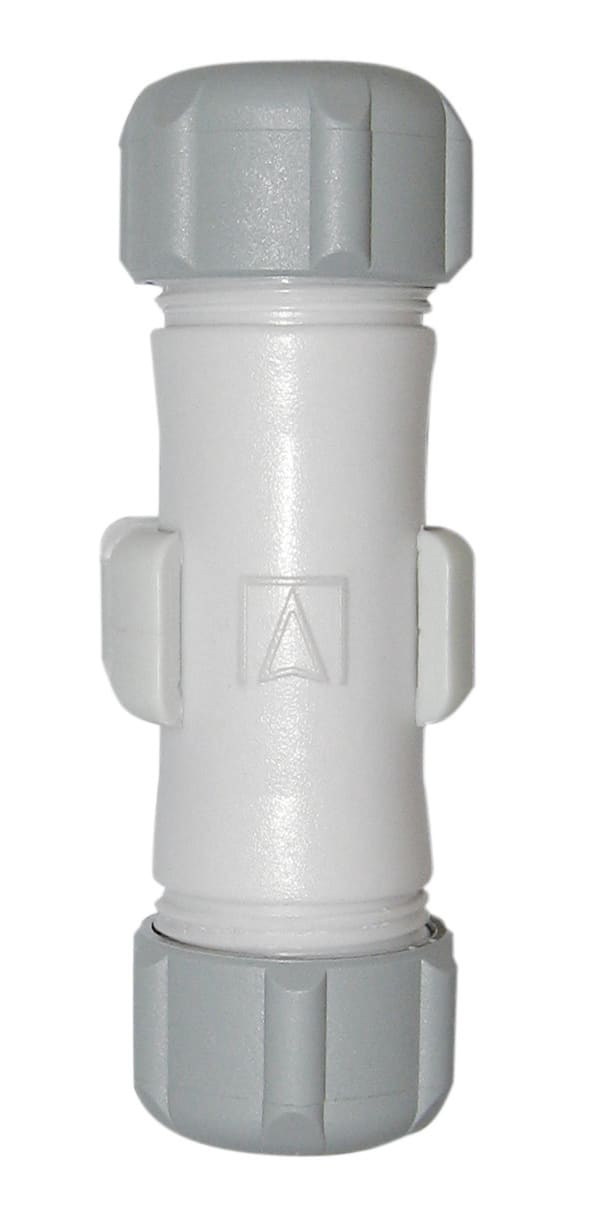

PRO_TEC_VOR_KVA_40041.TIF

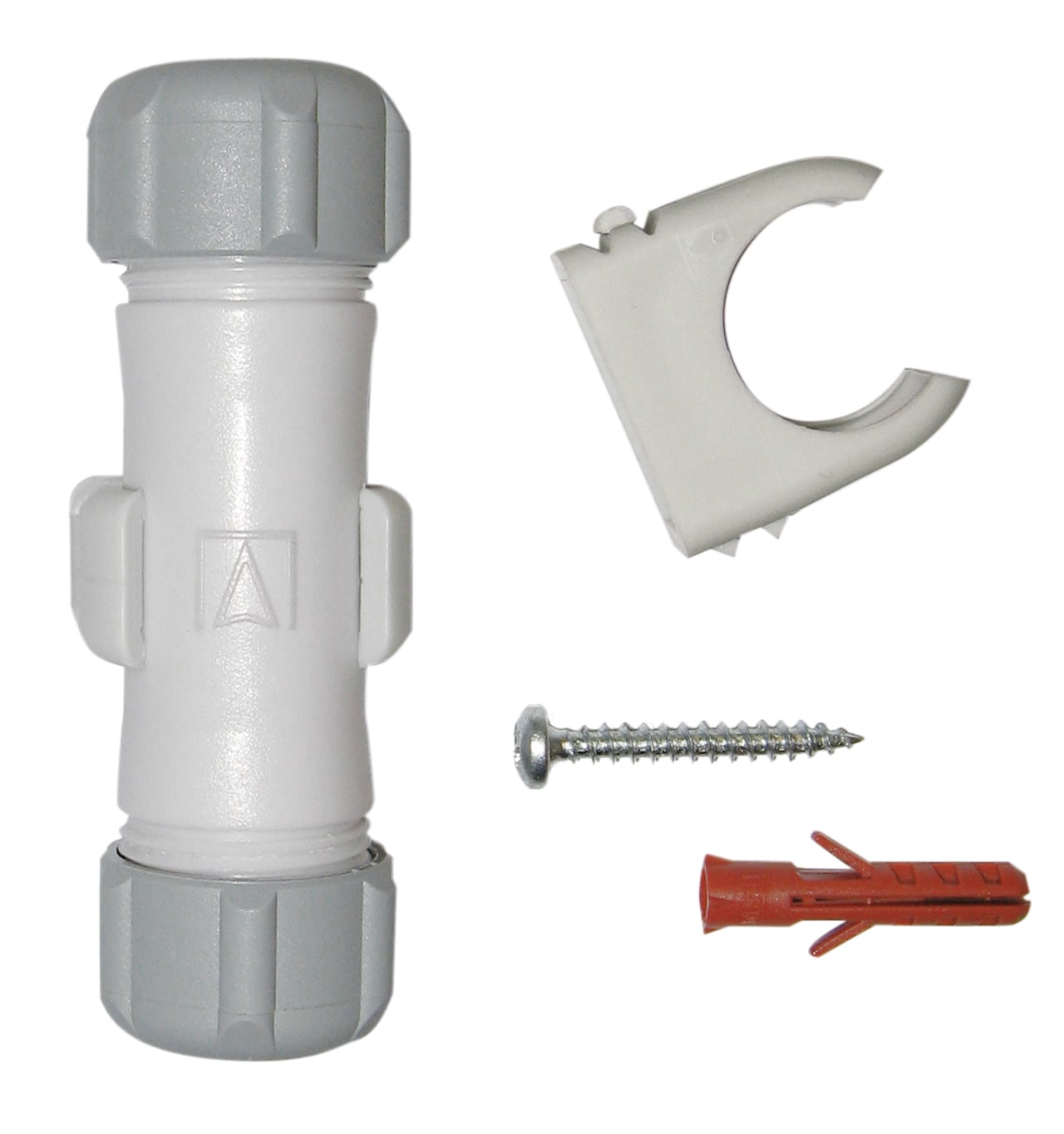

PRO_TEC_ZUB_KVA_40041.TIF

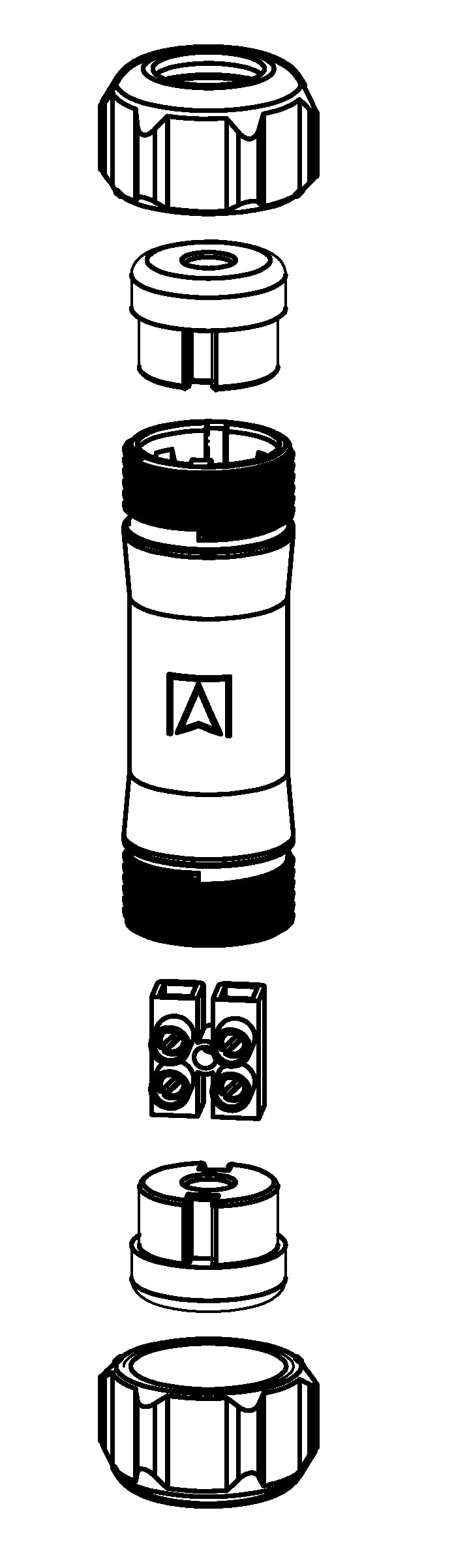

PRO_TEC_EXP_KVA_40041.TIF
PRO_TEC_VOR_KVA_40041.TIF
PRO_TEC_ZUB_KVA_40041.TIF
PRO_TEC_EXP_KVA_40041.TIF
Images 3
Back

Cable extension fitting KVA | 40041

Cable extension fitting KVA

manufactured goods
Documents

  • compact, dust- and water-tight extension fitting (IP 68)
  • proven compression fitting for easy, reliable mounting
  • watertight up to 10 m water column - ideal for use in flood hazard areas

For 2-wire electrical cables (max. 42 V/4 A). Suitable for flood hazard areas.

Clamp connections (gland) at both ends for cable diameters between 6 and 8.3 mm. Watertight up to 10 m water column.
Wire cross section: max. 2.5 mm²
Degree of protection IP 68 (EN 60529)

Wire cross section
max. 2.5 mm²
Degree of protection
IP 68 (EN 60529)

AFRISO_CABLE-EXTENSION-FITTING_ENG_GBR.PDF

AFRISO_KABELVERLAENGERUNGSARMATUR_DEU_DEU.PDF

datasheet product
Domestic Technology
PDF
AFRISO_CABLE-EXTENSION-FITTING-KVA-CABLE-EXTENSION-FITTING_40041_ENG_GBR.PDF

AFRISO_KABELVERLAENGERUNGSARMATUR-KVA-KABELVERLAENGERUNGSARMATUR_40041_DEU_DEU.PDF

datasheet variant
Domestic Technology
PDF
900_400_0054.PDF

Kabelverlängerungsarmatur KVA

Mounting instructions
PDF
