controller terminal bar WB 10 D-8-230 | 80236
Single room temperature controller CosiTherm® Basic Controller terminal bar WB 10 D – wired
in-stock items
- Controller terminal bar for connection of actuators and room thermostats
- for water-based underfloor heating systems
- suitable for room thermostat RT 10 D-230
For wiring of the room thermostats and actuators. The controller terminal bar supplies the actuators and room thermostats.
Up to 8 room thermostats and up to 20 actuators can be connected to the controller terminal bar. The room thermostat measures the actual temperature in the corresponding rooms. The reference temperature is adjusted by means of the keys of the room thermostat. The room thermostat then switches the thermostatic actuator via the controller terminal bar to control the heating circuit at the manifold.
Room thermostats D-BAT require a cable 2 x 0.5 mm², room thermostats D-230 a cable 3 x 0.5 mm².
It is also possible to connect a pump. When all actuators are de-energised (closed), the pump is switched off.
- Connections
- max. 8 control circuits and 20 actuators
max. 1 Raumthermostat pro Regelkreis
Control circuits 1 + 2 = 4 actuators each
Regelkreis 3 – 8 = je 2 Stellantriebe
- Operating temperature range
- Ambient:
- 5/50 °C
- Storage:
- 5/50 °C
- Supply voltage
- AC 230 V
- Housing
- plastic housing (PC/ABS)
- Colour:
- light grey, similar to RAL 7047

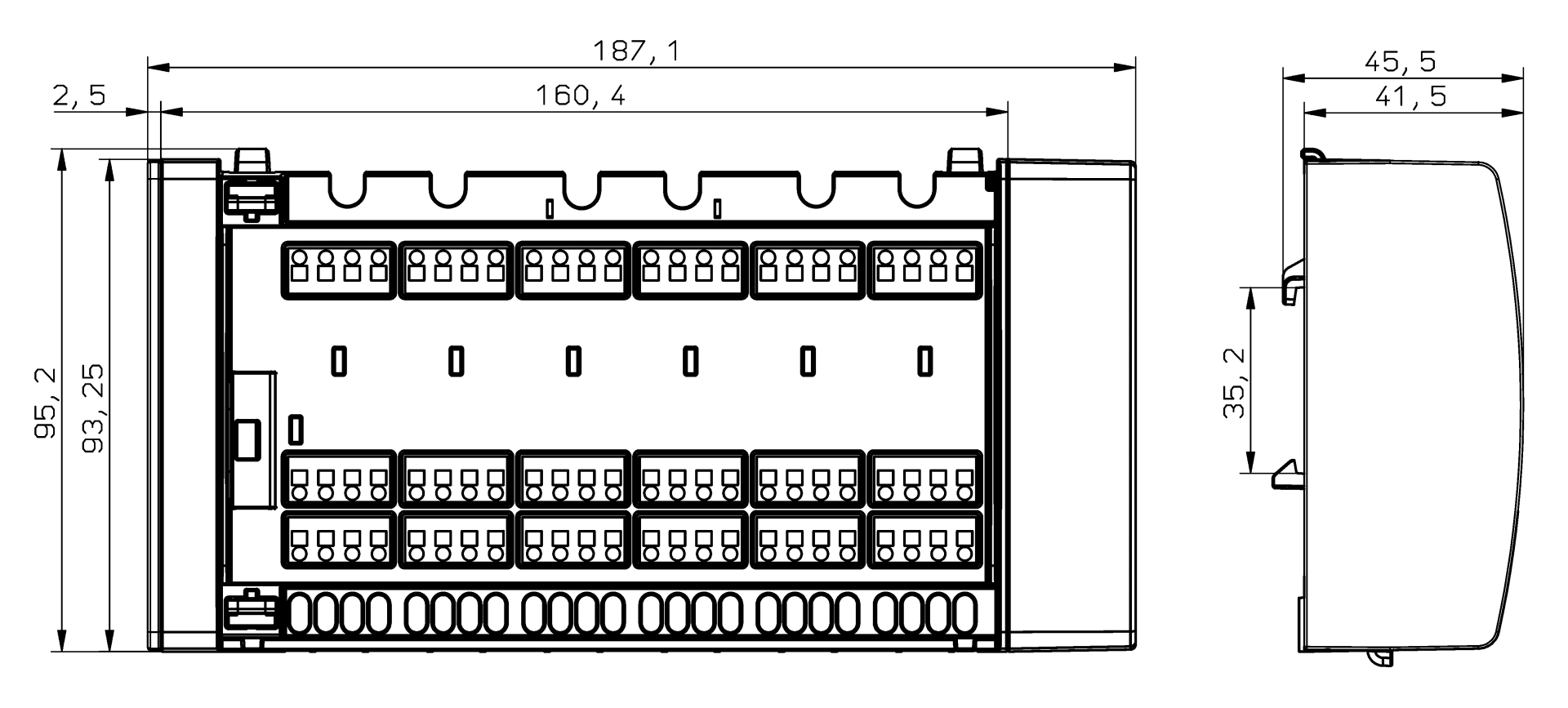

- W x H x D:
- 210 x 92 x 24 mm
- Degree of protection:
- IP 20 (EN 60529)
- Weight
- 275 g ( )
- Scope of delivery
- Controller terminal bar with connection cable/Euro plug
- Betriebsanleitung
