room thermostat with housing GRT/ERT/ETR | 67466X

room thermostats with housing GRT

in-stock items
Downloads

  • mechanical temperature controller
  • for monitoring of greenhouses
  • for use in animal breeding applications
  • easy wall mounting

Mechanical room thermostat for industrial use. Due to the high degree of protection, the device can be used in humid rooms and in animal breeding applications. The room thermostats are also suitable for temperature monitoring in greenhouses.

The temperature measured at the probe causes a change in the volume of the measuring liquid. Electrical switching is triggered by the force acting.

Type
GRT
Operating range
see ordering table
Tolerance
±0.4 %/10 K
Switching differential
0/40 °C:
∆T 2 ± 1 K
Setting
GRT/ERT/ETR:
Internal
Probe
Copper, nickel-plated
Probe element
liquid-filled
Operating temperature range
Housing:
max. 65 °C
plastic (PVC), grey (RAL 7035)
Cable entry
plastic (PVC), black
M16 x 1.5
Degree of protection
IP 54 (EN 60529)
electrical switching contact
Changeover contact
Contact rating
NC:
AC 250 V, 16 (2.5) A
NO:
AC 250 V, 6 (2.5) A

Click the corresponding image for detail views, additional information and dimension tables.

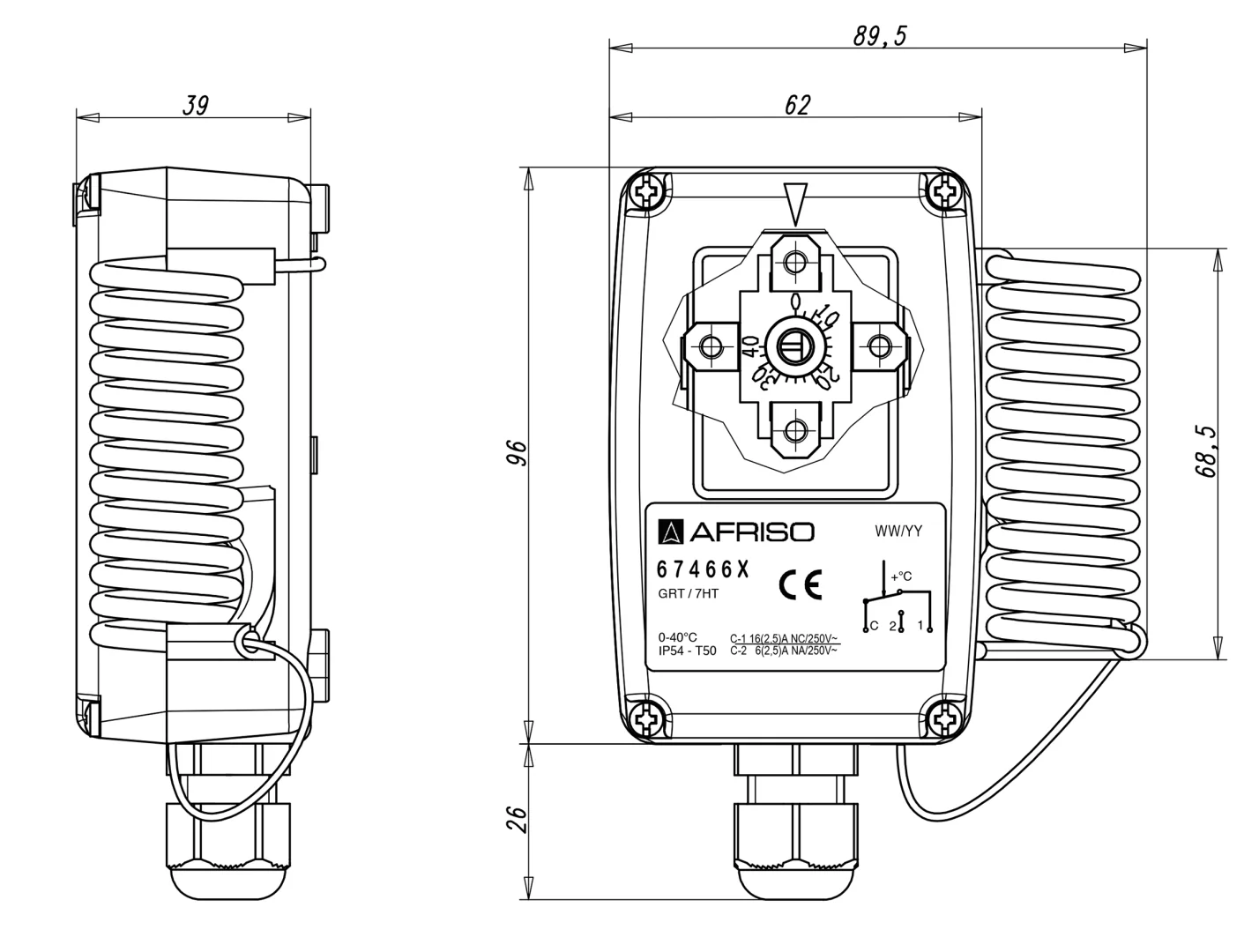

GRT/7HT, radial, Verstellung innenliegend (0-40 °C)

PRO_TEC_BEF_GRT_7HT_67466X_VERSTELLUNG_INNENLIEGEND.TIF

AFRISO_GEHAEUSE-RAUMTHERMOSTAT-GRT-ERT-ETR-GEHAEUSE-RAUMTHERMOSTAT_67466X_DEU_CHE.PDF

room thermostat with housing GRT/ERT/ETR 67466X

datasheet variant
Domestic Technology
PDF
GRT.PDF

Room thermostats with housing GRT
