Pressure transducers DMU 14 DG Ex | 31988

Pressure transducers DMU 14 DG/FG Ex

manufactured goods
Manuals

Measuring range0/1 bar
ConnectionG½B
ConnectionEN 837-1/7.3
Electrical connectionCable gland M20 x 1.5
Part no.31988

  • Version DMU 14 FG Ex with Ex approval for zone 0
  • ideal for process engineering
  • high accuracy of ± 0.1 %
  • either die cast housing (DG) or field housing (FG)
  • Turn down 1:10
  • Local display

The intelligent pressure transducer DMU 14 DG EX with die cast aluminium housing provides very high accuracy and a turn down function for measuring range selection and is an ideal solution for process engineering applications. The version DMU 14 FG EX with a stainless steel field housing is perfectly suitable for applications in the pharmaceutical and food industries. The devices come with HART® communication.

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
≤ ± 0.1 % FSO
≤ ± 0.2 % FSO at turn down > 1:5
Long-term stability
≤ ± 0.1 % FSO/Jahr ≤ ± at reference conditions
Display
LC display,
5-stellige 7-Segment Hauptanzeige,
Character height 8 mm,
Anzeigebereich ± 9.999,
8-digit 14-segment additional display,
Ziffernhöhe 5 mm,
52-segment bar chart,
Genauigkeit 0,1 % ± 1 Digit
0/1 bar
Overpressure safety
≤ 0/20 bar:
at least 4 x FS
Operating temperature range
Medium:
-40/+125 °C
short-term (60 min) up to 150 °C
Ambient:
-20/+70 °C
-20/+60 °C in Ex zone 0 at patm 0.8 to 1.1 bar
Storage:
-30/+80 °C
Temperature error band
≤ ± 0.2 % FSO x Turn-Down ≤ ± In compensated range -20/+85 °C
dynamic characteristics
Response time:
  100 ms (without consideration of electronic damping)
Process connection
G½B (EN 837-1/7.3)
material
Housing
DMU 14 DG Ex:
Aluminium die cast, powder-coated
pressure connection:
Stainless steel 316 L
diaphragm:
Stainless steel 316 L
Seal:
FKM (Viton)
pressure transmission liquid
Silicone oil
adjustable parameters
electronic damping:
0/100 s
Offset::
0/90 % FSO
turn down of span:
1:10
Supply voltage
DC 12 − 28 V
Output signal
2-wire, 4–20 mA
with Ex version/HART® communication
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
HART® communication:
Rmin = 250 Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Cable gland M20 x 1.5
Degree of protection
IP 67 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU (module A)
ATEX-Richtlinie 2014/34/EU
Ex approval
IBExU 15 ATEX 1059 X
DMU 14 DG Ex:
Ex II 2G Ex ia IIC T4 Gb and Ex II 1D Ex ia IIIC T85°C Da

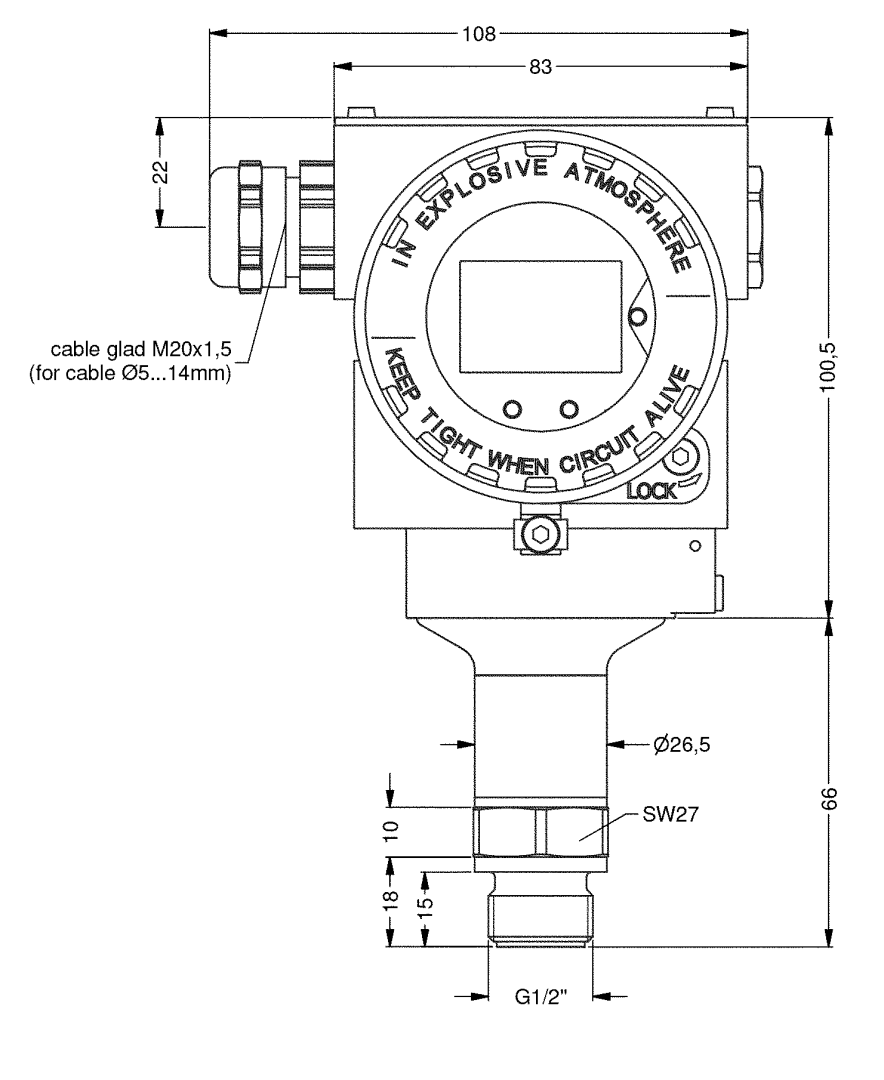

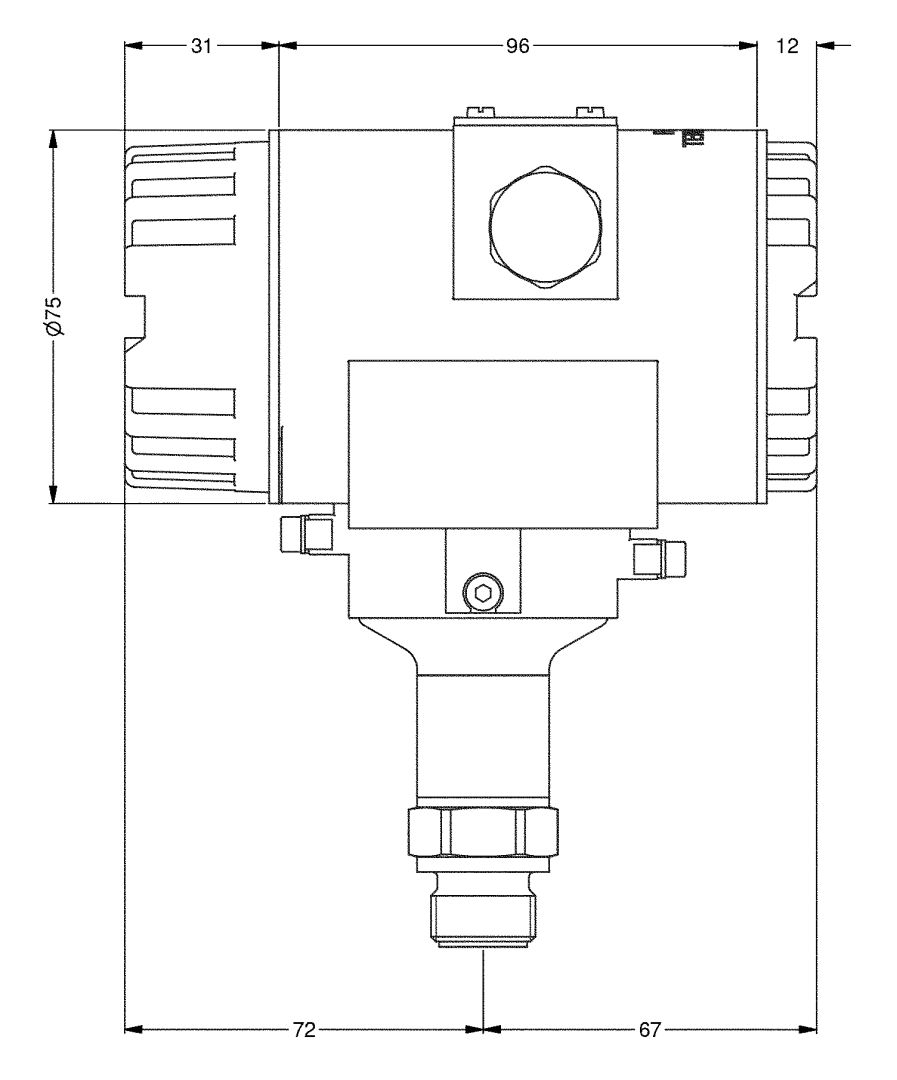

Click the corresponding image for detail views, additional information and dimension tables.
