Application

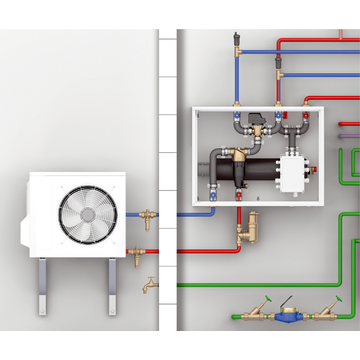

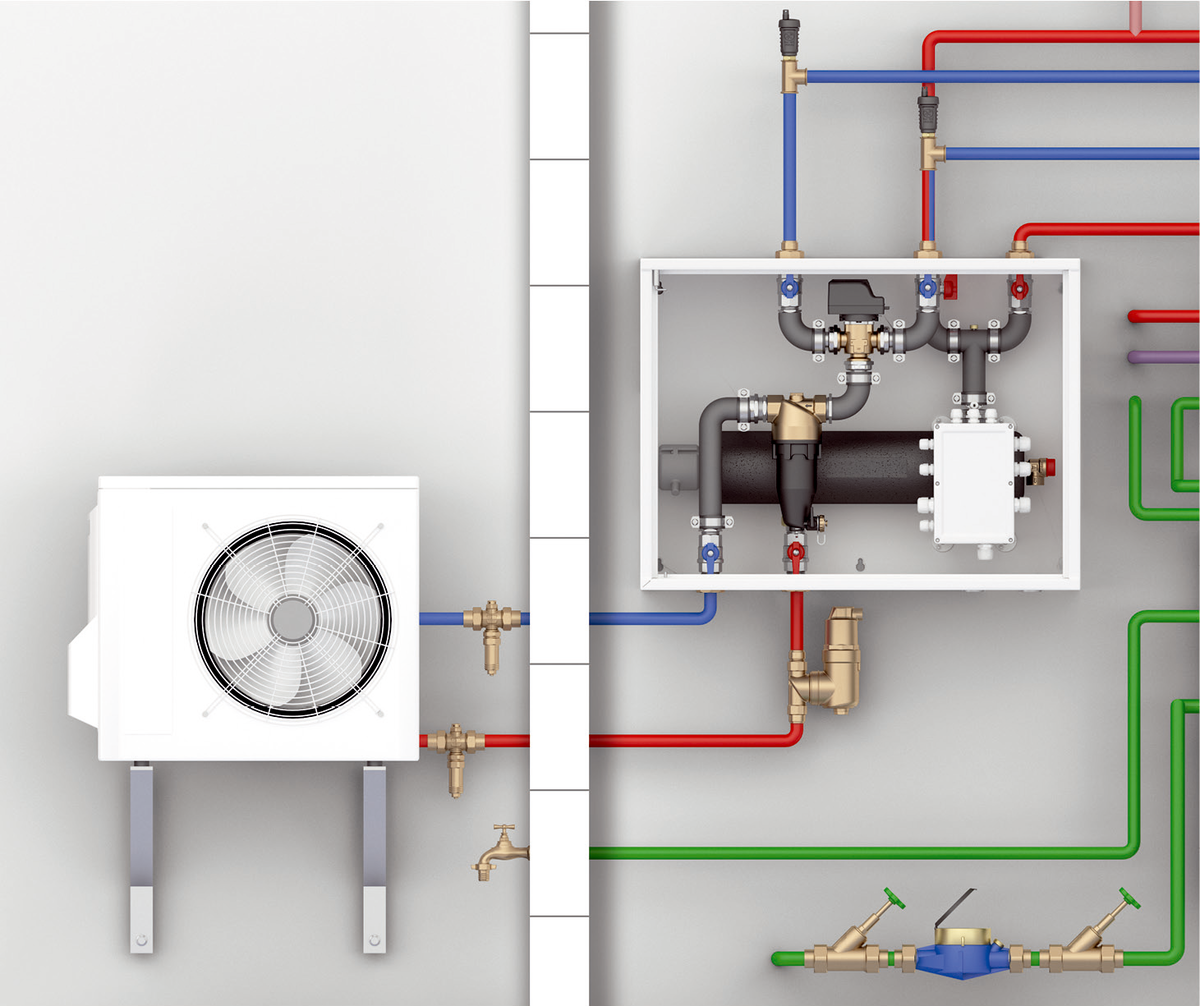

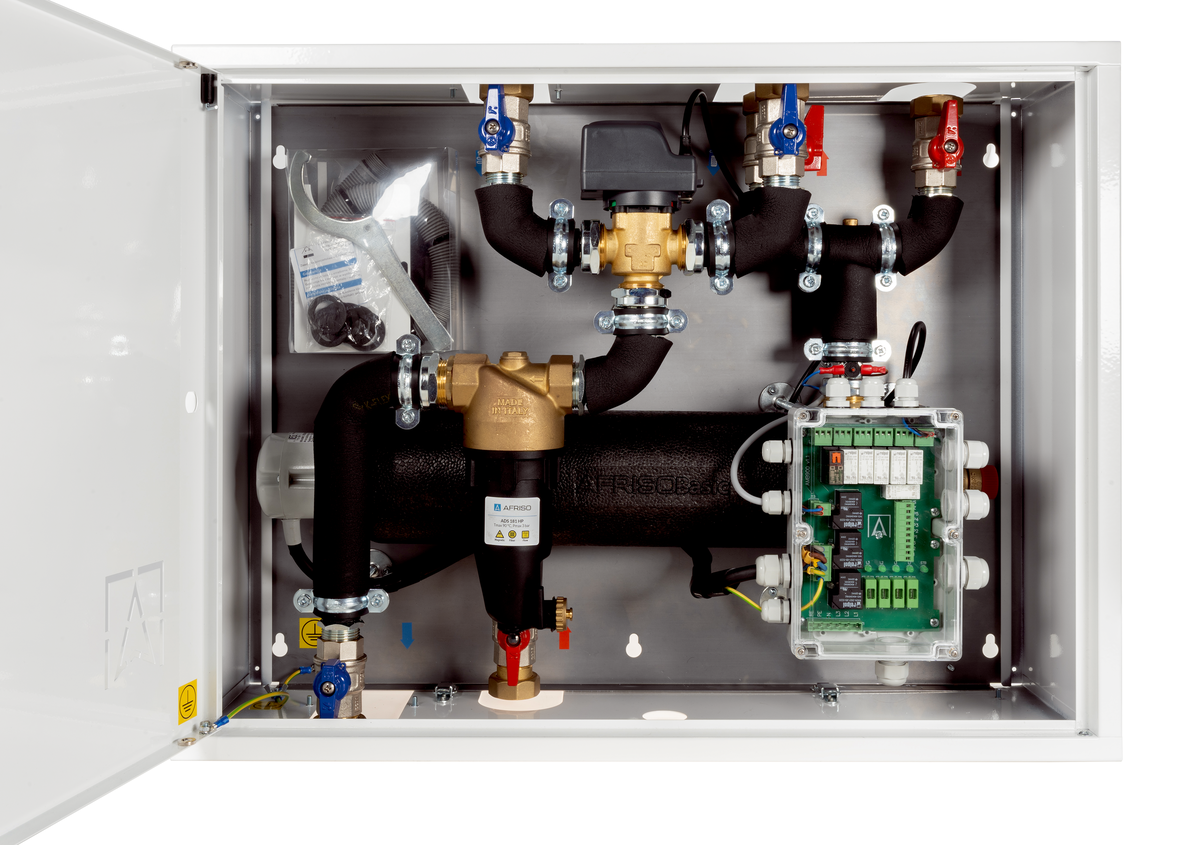

AMB 900 is a specially developed indoor unit for use in closed heating systems as per EN 12828. It allows for simple, reliable and fast integration of monobloc heat pumps into existing or new heating systems. The factory-preassembled and tightness tested unit is installed inside the building between the heat pump and the hot water storage tank or the heat distribution system. Thanks to the pre-wired 7 components, it is suffi cient to wire the power supply and connect the unit to the heat pump. With to the integrated electric heating element, AMB 900 can also be used as an auxiliary or emergency heat er in combination with the heat pump control.
<div class="gallery-information">

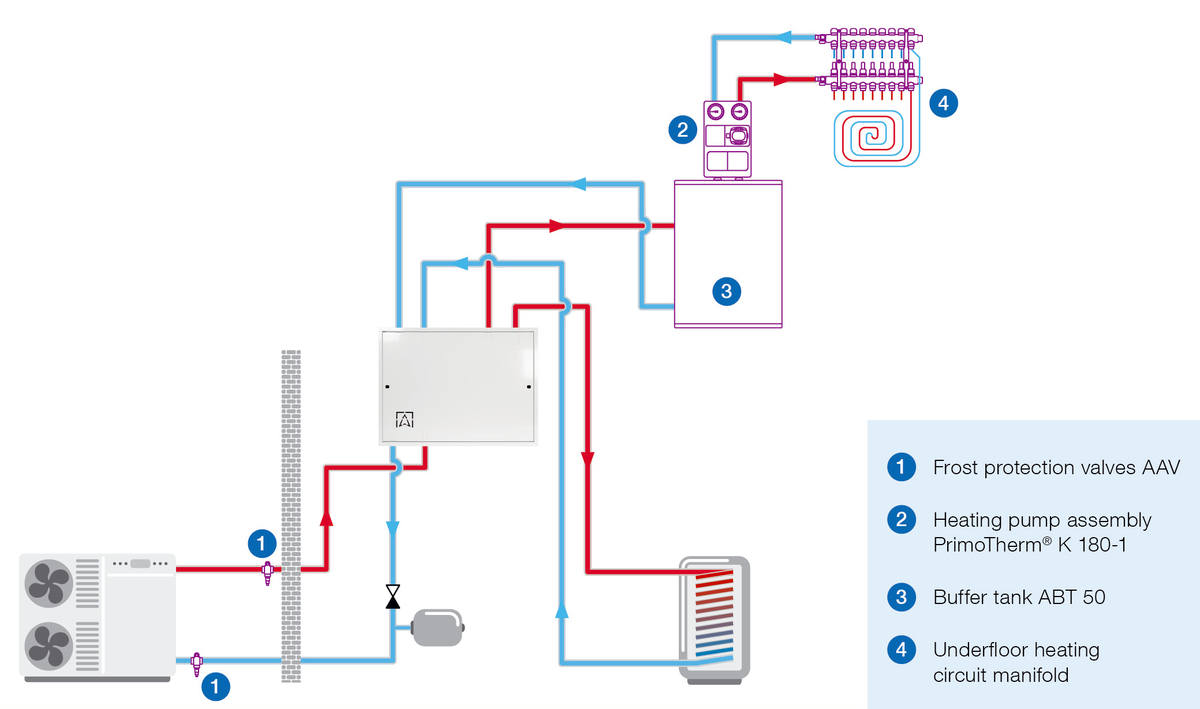

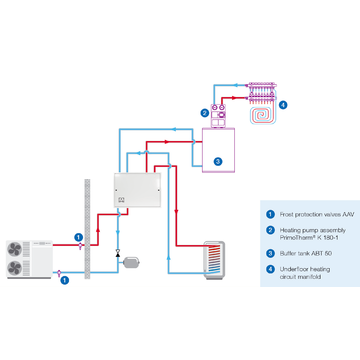

<b>Legend:</b>
<ol>
<li>Frost protection valve AAV</li>
<li>Heating pump assembly PrimoTherm 180-1</li>
<li>Buffer tank ABT 50</li>
<li>Underfloor heating circuit manifold</li>
</ol>
</div>
