Pressure type leak detectors Europress

AFRISO Überdruck-Leckanzeiger Europress mit Serviceanzeige VOR 74950 74960 object_image_56512imagemain_en AFRISO Überdruck-Leckanzeiger Europress mit Serviceanzeige VOR 74950 74960 object_image_56512imagemain_en
Überdruck-Leckanzeiger Europress mit Serviceanzeige
AFRISO Überdruck-Leckanzeiger Europress mit Serviceanzeige VOR 74950 74960 object_image_56512imagemain_en
AFRISO Überdruck-Leckanzeiger Europress im Schutzgehäuse (IP 65) mit Hupe VOR 74980 74990 AFRISO Überdruck-Leckanzeiger Europress im Schutzgehäuse (IP 65) mit Hupe VOR 74980 74990
Überdruck-Leckanzeiger Europress im Schutzgehäuse (IP 65) mit Hupe
AFRISO Überdruck-Leckanzeiger Europress im Schutzgehäuse (IP 65) mit Hupe VOR 74980 74990

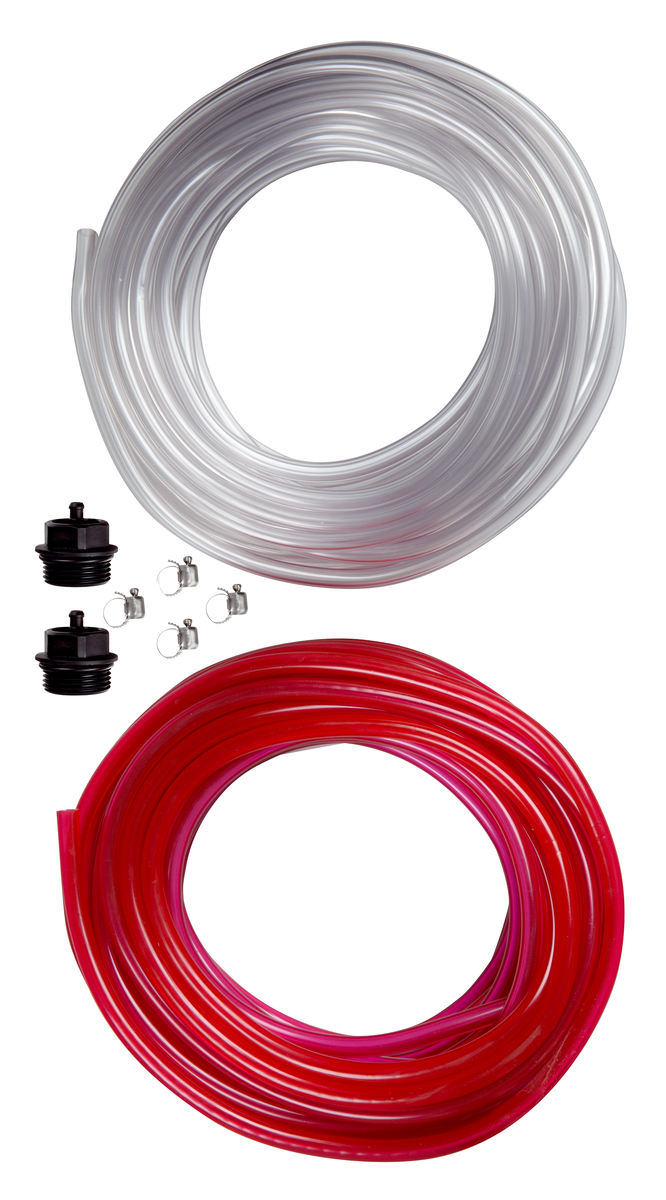

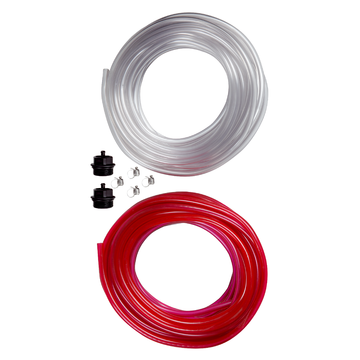

AFRISO Montage-Set für Europress VOR 104950 AFRISO Montage-Set für Europress VOR 104950
Montage-Set für Europress
AFRISO Montage-Set für Europress VOR 104950

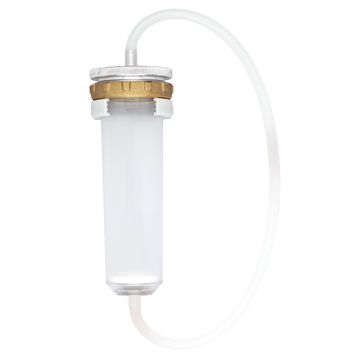

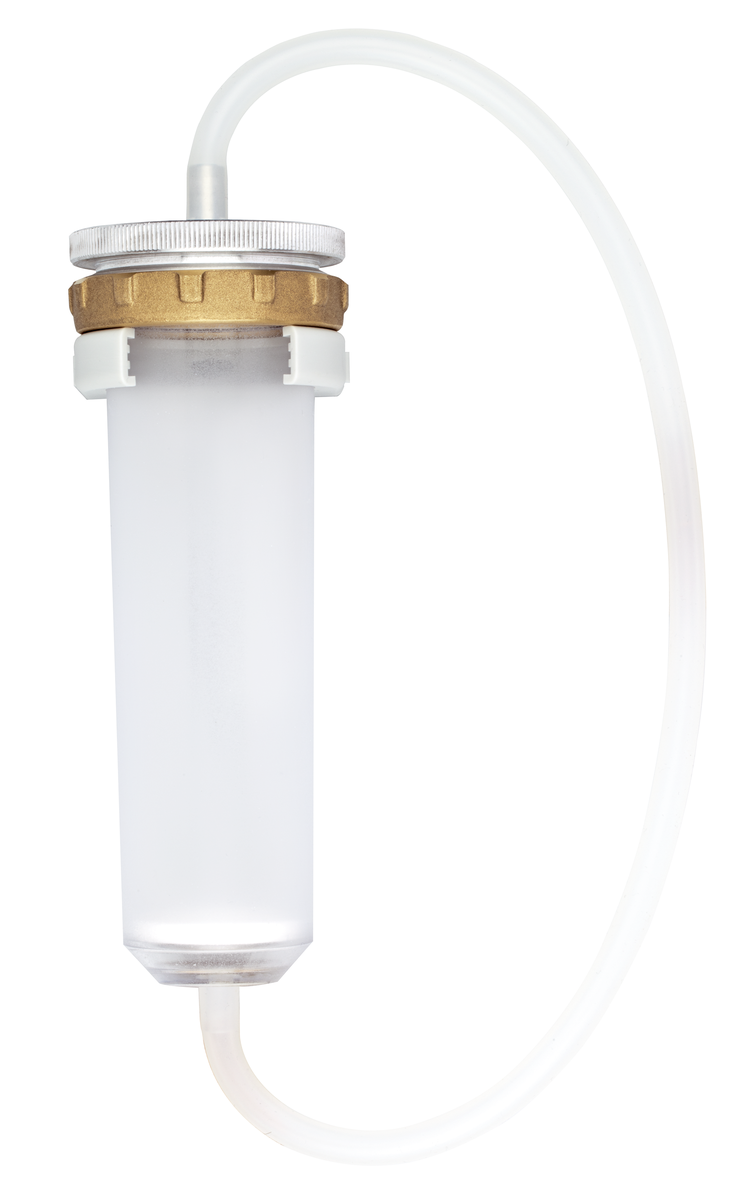

AFRISO Trockenfilter TF 220 inkl. Befestigungswinkel VOR 98250 AFRISO Trockenfilter TF 220 inkl. Befestigungswinkel VOR 98250
Trockenfilter TF 220 inkl. Befestigungswinkel
AFRISO Trockenfilter TF 220 inkl. Befestigungswinkel VOR 98250
AFRISO Anschlussstutzen G1 x NW 4/6mm VOR 2240 3230 AFRISO Anschlussstutzen G1 x NW 4/6mm VOR 2240 3230
Anschlussstutzen G1 x NW 4/6mm
AFRISO Anschlussstutzen G1 x NW 4/6mm VOR 2240 3230
AFRISO EnOcean-Funkmodul TCM 320 für WATCHDOG-LINE Geräteplatinen VOR 710 270 AFRISO EnOcean-Funkmodul TCM 320 für WATCHDOG-LINE Geräteplatinen VOR 710 270
EnOcean-Funkmodul TCM 320 für WATCHDOG-LINE Geräteplatinen
AFRISO EnOcean-Funkmodul TCM 320 für WATCHDOG-LINE Geräteplatinen VOR 710 270
AFRISO Überdruck-Leckanzeiger Europress mit Serviceanzeige SAL 74950 74960 AFRISO Überdruck-Leckanzeiger Europress mit Serviceanzeige SAL 74950 74960
Überdruck-Leckanzeiger Europress mit Serviceanzeige
AFRISO Überdruck-Leckanzeiger Europress mit Serviceanzeige SAL 74950 74960
AFRISO Trockenperlen Nachfülldose 850ml SAL 2220 AFRISO Trockenperlen Nachfülldose 850ml SAL 2220
Trockenperlen Nachfülldose 850ml
AFRISO Trockenperlen Nachfülldose 850ml SAL 2220
AFRISO Überdruck-Leckanzeiger Europress mit Serviceanzeige VOR 74950 74960 object_image_56512imagemain_en
AFRISO Überdruck-Leckanzeiger Europress im Schutzgehäuse (IP 65) mit Hupe VOR 74980 74990
AFRISO Montage-Set für Europress VOR 104950
AFRISO Trockenfilter TF 220 inkl. Befestigungswinkel VOR 98250
AFRISO Anschlussstutzen G1 x NW 4/6mm VOR 2240 3230
AFRISO EnOcean-Funkmodul TCM 320 für WATCHDOG-LINE Geräteplatinen VOR 710 270
AFRISO Überdruck-Leckanzeiger Europress mit Serviceanzeige SAL 74950 74960
AFRISO Trockenperlen Nachfülldose 850ml SAL 2220
Data sheet pressure type leak detectors Europress
AFRISO Data sheet pressure type leak detectors Europress

Benefits

  • With visual and audible alarms, Acknowledge button and switching output
  • Pump operating time can be displayed
  • Service indicator for annual maintenance
  • With power outage monitoring (with optional 9 V battery)
  • Leak detector class I, EN 13160-1/-2
  • Large supply voltage range (AC 100–240 V) for worldwide application
  • Relay output for additional signalling devices, additional alarm units, event reporting systems or for integration into building control systems
  • Version in protective housing (IP 65), available with heating and/or horn

Application

Class I pressure type leak detector as per EN 13160-1/-2 for safe monitoring of suitable double-walled tanks for unpressurised storage of numerous water-polluting liquids, also AdBlue® (urea solution 32.5 %). The flexible voltage supply (AC 100–240 V) allows for application in a large variety of countries.

Versions

Part no. Remember
Europress 43790
Europress with filter, pipe clamp PG42 and drying beads 43701
Europress in protective housing (IP 65) with horn 43795
Europress in protective housing (IP 65) with horn and heating 43796

Blue part no. = in-stock items

Part no. Remember
Mounting kit 43704
Drying filter TF 220 with pipe clamp, without granular material 43688
Drying beads refill can 850 ml 69226
Connection pieces G1 x NW 4/6 mm 43698
EnOcean® wireless module TCM 320 78082

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet pressure type leak detectors Europress Data sheet PDF
AFRISO Data sheet pressure type leak detectors Europress
Pressure type leak detector Europress Operating instructions PDF
AFRISO Pressure type leak detector Europress
Function test pressure type leak detector Europress Test report PDF
AFRISO Function test pressure type leak detector Europress
Vacuum type leak detectors Eurovac HV, Eurovac NV, pressure type leak detector Europress Declaration of Conformity PDF
AFRISO Vacuum type leak detectors Eurovac HV, Eurovac NV, pressure type leak detector Europress
Compact leak detector in a robust wall mounting housing with audible and visual alarms. The audible alarm can be muted with the Acknowledge button. Europress indicates the pump operating time and features a switching output for additional equipment (such as additional alarm unit ZAG 01) or integration into building control systems. The pump operating time can be displayed. Three hose connections (red, white, green) for the pneumatic connection to the interstitial space of the tank. The universal connection pieces can be used for 4 mm and 6 mm hoses. With condensate trap to protect the electronics. Electrical connection from the top or from the bottom. An optional 9 V battery can be connected so that an alarm is triggered in the case of power outage. For outdoor applications, Europress is available in a protective housing (IP 55). Alarm units with the EnOcean-ready label can be integrated into your existing building automation systems at a later point in time. To do so, plug the EnOcean® wireless module into the EnOcean® interface (PCB of the device). The AFRISO home gateway in conjunction with additional AFRISO smart home products with EnOcean® wireless technology allow you to configure a whole range of fully customisable, extensible features for the protection of plants and buildings.
Operating temperature range
Ambient:
-5/+60 °C
In protective housing with heating:
-25/+60 °C
Storage:
-25/+60 °C
Supply voltage
AC 100 – 240 V
Nominal power
< 10 VA
Switching output
Relay contact:
1 x voltage-free changeover contact
Contact rating:
Max. AC 250 V, 2 A
Operating pressure
Interstitial space:
Approx. 510 mbar
Housing
Wall mounting housing made of impact-resistant plastic (ABS)
W x H x D:
202 x 230 x 70 mm
Weight:
1.2 kg
Degree of protection:
IP 30 (EN 60529)
Alarm sound
Min. 70 dB(A)
Approval
CE marking as per EC Construction Products Regulation 305/2011, EU 574/2014, EN 13160-1/-2 and ÜHP
