Level probe LS 300 EU for overfill prevention system LS for Ex (WHG)

AFRISO Standaufnehmer LS 300 EU 500mm, -25/+50C, Einschraubkörper G3/8 SAL 91840 object_image_63632imagemain_en AFRISO Standaufnehmer LS 300 EU 500mm, -25/+50C, Einschraubkörper G3/8 SAL 91840 object_image_63632imagemain_en

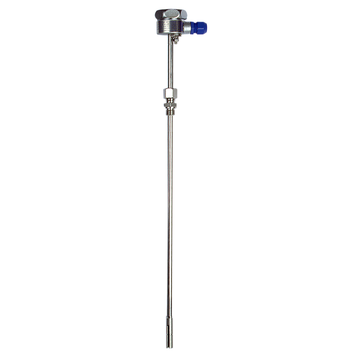

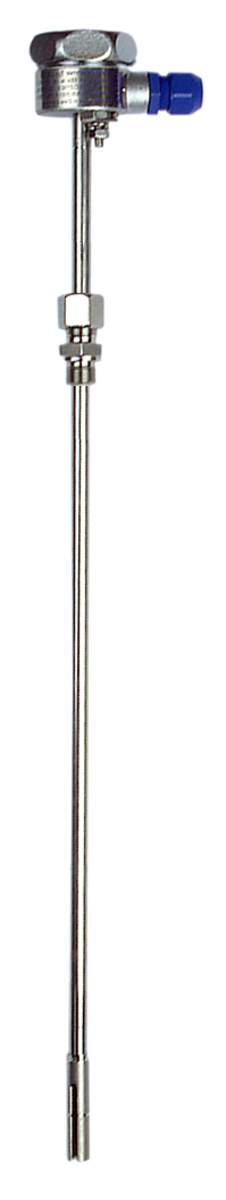

Standaufnehmer LS 300 EU 500mm, -25/+50C, Einschraubkörper G3/8
AFRISO Standaufnehmer LS 300 EU 500mm, -25/+50C, Einschraubkörper G3/8 SAL 91840 object_image_63632imagemain_en
AFRISO Standaufnehmer LS 300 EU 500mm, -25/+50C, Einschraubkörper G3/8 SAL 91840 object_image_63632imagemain_en
Data sheet level probe LS 300 EU for overfill prevention system LS for Ex (WHG)
AFRISO Data sheet level probe LS 300 EU for overfill prevention system LS for Ex (WHG)

Benefits

  • Approved as part of an overfill prevention system as per German WHG together with level transducer LS 500
  • Self-monitoring with automatic corrosion monitoring
  • All wetted parts made of stainless steel 316 Ti
  • Suitable for use in liquids with an overpressure of 3 bar
  • Ex approval

Application

Level probe for transducers as part of an overfill prevention system for stationary and stationary-use tanks. Suitable for installation in all tank versions. Approved without list of substances for water-polluting liquids, also with flash point < 55 °C.

Versions

Length Part no. Remember
Level probe LS 300 EU 500 mm 53300

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet level probe LS 300 EU for overfill prevention system LS for Ex (WHG) Data sheet PDF
AFRISO Data sheet level probe LS 300 EU for overfill prevention system LS for Ex (WHG)
Approved part of an overfill prevention system according to WHG together with the LS 500 transducer – self-monitoring and with automatic corrosion monitoring. LS 300 EU consists of a height-adjustable probe tube with a PTC thermistor sensor element at the bottom end, screw fitting and a junction box with integrated overvoltage protection. Standard length 500 mm, max. length 3,000 mm. The level probe can be used in flammable liquids up to 3 bar overpressure.
Material
Junction box:
Brass, chrome-plated
Probe tube:
Stainless steel 316 Ti
Screw fitting:
Stainless steel 316 Ti
PTC thermistor:
Stainless steel-encapsulated
Process connection
Einschraubgewinde G⅜
Operating temperature range
Medium:
-25/+50 °C
Degree of protection
IP 67 (EN 60529)
Approval
DIBt: Z-65.11-228
EU type examination certificate
TÜV 00 ATEX 1656X Ex II 1G Ex ia IIC T4 und Ex II 1/2G Ex ia IIC T4
