Alarm unit for separators ASA-02

AFRISO Warngerät für Abscheider ASA-02-1 inkl. Schichtdickensonde ASA-LP VOR 92000 object_image_99346imagemain_en AFRISO Warngerät für Abscheider ASA-02-1 inkl. Schichtdickensonde ASA-LP VOR 92000 object_image_99346imagemain_en

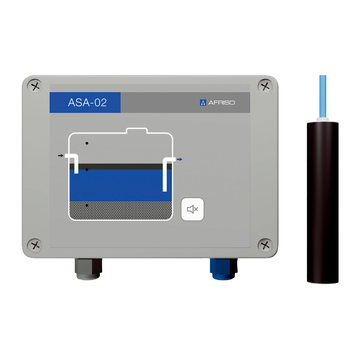

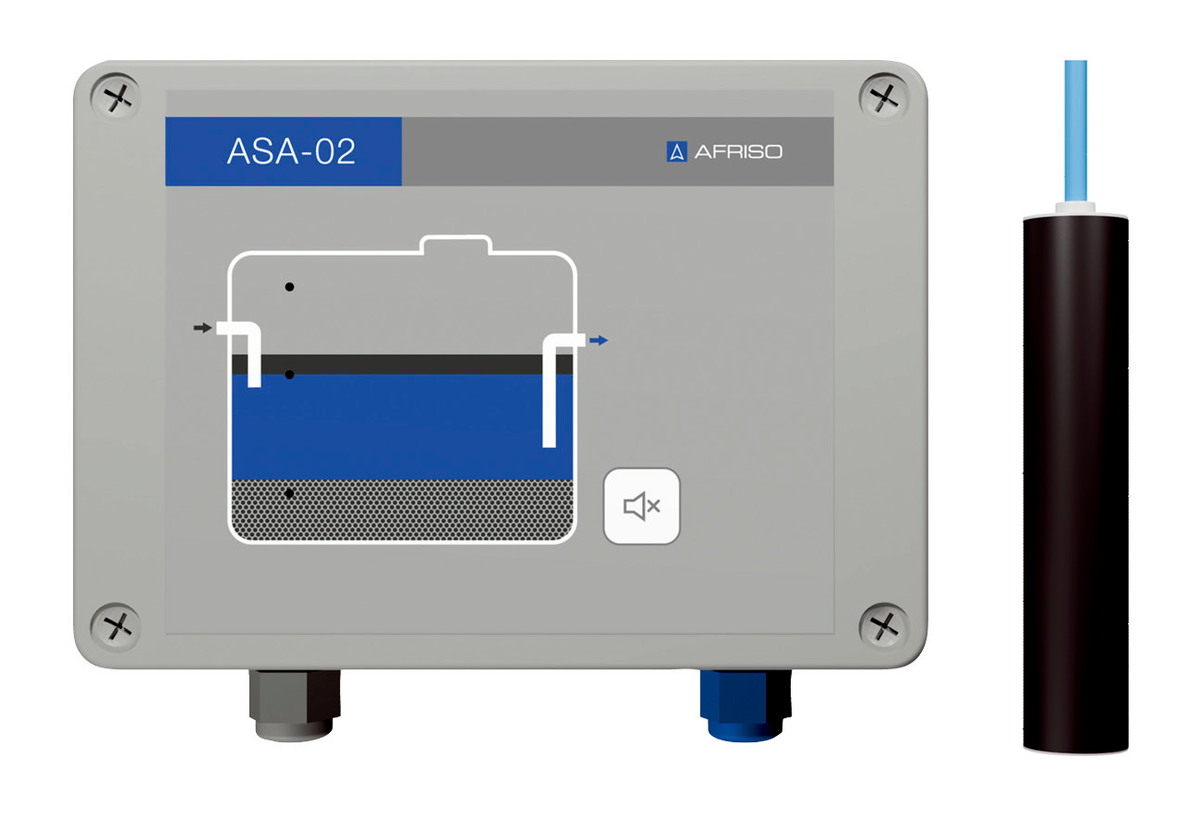

Warngerät für Abscheider ASA-02-1 inkl. Schichtdickensonde ASA-LP
AFRISO Warngerät für Abscheider ASA-02-1 inkl. Schichtdickensonde ASA-LP VOR 92000 object_image_99346imagemain_en
AFRISO Warngerät für Abscheider ASA-02-2 inkl. Schichtdickensonde ASA-LP und Aufstausonde ADA-HLP VOR 92010 AFRISO Warngerät für Abscheider ASA-02-2 inkl. Schichtdickensonde ASA-LP und Aufstausonde ADA-HLP VOR 92010

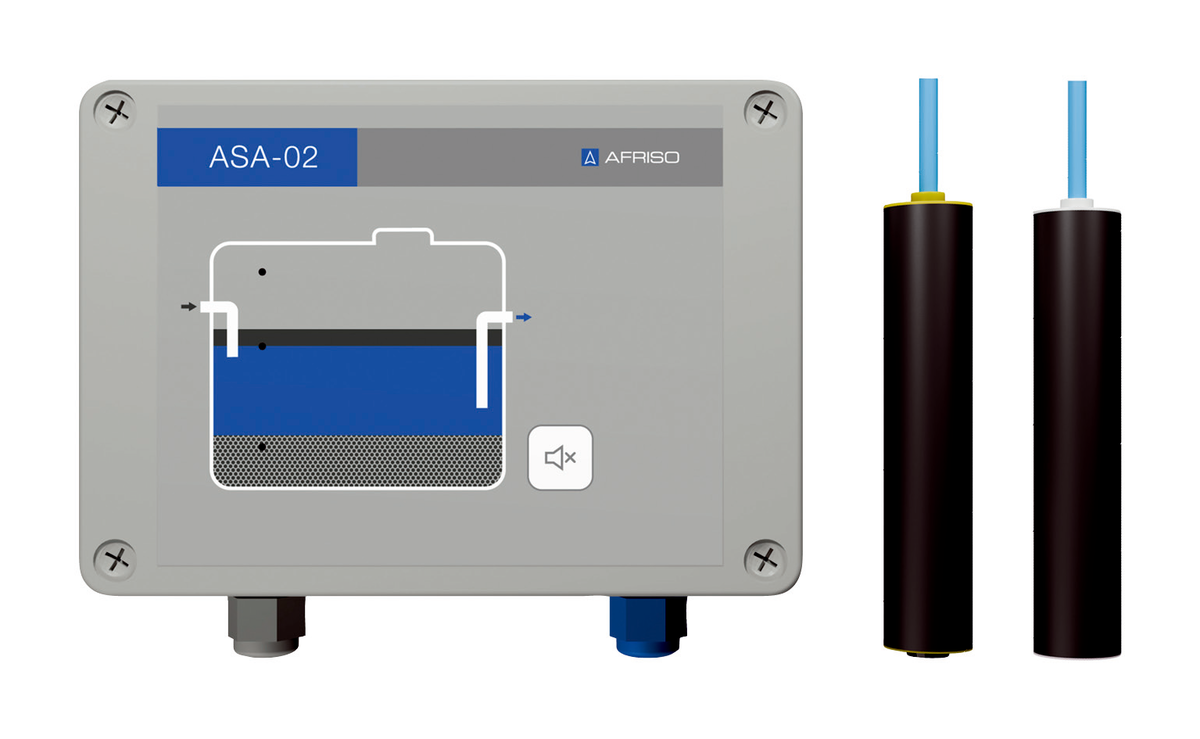

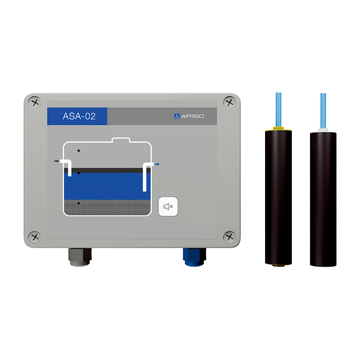

Warngerät für Abscheider ASA-02-2 inkl. Schichtdickensonde ASA-LP und Aufstausonde ADA-HLP
AFRISO Warngerät für Abscheider ASA-02-2 inkl. Schichtdickensonde ASA-LP und Aufstausonde ADA-HLP VOR 92010
AFRISO Warngerät für Abscheider ASA-02-1 inkl. Schichtdickensonde ASA-LP ANW 92000 92010 AFRISO Warngerät für Abscheider ASA-02-1 inkl. Schichtdickensonde ASA-LP ANW 92000 92010

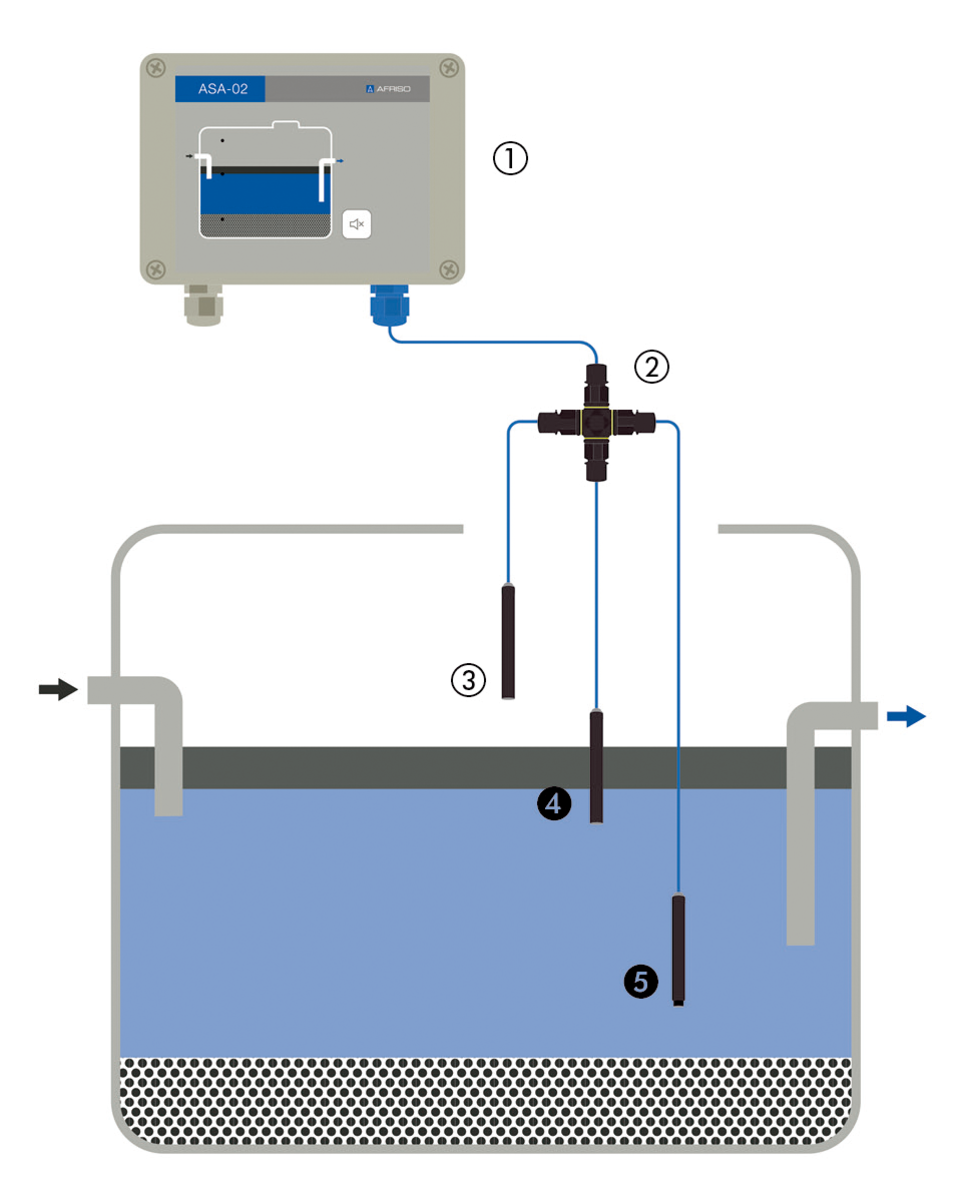

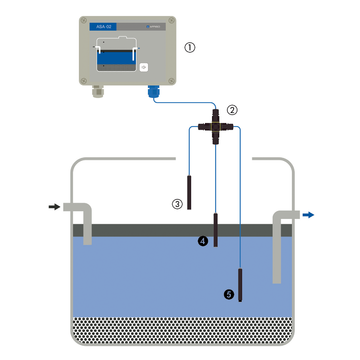

Warngerät für Abscheider ASA-02-1 inkl. Schichtdickensonde ASA-LP
AFRISO Warngerät für Abscheider ASA-02-1 inkl. Schichtdickensonde ASA-LP ANW 92000 92010
AFRISO Warngerät für Abscheider ASA-02-1 inkl. Schichtdickensonde ASA-LP VOR 92000 object_image_99346imagemain_en
AFRISO Warngerät für Abscheider ASA-02-2 inkl. Schichtdickensonde ASA-LP und Aufstausonde ADA-HLP VOR 92010
AFRISO Warngerät für Abscheider ASA-02-1 inkl. Schichtdickensonde ASA-LP ANW 92000 92010
Data sheet Alarm unit for separators ASA-02
AFRISO Data sheet Alarm unit for separators ASA-02

Versions

Part no. Remember
Alarm unit for separators ASA-02-1 53423
Alarm unit for separators ASA-02-2 53424

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Alarm unit for separators ASA-02 Data sheet PDF
AFRISO Data sheet Alarm unit for separators ASA-02
Alarm units WGA for separators Alarm units PDF
AFRISO Alarm units WGA for separators
Operating temperature range
Medium:
-20/+40 °C
Ambient:
-20/+60 °C
Supply voltage
AC 230 V
Power input
Approx. 2 VA
Switching outputs
Relay contact:
3 voltage-free changeover contacts
Contact rating:
AC 250 V, 5 A, 100 VA
Audible alarm
Integrated piezo-buzzer, can be acknowledged
Housing
Wall mounting housing made of impact-resistant plastic (ABS)
W x H x D:
175 x 125 x 75 mm
Degree of protection:
IP 65 (EN 60529)
Ex approval
Ex II (1) G [Ex ia GA] IIA
Connection probe – control unit
500 m
Scope of delivery
ASA-02-1:
  • Control unit
  • Mounting material
ASA-02-2:
  • Control unit
  • Mounting material
