Data sheet Pressure transducers DMU 30 Industrial version
AFRISO Data sheet Pressure transducers DMU 30 Industrial version

Benefits

  • For pressure ranges up to 1,000 bar
  • Suitable for high overloads
  • Insensitive to pressure peaks
  • Ex version (optional)

Application

For electronic pressure measurement in machines and systems with technical gases (e.g. oxygen, oil-free, grease-free) and for use in hydrogen applications.

Versions

Connection Measuring range Part no. Remember
G¼B (EN 837-1/7.3) 0/16 bar DMU 30111150201
G¼B (EN 837-1/7.3) 0/25 bar DMU 30111160201
G¼B (EN 837-1/7.3) 0/40 bar DMU 30111170201
G¼B (EN 837-1/7.3) 0/60 bar DMU 30111180201
G¼B (EN 837-1/7.3) 0/100 bar DMU 30111190201
G¼B (EN 837-1/7.3) 0/160 bar DMU 30111200201
G¼B (EN 837-1/7.3) 0/250 bar DMU 30111210201
G¼B (EN 837-1/7.3) 0/400 bar DMU 30111220201
G¼B (EN 837-1/7.3) 0/600 bar DMU 30111230201
G½B (EN 837-1/7.3) 0/16 bar DMU 30111150401
G½B (EN 837-1/7.3) 0/25 bar DMU 30111160401
G½B (EN 837-1/7.3) 0/40 bar DMU 30111170401
G½B (EN 837-1/7.3) 0/60 bar DMU 30111180401
G½B (EN 837-1/7.3) 0/100 bar DMU 30111190401
G½B (EN 837-1/7.3) 0/160 bar DMU 30111200401
G½B (EN 837-1/7.3) 0/250 bar DMU 30111210401
G½B (EN 837-1/7.3) 0/400 bar DMU 30111220401
G½B (EN 837-1/7.3) 0/600 bar DMU 30111230401
G½B (EN 837-1/7.3) 0/1,000 bar DMU 30111240401
¼-18 NPT 0/16 bar DMU 30111150601
¼-18 NPT 0/25 bar DMU 30111160601
¼-18 NPT 0/40 bar DMU 30111170601
¼-18 NPT 0/60 bar DMU 30111180601
¼-18 NPT 0/100 bar DMU 30111190601
¼-18 NPT 0/160 bar DMU 30111200601
¼-18 NPT 0/250 bar DMU 30111210601
¼-18 NPT 0/400 bar DMU 30111220601
¼-18 NPT 0/600 bar DMU 30111230601
¼-18 NPT 0/1,000 bar DMU 30111240601

Blue part no. = in-stock items

Connection Measuring range Part no. Remember
G¼B (EN 837-1/7.3) 0/16 bar DMU 30211150201
G¼B (EN 837-1/7.3) 0/25 bar DMU 30211160201
G¼B (EN 837-1/7.3) 0/40 bar DMU 30211170201
G¼B (EN 837-1/7.3) 0/60 bar DMU 30211180201
G¼B (EN 837-1/7.3) 0/100 bar DMU 30211190201
G¼B (EN 837-1/7.3) 0/160 bar DMU 30211200201
G¼B (EN 837-1/7.3) 0/250 bar DMU 30211210201
G¼B (EN 837-1/7.3) 0/400 bar DMU 30211220201
G¼B (EN 837-1/7.3) 0/600 bar DMU 30211230201
G½B (EN 837-1/7.3) 0/16 bar DMU 30211150401
G½B (EN 837-1/7.3) 0/25 bar DMU 30211160401
G½B (EN 837-1/7.3) 0/40 bar DMU 30211170401
G½B (EN 837-1/7.3) 0/60 bar DMU 30211180401
G½B (EN 837-1/7.3) 0/100 bar DMU 30211190401
G½B (EN 837-1/7.3) 0/160 bar DMU 30211200401
G½B (EN 837-1/7.3) 0/250 bar DMU 30211210401
G½B (EN 837-1/7.3) 0/400 bar DMU 30211220401
G½B (EN 837-1/7.3) 0/600 bar DMU 30211230401
G½B (EN 837-1/7.3) 0/1,000 bar DMU 30211240401
¼-18 NPT 0/16 bar DMU 30211150601
¼-18 NPT 0/25 bar DMU 30211160601
¼-18 NPT 0/40 bar DMU 30211170601
¼-18 NPT 0/60 bar DMU 30211180601
¼-18 NPT 0/100 bar DMU 30211190601
¼-18 NPT 0/160 bar DMU 30211200601
¼-18 NPT 0/250 bar DMU 30211210601
¼-18 NPT 0/400 bar DMU 30211220601
¼-18 NPT 0/600 bar DMU 30211230601
¼-18 NPT 0/1,000 bar DMU 30211240601

Blue part no. = in-stock items

Connection Measuring range Part no. Remember
G¼B (EN 837-1/7.3) 0/16 bar DMU 30111150202
G¼B (EN 837-1/7.3) 0/25 bar DMU 30111160202
G¼B (EN 837-1/7.3) 0/40 bar DMU 30111170202
G¼B (EN 837-1/7.3) 0/60 bar DMU 30111180202
G¼B (EN 837-1/7.3) 0/100 bar DMU 30111190202
G¼B (EN 837-1/7.3) 0/160 bar DMU 30111200202
G¼B (EN 837-1/7.3) 0/250 bar DMU 30111210202
G¼B (EN 837-1/7.3) 0/400 bar DMU 30111220202
G¼B (EN 837-1/7.3) 0/600 bar DMU 30111230202
G½B (EN 837-1/7.3) 0/16 bar DMU 30111150402
G½B (EN 837-1/7.3) 0/25 bar DMU 30111160402
G½B (EN 837-1/7.3) 0/40 bar DMU 30111170402
G½B (EN 837-1/7.3) 0/60 bar DMU 30111180402
G½B (EN 837-1/7.3) 0/100 bar DMU 30111190402
G½B (EN 837-1/7.3) 0/160 bar DMU 30111200402
G½B (EN 837-1/7.3) 0/250 bar DMU 30111210402
G½B (EN 837-1/7.3) 0/400 bar DMU 30111220402
G½B (EN 837-1/7.3) 0/600 bar DMU 30111230402
G½B (EN 837-1/7.3) 0/1,000 bar DMU 30111240402
¼-18 NPT 0/16 bar DMU 30111150602
¼-18 NPT 0/25 bar DMU 30111160602
¼-18 NPT 0/40 bar DMU 30111170602
¼-18 NPT 0/60 bar DMU 30111180602
¼-18 NPT 0/100 bar DMU 30111190602
¼-18 NPT 0/160 bar DMU 30111200602
¼-18 NPT 0/250 bar DMU 30111210602
¼-18 NPT 0/400 bar DMU 30111220602
¼-18 NPT 0/600 bar DMU 30111230602
¼-18 NPT 0/1,000 bar DMU 30111240602

Blue part no. = in-stock items

Connection Measuring range Part no. Remember
G¼B (EN 837-1/7.3) 0/16 bar DMU 30211150202
G¼B (EN 837-1/7.3) 0/25 bar DMU 30211160202
G¼B (EN 837-1/7.3) 0/40 bar DMU 30211170202
G¼B (EN 837-1/7.3) 0/60 bar DMU 30211180202
G¼B (EN 837-1/7.3) 0/100 bar DMU 30211190202
G¼B (EN 837-1/7.3) 0/160 bar DMU 30211200202
G¼B (EN 837-1/7.3) 0/250 bar DMU 30211210202
G¼B (EN 837-1/7.3) 0/400 bar DMU 30211220202
G¼B (EN 837-1/7.3) 0/600 bar DMU 30211230202
G½B (EN 837-1/7.3) 0/16 bar DMU 30211150402
G½B (EN 837-1/7.3) 0/25 bar DMU 30211160402
G½B (EN 837-1/7.3) 0/40 bar DMU 30211170402
G½B (EN 837-1/7.3) 0/60 bar DMU 30211180402
G½B (EN 837-1/7.3) 0/100 bar DMU 30211190402
G½B (EN 837-1/7.3) 0/160 bar DMU 30211200402
G½B (EN 837-1/7.3) 0/250 bar DMU 30211210402
G½B (EN 837-1/7.3) 0/400 bar DMU 30211220402
G½B (EN 837-1/7.3) 0/600 bar DMU 30211230402
G½B (EN 837-1/7.3) 0/1,000 bar DMU 30211240402
¼-18 NPT 0/16 bar DMU 30211150602
¼-18 NPT 0/25 bar DMU 30211160602
¼-18 NPT 0/40 bar DMU 30211170602
¼-18 NPT 0/60 bar DMU 30211180602
¼-18 NPT 0/100 bar DMU 30211190602
¼-18 NPT 0/160 bar DMU 30211200602
¼-18 NPT 0/250 bar DMU 30211210602
¼-18 NPT 0/400 bar DMU 30211220602
¼-18 NPT 0/600 bar DMU 30211230602
¼-18 NPT 0/1,000 bar DMU 30211240602

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Pressure transducers DMU 30 Industrial version Data sheet PDF
AFRISO Data sheet Pressure transducers DMU 30 Industrial version
Pressure transducers DMU 30 industrial version Operating instructions PDF
AFRISO Pressure transducers DMU 30 industrial version
Electronic pressure measurement - pressure transducers DMU series Product range industrial technology PDF
AFRISO Electronic pressure measurement - pressure transducers DMU series
Flyers Flyer PDF
AFRISO Flyers
Enquiry pressure transducers DMU Checklists PDF
AFRISO Enquiry pressure transducers DMU
Pressure transducers DMU 30 industrial version Ordering code PDF
AFRISO Pressure transducers DMU 30 industrial version
Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 30 is equipped with a welded stainless steel measuring cell.
Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< ± 0.5 % FSO
Long-term stability
≤ ± 0.2 % FSO/Jahr at reference conditions
Measuring range
See ordering table
Overpressure safety
16 bar:
At least 3 x FS
> 16 bar:
2 x FS
> 600 bar:
At least 1.5 x FS
Burst pressure
< 600 bar:
At least 5 x FS
≥ 600 bar:
At least 3 x FS
1000 bar:
3 x FS
Vacuum resistance:
Unlimited
Operating temperature range
Medium:
-40/+125 °C
Ambient:
-40/+100 °C
 in Ex zZone 0:
-20/+60 °C
 from Ex zone 1:
-20/+70 °C
Storage:
-40/+85 °C
Temperature error band
≤ ± 0.2 % FSO/10 K In compensated range -25/+85 °C
Dynamic characteristics
Response time:
≤ 10 ms
Process connection
G¼B (EN 837-1/7.3)
G½B (EN 837-1/7.3)
¼-18 NPT
Material
Housing:
Stainless steel 316 L
Pressure connection:
Stainless steel 316 L
Diaphragm:
Stainless steel 316 L
Seal:
Without (welded)
Degree of cleanliness:
Oil- and grease-free version, based on ISO 15001
Residual particles:
No particles > 100 µm (with reference to 10 dm2)
Residual grease:
Residual grease content < 0.2 mg/dm2
Supply voltage
Standard version:
DC 8 – 32 V
Ex version:
DC 10 – 28 V
Output signal
4–20 mA, 2-wire
Load
R<sub>Max</sub> = [(UB – UB<sub>Min</sub>)/0.02 A] Ω
Current input
< 25 mA
Electrical protection
Short circuit proof and protected against reverse polarity
Electrical connection
M12 x 1, 4-pin,
Cable outlet with PVC cable
Degree of protection
IP 67 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
Pressure Equipment Directive 2014/68/EU

Options

  • Ex version zone 0+20 (II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T135 °C Da)
  • Other electrical connections
  • Other output signal
  • Fitting of chemical seal
electrical connections
AFRISO
electrical connections
M12 x 1, 4-pin (IP 67)
AFRISO
Dimensions (in mm)
Connection G¼B (EN 837-1/7.3)
AFRISO
Connection G¼B (EN 837-1/7.3)
AFRISO
Dimensions (in mm)
Connection G½B (EN 837-1/7.3)
AFRISO
Connection G½B (EN 837-1/7.3)
AFRISO
Dimensions (in mm)

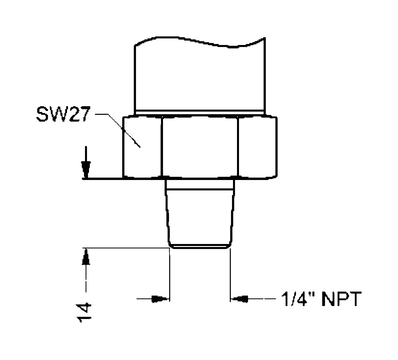

Connection ¼"-18 NPT
AFRISO
Connection ¼"-18 NPT
AFRISO
Dimensions (in mm)
electrical connections
AFRISO
electrical connections
Cable outlet with PVC cable (IP 67)
AFRISO
Dimensions (in mm)
