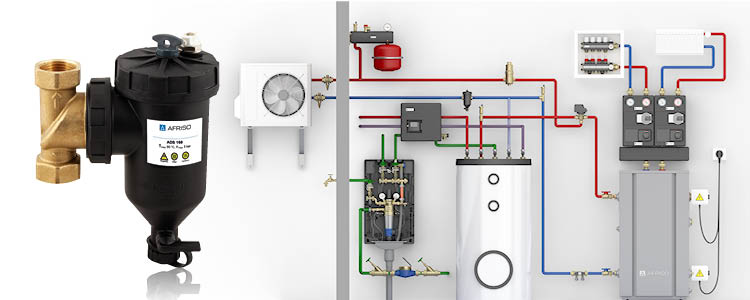

The two versions ADS 160 and ADS 180 HP of the product innovation remove solid particles on a continuous basis. The compact sludge separators work with the help of a flow effect: The heating system water swirls so that impurities are effectively separated and settle in the lower part. There, metallic particles are attracted by a powerful magnet with 14,000 Gauss. In the next step, the heating system water is filtered using a stainless steel fine filter (500 µm or 800 µm).



Easy removal of impurities

Collected impurities can be removed quickly via the integrated drain valve. The cover features a manual air vent that can be used, for example, during servicing. The mounting tool allows you to easily disassemble the sludge separator for thorough cleaning. Ideally, the unit is installed in the return line upstream of the heat generator.



For efficient, reliable heat pump operation

The magnetite sludge separator is yet another component in the AFRISO range of professional equipment for heat pump systems. The ADS series provides the basis for protecting the installation and particularly sensitive system components such as heat exchangers, condensers, valves or pumps. The result: Clean water, reliable operation, better and faster heat transfer and thus savings in energy consumption and emissions.
