Wall mounting rail probe WSS | 55050

Wall mounting rail probe WSS

manufactured goods

Downloads

For the detection of conductive liquids such as rainwater, tap water, fresh water, waste water, cooling water and heating water.

Height-adjustable wall mounting rail probe suitable for WWG 2, ELT 8, ELT 680 and ELT 500/4. The probe is mounted to the wall at the object to be monitored. The desired response level (distance from probe to floor) is adjusted via the wall mounting rail. The alarm is triggered by the connected alarm unit when the probe comes into contact with liquid.

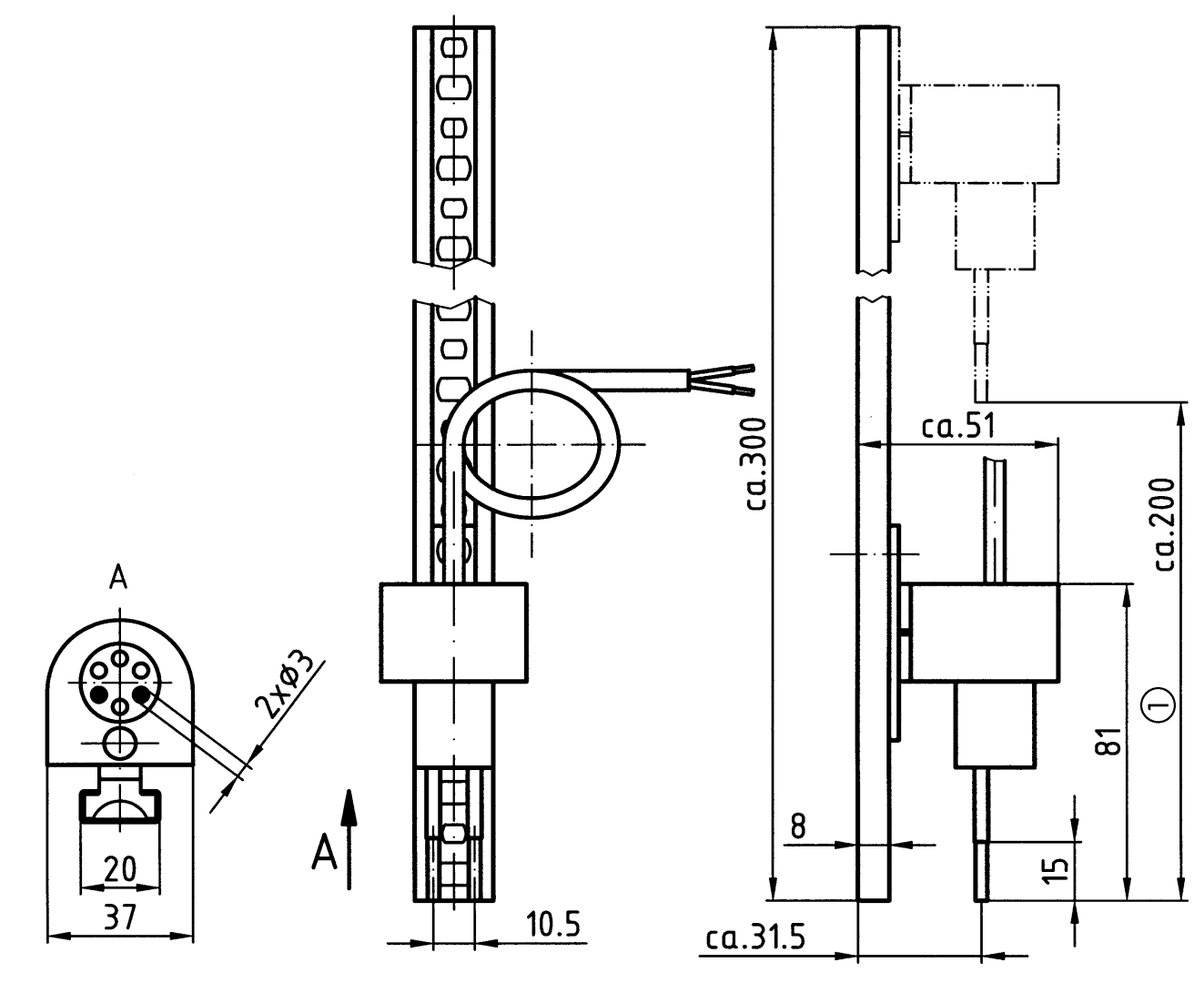

Dimensions

W x H x D:: 37 x 320 x 55 mm

Cable length: 1.5 m

Height-adjustable: ca. 200 mm

temperature of the medium: 0/50 °C

Click the corresponding image for detail views, additional information and dimension tables.
