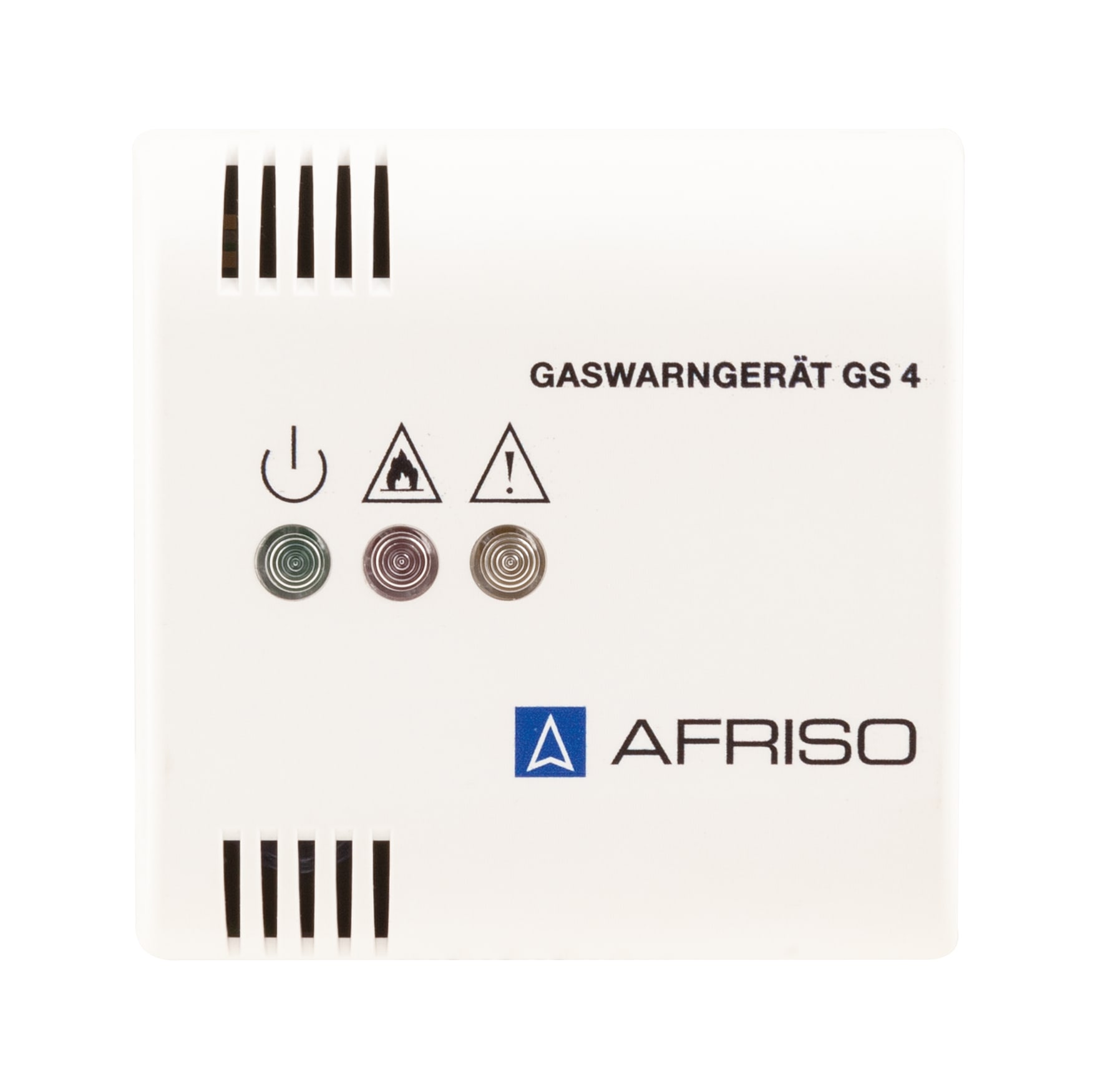

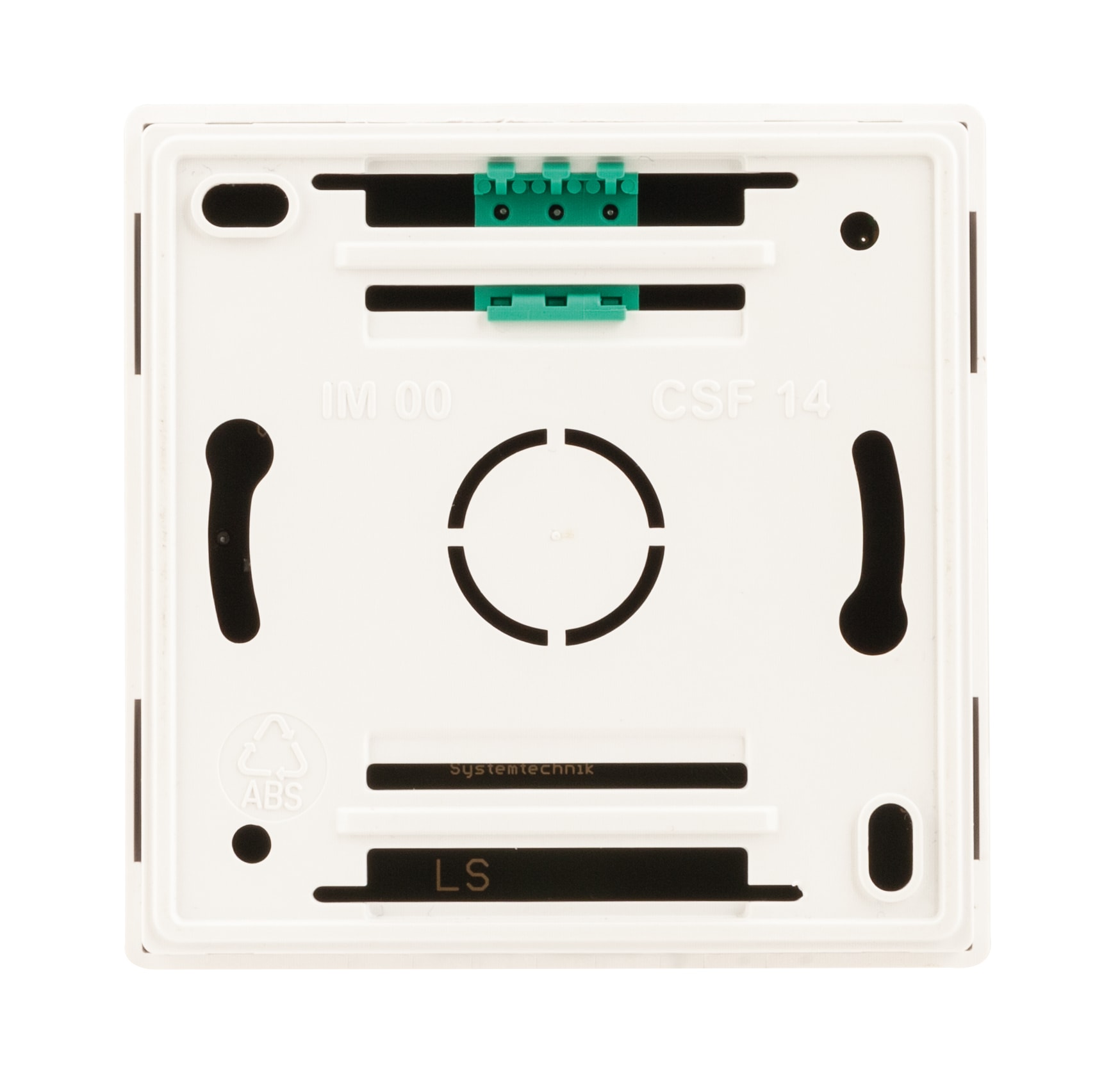

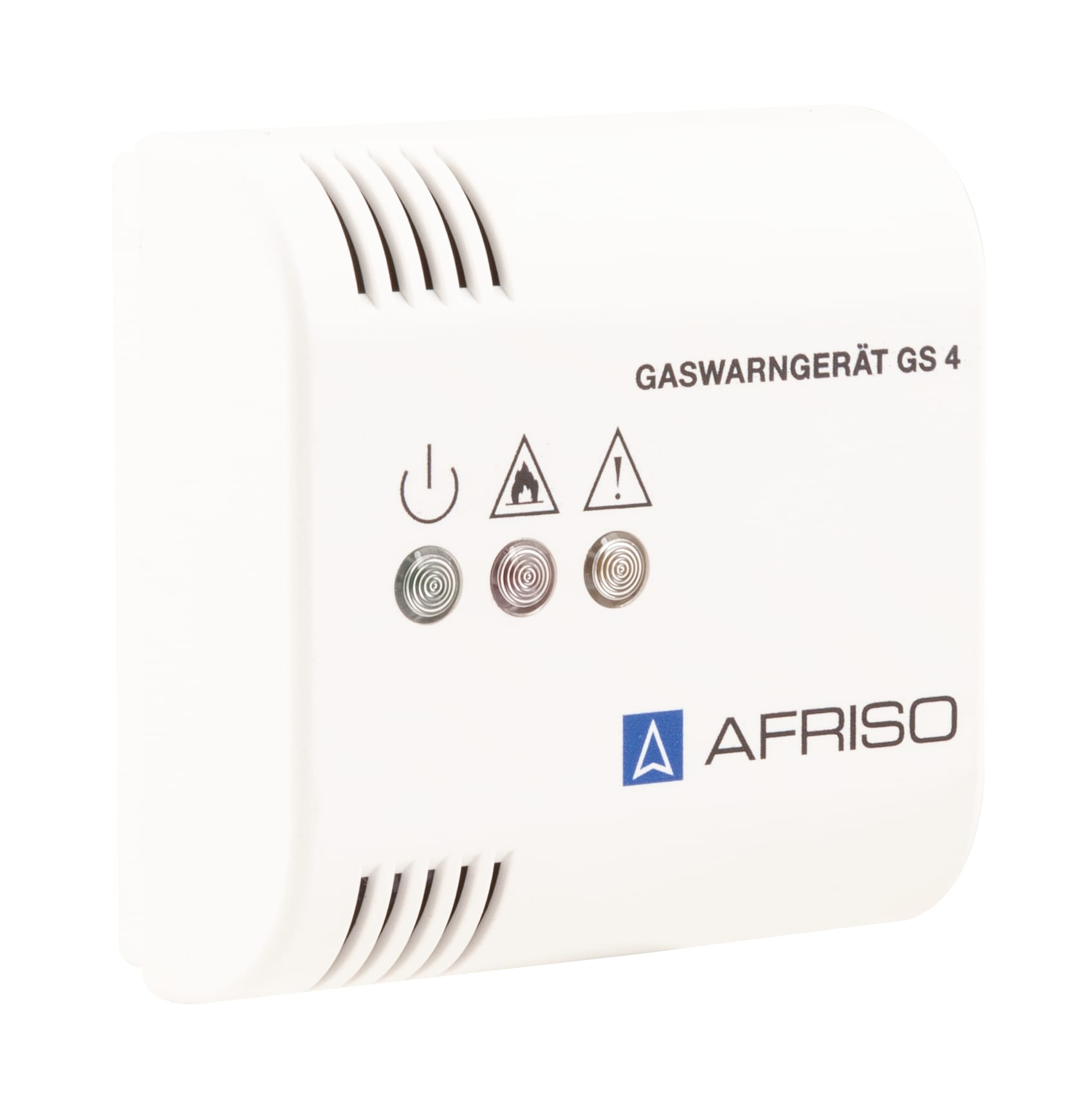

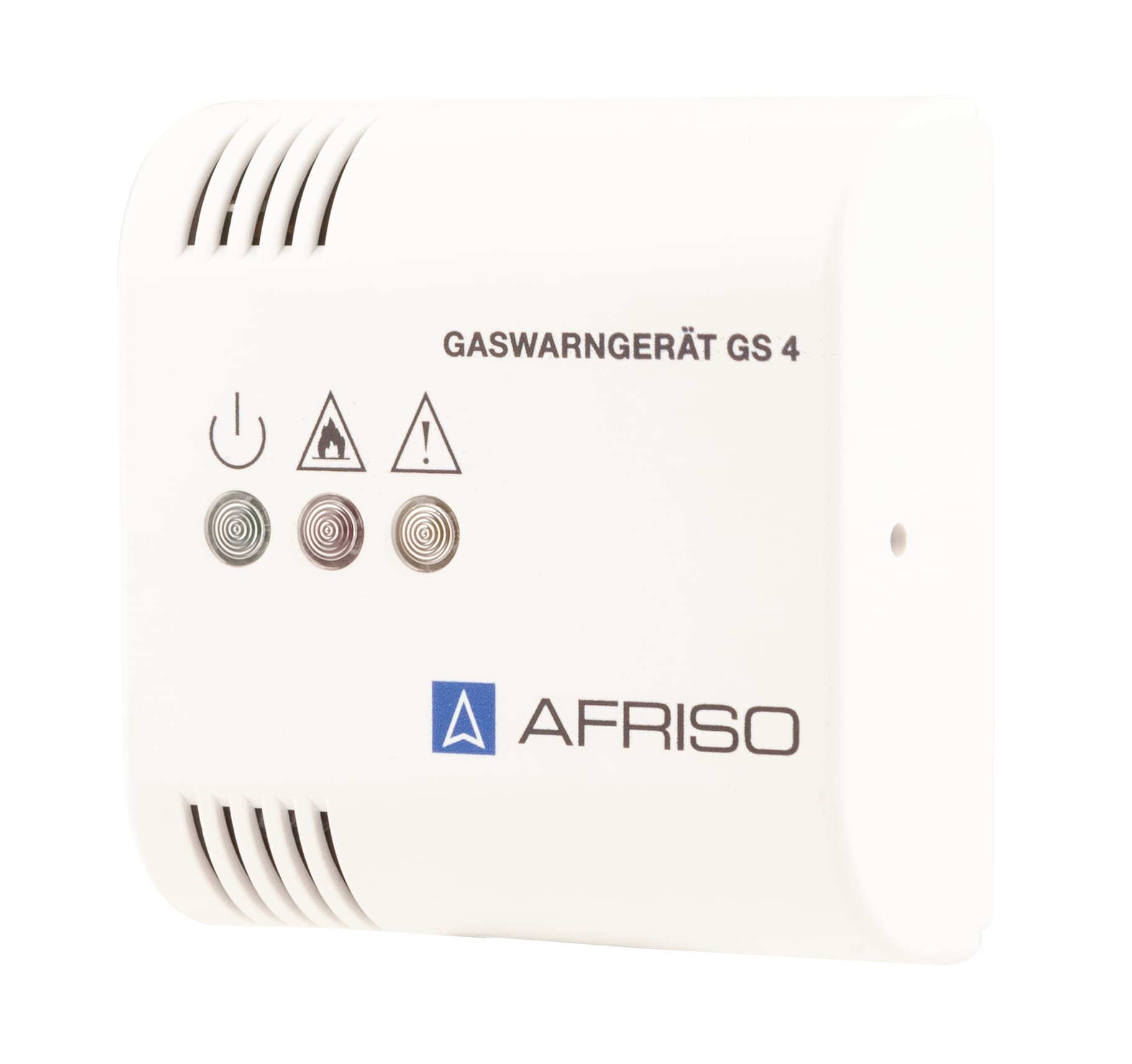

Gas sensor GS 4.1 Propane/butane | 61189

Gas sensor GS 4.1 Propane/butane

in-stock items
Manuals

  • additional sensor suitable for gas alarm unit GS 2.1
  • detectable gases: methane or propane / butane
  • LEDs indicate the operating and alarm state of the gas alarm system

Additional gas sensor to be used with the gas alarm unit GS 2.1. Enables monitoring at two points in different rooms.

Remote probe for gas alarm unit GS 2.1. Audible alarm is triggered by the gas alarm GS 2.1.
Detectable gases: Methane, butane, propane. LEDs at the sensor indicate the operating and alarm state of the gas alarm system:
LED green: operation
LED yellow: error
LED red: gas alarm

Supply voltage
via GS 2.1
Housing
Wall mounting plastic housing
W x H x D:
80 x 80 x 35 mm
Weight:
ca. 500 g
Degree of protection:
IP 20 (EN 60529)
Operating temperature range
Ambient:
0/50 °C
Storage:
-10/+60 °C
Humidity/moisture:
max. 75 % r.F.
Alarm value
ca. 20 % UEG
Service life
ca. 5 Jahre

AFRISO_GASSENSOR-GS-4-1-PROPAN-BUTAN-GASSENSOR_61189_DEU_CHE.PDF

AFRISO_GASSENSOR-GS-4-1-PROPAN-BUTAN-GASSENSOR_61189_DEU_DEU.PDF

datasheet variant
Domestic Technology
PDF
GASWARNGERAETE_1-1_2-1_3-1_4-1.PDF

Gaswarngerät, Gassensor GS 1.1, GS 2.1, GS 4.1

Declarations of Conformity
PDF
900_000_0260.PDF

Gaswarngerät, Gassensor GS 1.1, GS 2.1, GS 4.1

operating instructions
