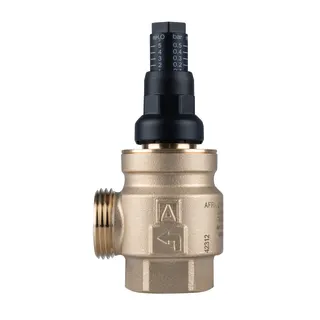

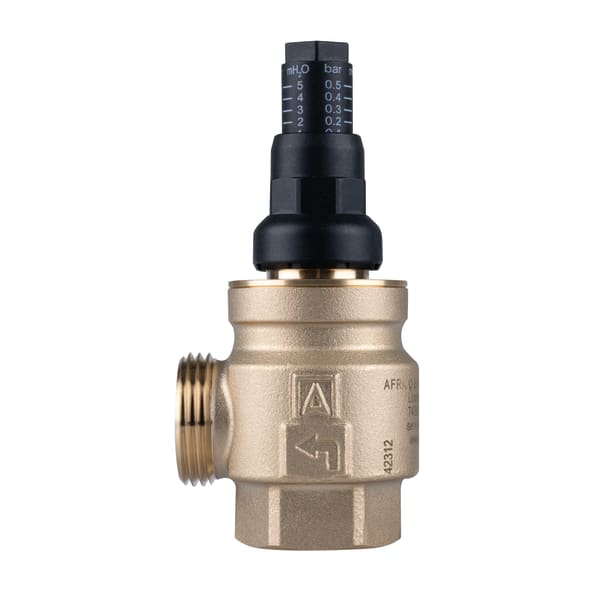

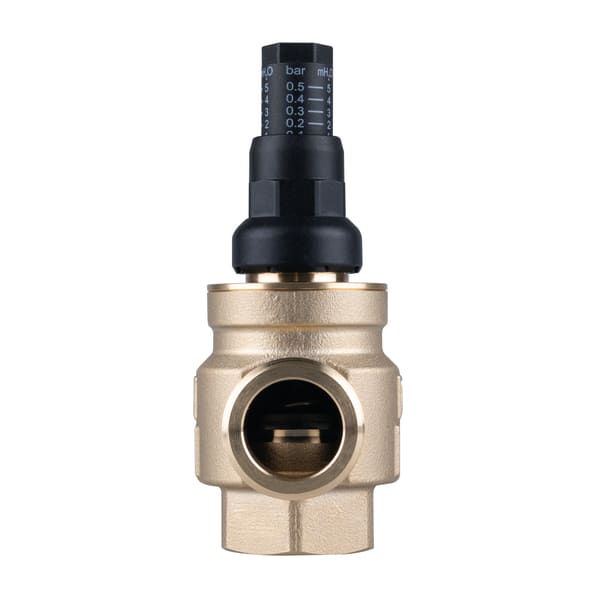

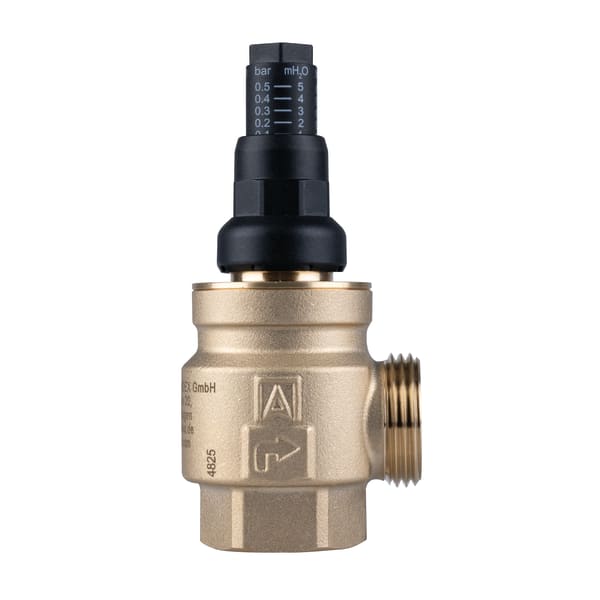

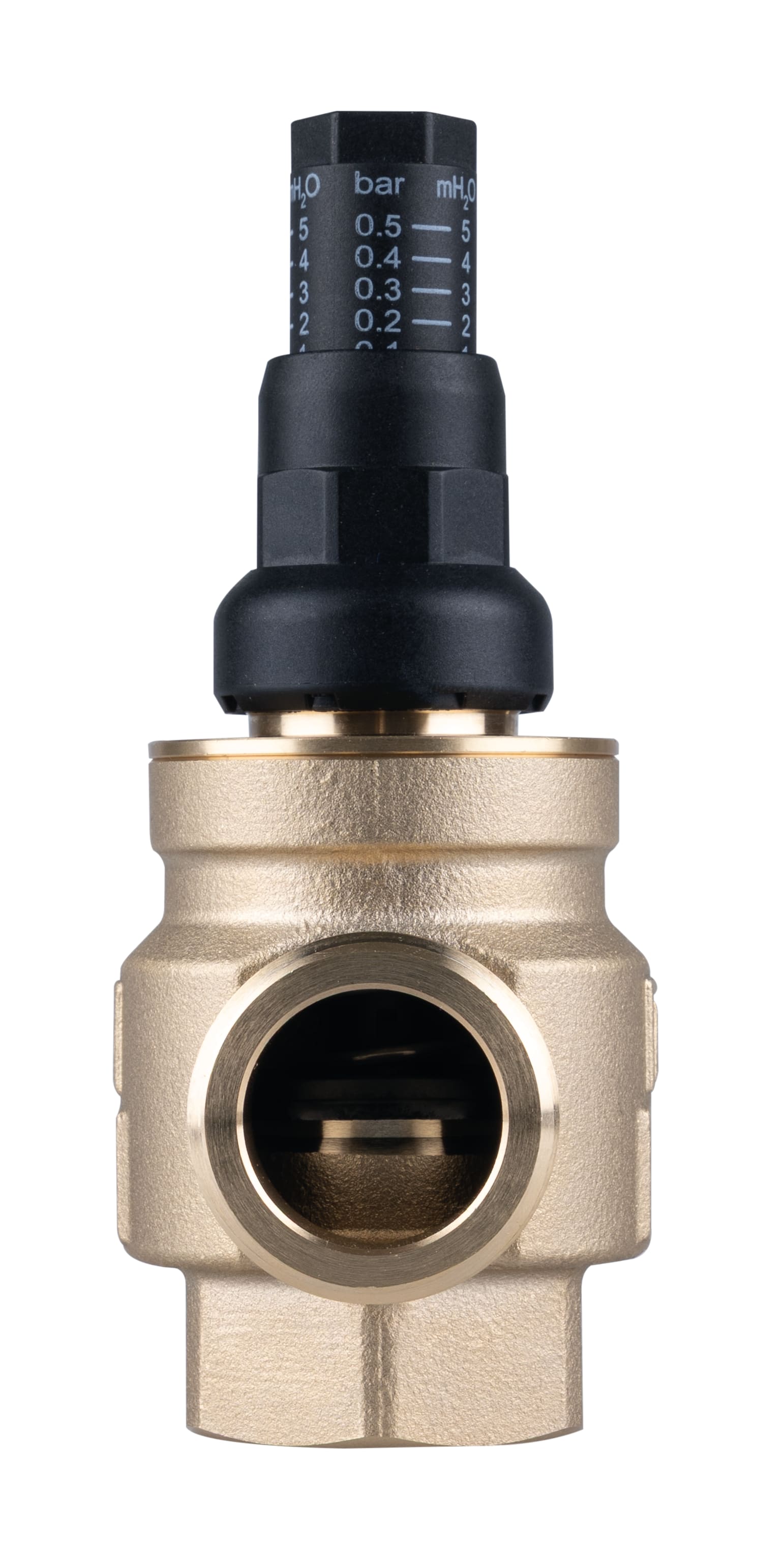

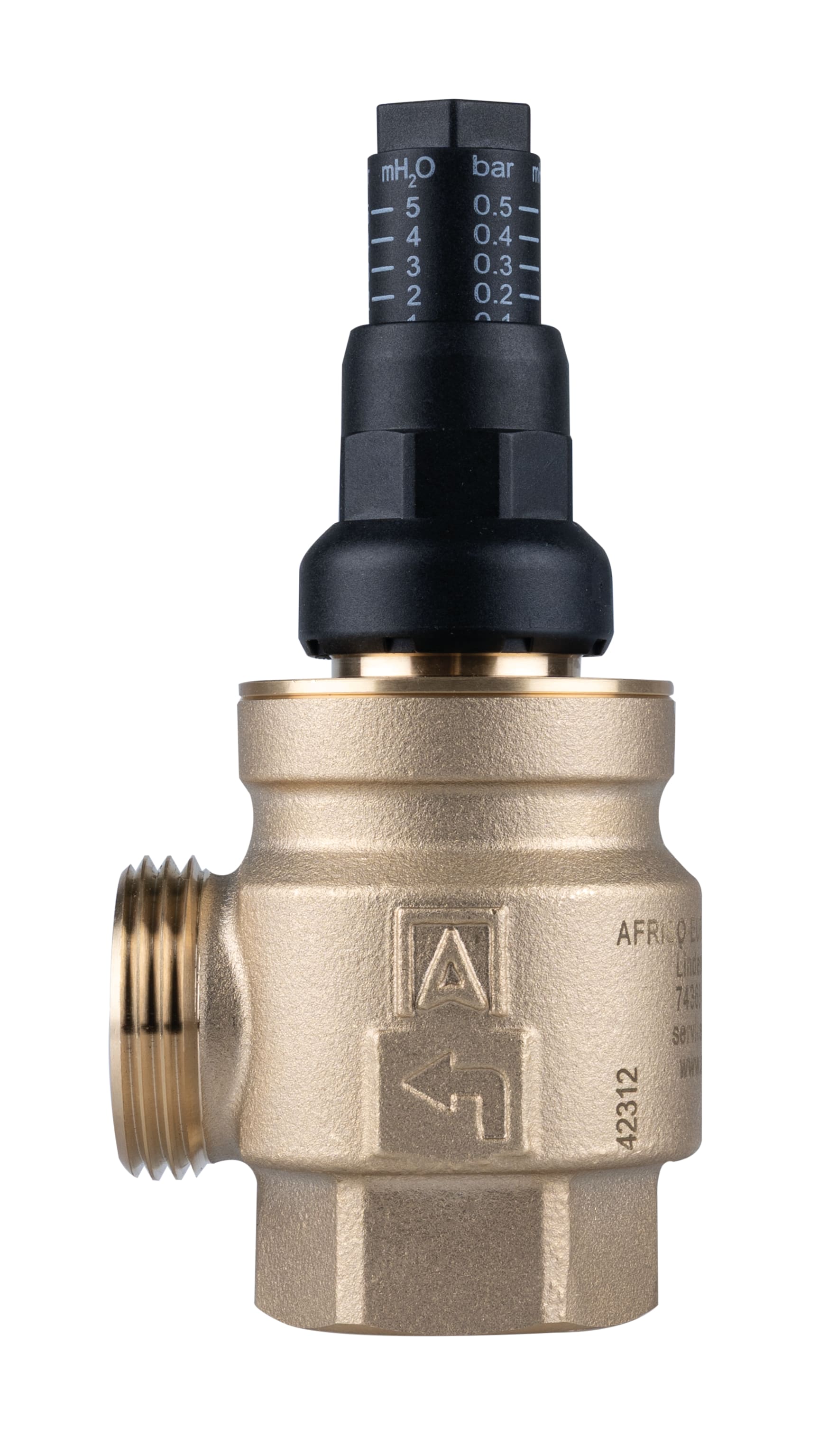

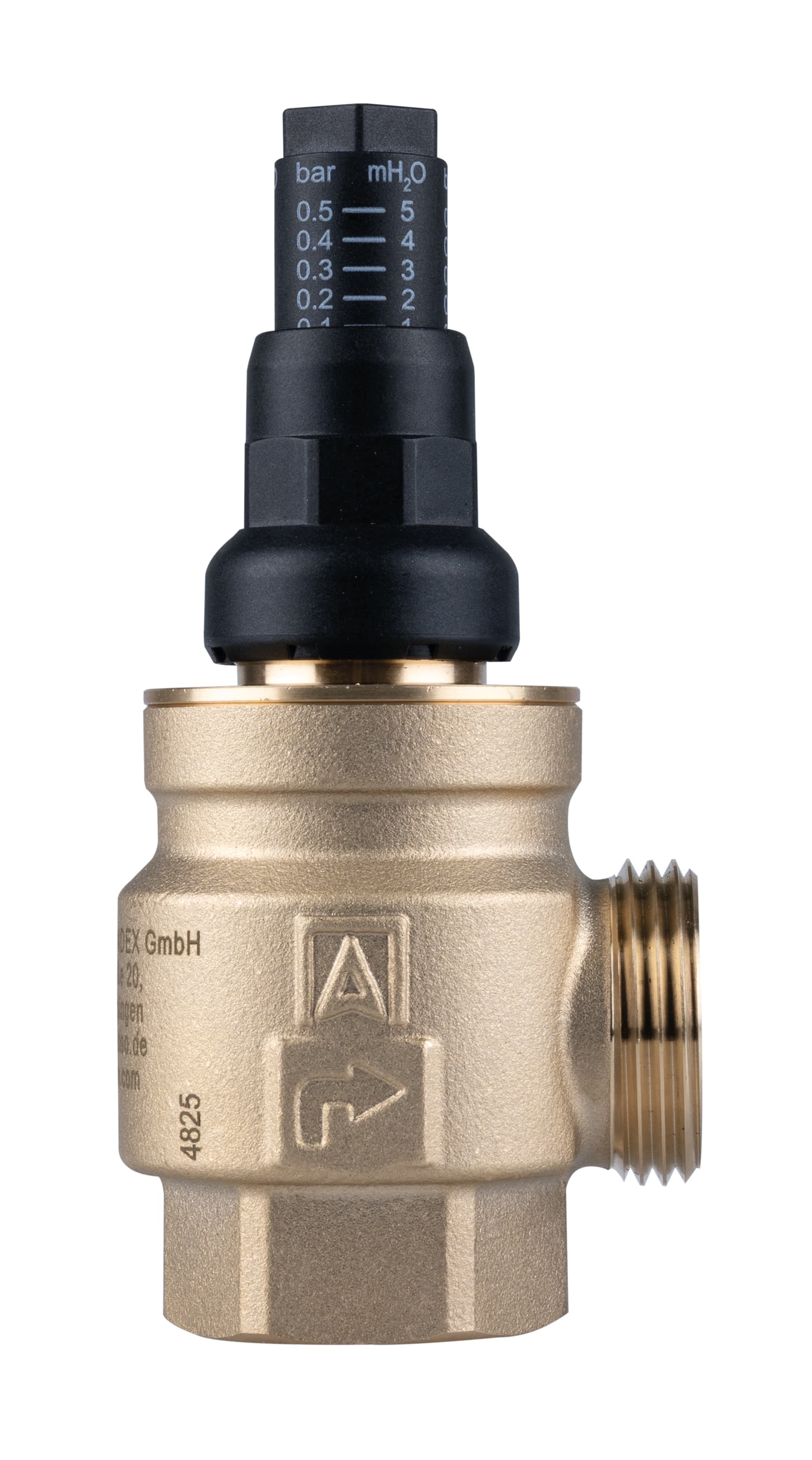

Differential pressure bypass valve DPOH E G1 female x G1 male angled version | 42312

Differential pressure bypass valve DPOH E G1 female x G1 male

in-stock items
Documents

  • ensure the minimum flow of a heat generator/chiller
  • avoids flow noise
  • with directly readable adjustment scale
  • Differential pressure fully adjustable
  • available as space-saving angled version or straight version and as kit for mounting to manifold

To maintain the minimum flow rate in the heat generator, regardless of the number of open heating circuits in the heat distribution system.

Differential pressure bypass valve with directly readable adjustment scale. Housing made of brass. Available as straight version or angled version for space-saving installation.
The bypass valve is adjusted (with closed heating circuits) in such a way that the minimum volume flow of the heat generator is maintained. The minimum volume flow is essential for heat pumps, for example, during defrosting mode and cooling mode.

Operating temperature range
Medium:
max. 95 °C
Medium:
short-term 120 °C
Operating pressure
max. 6 bar
Differential pressure
0.1/0.5 bar fully adjustable
Housing
angled version
Material:
Brass
Connection straight version
G1 female x G1 male
