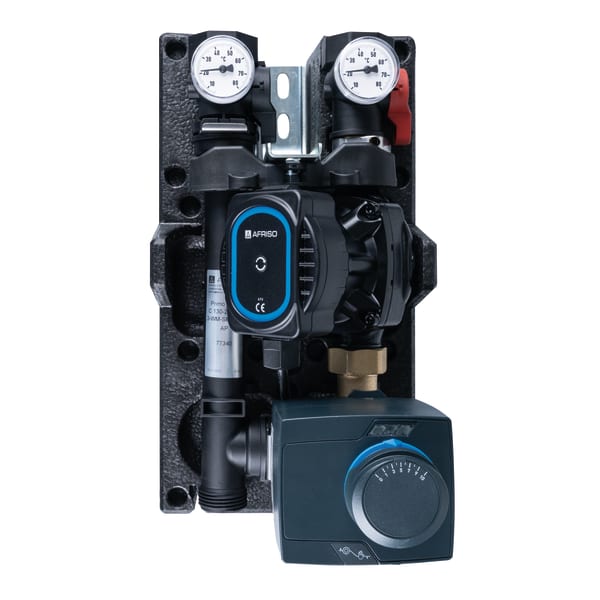

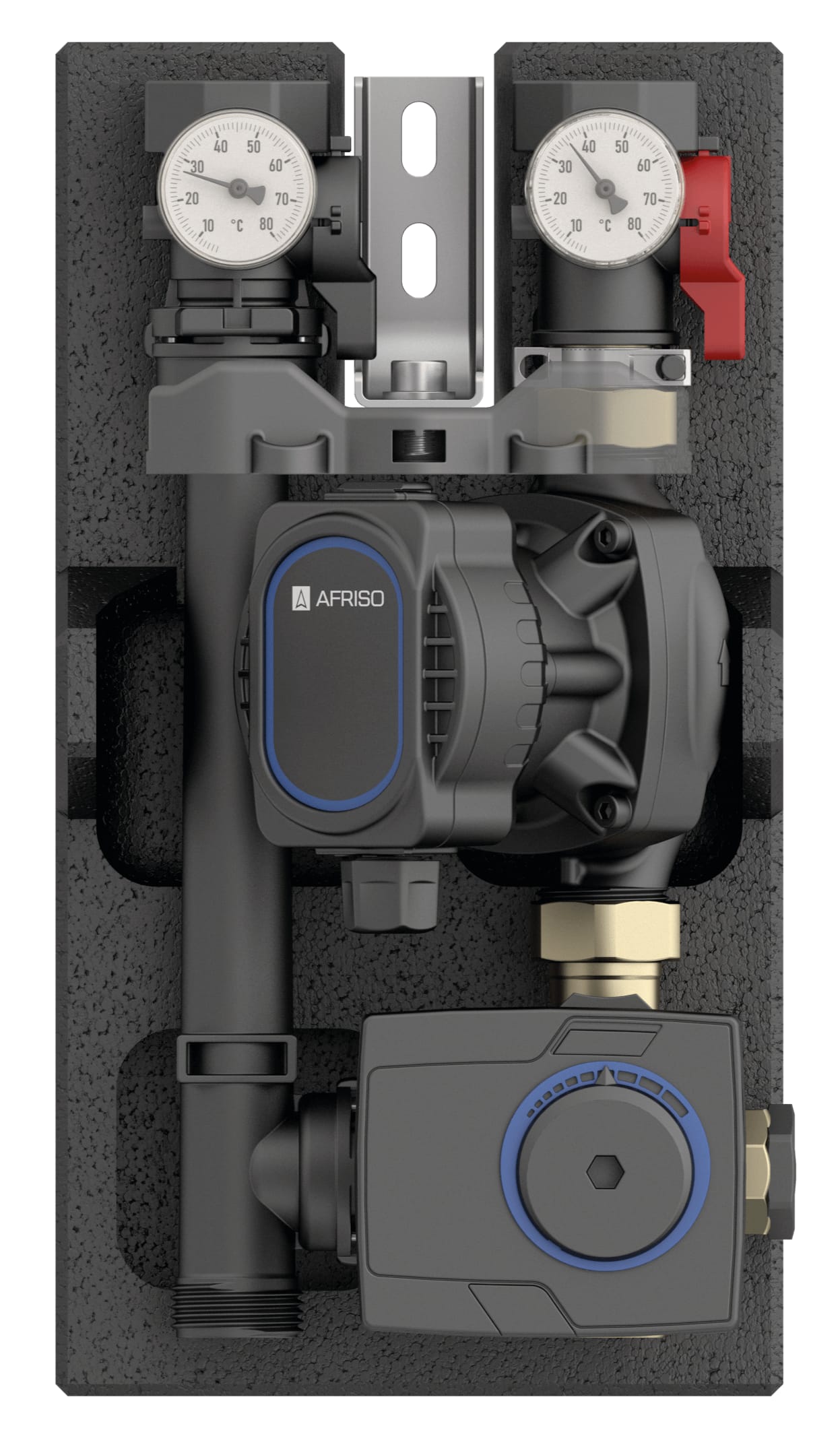

PrimoTherm® C 130-2 DN20 KVS Vario
Heating pump assembly
- pre-assembled, tightness-tested and heat-insulated assembly
- robust mixer with adjustable flow coefficient Kvs from 2.5 to 12 m³/h
- Adaptation of flow coefficient Kvs also possible during operation (under system pressure)
- eligible for heating optimization program (BAFA)
- Axis distance
- 90 mm
- system connections
- Boiler:
- G1 male
- Heating circuit:
- G1 female
- Operating temperature range
- Medium:
- max. 60 °C bei 6 bar,
max. 70 °C bei 5 bar,
max. 90 °C bei 3 bar
- Nominal size
- DN 20
- Flow coefficient Kvs
- verstellbar: 3,2 (3,5) – 3,75 (4,5) – 4,6 (7) – 5,0 (8,5) – 5,2 (9) m3/h
- () = Einstellwert am Mischventil
- Leak rate
- Mischventil ARV KVS Vario: < 0,1 % vom Kvs-Wert (bis Δp 0,5 bar < 0,2 % vom Kvs-Wert)
- Heat insulation
- Polypropylene EPP

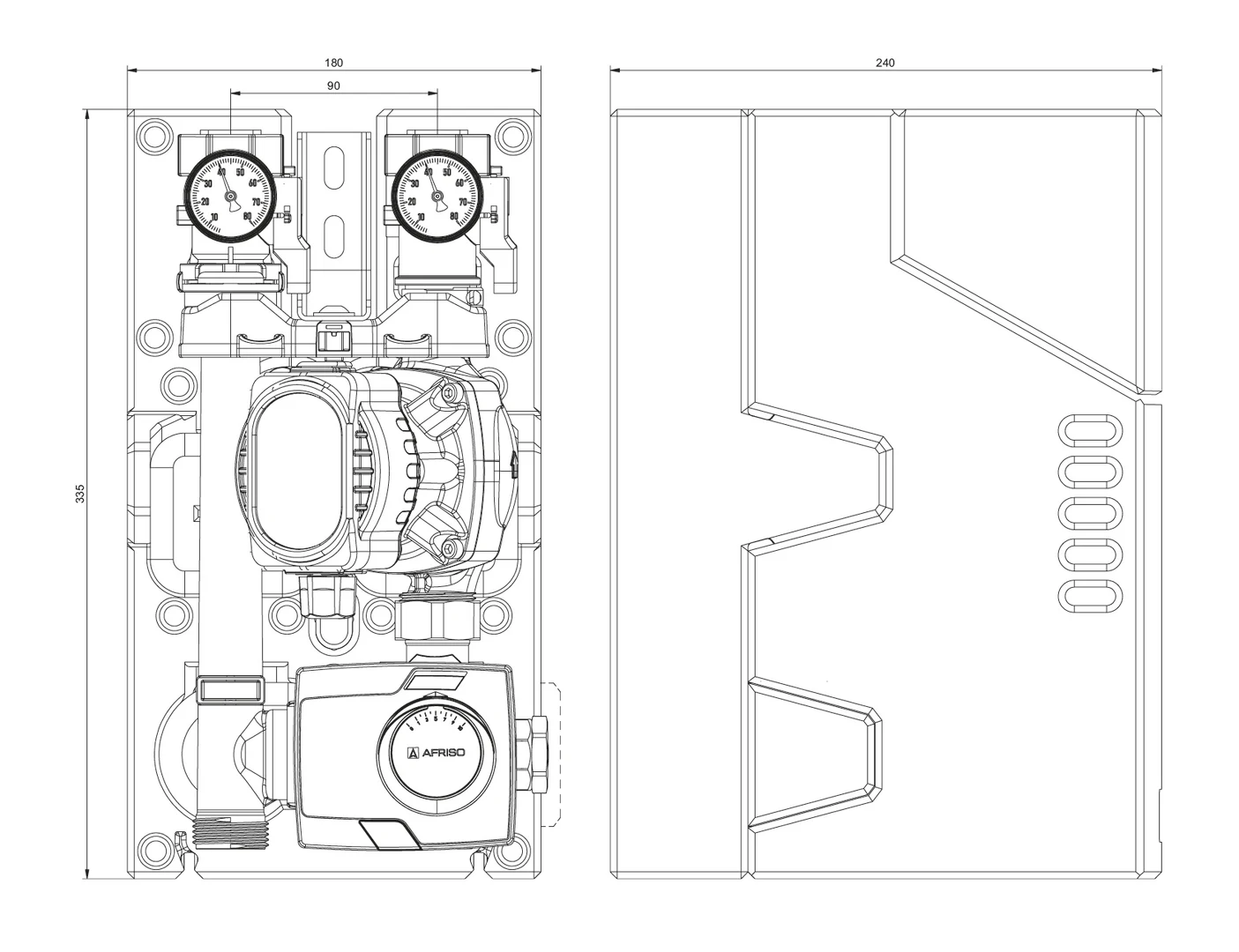

- Dimensions
- W x H x D:
- 189 x 335 x 240 mm
- Proportionaldruckgeregelt
- 0 - 1
- Konstantdruckgeregelt
- 0 - 1
- Feste Drehzahl
- 0 - 1
