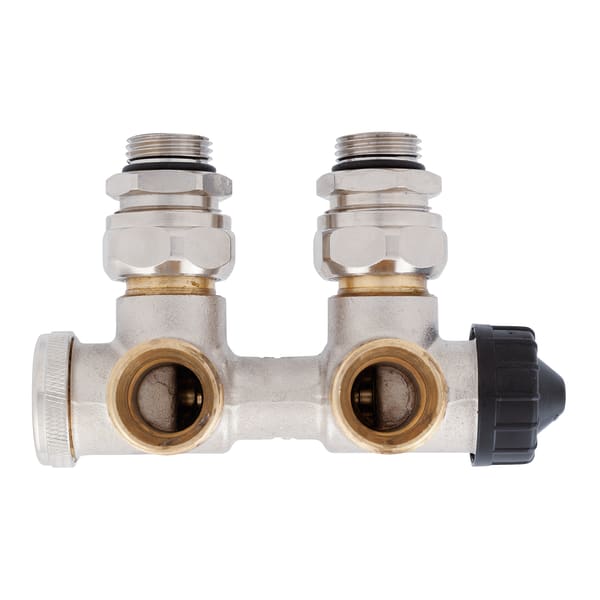

thermostat combination block Vario THK M E G½ AG for medium water volumes | 221_225-101

thermostat combination blocks Vario THK

manufactured goods
Downloads

  • fully adjustable
  • valve insert can be replaced without system having to be drained
  • various versions and sizes for virtually any application

Suitable for medium water volumes. For mounting to compact or bathroom radiators with centre connection in dual-pipe heating systems. Also for installations with copper pipes.

Low-noise thermostat combination block with threaded connection M 30 x 1.5 mm for thermostat control heads and actuators. Mounting cap with valve shut-off function. Fully adjustable with ES-SV adjustment key. Valve spindle with double O ring seal.

System connection
see ordering table
Thermostat head/actuator connection
Threaded connection M 30 x 1.5 mm
adjustment range at 10 kPa
12/215 l/h
Nominal pressure
max. 10 bar
max.
min.
Nominal diameter
DN 15
Operating temperature range
Medium:
max. 120 °C
Housing
Brass, nickel-plated

Click the corresponding image for detail views, additional information and dimension tables.

Vario THK M, Eck – Ausführung G½ Außengewinde

PRO_TEC_BEF_KOMBIBLOCK_VARIO_THK_S_M_G1-2AG.TIF

AFRISO_DATENBLATT_THERMOSTAT-KOMBIBLOCK_VARIO-THK-M_E-G1-2-AG_221-225-101_DEU_CHE.PDF

thermostat combination block Vario THK M E G½ AG 221 225.101

datasheet variant
