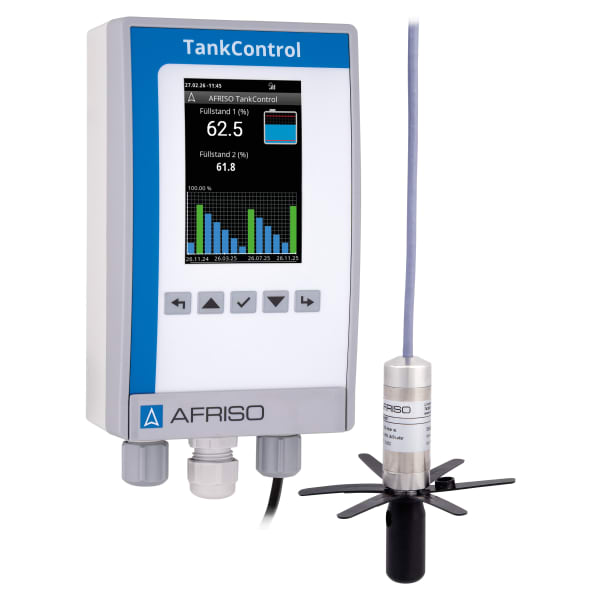

TankControl 20/25
hydrostatic level indicator
- for fuel oil EL, L, diesel fuel, biodiesel and water
- graphical indication of consumption and remaining range
- with visual/audible alarms, Acknowledge button and 2 relays
- also available with mounting valve
- functions
- units switching,
tägliche Speicherung von Füllstanddaten,
consumption monitoring,
grafische Auswertedarstellung für Verbrauchswerte (bis 5 Jahre),
calculation of remaining range,
Alarmfunktionen (Min./Max.),
sensor error and short circuit alarm
- Measuring range
- 0/400 mbar
- Measuring accuracy
- ± 1.5 % FS
- Operating temperature range
- Medium:
- -5/+70 °C
- Ambient:
- -5/+55 °C
- Storage:
- -5/+65 °C
- Display
- TFT-Display (50 x 70 mm) mit hoher Auflösung. Wahlweise Anzeige von Liter (6-stellig), m3, % und Füllhöhe in mm.
- Submersible probe
- L x ⌀:
- 53 x 24 mm
- Housing:
- Stainless steel 304
- cable:
- PVC, 6 m with atmospheric reference hose
- diaphragm:
- Stainless steel 316 L
- seals:
- FKM (Viton)
- Spacer:
- POM, PE
- Degree of protection:
- IP 68 (EN 60529)
- Supply voltage
- AC 100 − 240 V
- Pufferkondensator zur Datensicherung bei Stromausfall (Kalenderfunktion)
- Switching output
- Relay contact:
- 2 voltage-free changeover contacts
- Contact rating:
- AC 230 V, 2 A
- visual alarm
- rot hinterlegte Klartextmeldung im Display
- audible alarm
- integrated piezo-buzzer, can be acknowledged
- Housing
- Wall mounting housing made of impact-resistant plastic (PC/ABS)
- W x H x D:
- 100 x 188 x 65 mm
- Degree of protection:
- IP 54 (EN 60529)
- Scope of delivery
- Control unit with TFT display and 15 m connection cable to the probe (cannot be extended)
- Tauchsonde mit 6 m Tauchkabel
- Moisture-proof junction box (IP 54)
- Verschraubungsset G1 x G1½ x G2
- mounting kit for withdrawal flange at plastic battery tanks
- Option
- Submersible probe for differential alarm
- Schwimmersonde (Ersatzsonde Minimelder)
