Flue gas analyser BLUELYZER C1 set Basic | P00212

Flue gas analyser BLUELYZER C1 set Basic

manufactured goods
Documents

  • günstiges Einstiegs-Set, im kompakten Koffer
  • ausdauernde Performance mit über 20 Stunden Laufzeit
  • Digital documentation and operation via app
  • kompakter, vollwertiger SHK-Allrounder mit TFT-Farbmonitor
  • Flue gas analysis, pressure measurement (draft) and (differential) temperature measurement with a single instrument
  • robustes, ergonomisches Gehäuse mit integrierten Magneten für freihändiges Arbeiten
  • CO ambient measurement with two freely adjustable alarm thresholds
  • fully-fledged temperature measurement program, differential temperatures (e.g. flow/return) can also be determined
  • Hold function: Display shows the measured value for a given period of time while the measurement keeps running in the background
  • Measurement programs and measured values can be freely edited
  • Memory function with up to 100 measurement logs
  • CAPBs®-enabled
Einsatzmedien
Schnittstellen
Zulassungen

measuring ranges (measured values)
Air temperature/combustion air temperature
-20/+200 °C
Draft
-70/+70 hPa
O2 measurement
0/21 Vol.-%
CO measurement
nominal:
0/2 000 ppm
maximum:
0/6 000 ppm
additional technical specifications
Indication (calculated values)
CO2, COunverdünnt, Lambda, Taupunkt, Eta efficiency, Abgasverluste qA, CO mg/m3 (natural gas), CO mg/kWh (Heizöl)
Operating temperature range
Ambient:
0/40 °C
Storage:
-20/+50 °C
weight (measuring instrument)
ca. 370 g
Dimensions
W x H x D:
78 x 178 x 45 mm
Degree of protection
IP 40 (EN 60529)
Display
TFT colour display 3.5 "

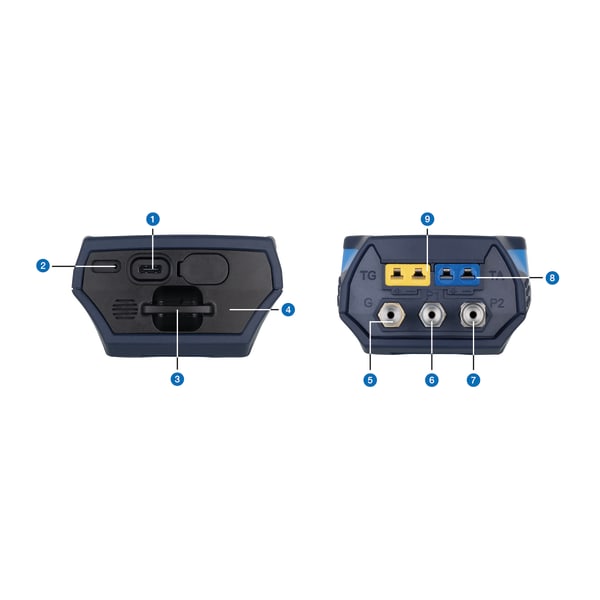

Connections
Draft:
∅ 7 mm
Gas:
∅ 8 mm
temperature:
2 x socket type K
Supply voltage
lithium-ion battery (3.6 V/4800 mAh)
Power supply unit (USB-C)
Battery or mains
Hours of operation
ca. 20 Stunden
Data memory
internal memory für bis zu 100 Messprotokolle
Interfaces
Infrared,
Bluetooth®,
QR code generator,
USB-C
Approvals
DIN EN 50379-2 for O2/CO2, TA, TG, pressure,
DIN EN 50379-3 für CO
Scope of delivery
  • BLUELYZER C1 (O2, CO, Feinzug)
  • Calibration report
  • Netzteil NTE 5 USB-A
  • charging cable USB-A to USB-C (1 m)
  • 5 x Partikelfilter
  • 5 x Teflon membrane
  • Kondensatfilterpatrone KFP 2P
  • Flue gas combination probe, compact, AKS-K FZ 170 mm
  • Umgebungsluftfühler TFB-UL 50-1
  • Kleingerätekoffer Universal

AFRISO_COMPLETE-PACKAGE-FLUE-GAS-ANALYSIS_ENG_GBR_20260209_234354871.PDF

AFRISO_KOMPLETTPAKET-ABGASANALYSE_DEU_DEU_20260210_004826584.PDF

Data sheets
Domestic Technology
PDF
KOMPLETTPAKETE_ABGASANALYSE_01-24.PDF

Komplettpakete für die Abgasanalyse - Aktion

Promotional brochures
PDF
EuroSoft® connect für Windows

EuroSoft® connect für Windows

Software
ZIP

Temperature probes
Abb.
Bezeichnung
Ambient air probe TFB-UL 50-1
Ambient air probe TFB-UL 50-1 | 521844
Power supply units and charging cables
Abb.
Bezeichnung
power supply unit NTE 5 USB-A
power supply unit NTE 5 USB-A | 523493
Charging cable USB-A to USB-C
Charging cable USB-A to USB-C | 524697
Flue gas probes
Abb.
Bezeichnung
Flue gas combination probe, compact AKS-K 170 mm with draft connection, with condensate filter cartridge KFP 2P
Flue gas combination probe, compact AKS-K 170 mm with draft connection, with condensate filter cartridge KFP 2P | 500268-5
Condensate filter cartridges KFP
Abb.
Bezeichnung
condensate filter cartridge KFP 2P
condensate filter cartridge KFP 2P | 500192
spare parts package gas treatment system KFP 2P 5 x particle filter, 5 x Teflon membrane
spare parts package gas treatment system KFP 2P 5 x particle filter, 5 x Teflon membrane | 500214
Transport systems/cases
Abb.
Bezeichnung
Small case Universal With document compartment
Small case Universal With document compartment | 511304
