Monteurhilfe EUROFOLD® M4 | P00252
Monteurhilfe EUROFOLD® M4
manufactured goods
- suitable for all standard refrigerants, including A3 and A2L
- integrated step-by-step guide for carrying out the necessary work on the refrigeration circuit
- maximum protection against overload thanks to an integrated vacuum sensor
- 4-way ounting aid for effortless working without having to keep reconnecting
- TFT colour display suitable for outdoor use, easy to read even in bright surroundings
- robust IP 54 housing offering the best possible protection against environmental influences
- Bluetooth 5.4 for uninterrupted data transfer
EUROFOLD® is the ideal solution for commissioning, inspection and maintenance of heat pumps and cooling systems. It clearly displays all the important pressure and temperature values. Predefined easurement programs guide you step by step through all the tests, so that no important requirements are overlooked. Finally, all the measured values are summarised in a clear PDF report, which can be handed over to the plant operator.
The installation aid has four threaded connections and valves for easy connection to the system, the vacuum pump and the gas cylinder. Three temperature inputs (Type K) allow you to measure and analyse with precision.
Zielgruppe
- Drucksensoren
- Measuring range:
- -1/+60 bar
- Accuracy:
- ± 0.5 %
- Resolution:
- 0.01 bar
- max. overpressure:
- 60 bar
- Vakuumsensor
- Measuring range:
- 0/25 mbar
- Accuracy:
- ± 10 % RDG + 0.01 mbar
- Resolution:
- 0.01 mbar
- max. overpressure:
- 60 bar
- Temperature measuring range
- Measuring range:
- -20/+200 °C
- Accuracy:
- ± 1 °C
- Resolution:
- 0.1 °C
- Operating temperature range
- Ambient:
- -10/+40 °C
- Storage:
- -20/+50 °C
- Hours of operation
- 32 h
- Weight
- ca. 1200 g
- Dimensions
- W x H x D:
- 170 x 210 x 77 mm
- Degree of protection
- IP 54 (EN 60529)
- Display
- outdoorgeeignetes TFT-Farbdisplay 3.5 "
- Connections
- 3 x ¼" SAE (7⁄16" – 20 UNF),
1 x ⅜" SAE (5⁄8" – 18 UNF),
3 x Temperaturanschlüsse Typ K
- cooling agent
- R11, R14, R12, R22, R23, R32, R41,
R114, R123, R1234yf, R124, R125, R134a, R142B, R152a, R161,
R236fa, R245fa, R290,
R404A, R407C,R407F, R410A, R600A, R744
- Supply voltage
- lithium-ion battery x (3.6 V/4800 mAh)
- Power supply unit (USB-C)
- Interfaces
- Bluetooth®,
QR-Code-Generator

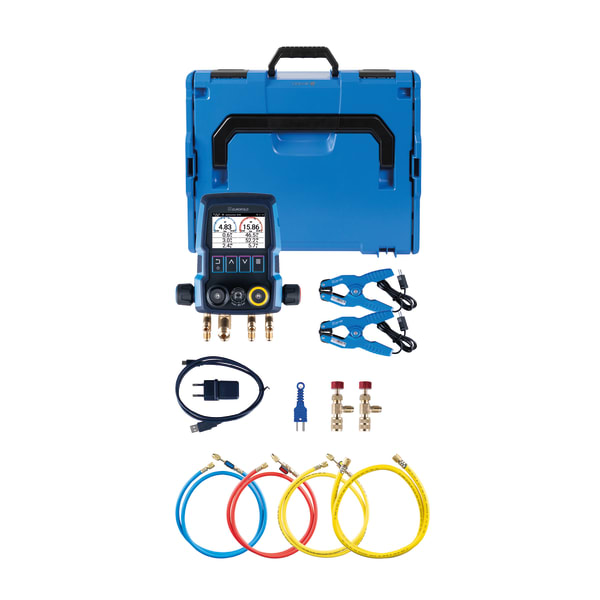

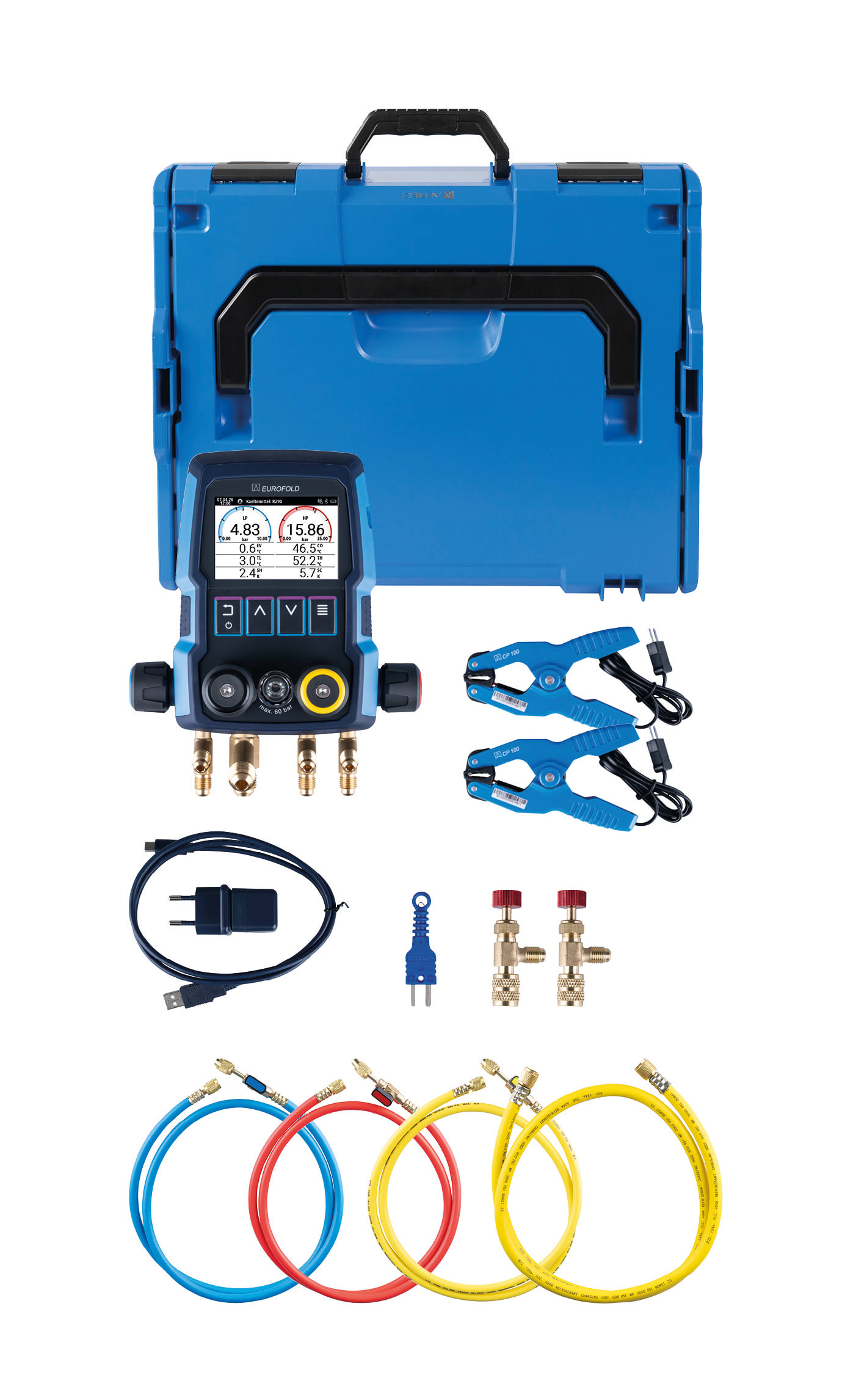

- Scope of delivery
- EUROFOLD® M4 Monteurhilfe
- 1 x Füllschlauch-Set FSS-KK
- 3 x 1500 mm ¼" SAE
- 2 x Schraderventilöffner ¼" – 5⁄16" SAE (rot)
- 1 x Vakuumschlauch 1500 mm ⅜" SAE
- 2 x Zangenfühler TFB-ZF 100
- 1 x Umgebungsluftfühler TFB-UL 50-1
- 1 x Netzteil NTE 5 und Ladekabel USB-C
- 1 x Systemkoffer L EUROFOLD®
