Digital pressure gauges DIM 20 | 32508

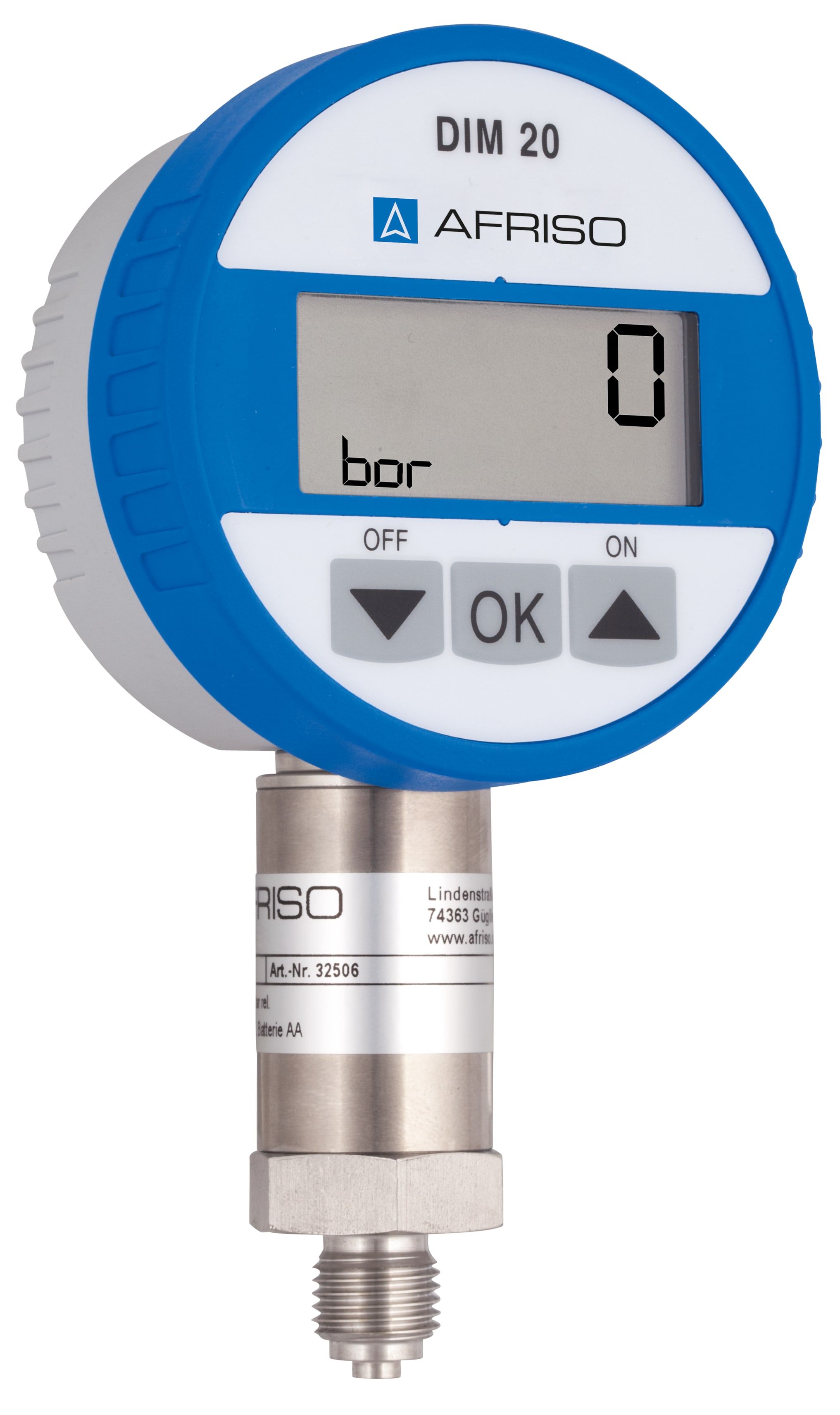

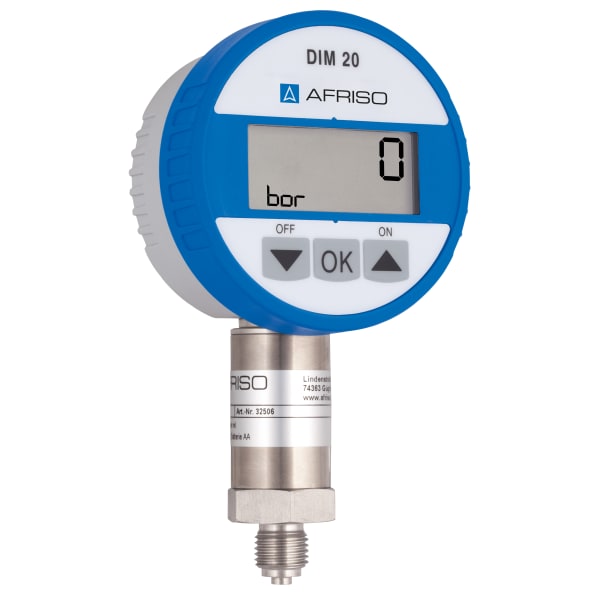

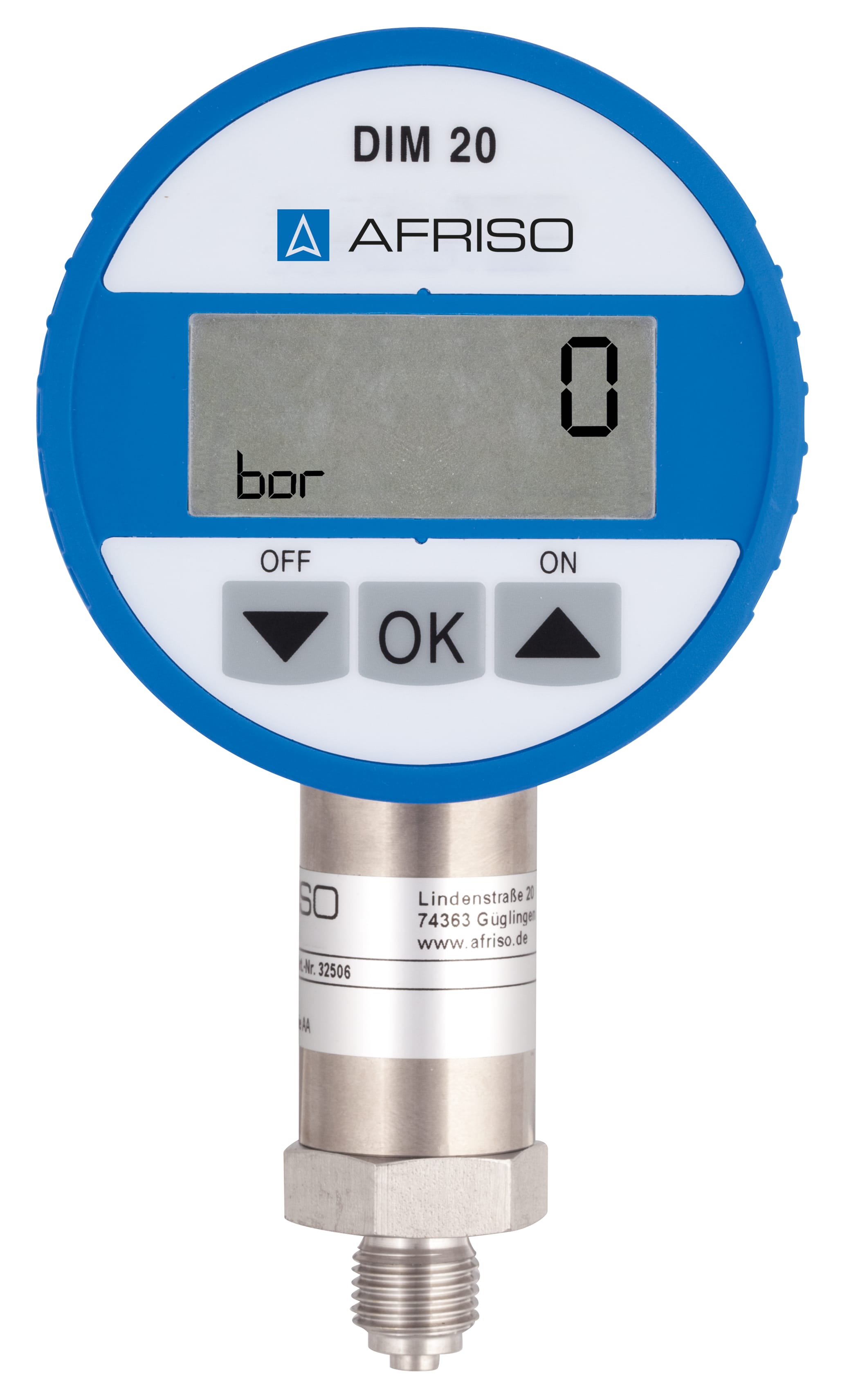

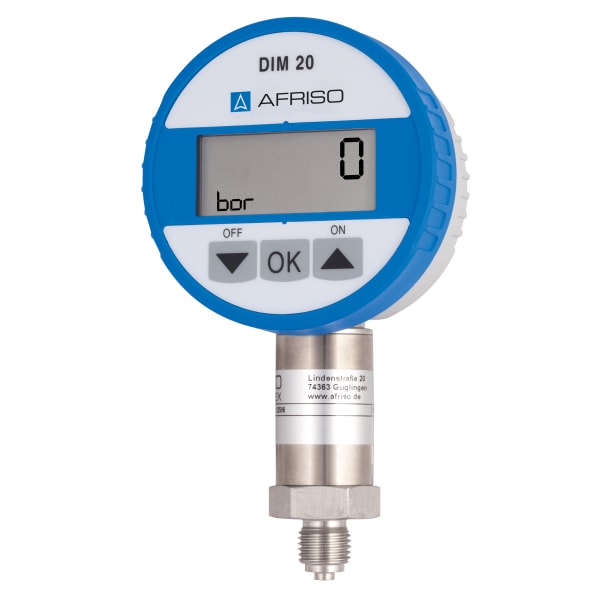

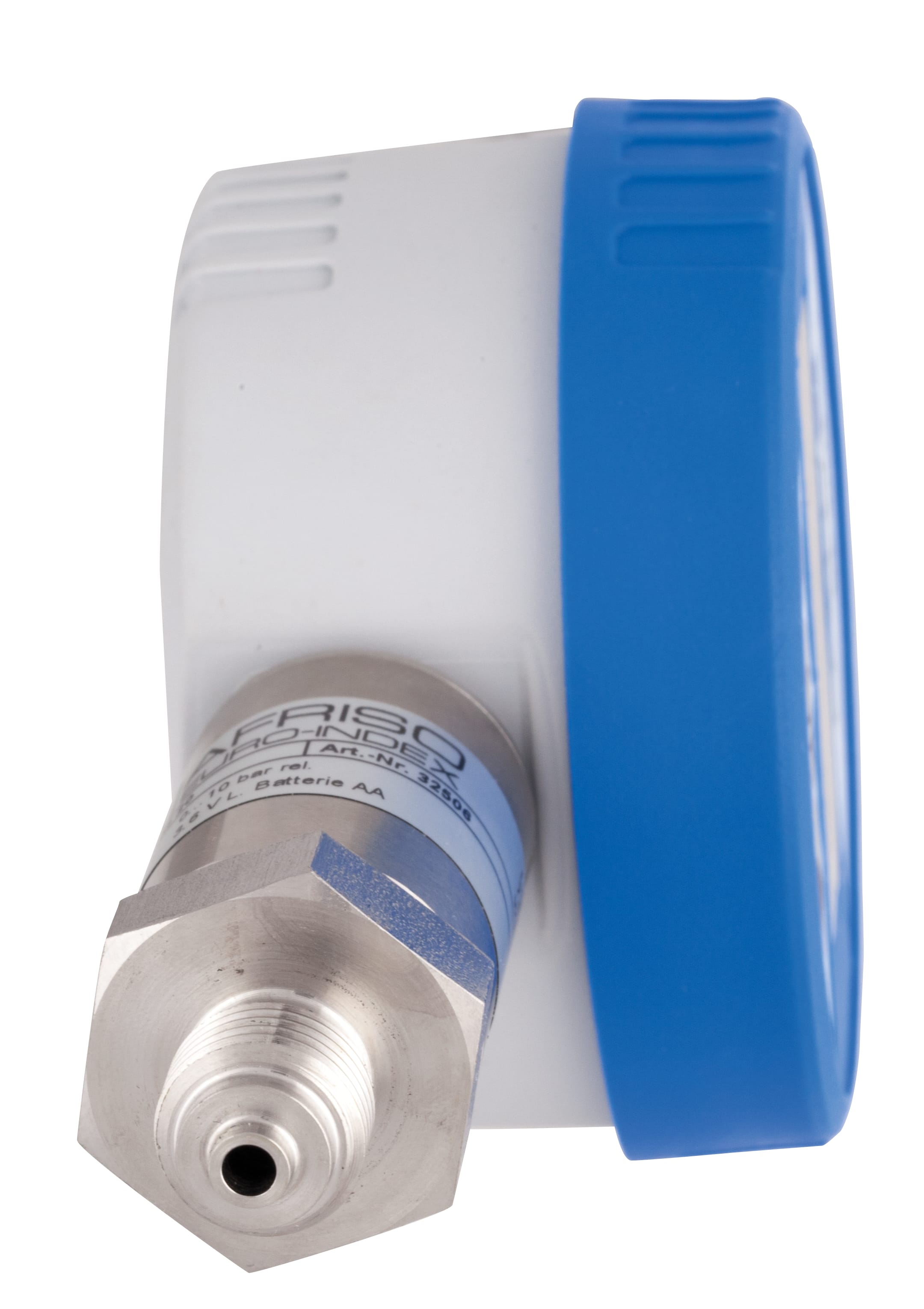

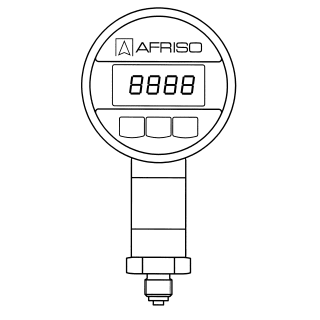

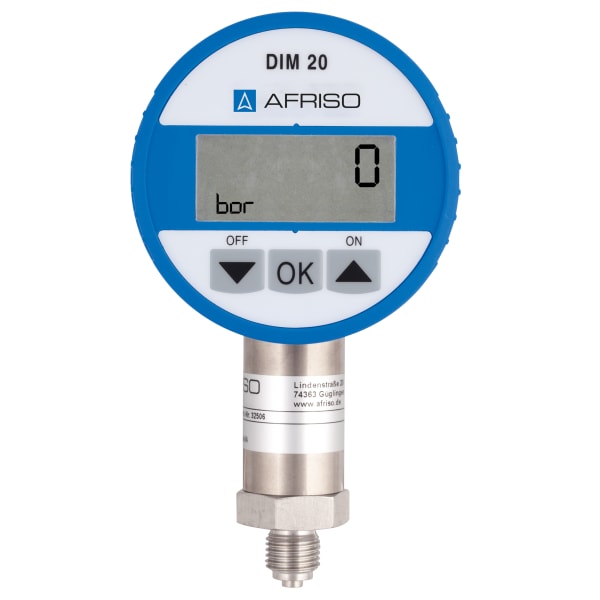

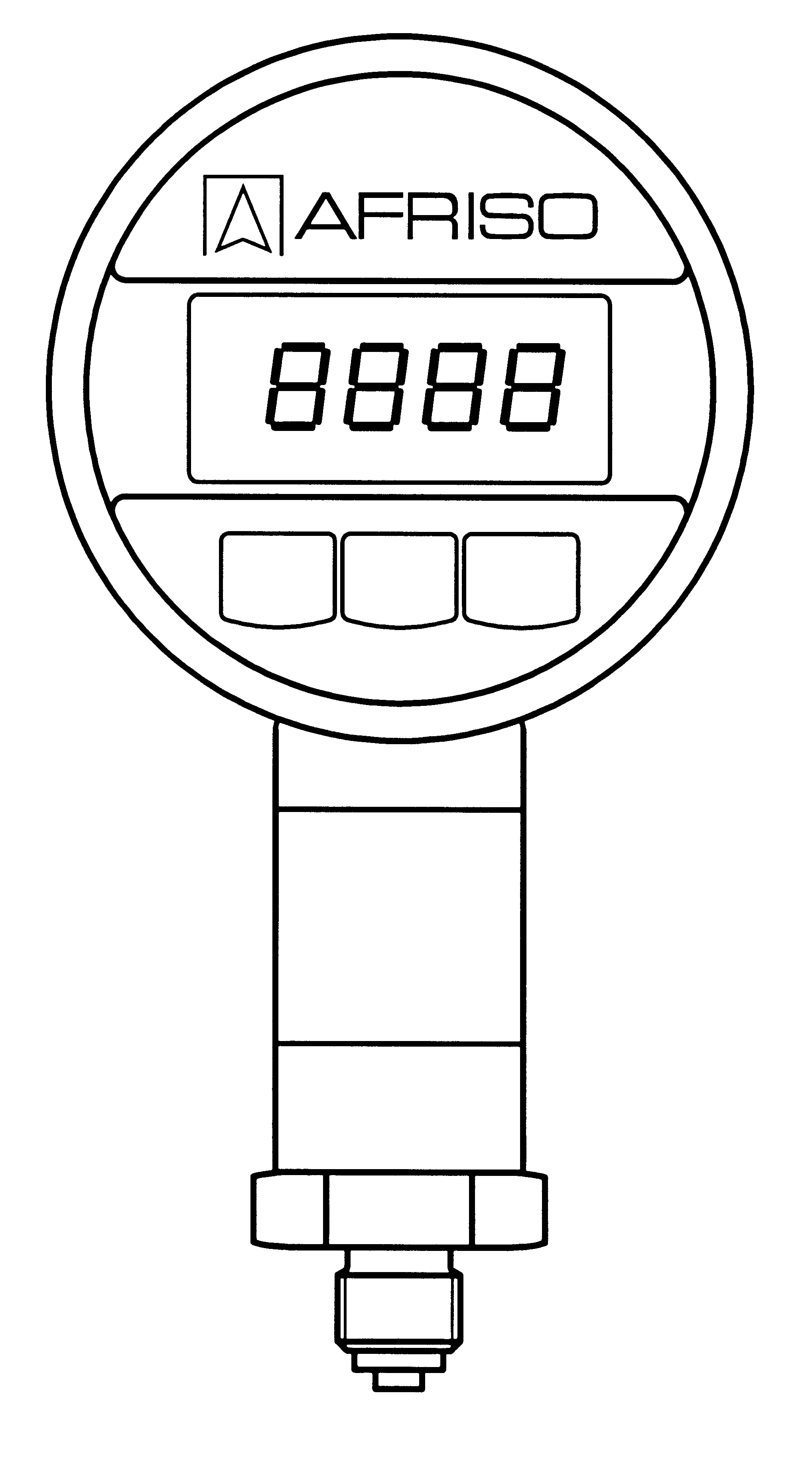

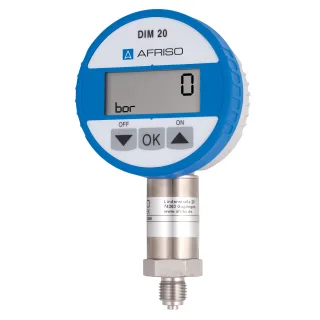

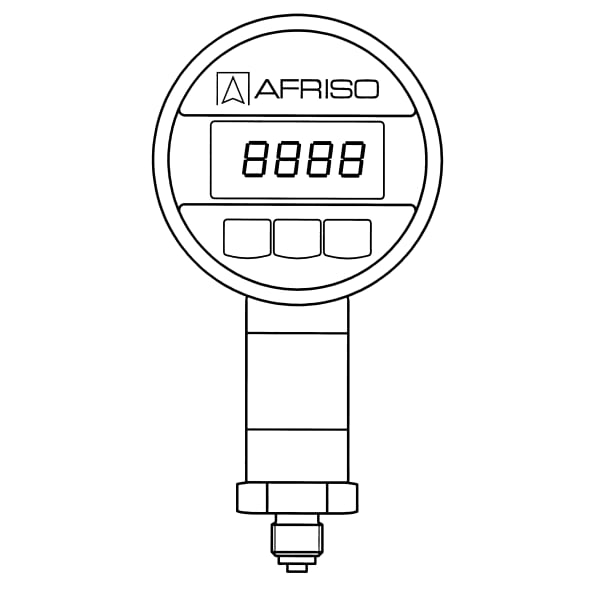

universal digital pressure gauge DIM 20

in-stock items
Documents

  • universal test pressure gauge with high measuring accuracy
  • high flexibility due to selectable units: bar/mbar/psi/inHg/mmHg/cmHg/kPa/MPa/mWC
  • Min./max. memory
  • intuitive operation via menus
  • Display can be rotated by 330°
  • Zero and full scale can be calibrated
  • adjustable auto-off function

For high-precision electronic pressure measurement with local digital display, for applications such as hydraulics, pneumatics, mechanical and plant engineering. Compact microprocessor-controlled pressure gauge with thick film ceramic measuring cell. The signal received from the pressure sensor is processed by the microprocessor, converted into the desired unit and displayed. Each device is shipped with its own measurement log.

Compact microprocessor-controlled pressure gauge with thick-film ceramic measuring cell. The signal received from the pressure sensor is processed by the microprocessor, converted into the desired unit and displayed. Each device is shipped with its own measurement log.

functions
units switching,
Min.-/Max.-Wert-Speicher,
zero and full scale calibration,
einstellbare Abschaltautomatik,
adjustable decimal point,
Batteriezustandsanzeige
Indication of measured values
bar, mbar, psi, inHg, mmHg, cmHg, kPa, MPa oder mWS
selectable pressure unit

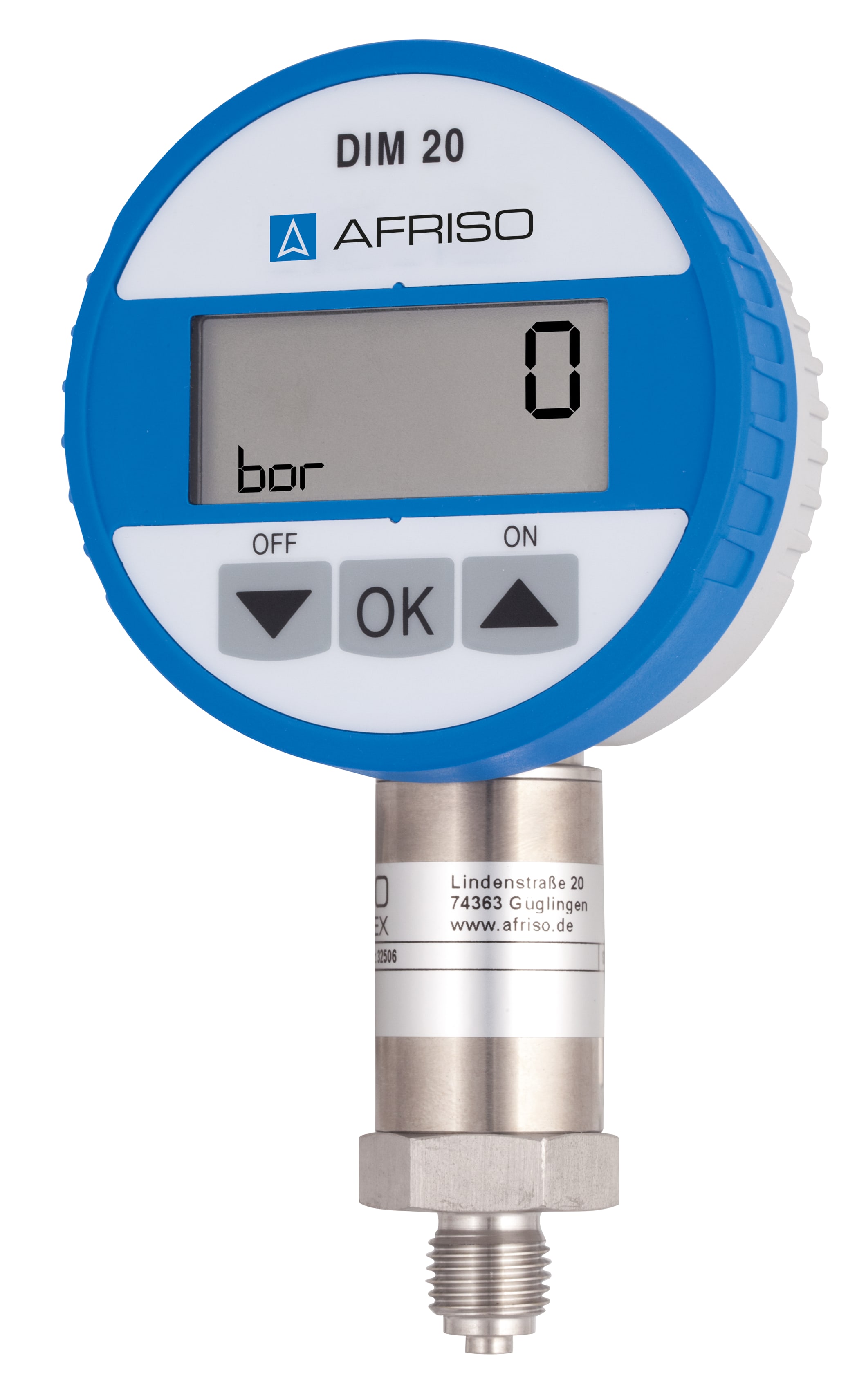

Display
multi-line LCD,
4,5-stellig, numerisch, zur Darstellung des Messwertes (Ziffernhöhe 9,5 mm) – 1. Zeile,
6-digit, alphanumeric, for displaying additional information (character height 6.8 mm) and additional symbols – line 2,
Anzeige um 330° drehbar
Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
± 0.5 % FSO (BFSL)
Measuring range
0/25 bar
Overpressure safety
at least 1.5 x FS
Burst pressure
≤ 160 bar at least 2.5 x FS
> 160 bar mindestens 1,5 x FS
Operating temperature range
Medium:
-20/+125 °C
Ambient:
-20/+45 °C
Storage:
-30/+80 °C
Temperature error band
≤ ± 0.5 % FSO/10 K ≤ ± In compensated range 0/70 °C
dynamic characteristics
Measuring rate:
5 Hz

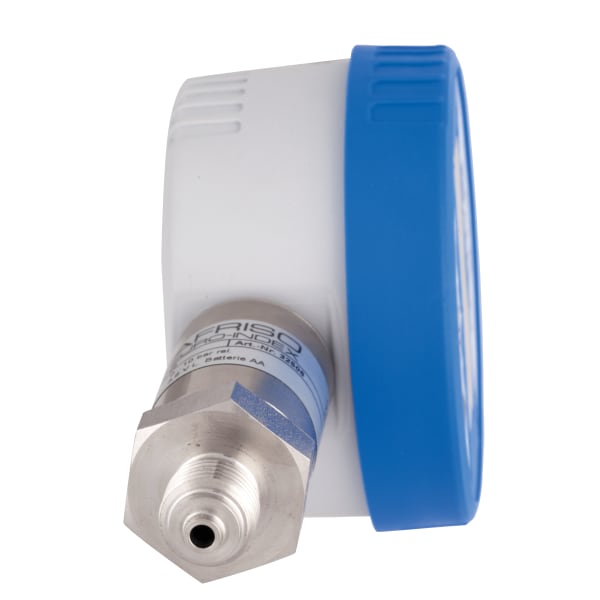

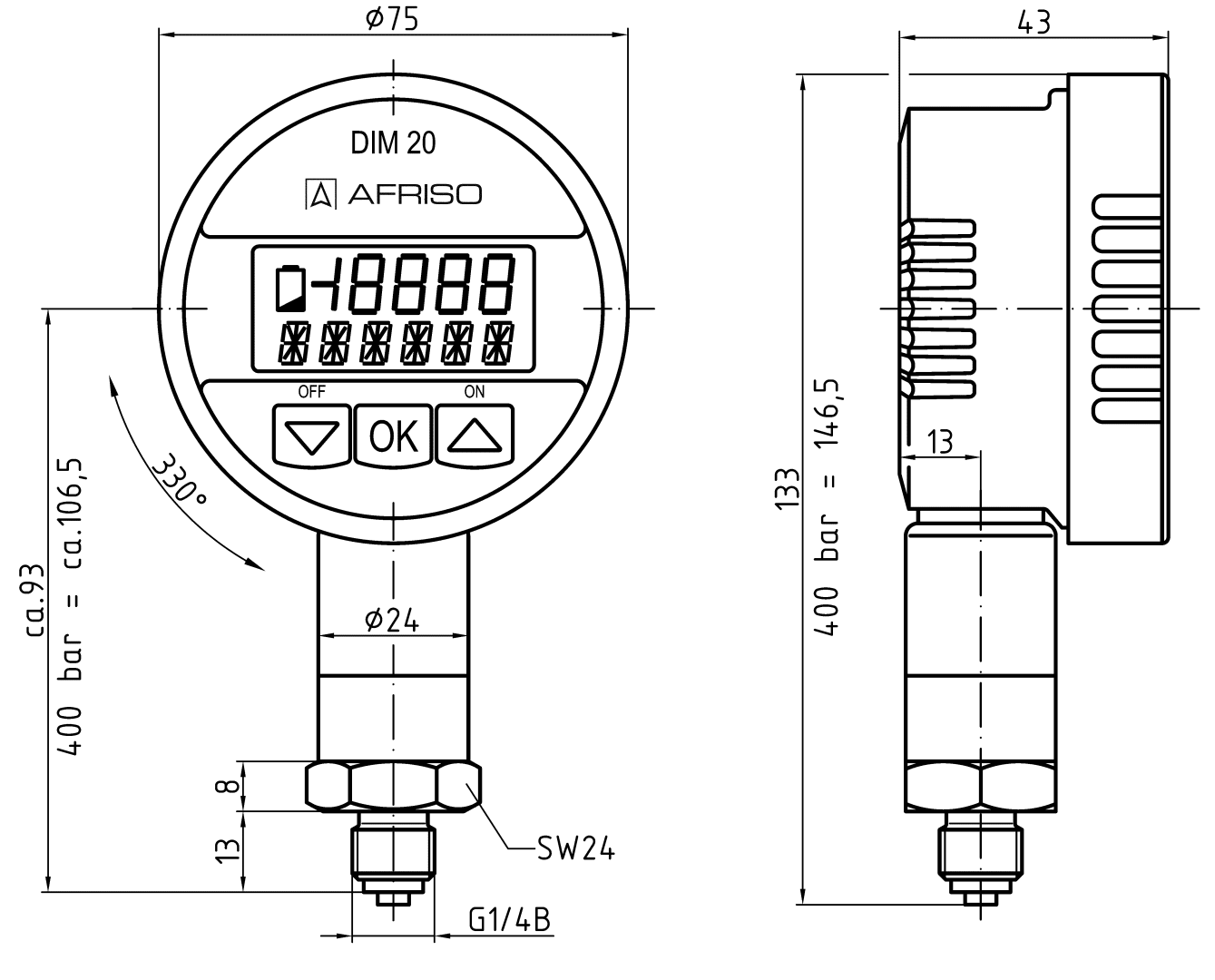

Process connection
G¼B (EN 837-1/7.3)
EN 837-1/7.3, bottom
material
Housing:
PA6, glass-loaded
Process connection:
Stainless steel 304
diaphragm:
ceramic (Al2O3 96 %)
Seal:
FKM
Degree of protection
IP 51 (EN 60529)
Supply voltage
1 x 3.6 V lithium battery
service life up to 5 years, depending on use
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU module A

AFRISO_DIGITAL-PRESSURE-GAUGES-DIM-20-UNIVERSAL-DIGITAL-PRESSURE-GAUGE_32508_ENG_GBR.PDF

AFRISO_DIGITALMANOMETER-DIM-20-UNIVERSELLES-DIGITALMANOMETER_32508_DEU_DEU.PDF

Data sheets
Industrial technology
PDF
AFRISO_UNIVERSAL-DIGITAL-PRESSURE-GAUGE_ENG_GBR.PDF

AFRISO_UNIVERSELLES-DIGITALMANOMETER_DEU_DEU.PDF

Data sheets
Industrial technology
PDF
DIM20.PDF

Digitalmanometer DIM 20

Declarations of Conformity
PDF
UN38-3_LS14500.PDF

UN38-3_LS14500.PDF

Test report lithium batteries
Domestic Technology
PDF
