DMU 04 MR

Druckmessumformer Industrieausführung

Variants Documents

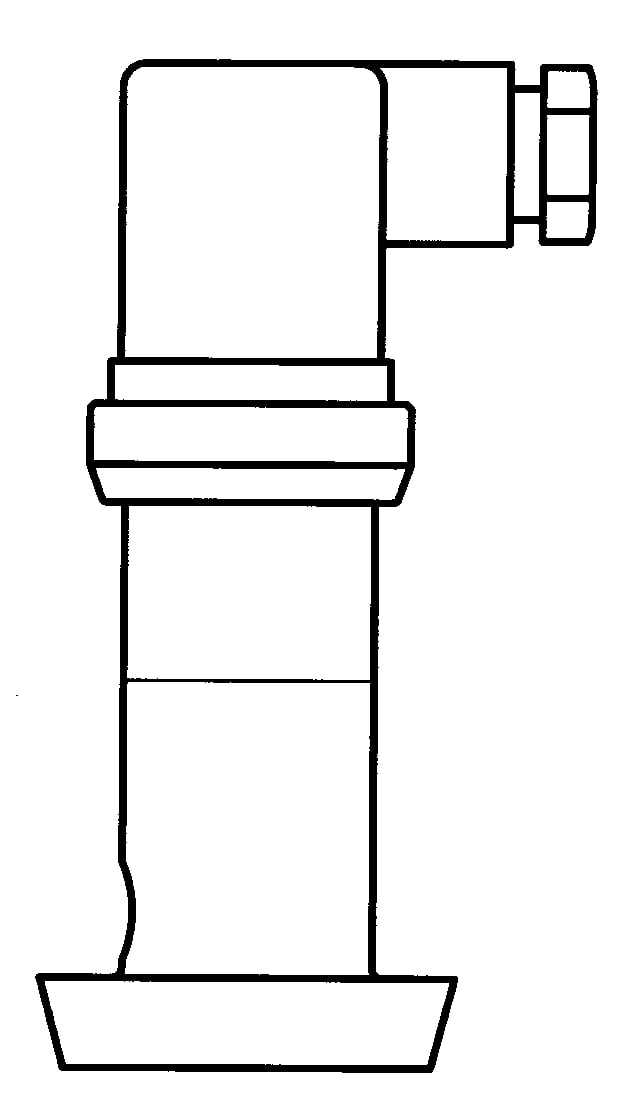

ConnectionConical dairy fitting DN 25
ConnectionDIN 11851
Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A)

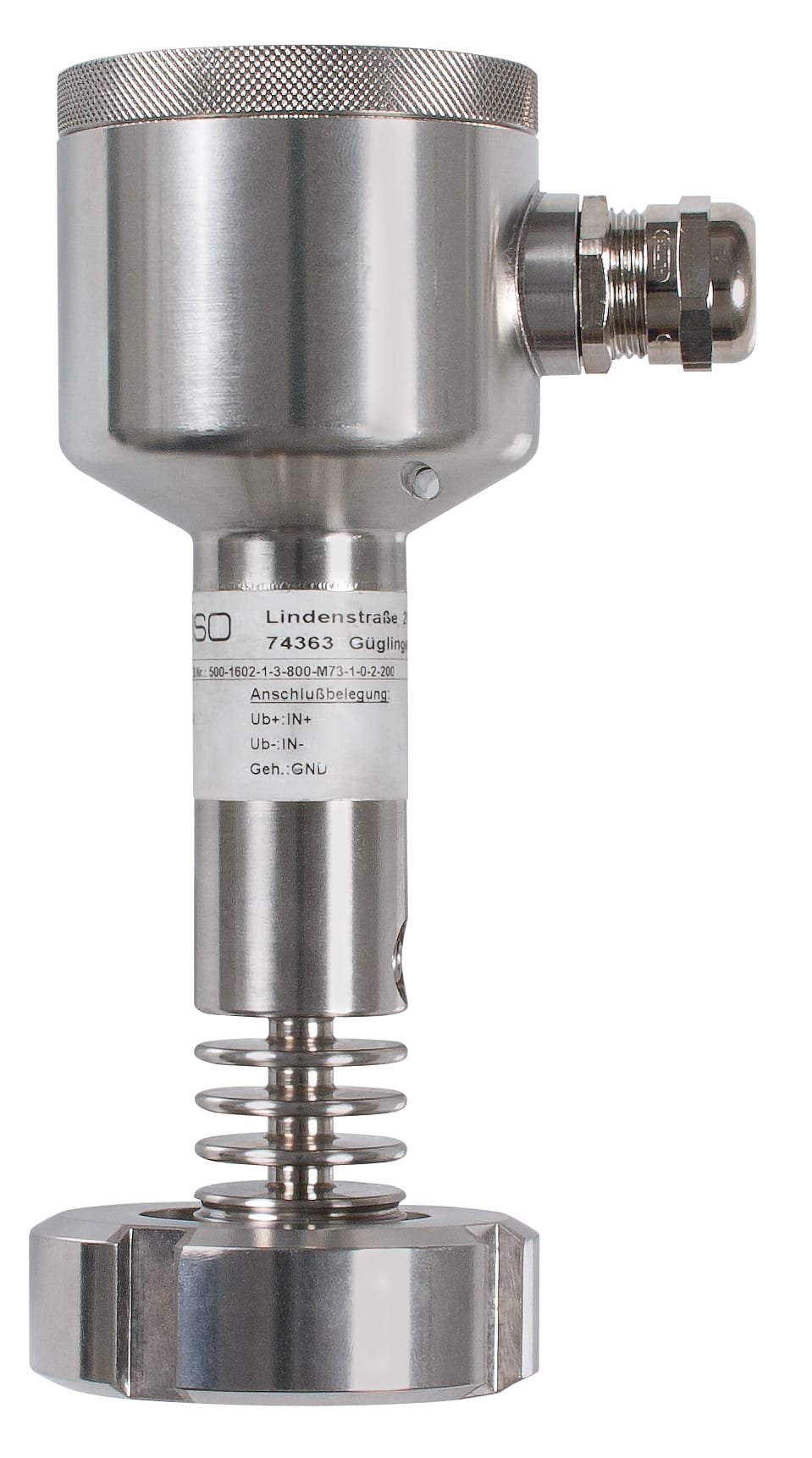

  • DMU 04 CP/MR for hygienic processes
  • small temperature error
  • Options: Ex, field housing or high temperature version (up to 300 °C) and SIL 2

For applications requiring hygienic process connections, materials or processing, especially food technology, pharmaceutical and biotechnology applications.

Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 4 is equipped with an oil-filled piezo-resistive silicon measuring cell. DMU 04 has safety integrity level SIL 2 (IEC 61508/61511).

RangeMeasuring rangeTypeVersionPart no.
-1/0 barDMU 04 MR31719
-1/+1.5 barDMU 04 MR31720
-1/+3 barDMU 04 MR31721
-1/+5 barDMU 04 MR31722
0/250 mbarDMU 04 MR33025
0/400 mbarDMU 04 MR31726
0/600 mbarDMU 04 MR31727
0/1 barDMU 04 MR31728
0/1.6 barDMU 04 MR31729
0/2.5 barDMU 04 MR31730
0/4 barDMU 04 MR31731
0/6 barDMU 04 MR31732
0/10 barDMU 04 MR31733
0/16 barDMU 04 MR31734
0/25 barDMU 04 MR31735
0/40 barDMU 04 MR31736
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
≤ 0/400 mbar < ± 0.5 % FSO
Measuring range
0/250 mbar
Overpressure safety
at least 3 x FS
Burst pressure
at least 5 x FS
Operating temperature range
Medium:
-10/+125 °C
Medium:
short-term (60 min) up to 150 °C
Ambient:
-40/+85 °C
Storage:
-40/+100 °C
Temperature error band
< 400 mbar: ≤ ± 1.5 % FSO/10 K ≤ ± In compensated range 0/50 °C
dynamic characteristics
Response time:
≤ 10 ms
Process connection
Conical dairy fitting DN 25 DIN 11851
material
Housing:
Stainless steel 316 L
pressure connection:
Stainless steel 316 L
diaphragm:
Stainless steel 316 L
pressure transmission liquid
Food oil, FDA-compliant
Supply voltage
DC 8 − 32 V
Output signal
2-wire, 4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
