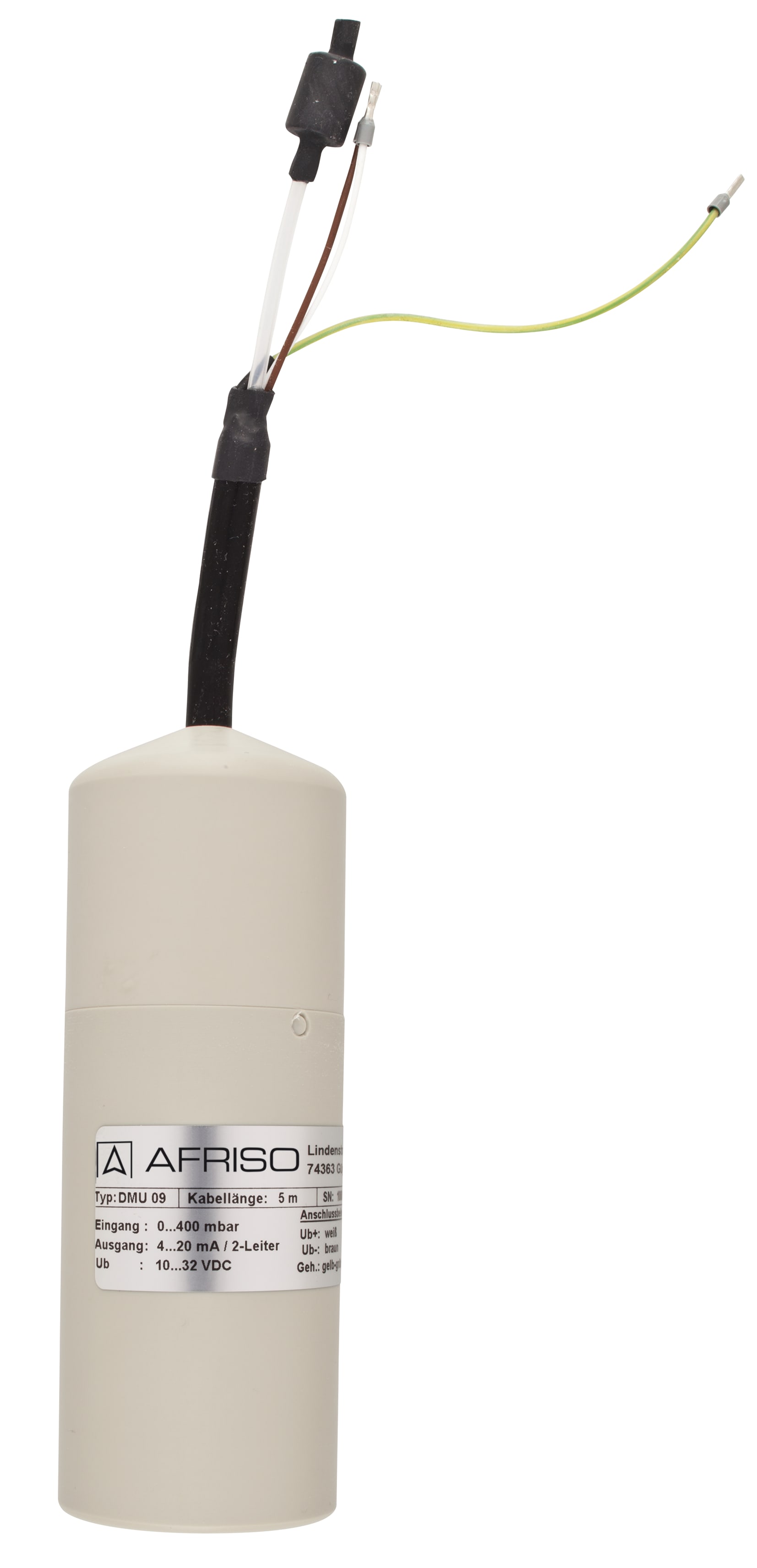

PRO_TEC_VOR_DMU09_31575.TIF
PRO_TEC_ANW_IT_DMU09_DA12.TIF

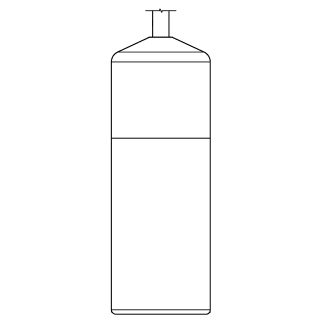

PRO_TEC_SCD_DMU09.TIF

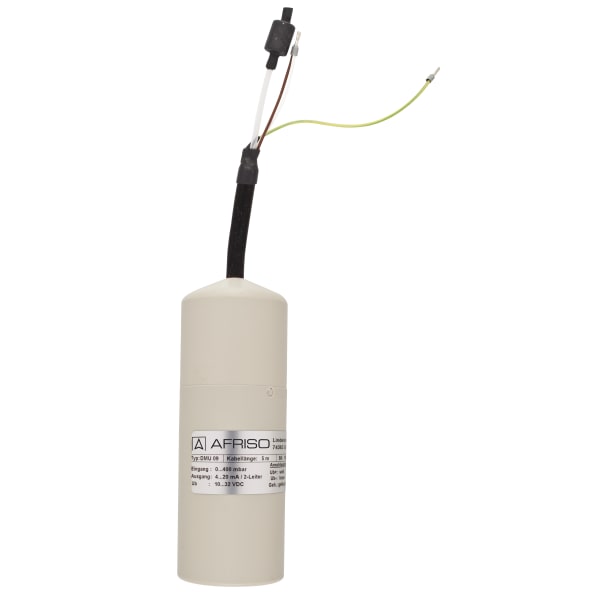

PRO_TEC_VOR_DMU09_31575.TIF
PRO_TEC_ANW_IT_DMU09_DA12.TIF
PRO_TEC_SCD_DMU09.TIF
Images 3
Back

Pressure transducers HydroFox® DMU 09 | 31575

Pressure transducers HydroFox® DMU 09 level probe - for chemical applications

manufactured goods
Manuals

Measuring range0/400 mbar
Part no.31575

  • chemical-resistant plastic version
  • robust ceramic diaphragm without transmission liquid
  • highly resistant FEP cable
  • special calibration for all standard pressure units possible

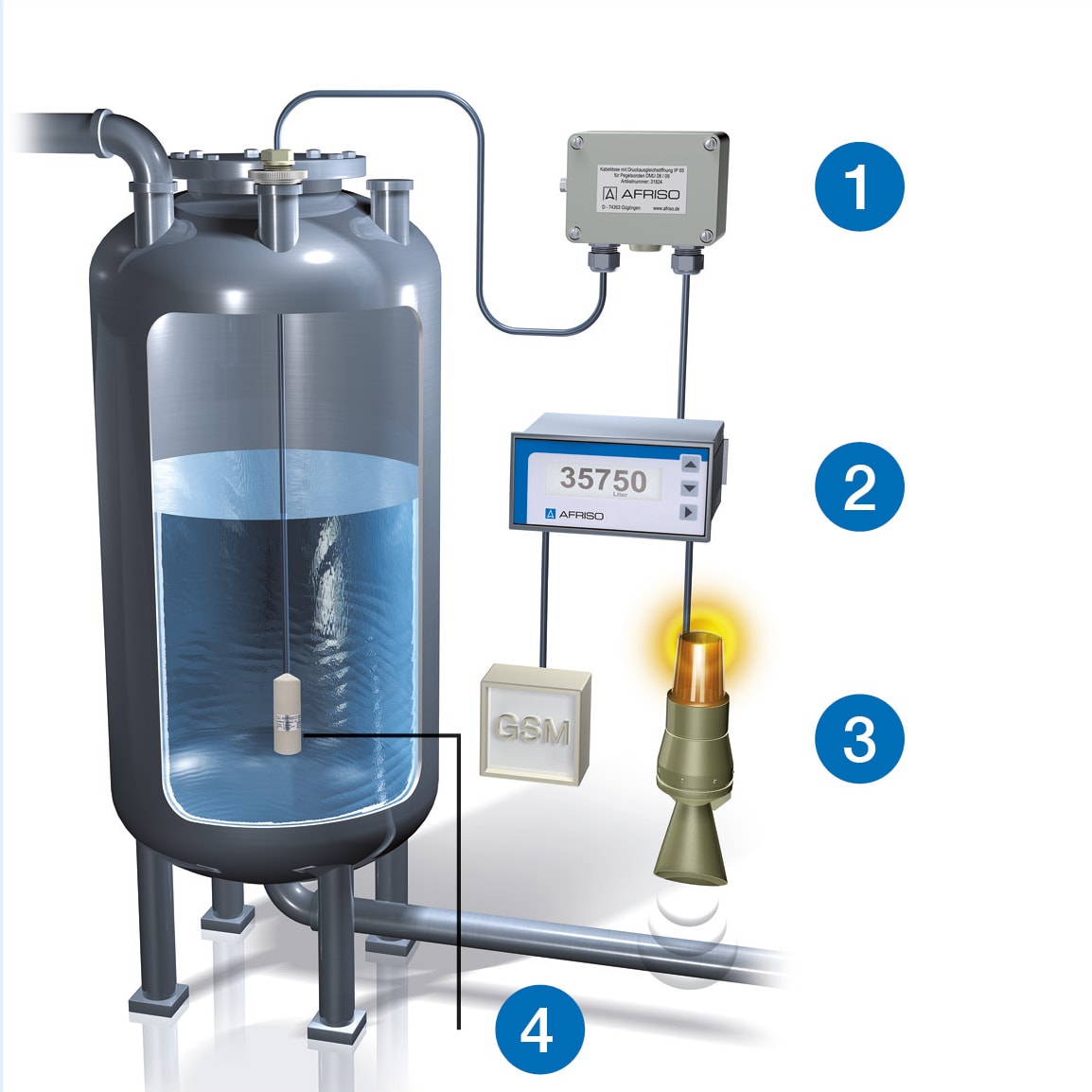

For electronic, continuous level measurement in extremely corrosive liquids, e.g. chemicals or waste water from landfill sites.

Pressure transducers HydroFox® convert physical pressure into an electrical signal proportional to the pressure. HydroFox® DMU 09 uses a capacitance ceramic measuring cell.

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< ± 0.35 % FSO
0/400 mbar
Overpressure safety
≤ 400 mbar:
at least 15 x FS
Operating temperature range
Medium:
-25/+70 °C
Ambient:
-25/+70 °C
Storage:
-25/+70 °C
dynamic characteristics
Response time:
< 200 ms
Probe
L x ⌀:
126 x 45 mm
material
Housing:
PP
diaphragm:
ultra-pure ceramic (Al203 99.9 %)
seals:
FKM (Viton)
cable:
FEP
Supply voltage
DC 9 − 32 V
Output signal
4–20 mA, 2-wire
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 21 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
FEP cable with integrated breather tube for reference to the ambient atmospheric pressure
Cable length:
5 m
Degree of protection:
IP 68 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU

Click the corresponding image for detail views, additional information and dimension tables.

Kabeldose mit Druckausgleichsöffnung

PRO_TEC_BEF_KABELDOSE_DRUCKAUSGLEICH_DMU_S.TIF

Abspannklemme

PRO_TEC_BEF_ABSPANNKLEMME_DMU_S.TIF

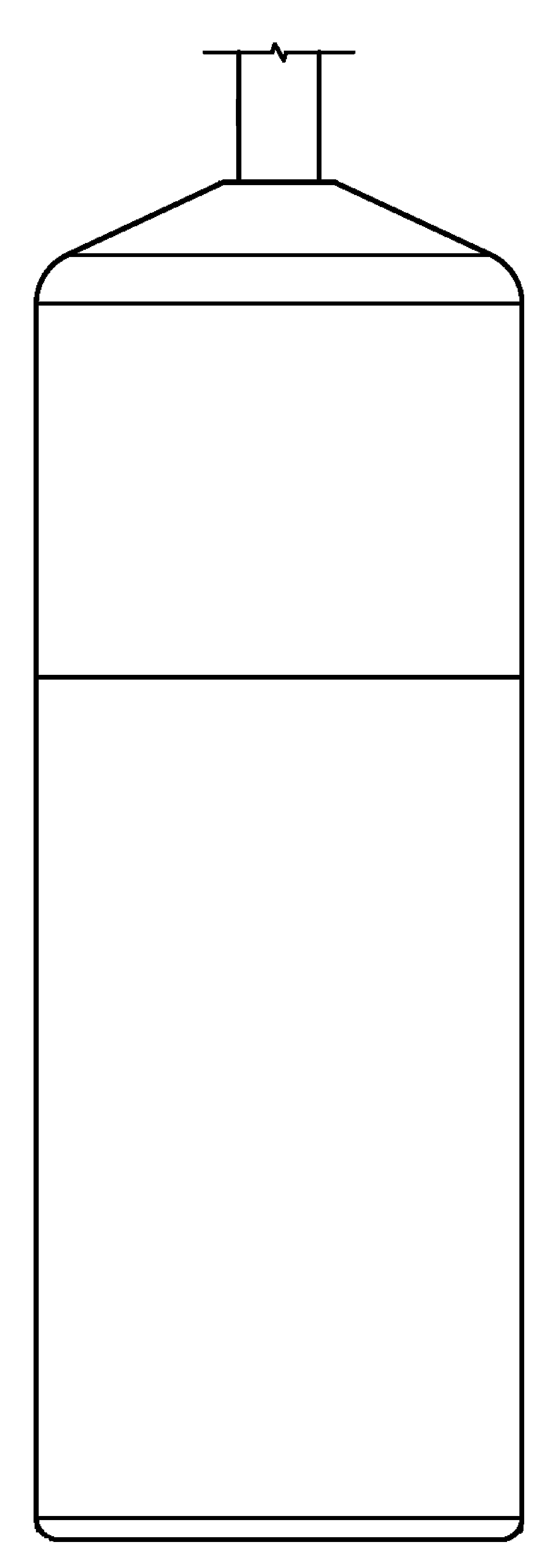

DMU 09 - Standardausführung

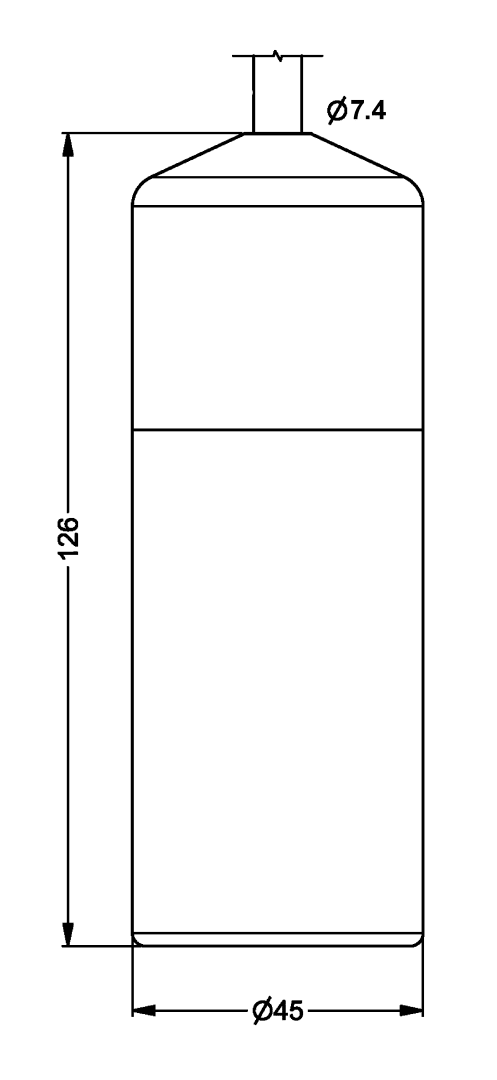

PRO_TEC_BEF_DMU09_S.TIF
