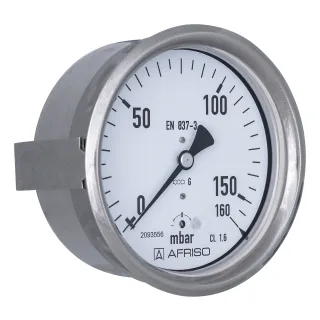

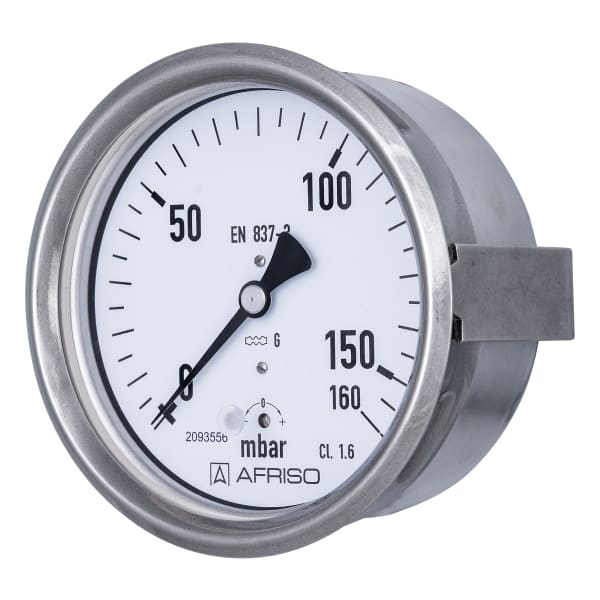

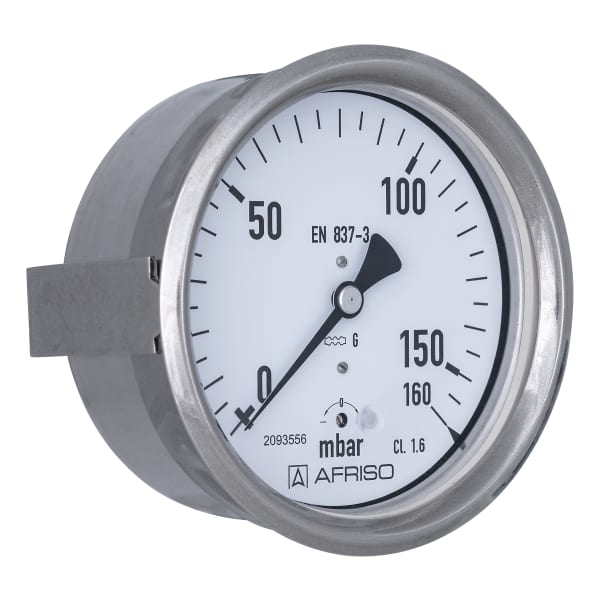

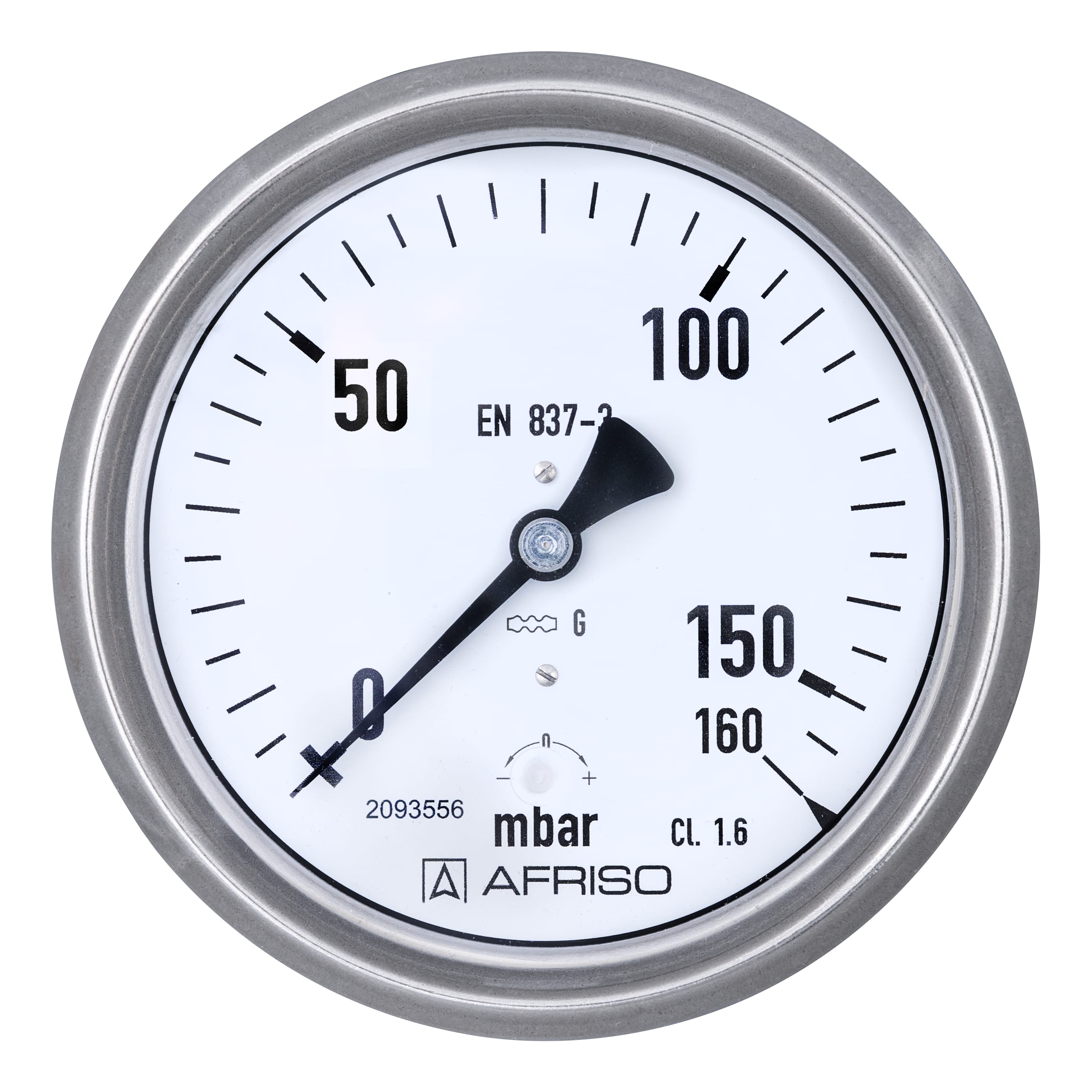

KP100Ch D452

Kapselfeder-Chemiemanometer Typ D4

Variants Documents

housing ⌀ (nominal size)100 mm
ConnectionG½B
alignmentcentre back
accuracy class1,6
standardEN 837-3

  • with zero correction
  • robust stainless steel housing (with bayonet bezel)
  • wetted parts and movement made of stainless steel
  • GOSSTANDART-certified
  • Ex version (optional)

For corrosive gaseous and dry media, also for use in corrosive environments.

RangeMounting typeTypePart number
-25/0 mbarclamp fixingKP100Ch D45235104452
-40/0 mbarclamp fixingKP100Ch D45235105452
-60/0 mbarclamp fixingKP100Ch D45235106452
-100/0 mbarclamp fixingKP100Ch D45235107452
-160/0 mbarclamp fixingKP100Ch D45235108452
-250/0 mbarclamp fixingKP100Ch D45235109452
-400/0 mbarclamp fixingKP100Ch D45235110452
-600/0 mbarclamp fixingKP100Ch D45235111452
-1 000/0 mbarclamp fixingKP100Ch D45235112452
0/25 mbarclamp fixingKP100Ch D45235116452
0/40 mbarclamp fixingKP100Ch D45235117452
0/60 mbarclamp fixingKP100Ch D45235118452
0/100 mbarclamp fixingKP100Ch D45235119452
0/160 mbarclamp fixingKP100Ch D45235120452
0/250 mbarclamp fixingKP100Ch D45235121452
0/400 mbarclamp fixingKP100Ch D45235122452
0/600 mbarclamp fixingKP100Ch D45235123452
0/1 000 mbarclamp fixingKP100Ch D45235124452
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
100 - 100
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 100 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
IP 32 (EN 60529)

Standard design

Connection
stainless steel 316 Ti/316 L, centre back
Measuring element
Capsule element, stainless steel 316 Ti/316 L
movement
Stainless steel
Zero correction
from the front
Seal
FKM (Viton)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
D452: Kunststoff (PMMA)

Click the corresponding image for detail views, additional information and dimension tables.

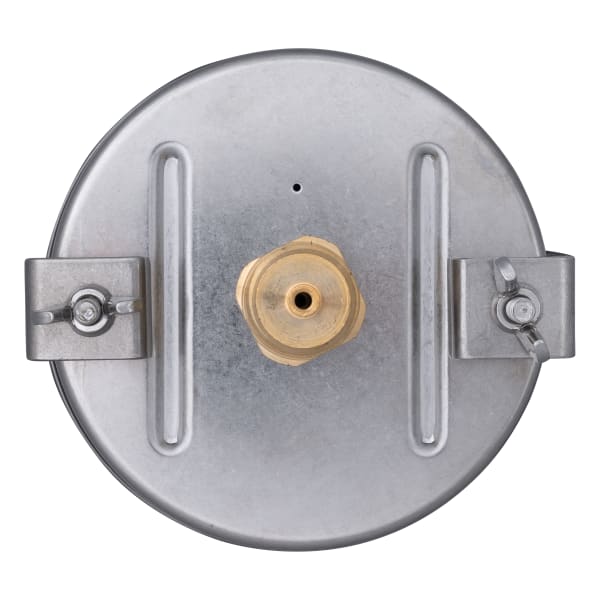

Centre back connection, panel mounting bezel with clamp fixing

PRO_TEC_BEP_KAPSELFEDER_CHEMIE_D4_ANSCHLUSS_AXIAL_BUEGELBEFESTIGUNG.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
throttle screw stainless steel 316 Ti NG 100 hole 0.3 – 0.5 – 0.7 mm (please specify) | 38105
bayonet bezel stainless steel 304, polished NG 100 | 38053
Housing stainless steel 304, polished NG 100 | 37613
red mark on dial NG 100 | 38186
1 reference pointer, red NG 100 SD External adjustment with screwdriver | 38117
1 reference pointer, red NG 100 DK external rotary knob adjustment | 38190
laminated safety glass window NG 100 | 38074
oil and grease removed from wetted parts NG 100 label "Oil and grease free" | 37617
higher degree of protection IP 54 NG 100 | 38160
printing block creation per scale and colour NG 100 scale design as per EN 837-1, others on request | 38155
additional colour NG 100 | 38167
