Industrial technology Mechanical pressure measuring instruments KP160 D411
PRO_TEC_SCD_MANOMETER_AXIAL_ZENTRISCH.TIF
PRO_TEC_SCD_MANOMETER_AXIAL_ZENTRISCH.TIF
Images 1

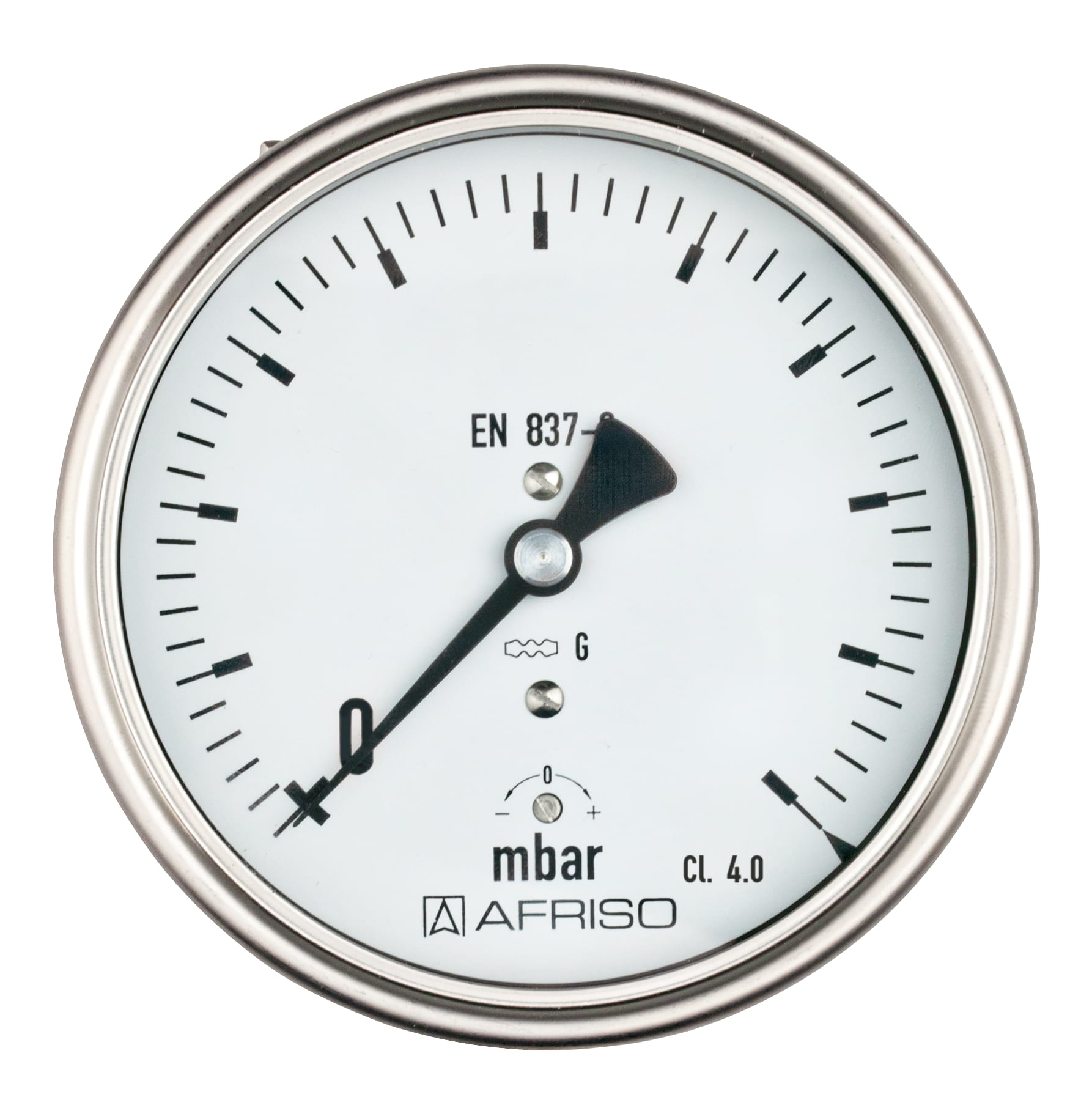

KP160 D411

Kapselfeder-Standardmanometer Typ D4

Variants Documents

housing ⌀ (nominal size)160 mm
ConnectionG½B
alignmentcentre back
accuracy class4,0
standardEN 837-3

  • with zero correction
  • optional overpressure and/or underpressure safety 10 x FSD
  • extremely low measuring ranges from 0/6 mbar
  • GOSSTANDART-certified

For gaseous, dry media which do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-6/0 mbardirectKP160 D41135151411
-10/0 mbardirectKP160 D41135152411
-16/0 mbardirectKP160 D41135153411
0/6 mbardirectKP160 D41135163411
0/10 mbardirectKP160 D41135164411
0/16 mbardirectKP160 D41135165411
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
160 - 160
accuracy class (EN 837-3/6)
4,0
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
NG 160: IP 33 (EN 60529)

Standard design

Connection
Brass, centre back
Measuring element
Capsule element, CuBe alloy
movement
Brass
Zero correction
from the front
Seal
NBR (Perbunan)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
D411: Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

Centre back connection

PRO_TEC_BEP_KAPSELFEDER_STANDARD_D4_ANSCHLUSS_AXIAL_1.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
accuracy class 1.0 NG 160 | 38181
connection socket nickel-plated NG 160 | 38087
throttle screw brass NG 160 hole 0.3 – 0.5 – 0.7 mm (please specify) | 38100
3-hole fixing, panel mounting bezel stainless steel 304 polished NG 160 | 37610
back flange stainless steel 304, vibratory-finished NG 160
back flange stainless steel 304, vibratory-finished NG 160 | 38051
bayonet bezel stainless steel 304 polished NG 160 | 38055
Housing stainless steel 304 polished NG 160 | 37614
red mark on dial NG 160 | 38187
1 reference pointer, red NG 160 DK external rotary knob adjustment | 38191
laminated safety glass window NG 160 | 38075
printing block creation per scale and colour NG 160 scale design as per EN 837-1, others on request | 38156
additional colour NG 160 | 38168
3-hole fixing, panel mounting bezel (bayonet type) stainless steel 304 polished NG 160 for factory-mounting
3-hole fixing, panel mounting bezel (bayonet type) stainless steel 304 polished NG 160 for factory-mounting | 38057
