Stainless steel diaphragm pressure gauges PF160FLO | 88929402

Stainless steel diaphragm pressure gauges Type D4

manufactured goods
Documents

Range0/400 mbar
housing ⌀ (nominal size)160 mm
accuracy class1,6
standardEN 837-3
Part no.88929402

  • robust and compact design
  • various process connections possible
  • flush mounted versions without transmission liquid
  • wetted area without seals due to welding
  • GOSSTANDART-certified

For corrosive gaseous and liquid media, also for use in corrosive environments. With open connection flange also suitable for viscous and polluted media; with hygienic connections specially suitable for pharmaceutical processes. For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

Type
D4
Nominal size
160 - 160
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
Overpressure safety
≤ 6 bar: at least 5 x FS
Operating temperature range
Medium:
max. 100 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,8 %/10 K,
falling temperature approx. ± 0.8 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
IP 54 (EN 60529)

Standard design

Connection
stainless steel 316 Ti/316 L, bottom
open connection flange
lower measuring flange
stainless steel 316 Ti/316 L
upper measuring flange
Stainless steel 316 L
Measuring element
diaphragm
≤ 2.5 bar: stainless steel 316 Ti/316 L
movement
Stainless steel
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304, with blow-out
bayonet bezel
Edelstahl 304
window
Sicherheitsverbundglas

Click the corresponding image for detail views, additional information and dimension tables.

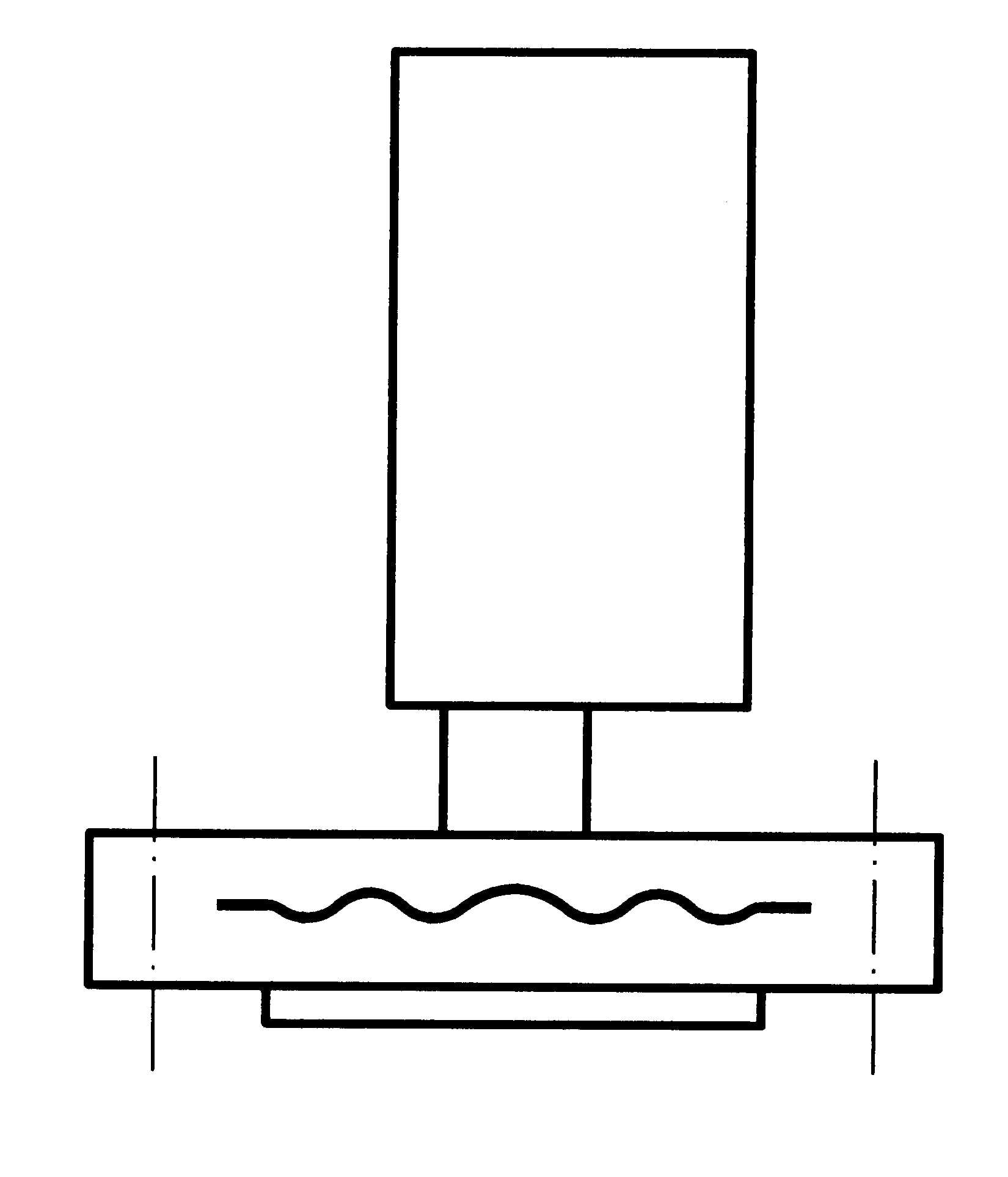

connection flange as per EN 1092-1/B 1/DN 25/PN 40 open, 0/100 mbar to 0/25 bar
