RF100HD D402

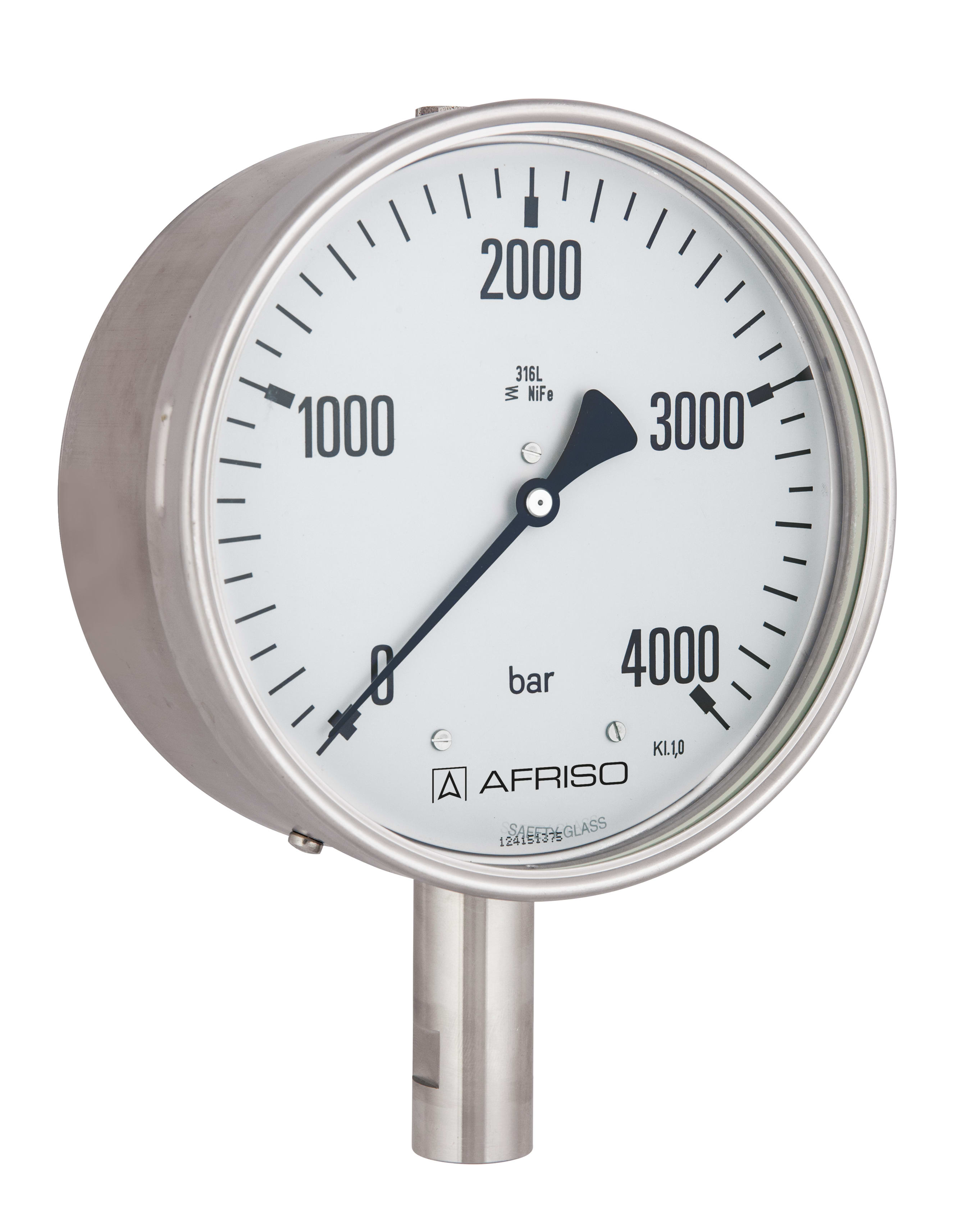

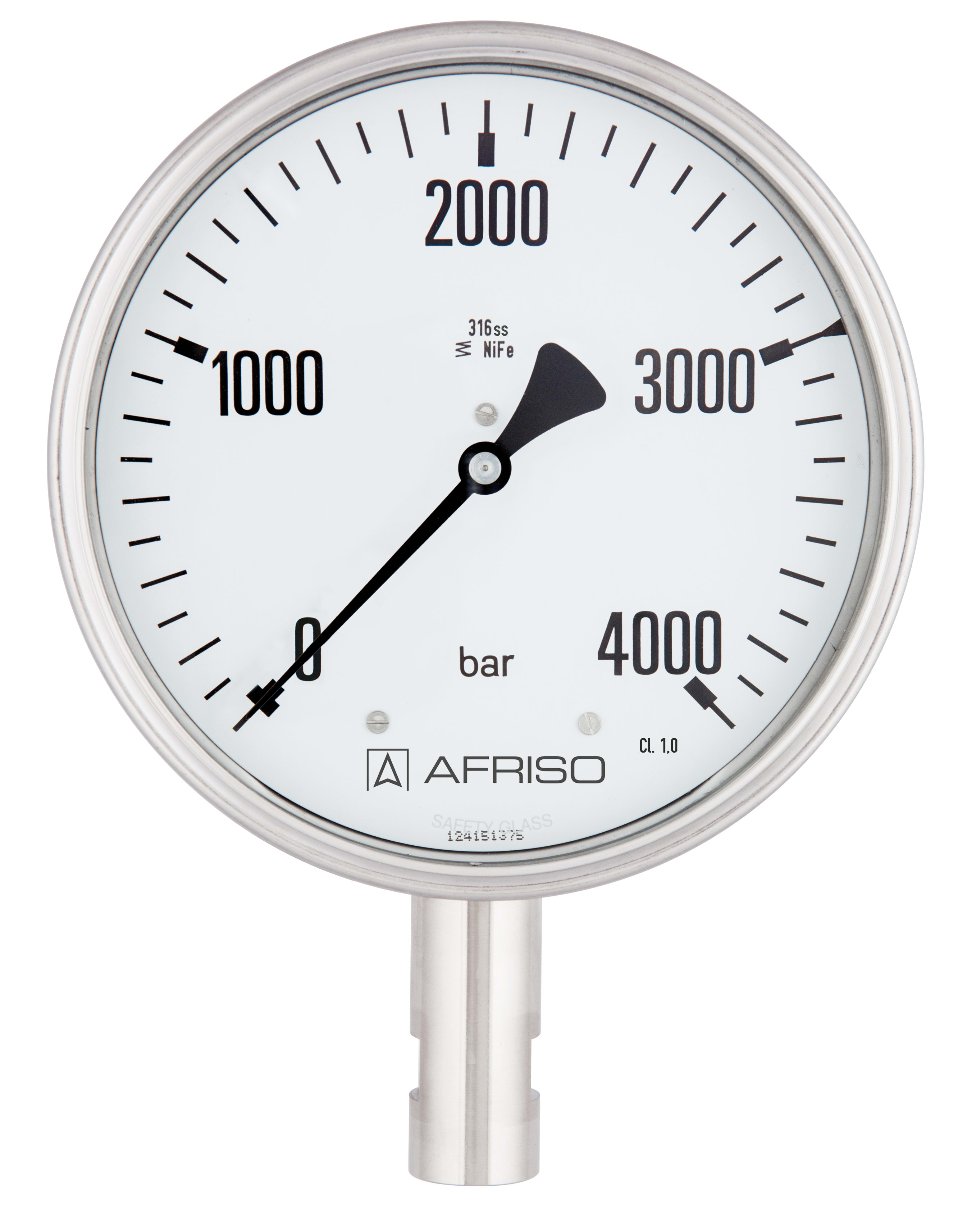

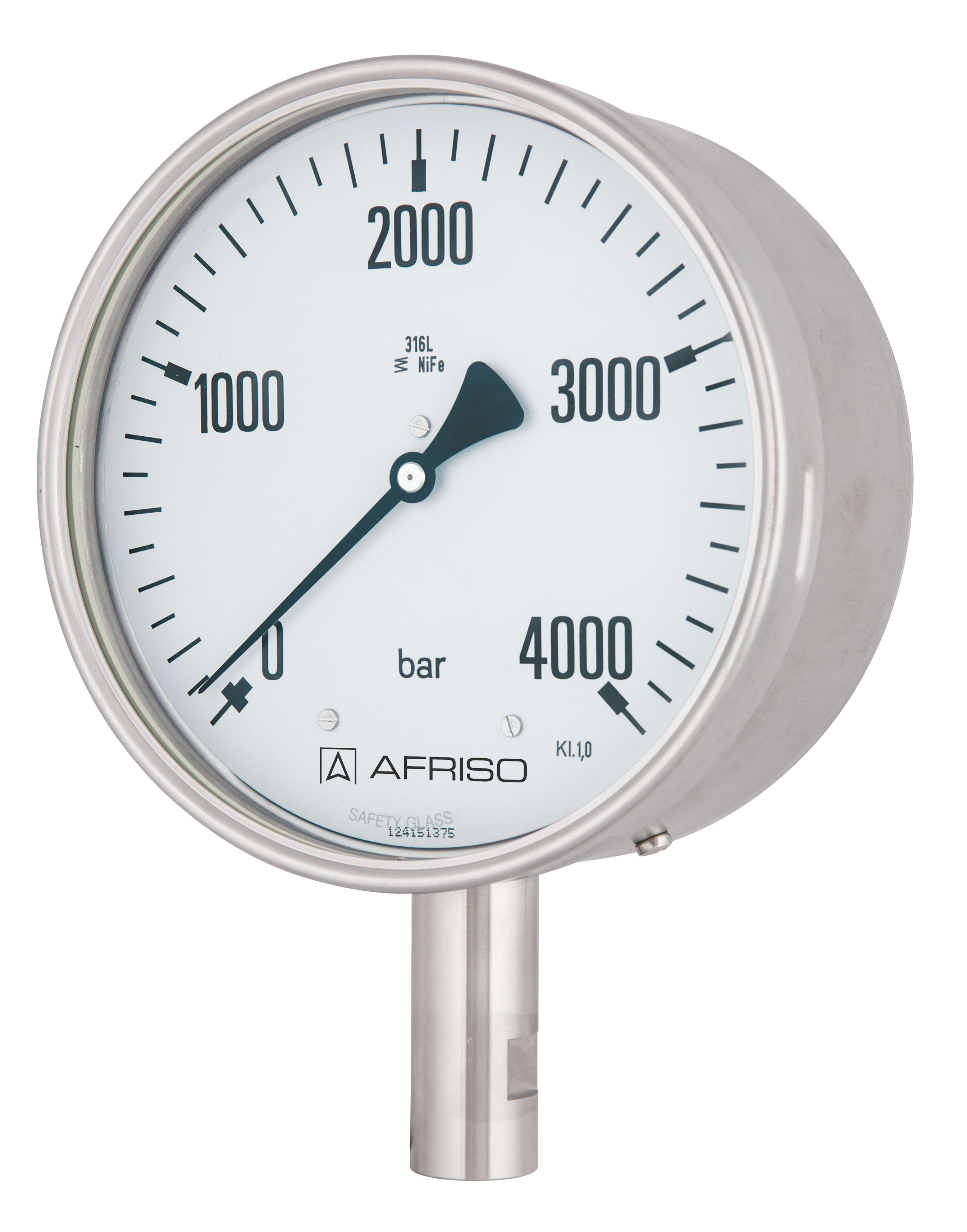

Rohrfeder-Hochdruckmanometer Typ D4
| housing ⌀ (nominal size) | 100 mm |
|---|---|
| Connection | HP connection ¼" with female thread M16 x 1.5 |
| alignment | bottom |
| accuracy class | 1,0 |
- for pressure ranges up to 4,000 bar
- Housing with solid baffle wall and blow-out
For measurement of extremely high pressures in gaseous and liquid corrosive media which are not highly viscous and do not crystallise; also suitable for corrosive atmospheres.
- Type
- D4
- Nominal size
- 100 - 100
- accuracy class (EN 837-1/6)
- 1,0
- ranges
- 0/2 500 bar
- Operating temperature range
- Medium:
- max. 100 °C
- Ambient:
- -20/+60 °C
- Temperature performance
- Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,4 %/10 K,
falling temperature approx. ± 0.4 %/10 K
vom jeweiligen Skalenendwert
- Degree of protection
- IP 54 (EN 60529)
Standard design
- Connection
- Stainless steel 316 L, bottom
- HP connection ¼" with female thread M16 x 1.5 with sealing cone 60°

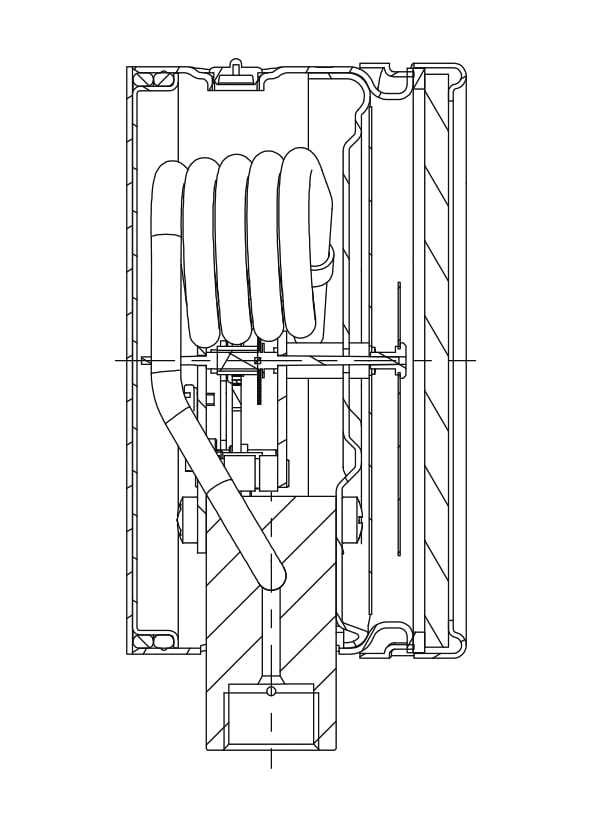

- Measuring element
- Bourdon tube, NiFe alloy
- helical tube
- movement
- Stainless steel
- Dial
- Aluminium, weiß
- Scaling black
- Pointer
- Aluminium, schwarz
- Housing
- Edelstahl 304, with solid baffle wall and blow-out
- bayonet bezel
- Edelstahl 304
- window
- Sicherheitsverbundglas
Click the corresponding image for detail views, additional information and dimension tables.
Bottom connection
