CAPBs® set for determination of water quality WQ 10 pH/EC | P00032

CAPBs® set for determination of water quality WQ

in-stock items
Manuals

  • Auswahlmöglichkeit: Interpretation und farbige Darstellung der Werte gemäß VDI 2035
  • Checking and assessing the drinking water quality
  • Assessing the system water in heating systems, for example, heating system water analysis as per VDI 2035
  • modular extension kit for fast on-site analysis of the water quality like laboratory analyses
  • multi-purpose sensor for pH value, electrical conductivity, German hardness, salinity and temperature
  • with titrating solution for °dH for chemically treated water or water softened by means of ion exchange
  • Robust, modular system case M, suitable for box and shelf system Sortimo-Boxx
  • can be used in conjunction with AFRISO BlueLine measuring instruments, smartphones or tablets as evaluation units
  • easy and fast documentation of measured values by means of evaluation app EuroSoft live or BlueLine measuring instrument
  • professional PDF measurement report with the following parameters: total hardness, conductivity and pH value as per new German VDI 2035

Determination of German hardness and the TDS value (total dissolved solids in mg/l)
WQ 10: Measurement of pH value, electrical conductivity, salinity and temperature
WQ 11: Measurement of electrical conductivity, salinity and temperature

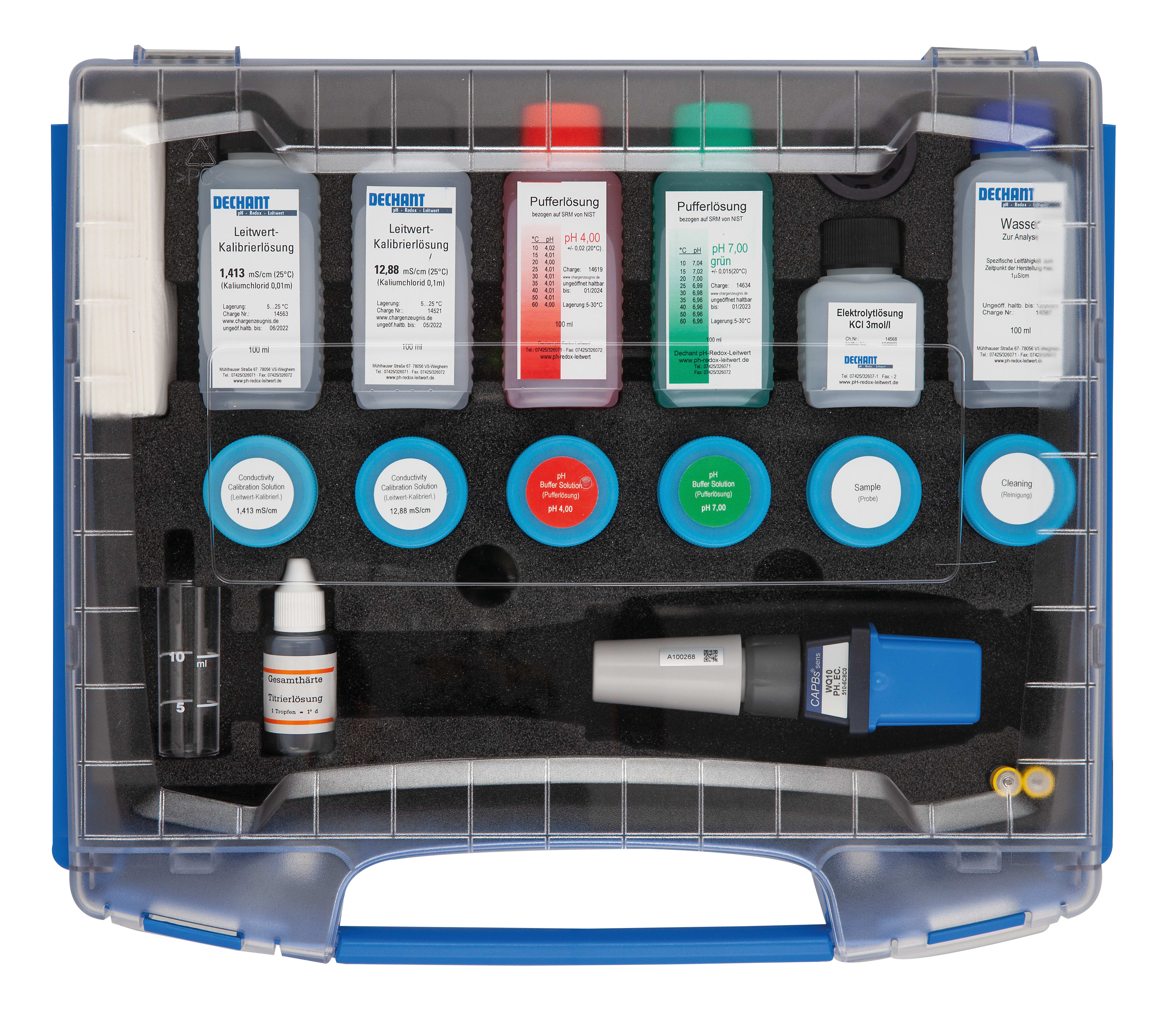

Complete test set in convenient system case with sensor module CAPBs® sens WQ and all corresponding calibration solutions and sample containers.

Zielgruppe

Dimensions (W x H x D)
sensor module:
43 x 130 x 36 mm
case:
367 x 72 x 316 mm
Weight
CAPBs®CAPBs®Set WQ 10:
  1.8 kg
Measuring range
Conductivity:
0/50 000 µS/cm
salinity:
0/25 000 ppm
TDS:
0/50 000 mg/l
pH value:
0/14 pH
temperature:
-5/+60 °C
Accuracy
Conductivity:
2 µS/cm (0/199 µS/cm)
5 µS/cm (200/499 µS/cm)
20 µS/cm (500/1 999 µS/cm)
0.2 mS/cm (2/19.99 mS/cm)
0.5 mS/cm (20/50 mS/cm)
TDS:
± 10 mg/l
pH value:
± 0.01 pH
temperature:
± 0.5 K
Resolution
Conductivity:
1 µS/cm
salinity:
0.1 ppm
TDS:
1 mg/l
pH value:
0.01 pH
temperature:
0.1 °C
Indication of measured values
Conductivity:
µS/cm, mS/cm
salinity:
ppm, ppt
TDS:
mg/l, g/l
hardness:
°d, °e, °f, °rH, ppm, mg/l, mmol/l, mol/m3
pH:
pH
temperature:
°C, °F
Scope of delivery
  • pH/conductivity sensor CAPBs® sens WQ 10
  • Kalibrierlösungen für pH-Wert
  • calibration solutions for electrical conductivity
  • Titrierlösung für Gesamthärte
  • sample containers
  • Reinigungsflüssigkeit
  • storage liquid
  • modularer Systemkoffer M
