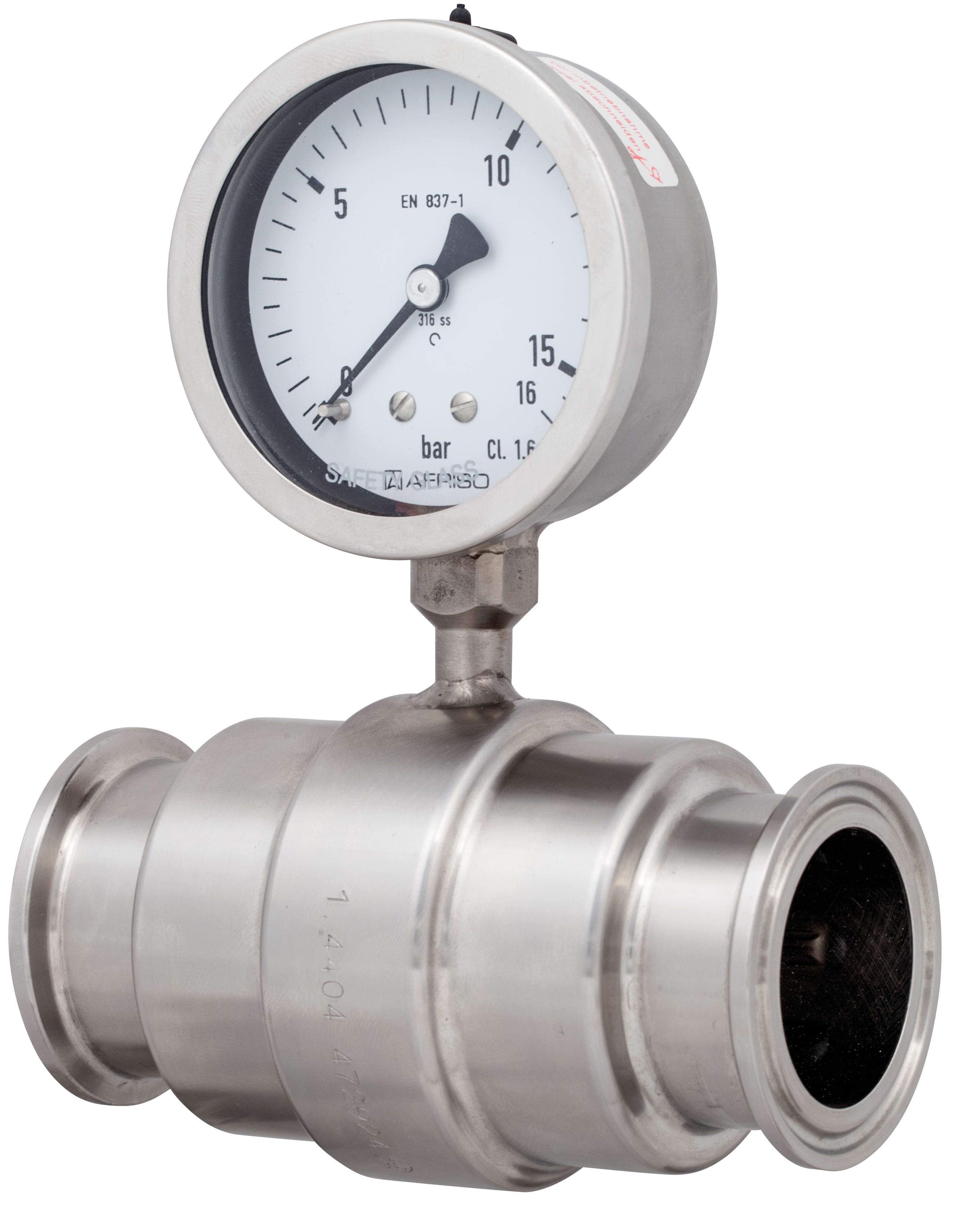

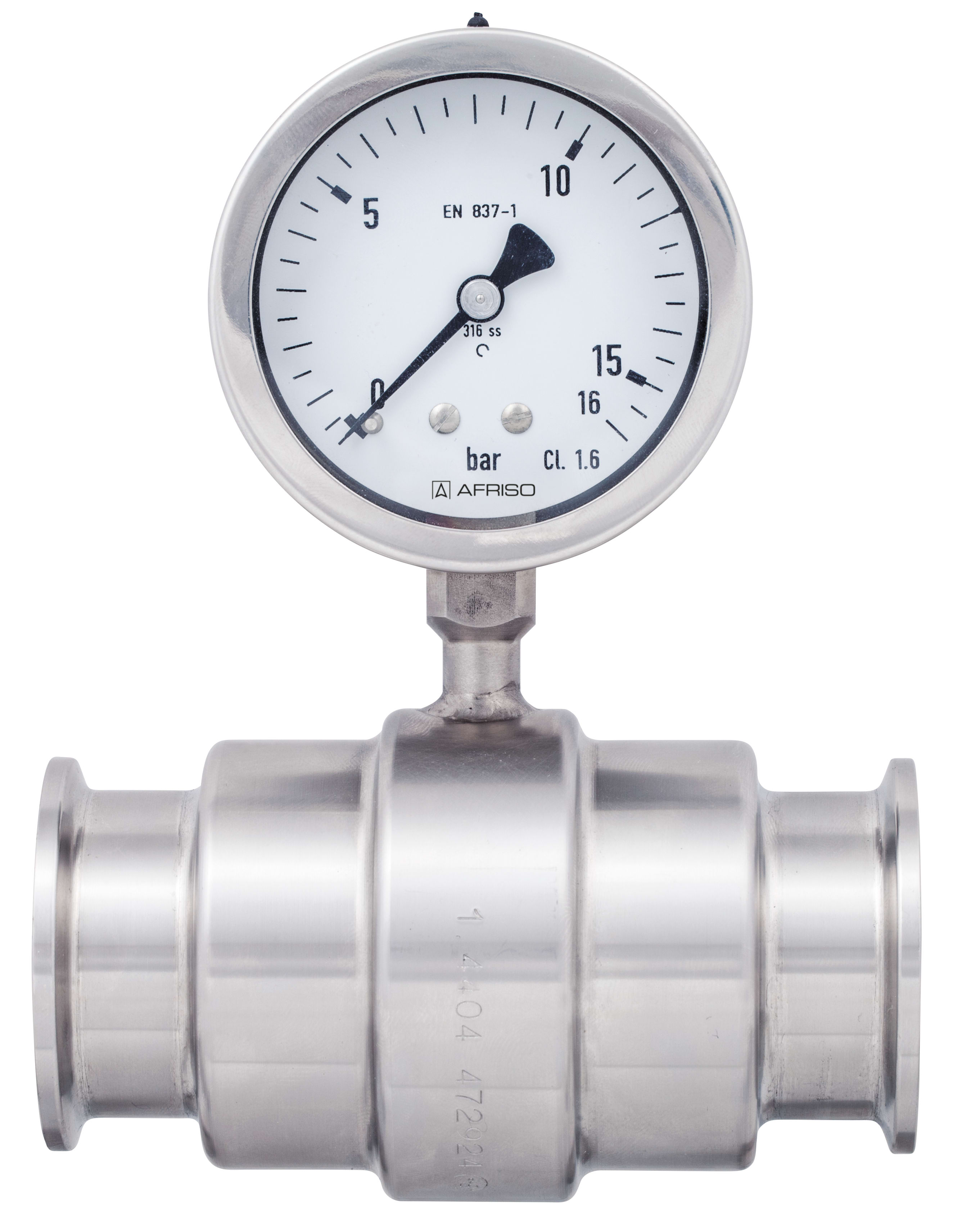

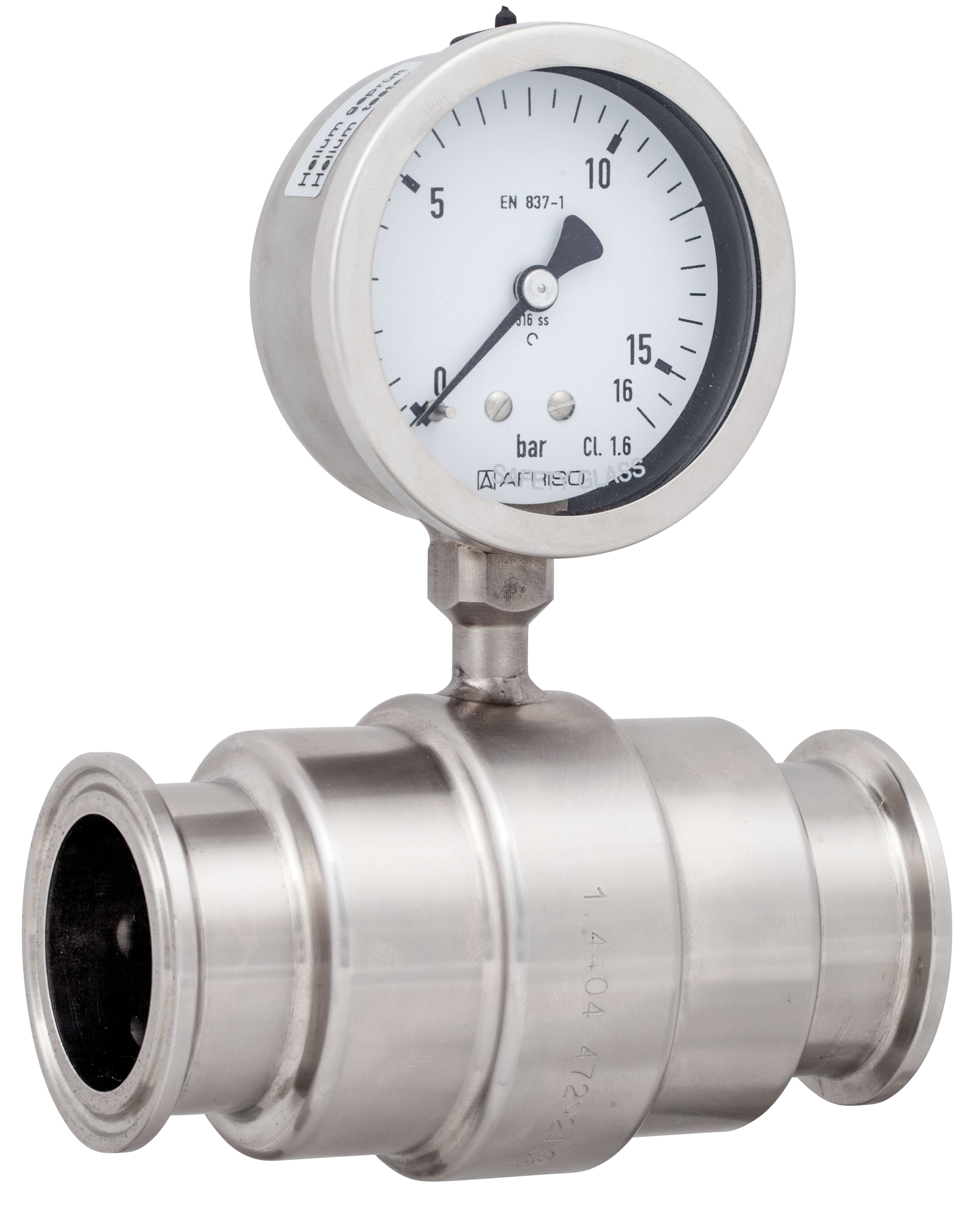

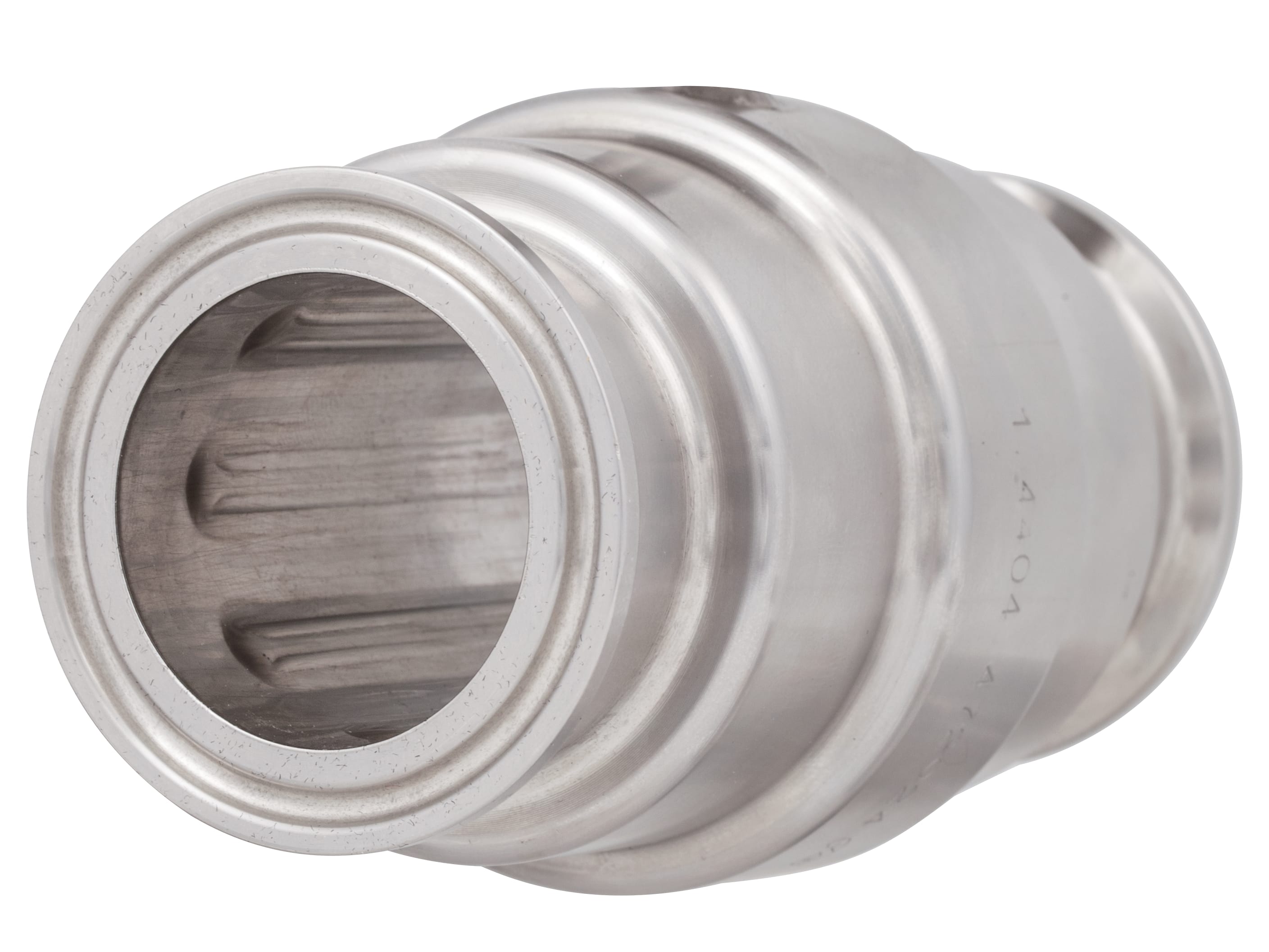

RD 60

In-line chemical seals for hygienic processes

Variants Documents

for clamp connection ISO 2852
no T piece required in pipe
easy, fast installation in pipe

For use with Bourdon tube pressure gauges, pressure transducers or pressure switches. For flowing, corrosive and highly viscous media; designed for direct installation in pipes. Typical application areas:
Biochemical applications
Food and luxury food industry
Beverages industry
Pharmaceutical industry

Process connection	Nominal diameter	Instrument connection	Nominal pressure	minimum range* (in bar) at nominal size				Part no.
Process connection		Instrument connection	Nominal pressure	63	100	160	DMU
clamp connection ISO 2852	DN 1"	Welded connection	PN 16	1.6 bar	2.5 bar		1.6 bar	31377W
clamp connection ISO 2852	DN 1½"	Welded connection	PN 16	1.6 bar	2.5 bar	4 bar	1.6 bar	31378W
clamp connection ISO 2852	DN 2"	Welded connection	PN 16	1.6 bar	2.5 bar	2.5 bar	1 bar	31379W
clamp connection ISO 2852	DN 2½"	Welded connection	PN 16	1.6 bar	2.5 bar	2.5 bar	1 bar	31380W
clamp connection ISO 2852	DN 3"	Welded connection	PN 10	1.6 bar	2.5 bar	2.5 bar	1 bar	31381W

in-stock items
manufactured goods

Process connection/tubus

: Stainless steel 316 L

: clamp connection ISO 2852

diaphragm

: Stainless steel 316 L, welded to body, no dead space

Instrument connection

: Stainless steel 316 L

: Welded connection

pressure transmission liquid

: Paraffin oil (FM 09), FDA-listed

pressure range: see overview of versions

Nominal pressure: PN 16

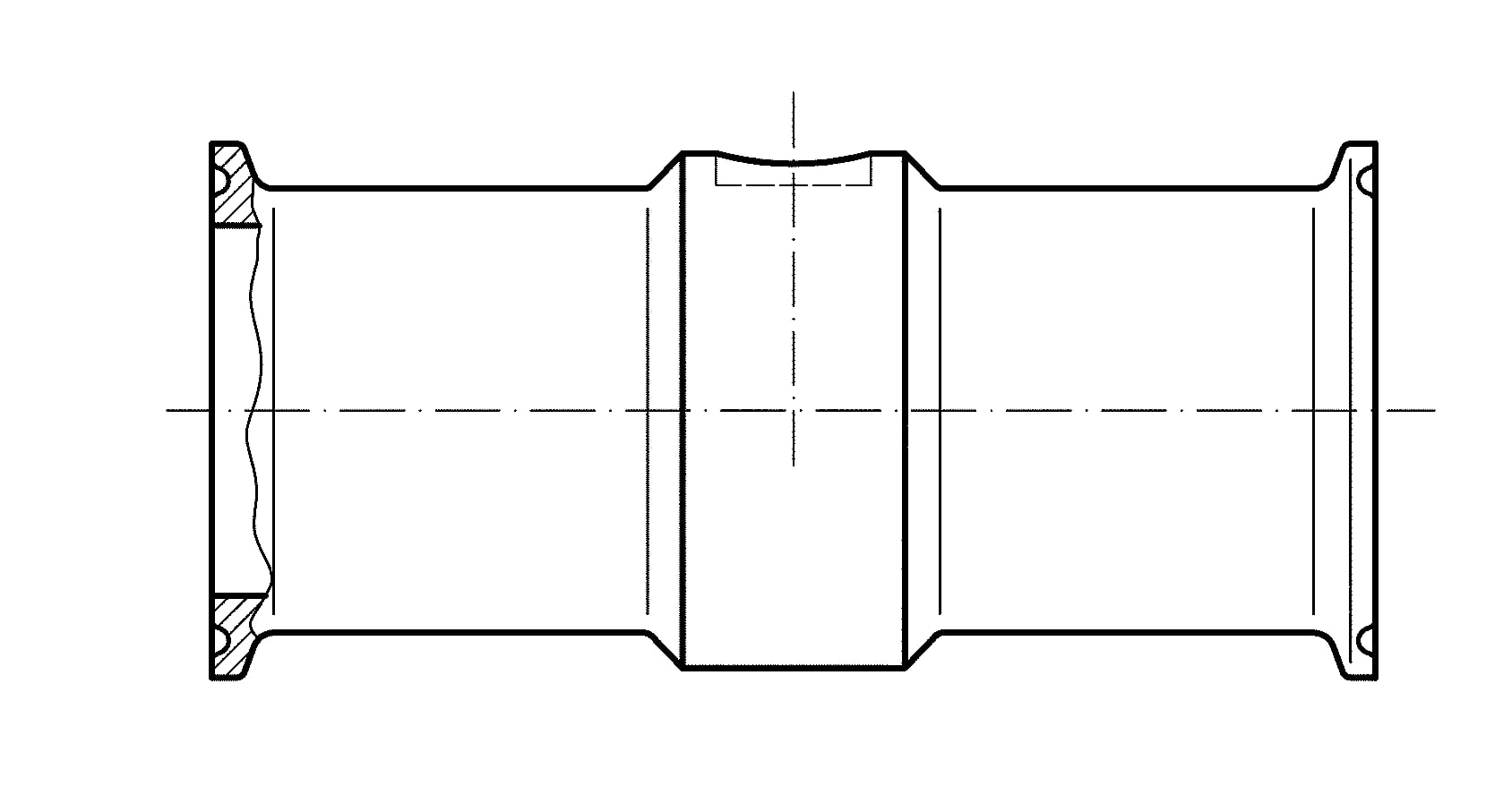

Click the corresponding image for detail views, additional information and dimension tables.

AFRISO_IN-LINE-CHEMICAL-SEALS-FOR-HYGIENIC-PROCESSES_ENG_GBR_20260209_232937030.PDF

AFRISO_ROHRDRUCKMITTLER-FUER-HYGIENISCHE-PROZESSE_DEU_DEU_20260210_003254147.PDF

Data sheets

Industrial technology

PDF

Druckmittler

PDF

DN	PN	D	D1	L	H
1"	16	50,5	22,2	110	24
1½"	16	50,5	34,8	110	31,5
2"	16	64	47,8	110	37
2½"	16	77,5	60,3	110	45
3"	10	91	72,9	60	51,5
