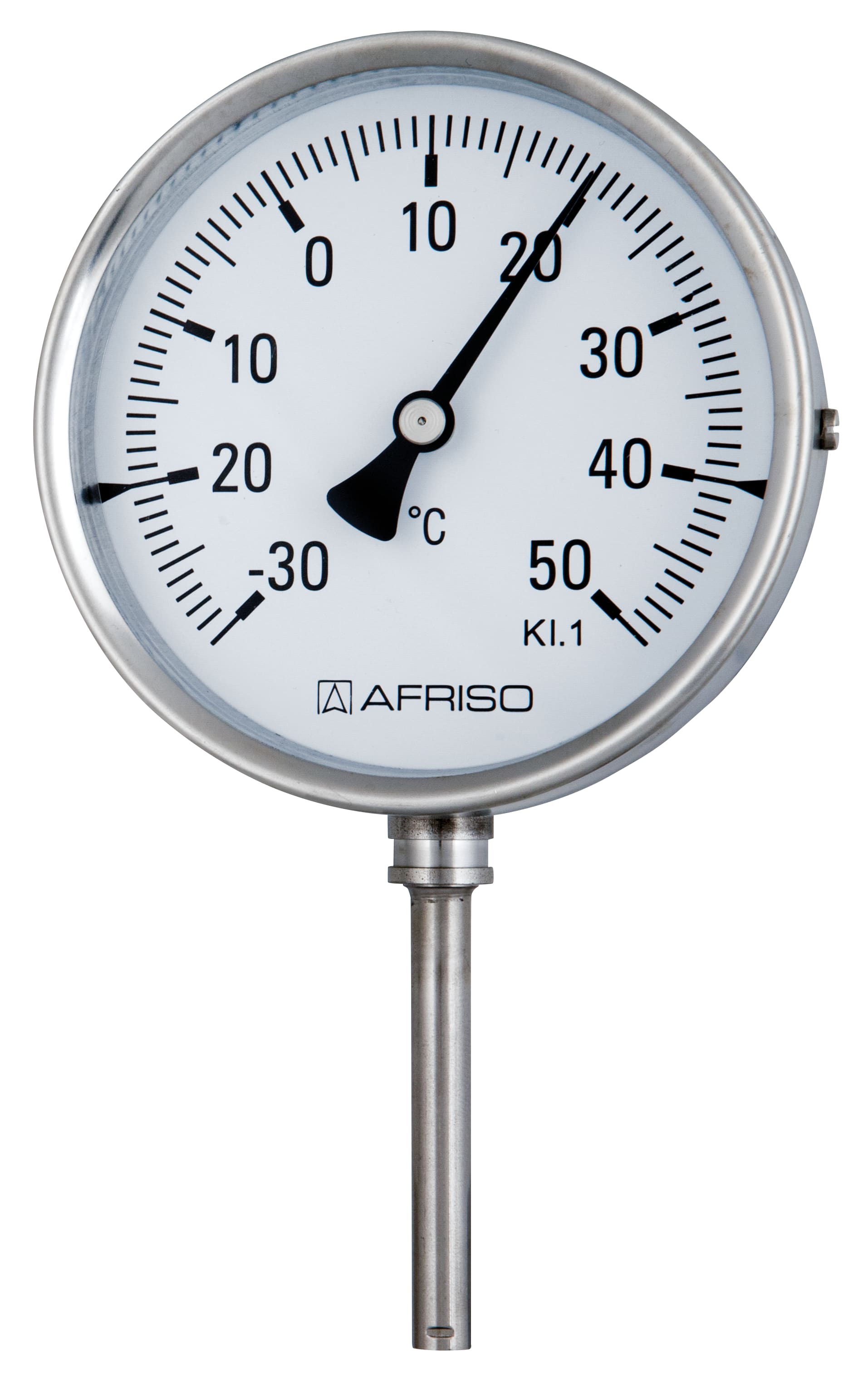

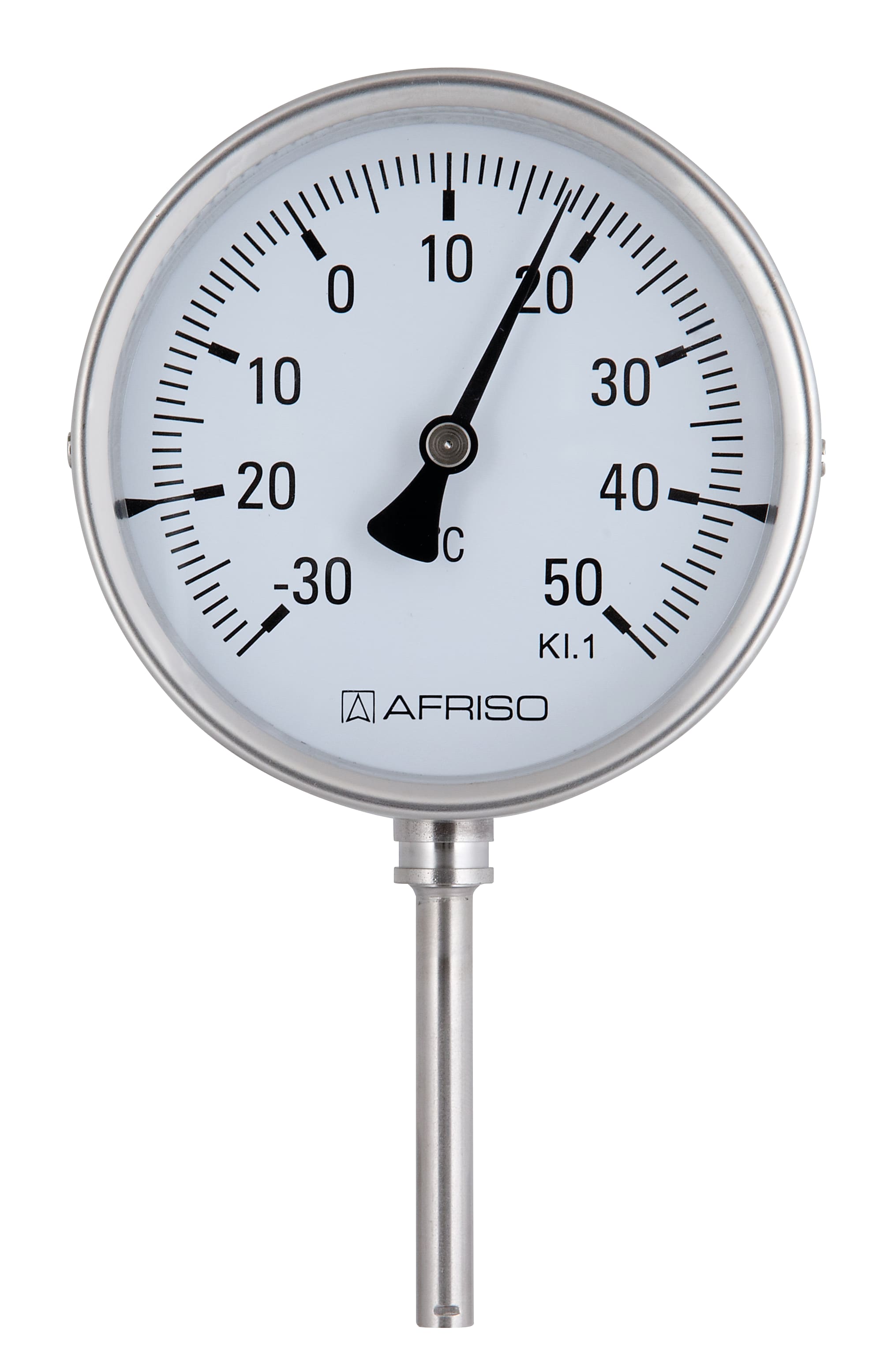

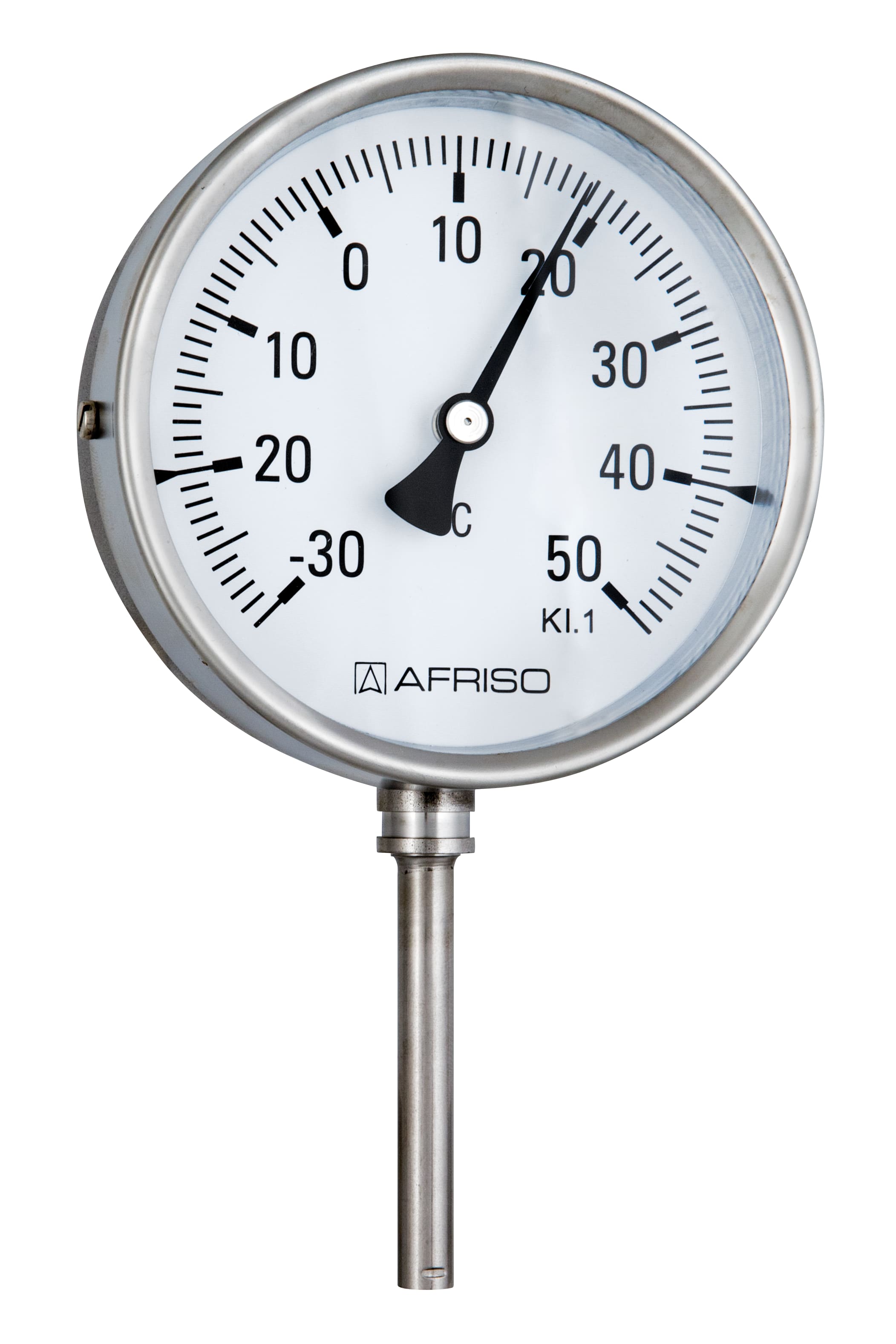

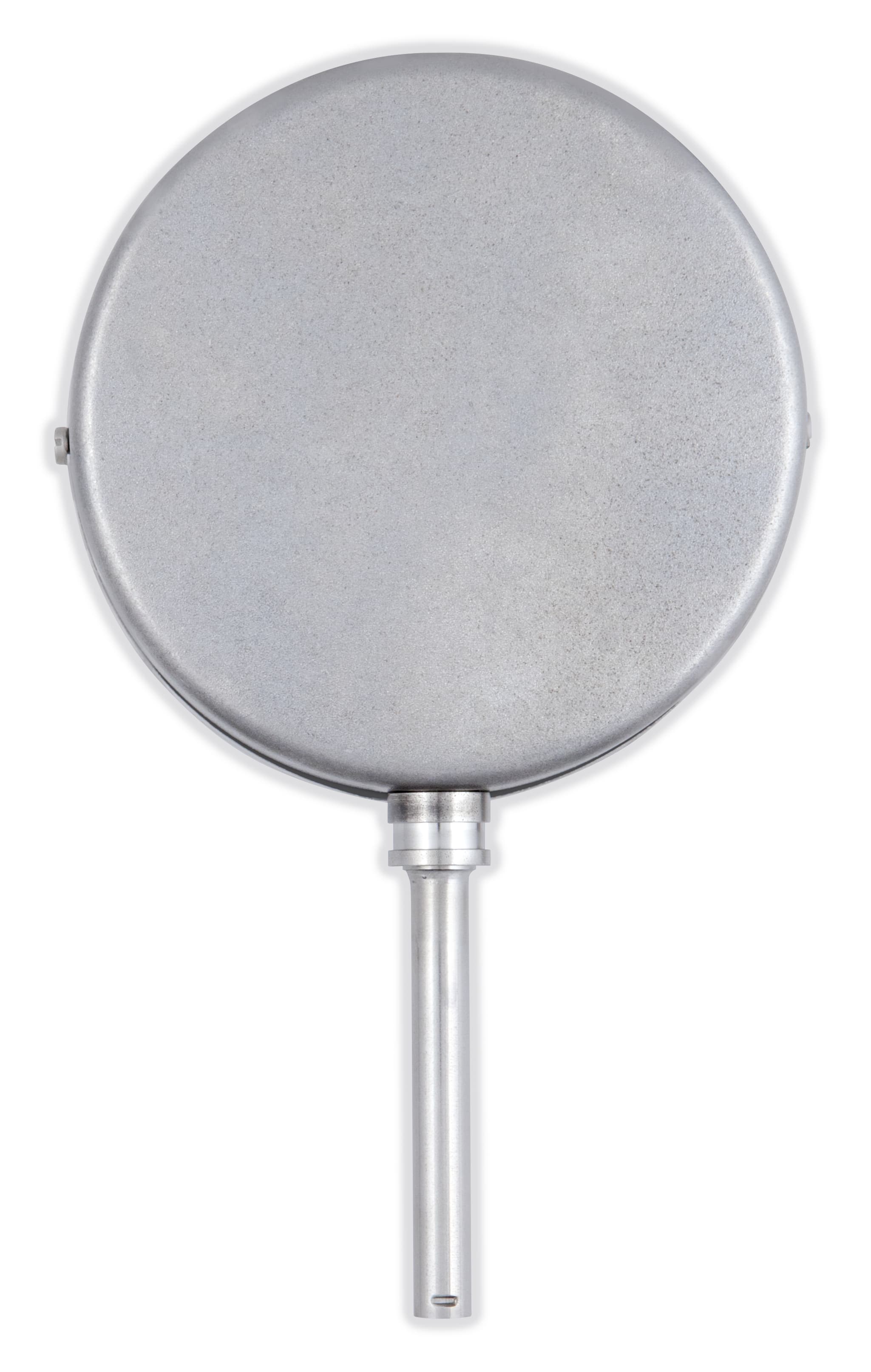

BiTh 100 E D302

Bimetall-Edelstahlthermometer

Variants Documents

suitable for use in mechanical engineering, plant engineering, process engineering or food industry
ideal for hygienic processes
accuracy class 1 as per EN 13190
for temperatures of the medium of up to 160 °C
with adapter ring for thermowell Ø 18 mm

For corrosive media. Suitable for a great range of industrial applications.

	Type	housing ⌀	mounting position	Connection	Range	For thermowell with length L1	Stem length L1	Type	Type	Part no.
	BiTh 100 E	100 mm	bottom	plain	0/120 °C	63 mm		BiTh 100 E	D302	66347302
	BiTh 100 E	100 mm	bottom	plain	0/120 °C	100 mm		BiTh 100 E	D302	66348302
	BiTh 100 E	100 mm	bottom	plain	0/120 °C	150 mm		BiTh 100 E	D302	66349302
	BiTh 100 E	100 mm	bottom	plain	0/120 °C	200 mm		BiTh 100 E	D302	66350302

in-stock items
manufactured goods

Type: D3

Nominal size: 100 - 100

measuring element: Bimetal helix

accuracy class: 1 (EN 13190)

ranges °C: 0/120 °C

Application area (EN 13190)

continuous load:: Measuring range

short-term:: Range

Operating pressure at thermowell

: (not included in scope of delivery)

: max. 25 bar max.

Degree of protection: IP 43 (EN 60529)

Standard design

Connection

Stem:: Stainless steel 316 L, ∅ 8 mm

Stem:: plain

mounting position: bottom

Dial

: Aluminium, weiß

: Scaling black

Pointer

: Aluminium, schwarz

Housing

: Edelstahl 304

push on bezel

: Edelstahl 304

window

: Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

bottom connection, plain
