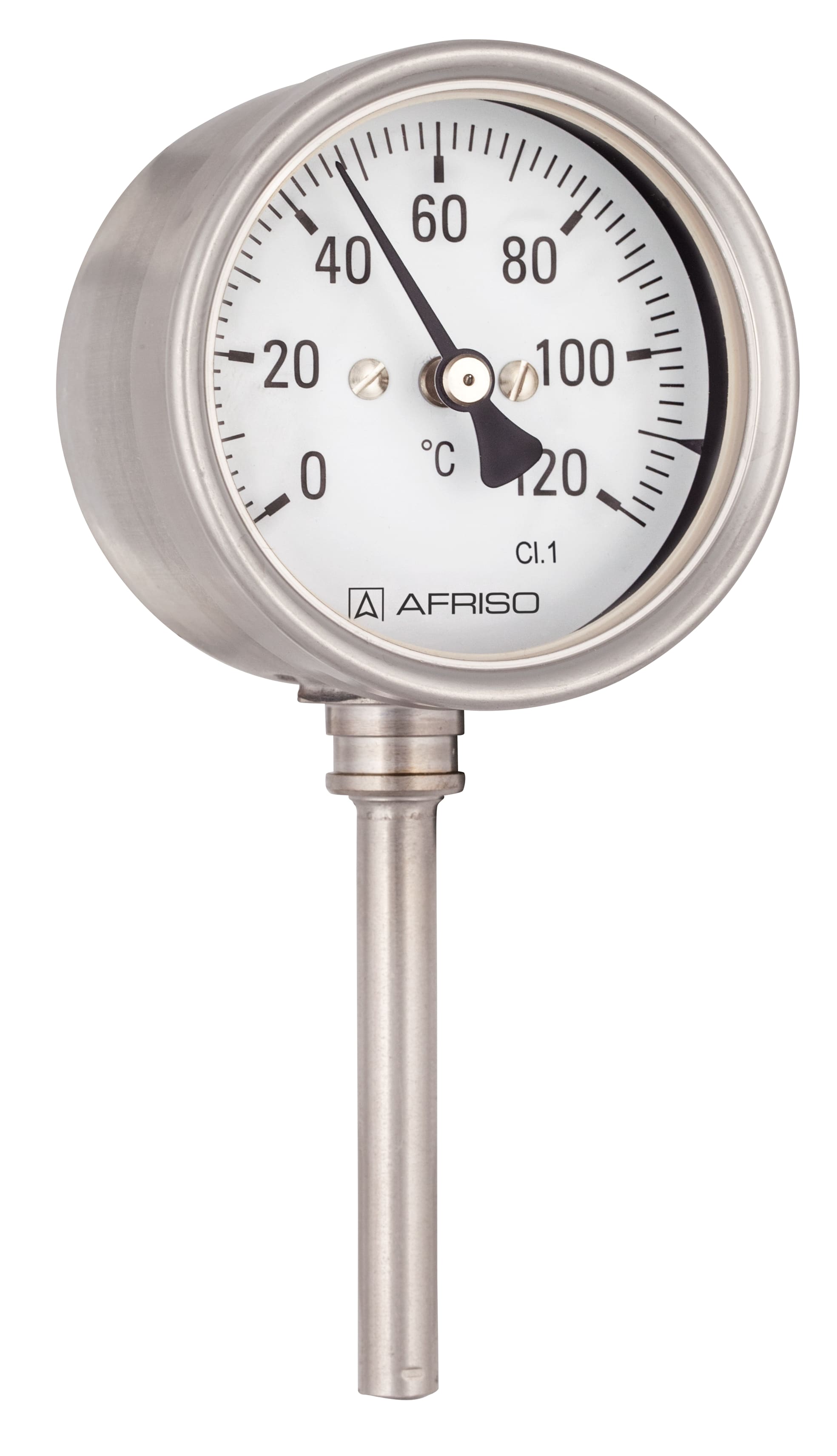

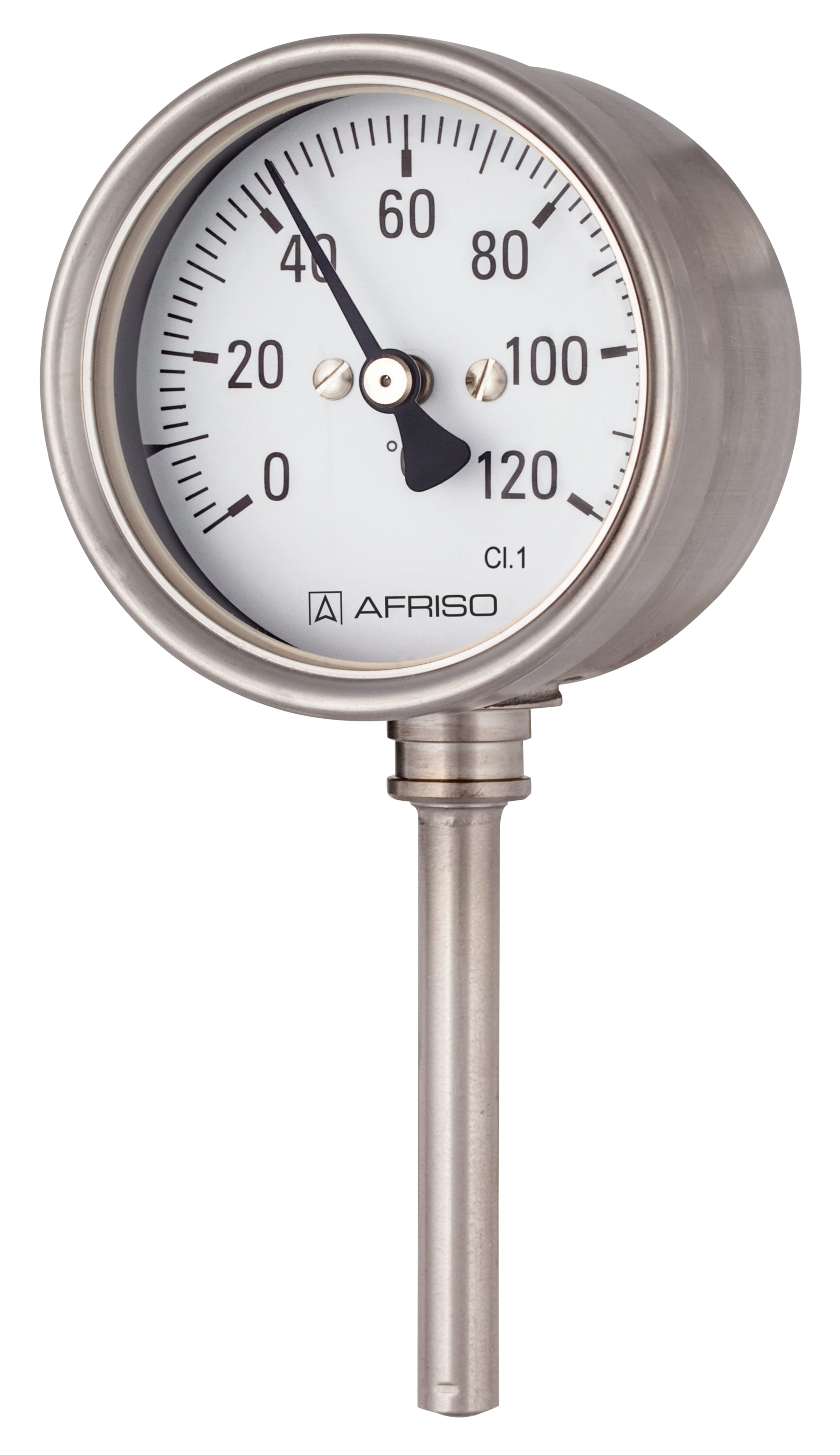

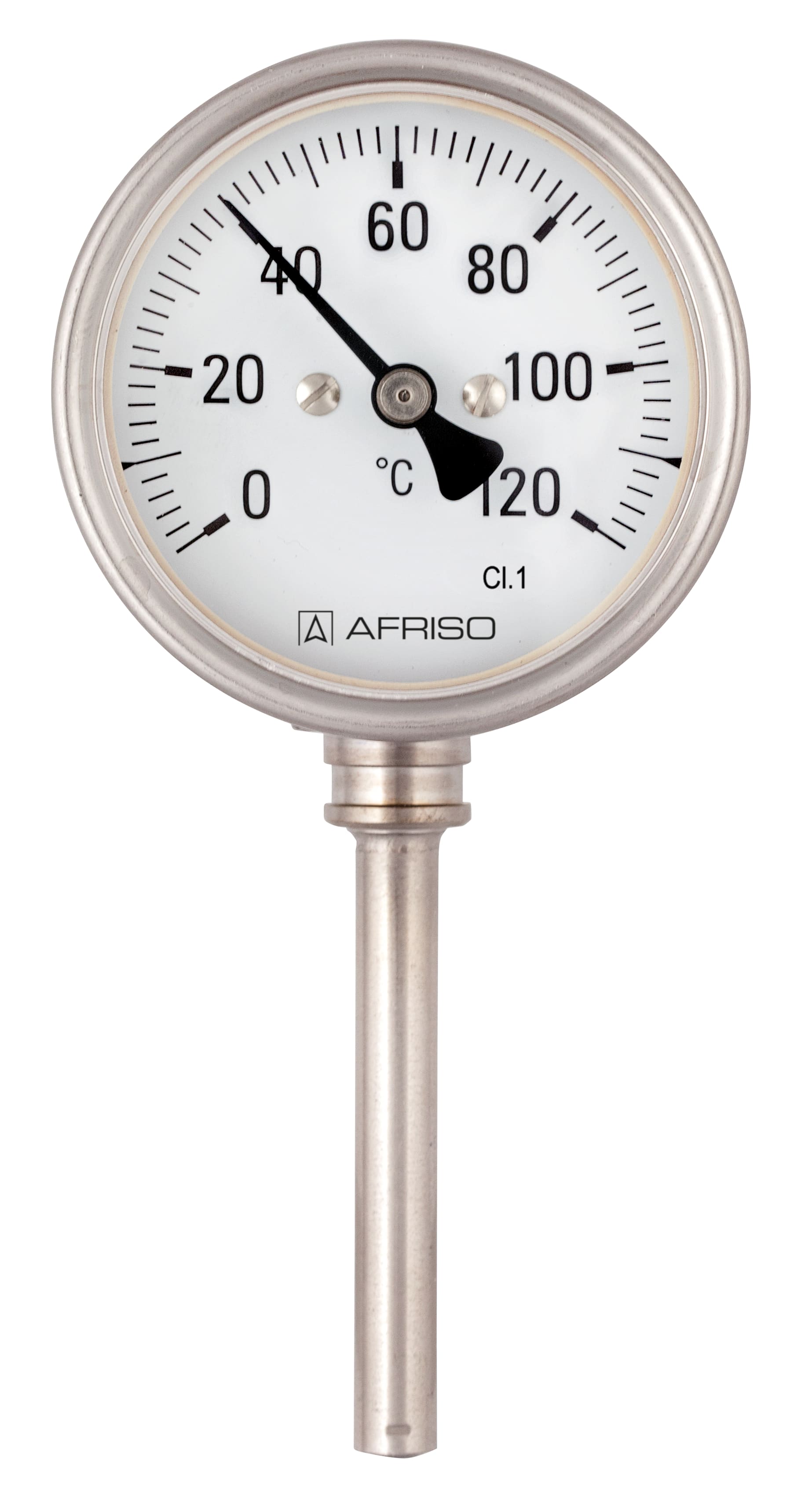

BiTh 160 Ch D402

bimetal thermometer

Variants Documents

ideal for hygienic processes
accuracy class 1 as per EN 13190
for temperatures of the medium of up to 160 °C
Process connection centre back or bottom or threads various thermowells

For corrosive media. Meets high measuring demands, e.g. in process engineering as well as chemical and food industry applications.

	Type	housing ⌀	mounting position	Range	For thermowell with length L1	Type	Type	Part no.
	BiTh 160 Ch	160 mm	bottom	0/60 °C	63 mm	BiTh 160 Ch	D402	66932402
	BiTh 160 Ch	160 mm	bottom	0/60 °C	100 mm	BiTh 160 Ch	D402	66933402
	BiTh 160 Ch	160 mm	bottom	0/60 °C	150 mm	BiTh 160 Ch	D402	66934402
	BiTh 160 Ch	160 mm	bottom	0/60 °C	200 mm	BiTh 160 Ch	D402	66935402

in-stock items
manufactured goods

Type: D4

Nominal size: 160 - 160

measuring element: Bimetal helix

accuracy class: 1 (EN 13190)

ranges °C: 0/60 °C

application area

continuous load:: Full scale value

short-term:: 1.1 x full scale value

operating pressure at stem: max. 6 bar

Degree of protection: IP 65 (EN 60529)

Standard design

Connection

Stem:: Stainless steel 316 Ti, ∅ 8 mm, plain

mounting position: bottom

Dial

: Aluminium, weiß

: Scaling black

Pointer

: Aluminium, schwarz

Housing

: Edelstahl 304

bayonet bezel

: Edelstahl 304

window

: Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

bottom connection, plain
