Industrial technology Temperature measuring instruments / temperature controllers BiTh 63 E D312
PRO_TEC_VOR_BITH100E_D312_66347312.TIF
PRO_TEC_SAL_BITH100E_D312_66347312_1.TIF
PRO_TEC_SAR_BITH100E_D312_66347312.TIF
PRO_TEC_SCD_BITH_AXIAL_GLATT.TIF
PRO_TEC_VOR_BITH100E_D312_66347312.TIF
PRO_TEC_SAL_BITH100E_D312_66347312_1.TIF
PRO_TEC_SAR_BITH100E_D312_66347312.TIF
PRO_TEC_SCD_BITH_AXIAL_GLATT.TIF
Images 4

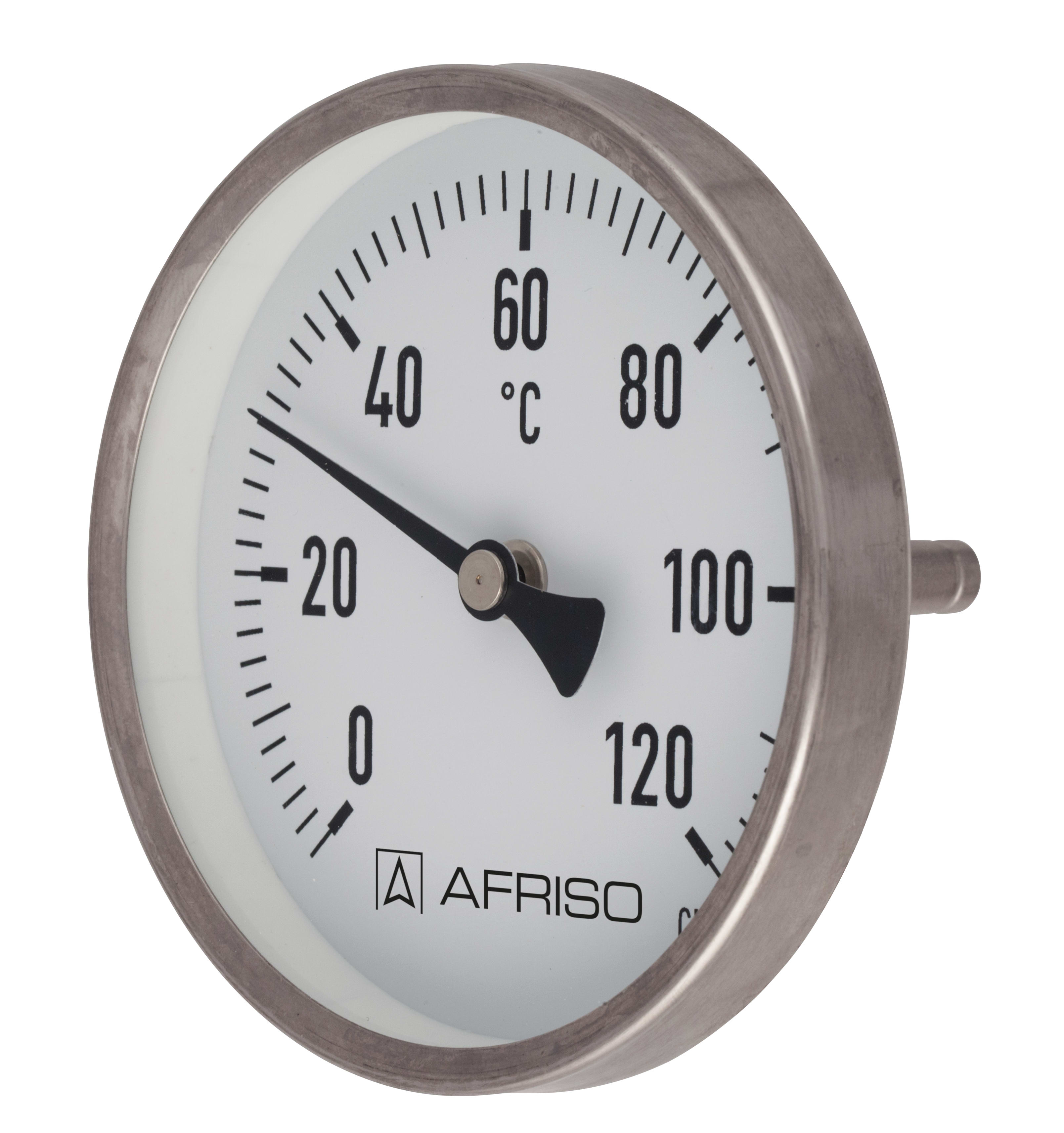

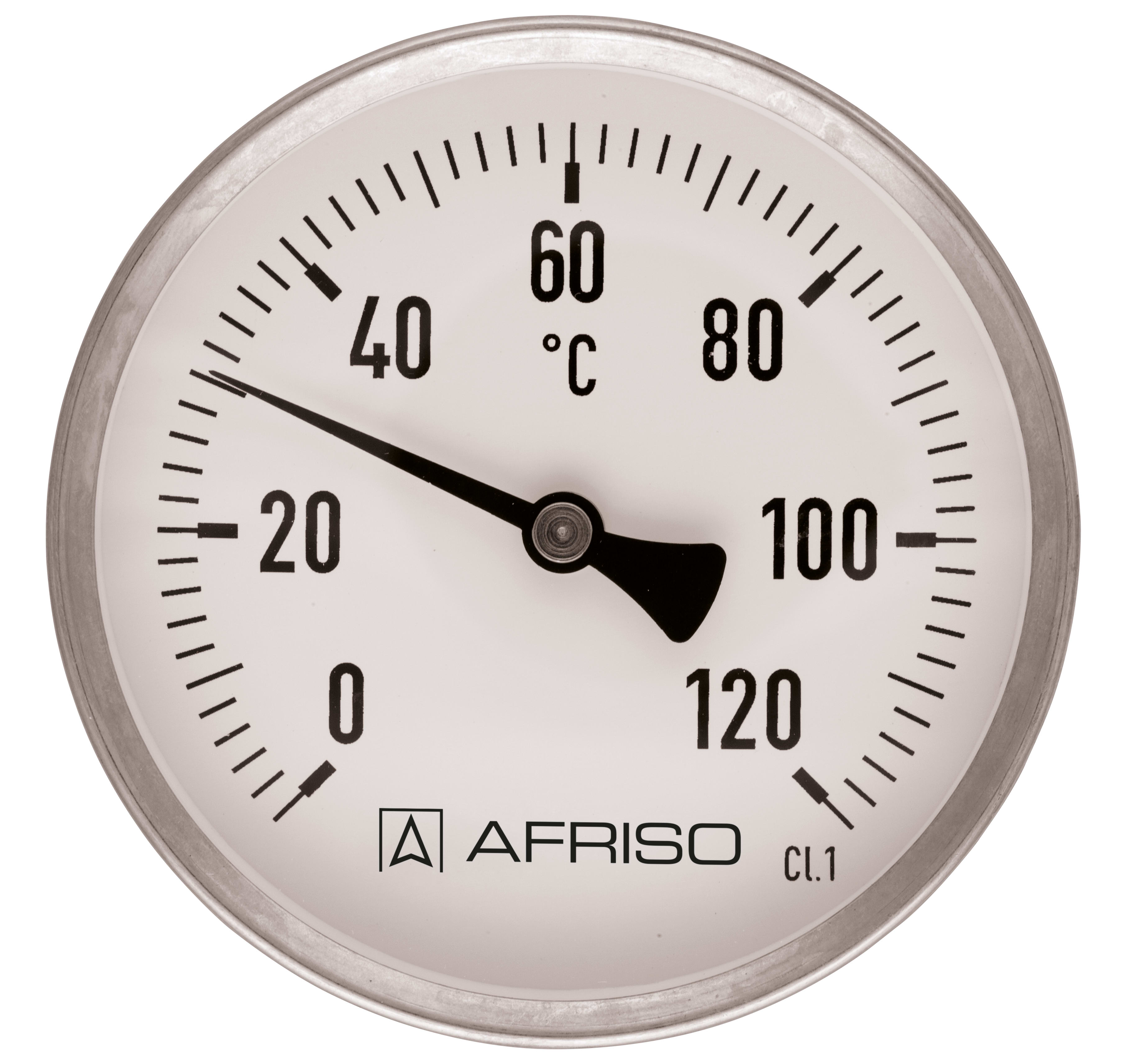

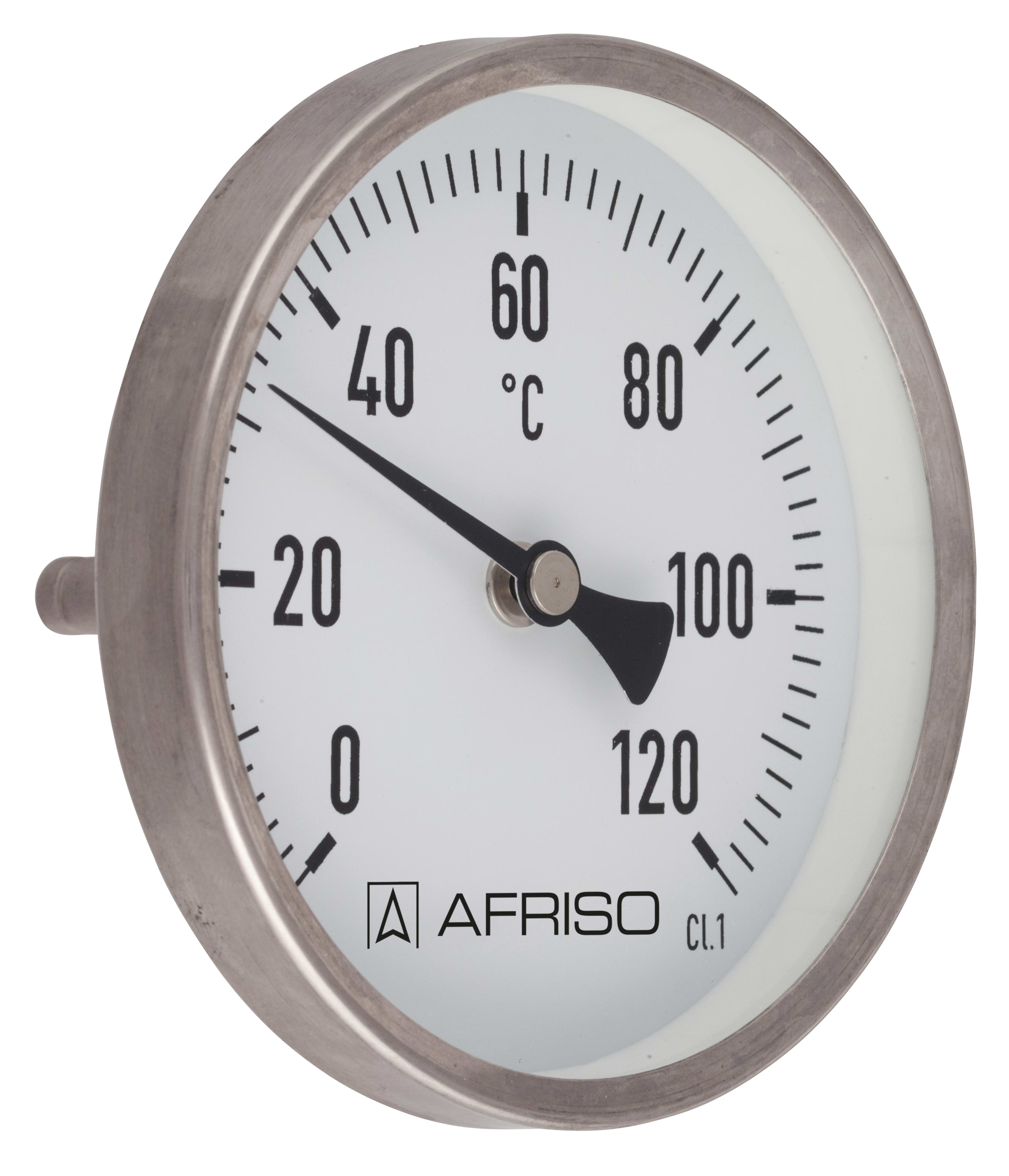

BiTh 63 E D312

Bimetall-Edelstahlthermometer

Variants Documents

  • suitable for use in mechanical engineering, plant engineering, process engineering or food industry
  • ideal for hygienic processes
  • accuracy class 1 as per EN 13190
  • for temperatures of the medium of up to 160 °C

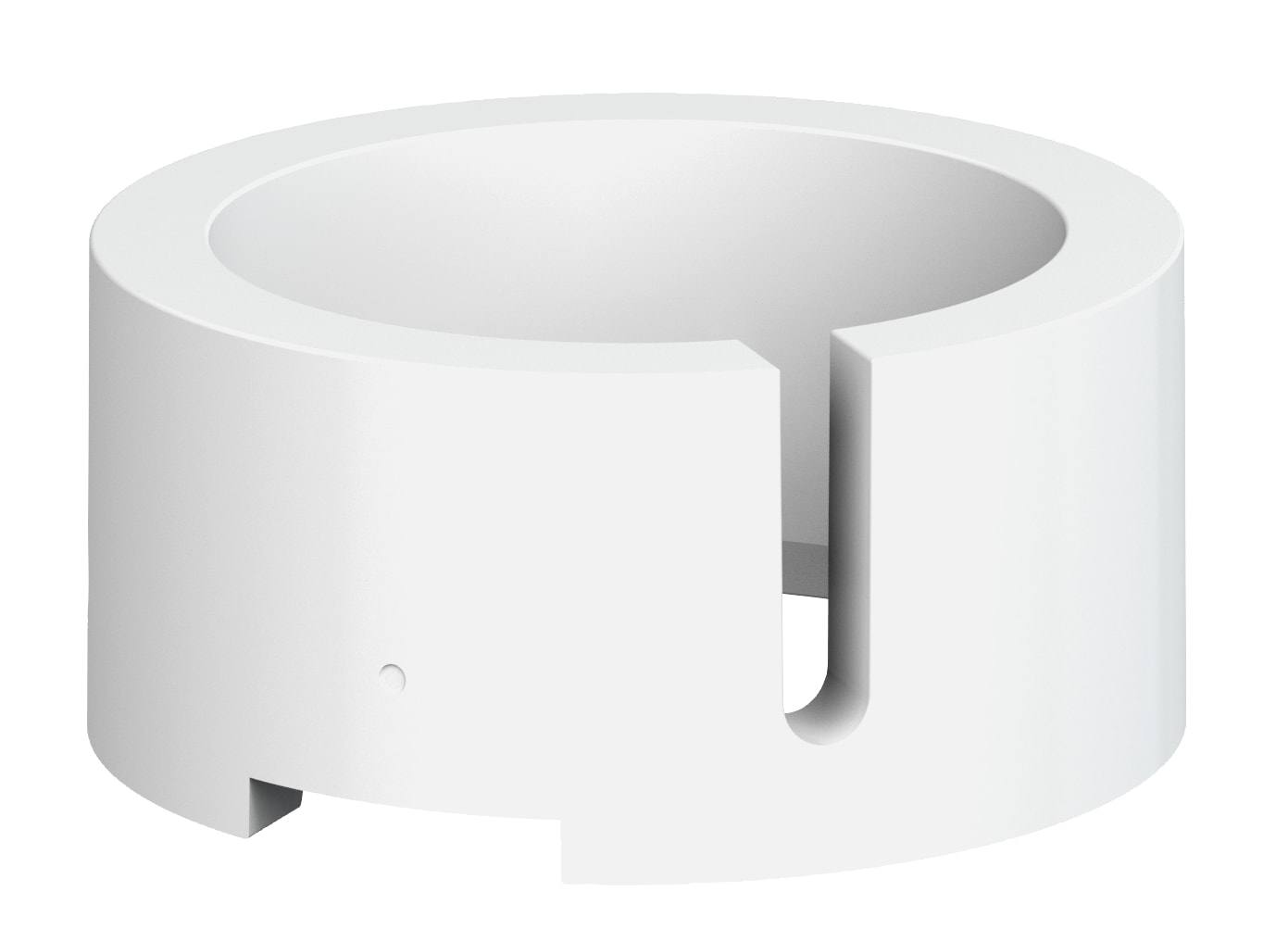

  • with adapter ring for thermowell Ø 18 mm

For corrosive media. Suitable for a great range of industrial applications.

Typehousing ⌀mounting positionConnectionRangeFor thermowell with length L1Stem length L1TypeTypePart no.
BiTh 63 E63 mmcentre backplain0/120 °C45 mmBiTh 63 ED31266146312
BiTh 63 E63 mmcentre backplain0/120 °C63 mmBiTh 63 ED31266147312
BiTh 63 E63 mmcentre backplain0/120 °C100 mmBiTh 63 ED31266148312
BiTh 63 E63 mmcentre backplain0/120 °C150 mmBiTh 63 ED31266149312
BiTh 63 E63 mmcentre backplain0/120 °C200 mmBiTh 63 ED31266150312
  • in-stock items
  • manufactured goods

Type
D3
Nominal size
63 - 63
measuring element
Bimetal helix
accuracy class
1 (EN 13190)
ranges °C
0/120 °C
Application area (EN 13190)
continuous load:
Measuring range
short-term:
Range
Operating pressure at thermowell
(not included in scope of delivery)
max. 25 bar max.
Degree of protection
IP 43 (EN 60529)

Standard design

Connection
Stem:
Stainless steel 316 L, ∅ 8 mm
Stem:
plain
mounting position
centre back
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
push on bezel
Edelstahl 304
window
Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

centre back connection, plain
