BiTh 63 E D312

Bimetall-Edelstahlthermometer

Variants Documents

  • suitable for use in mechanical engineering, plant engineering, process engineering or food industry
  • ideal for hygienic processes
  • accuracy class 1 as per EN 13190
  • for temperatures of the medium of up to 160 °C
  • with adapter ring for thermowell Ø 18 mm

For corrosive media. Suitable for a great range of industrial applications.

Typehousing ⌀mounting positionConnectionRangeFor thermowell with length L1Stem length L1TypeTypePart no.
BiTh 63 E63 mmcentre backfixed male connection, fixed G½B0/60 °C63 mmBiTh 63 ED31266132312AFG4D8
BiTh 63 E63 mmcentre backfixed male connection, fixed G½B0/60 °C63 mmBiTh 63 ED31266133312AFG4D8
BiTh 63 E63 mmcentre backfixed male connection, fixed G½B0/60 °C150 mmBiTh 63 ED31266134312AFG4D8
BiTh 63 E63 mmcentre backfixed male connection, fixed G½B0/60 °C200 mmBiTh 63 ED31266135312AFG4D8
  • in-stock items
  • manufactured goods

Type
D3
Nominal size
63 - 63
measuring element
Bimetal helix
accuracy class
1 (EN 13190)
ranges °C
0/60 °C
Application area (EN 13190)
continuous load:
Measuring range
short-term:
Range
Operating pressure at thermowell
(not included in scope of delivery)
max. 25 bar max.
Degree of protection
IP 43 (EN 60529)

Standard design

Connection
Stem:
Stainless steel 316 L, ∅ 8 mm
Stem:
fixed male connection, fixed G½B
mounting position
centre back
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
push on bezel
Edelstahl 304
window
Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

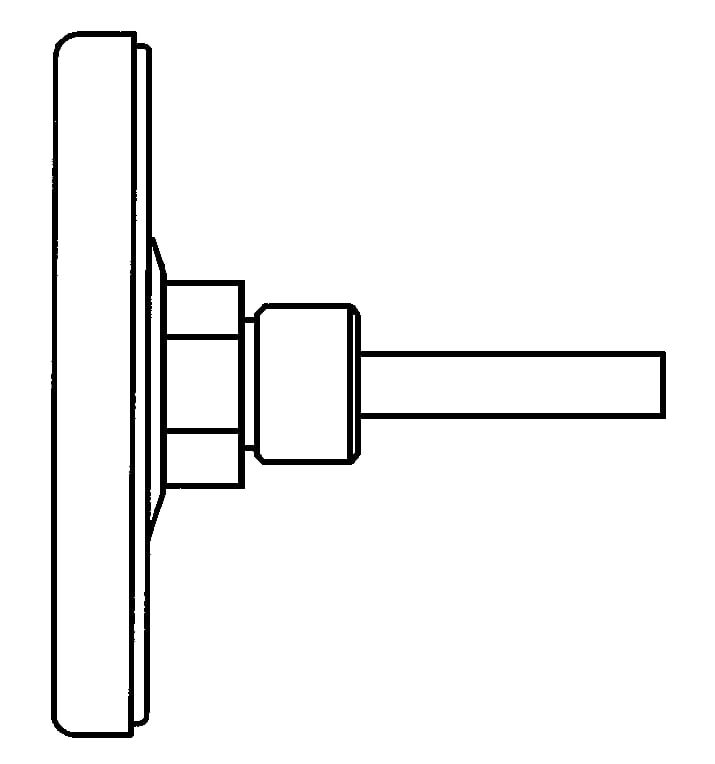

centre back connection, fixed male connection
