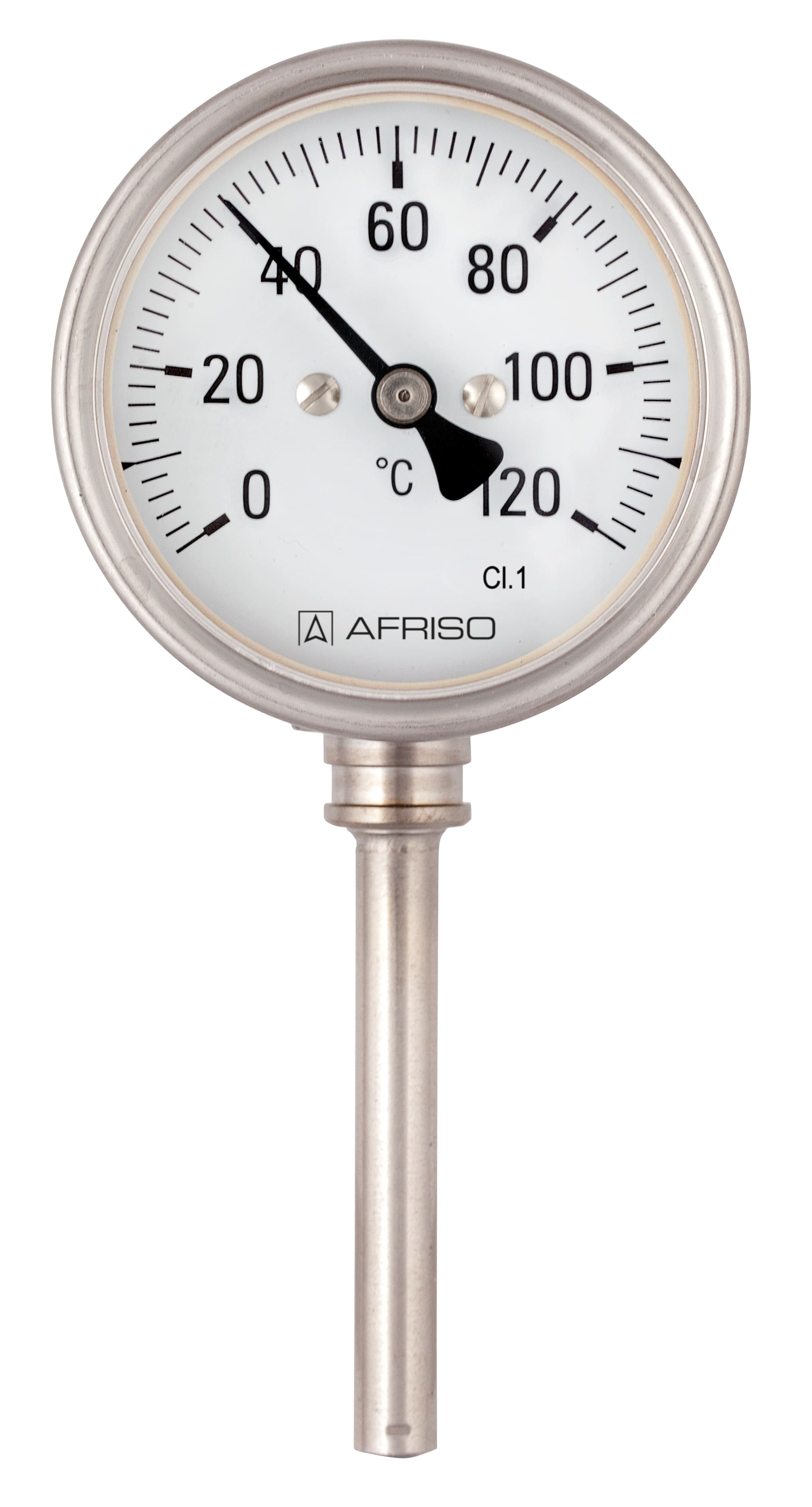

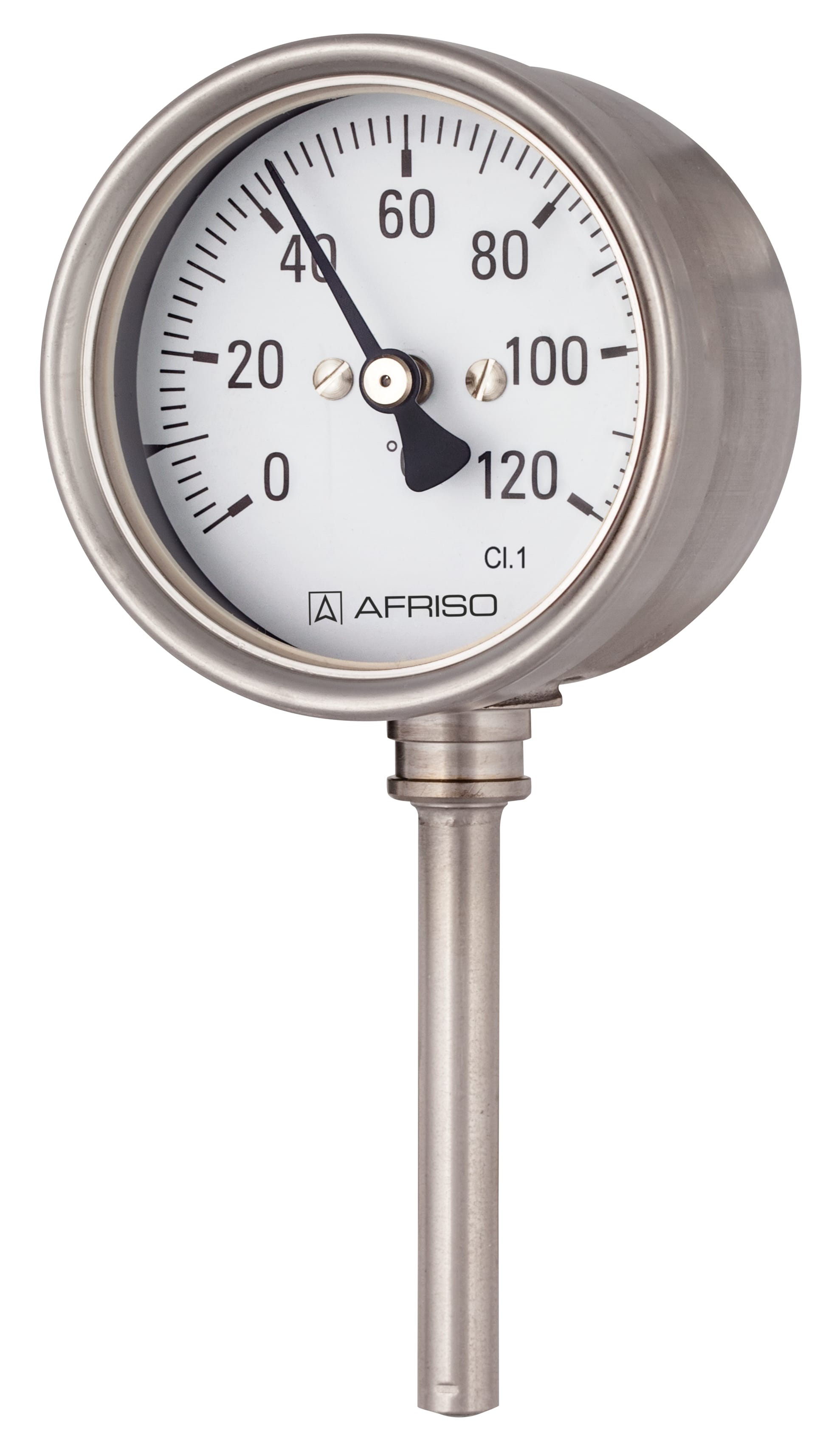

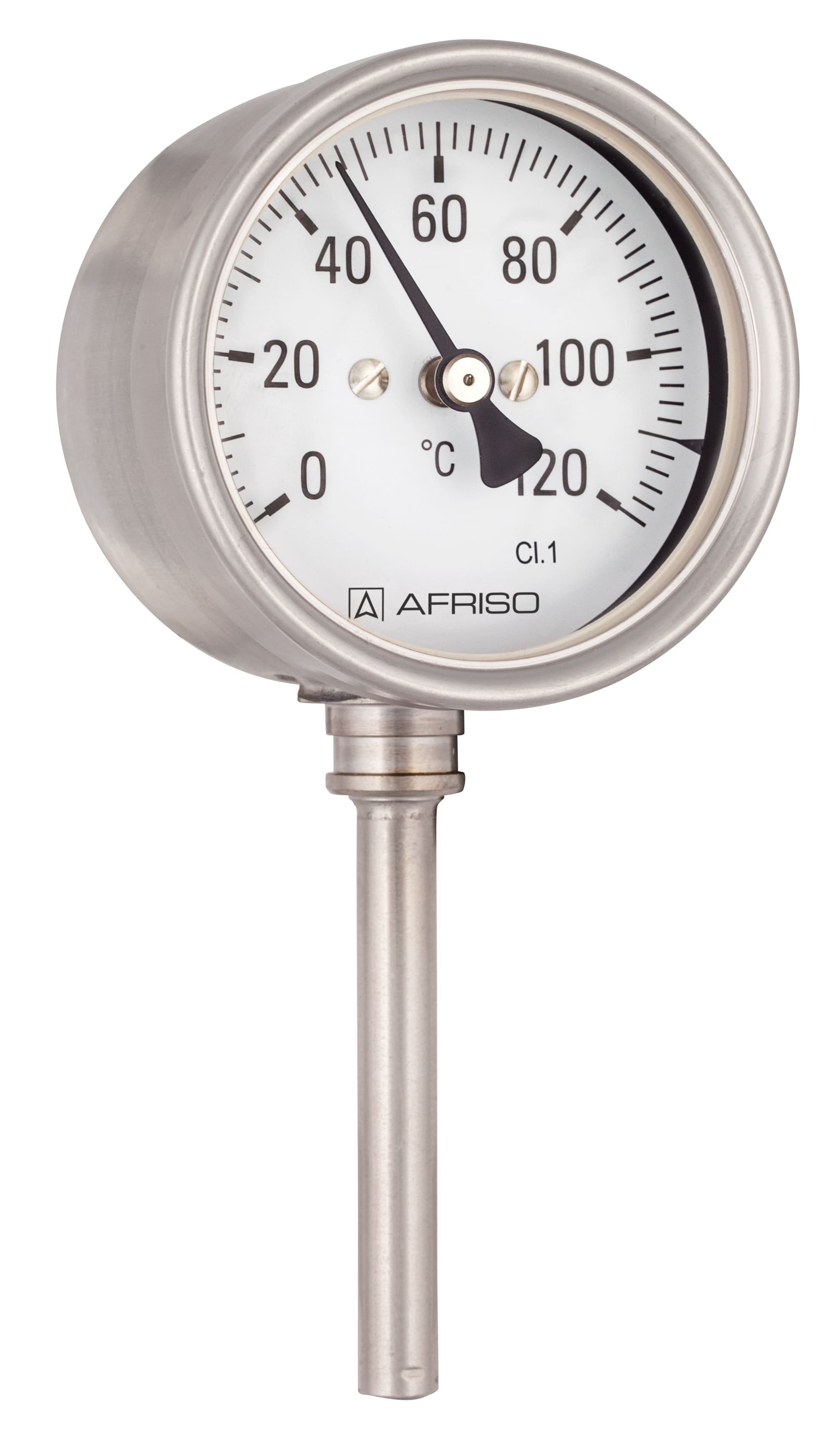

FTh 100 Ch D402

gas filled thermometer for chemical applications

Variants Documents

for chemical, process engineering and food industry applications
high measuring accuracy
fast response

For corrosive media. Meets the most exacting measuring demands, e.g. in process engineering as well as chemical and food industry applications.

	Type	housing ⌀	Range	Type	Type	Part no.
	FTh 100 Ch	100 mm	-20/+60 °C	FTh 100 Ch	D402	64341402
	FTh 100 Ch	100 mm	0/60 °C	FTh 100 Ch	D402	64361402
	FTh 100 Ch	100 mm	0/120 °C	FTh 100 Ch	D402	64373402
	FTh 100 Ch	100 mm	0/160 °C	FTh 100 Ch	D402	64377402
	FTh 100 Ch	100 mm	0/200 °C	FTh 100 Ch	D402	64381402
	FTh 100 Ch	100 mm	0/300 °C	FTh 100 Ch	D402	64389402
	FTh 100 Ch	100 mm	0/400 °C	FTh 100 Ch	D402	64397402
	FTh 100 Ch	100 mm	0/500 °C	FTh 100 Ch	D402	64401402

in-stock items
manufactured goods

Type: D4

Nominal size: 100 - 100

Measuring principle: Pressurised gas filling

accuracy class: 1 (EN 13190)

ranges °C: -20/+60 °C

Application area (EN 13190)

continuous load:: Full scale value

short-term:: 1.1 x full scale value

Operating pressure at thermowell

: max. 10 bar (max. Up to 300 °C)

Degree of protection: IP 65 (EN 60529)

Standard design

Connection

Stem:: Stainless steel 321, ∅ 10 mm, plain

mounting position: bottom

Dial

: Aluminium, weiß

: Scaling black

Pointer

: Aluminium, schwarz

Zero correction: at the side

movement: Brass

Housing

: Edelstahl 304

bayonet bezel

: Edelstahl 304

window

: Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

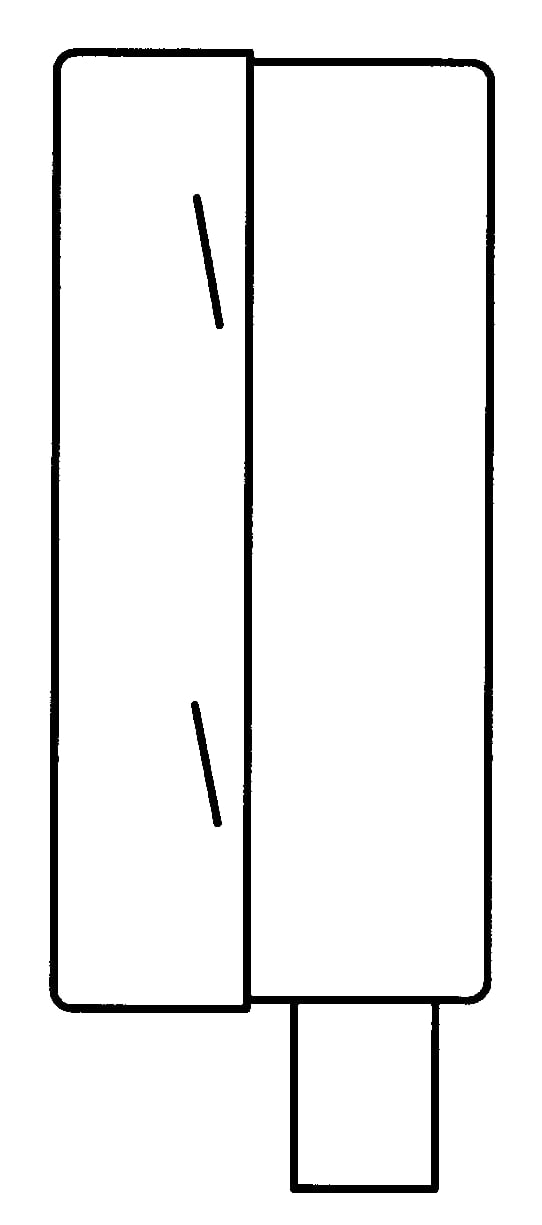

Bottom connection
