FTh 100 Ch D412

gas filled thermometer for chemical applications

Variants Documents

  • for chemical, process engineering and food industry applications
  • high measuring accuracy
  • fast response

For corrosive media. Meets the most exacting measuring demands, e.g. in process engineering as well as chemical and food industry applications.

Typehousing ⌀RangeTypeTypePart no.
FTh 100 Ch100 mm-20/+60 °CFTh 100 ChD41264341412
FTh 100 Ch100 mm0/60 °CFTh 100 ChD41264361412
FTh 100 Ch100 mm0/120 °CFTh 100 ChD41264373412
FTh 100 Ch100 mm0/160 °CFTh 100 ChD41264377412
FTh 100 Ch100 mm0/200 °CFTh 100 ChD41264381412
FTh 100 Ch100 mm0/300 °CFTh 100 ChD41264389412
FTh 100 Ch100 mm0/400 °CFTh 100 ChD41264397412
FTh 100 Ch100 mm0/500 °CFTh 100 ChD41264401412
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
100 - 100
Measuring principle
Pressurised gas filling
accuracy class
1 (EN 13190)
ranges °C
-20/+60 °C
Application area (EN 13190)
continuous load:
Full scale value
short-term:
1.1 x full scale value
Operating pressure at thermowell
max. 10 bar (max. Up to 300 °C)
Degree of protection
IP 65 (EN 60529)

Standard design

Connection
Stem:
Stainless steel 321, ∅ 10 mm, plain
mounting position
centre back
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Zero correction
at the side
movement
Brass
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

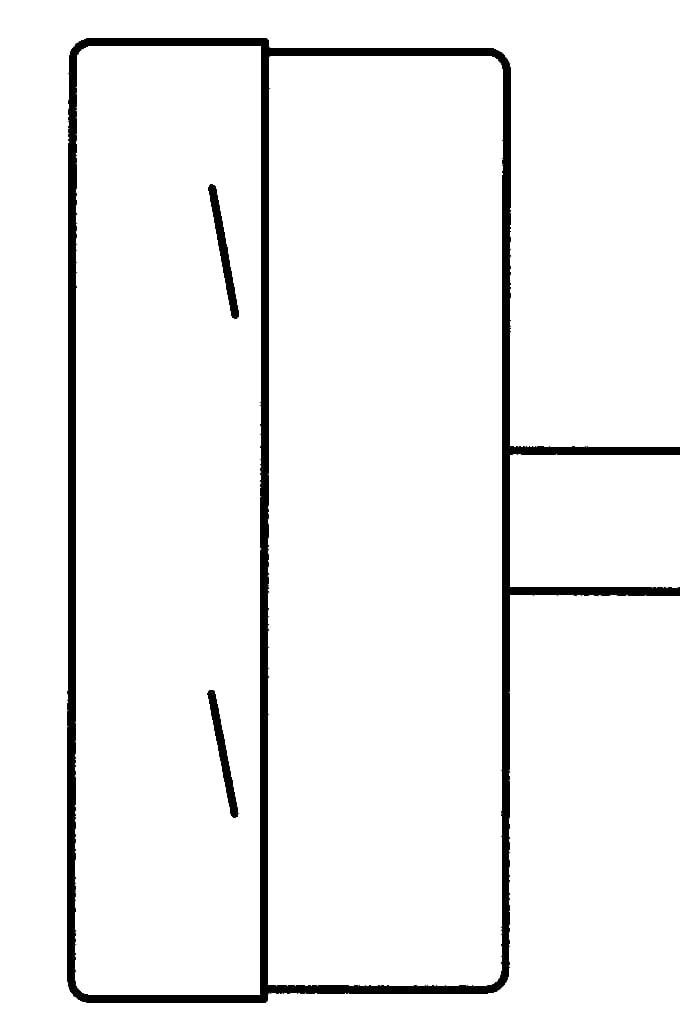

Centre back connection
