FTh 100 Ch D442

gas filled thermometer for chemical applications

Variants Documents

  • for chemical, process engineering and food industry applications
  • high measuring accuracy
  • fast response

For corrosive media. Meets the most exacting measuring demands, e.g. in process engineering as well as chemical and food industry applications.

Typehousing ⌀RangeTypeTypePart no.
FTh 100 Ch100 mm-20/+60 °CFTh 100 ChD44264341442
FTh 100 Ch100 mm0/60 °CFTh 100 ChD44264361442
FTh 100 Ch100 mm0/120 °CFTh 100 ChD44264373442
FTh 100 Ch100 mm0/160 °CFTh 100 ChD44264377442
FTh 100 Ch100 mm0/200 °CFTh 100 ChD44264381442
FTh 100 Ch100 mm0/300 °CFTh 100 ChD44264389442
FTh 100 Ch100 mm0/400 °CFTh 100 ChD44264397442
FTh 100 Ch100 mm0/500 °CFTh 100 ChD44264401442
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
100 - 100
Measuring principle
Pressurised gas filling
accuracy class
1 (EN 13190)
ranges °C
-20/+60 °C
Application area (EN 13190)
continuous load:
Full scale value
short-term:
1.1 x full scale value
Operating pressure at thermowell
max. 10 bar (max. Up to 300 °C)
Degree of protection
IP 65 (EN 60529)

Standard design

Connection
Stem:
Stainless steel 321, ∅ 10 mm, plain
mounting position
bottom
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Zero correction
at the side
movement
Brass
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

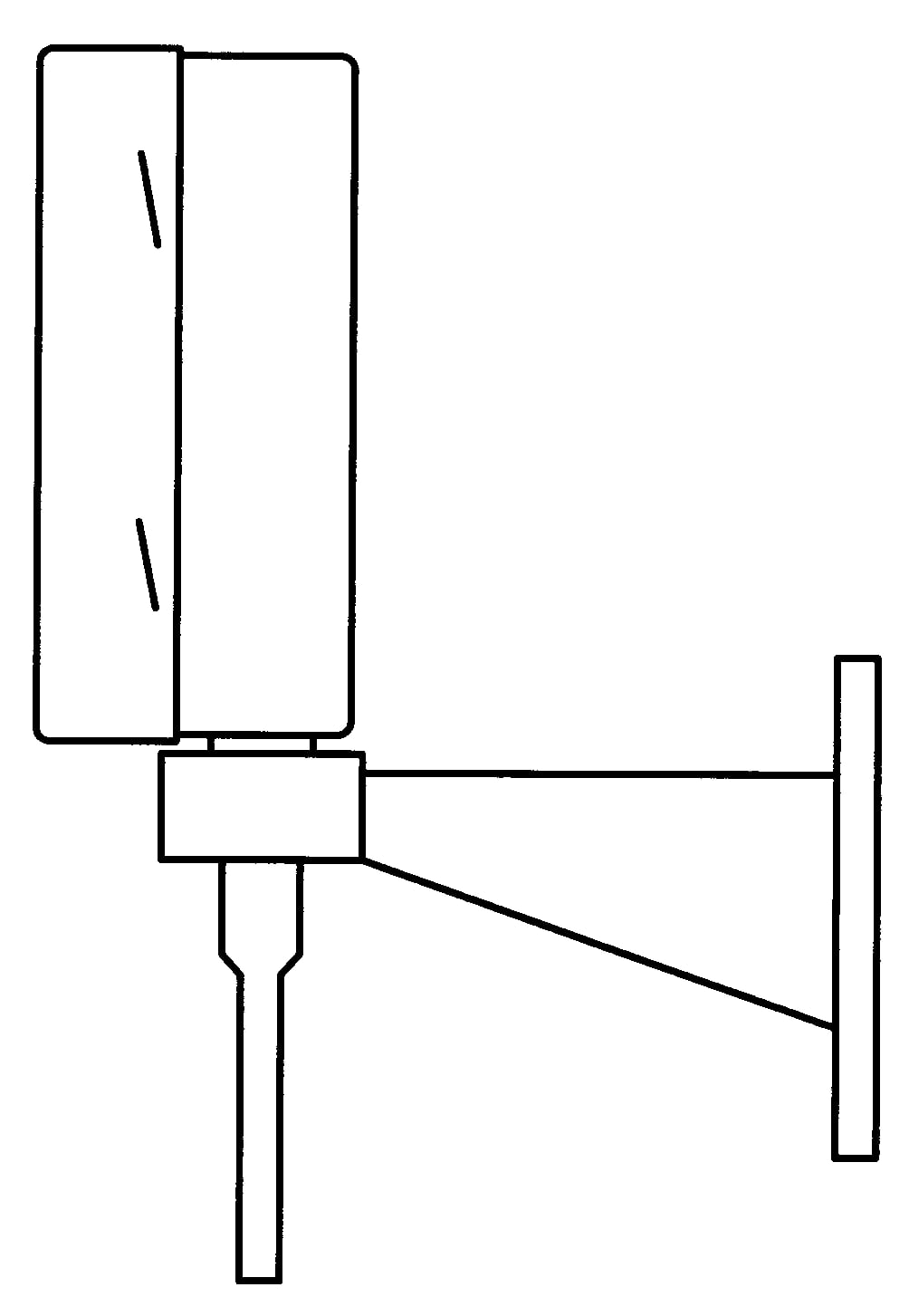

Version with capillary and wall bracket
