FTh 100 Ch D482

gas filled thermometer for chemical applications

Variants Documents

for chemical, process engineering and food industry applications
high measuring accuracy
fast response

For corrosive media. Meets the most exacting measuring demands, e.g. in process engineering as well as chemical and food industry applications.

	Type	housing ⌀	Range	Type	Type	Part no.
	FTh 100 Ch	100 mm	-20/+60 °C	FTh 100 Ch	D482	64341482
	FTh 100 Ch	100 mm	0/60 °C	FTh 100 Ch	D482	64361482
	FTh 100 Ch	100 mm	0/120 °C	FTh 100 Ch	D482	64373482
	FTh 100 Ch	100 mm	0/160 °C	FTh 100 Ch	D482	64377482
	FTh 100 Ch	100 mm	0/200 °C	FTh 100 Ch	D482	64381482
	FTh 100 Ch	100 mm	0/300 °C	FTh 100 Ch	D482	64389482
	FTh 100 Ch	100 mm	0/400 °C	FTh 100 Ch	D482	64397482
	FTh 100 Ch	100 mm	0/500 °C	FTh 100 Ch	D482	64401482

in-stock items
manufactured goods

Type: D4

Nominal size: 100 - 100

Measuring principle: Pressurised gas filling

accuracy class: 1 (EN 13190)

ranges °C: -20/+60 °C

Application area (EN 13190)

continuous load:: Full scale value

short-term:: 1.1 x full scale value

Operating pressure at thermowell

: max. 10 bar (max. Up to 300 °C)

Degree of protection: IP 65 (EN 60529)

Standard design

Connection

Stem:: Stainless steel 321, ∅ 10 mm, plain

mounting position: every angle version

Dial

: Aluminium, weiß

: Scaling black

Pointer

: Aluminium, schwarz

Zero correction: at the side

movement: Brass

Housing

: Edelstahl 304

bayonet bezel

: Edelstahl 304

window

: Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

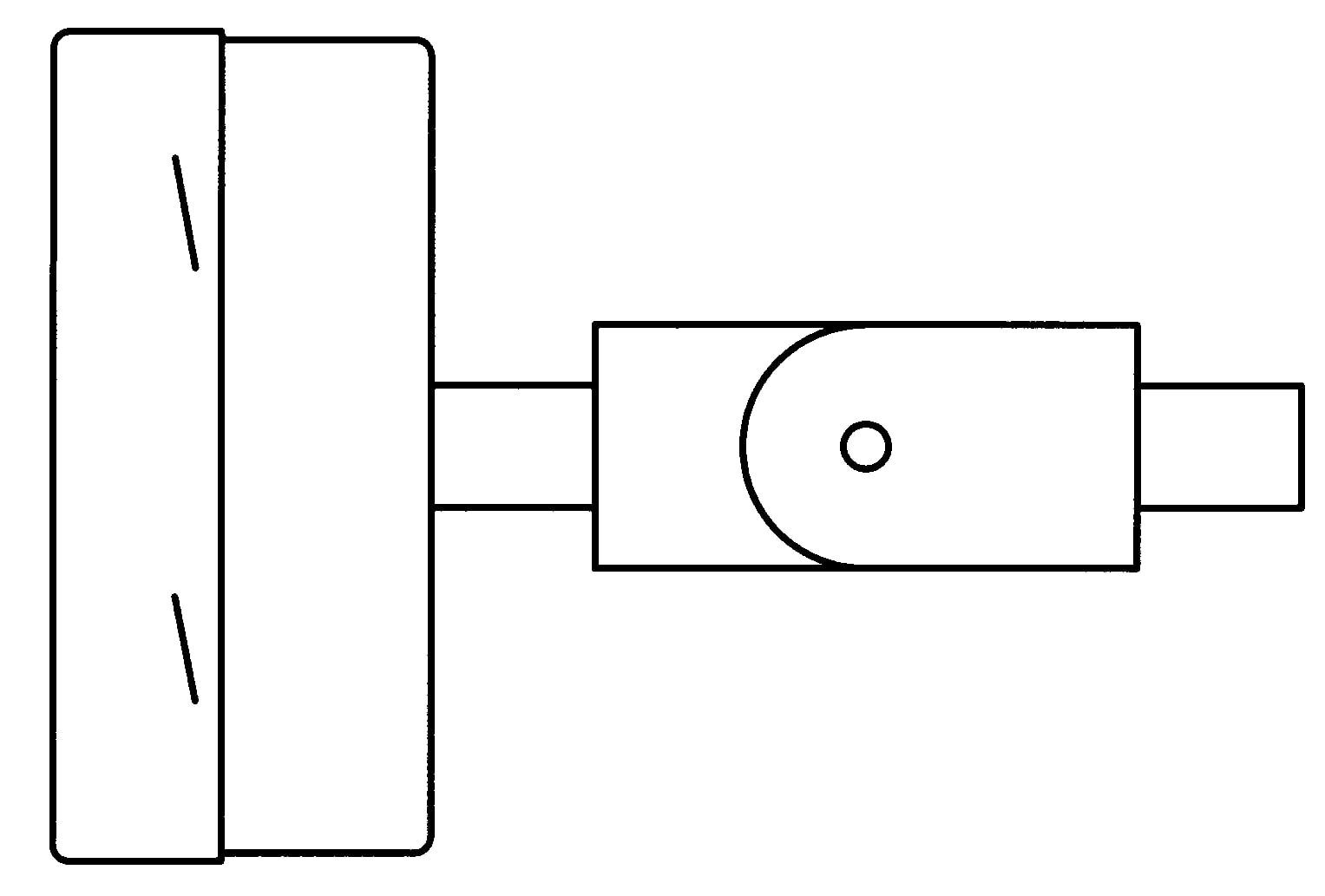

Every angle version
