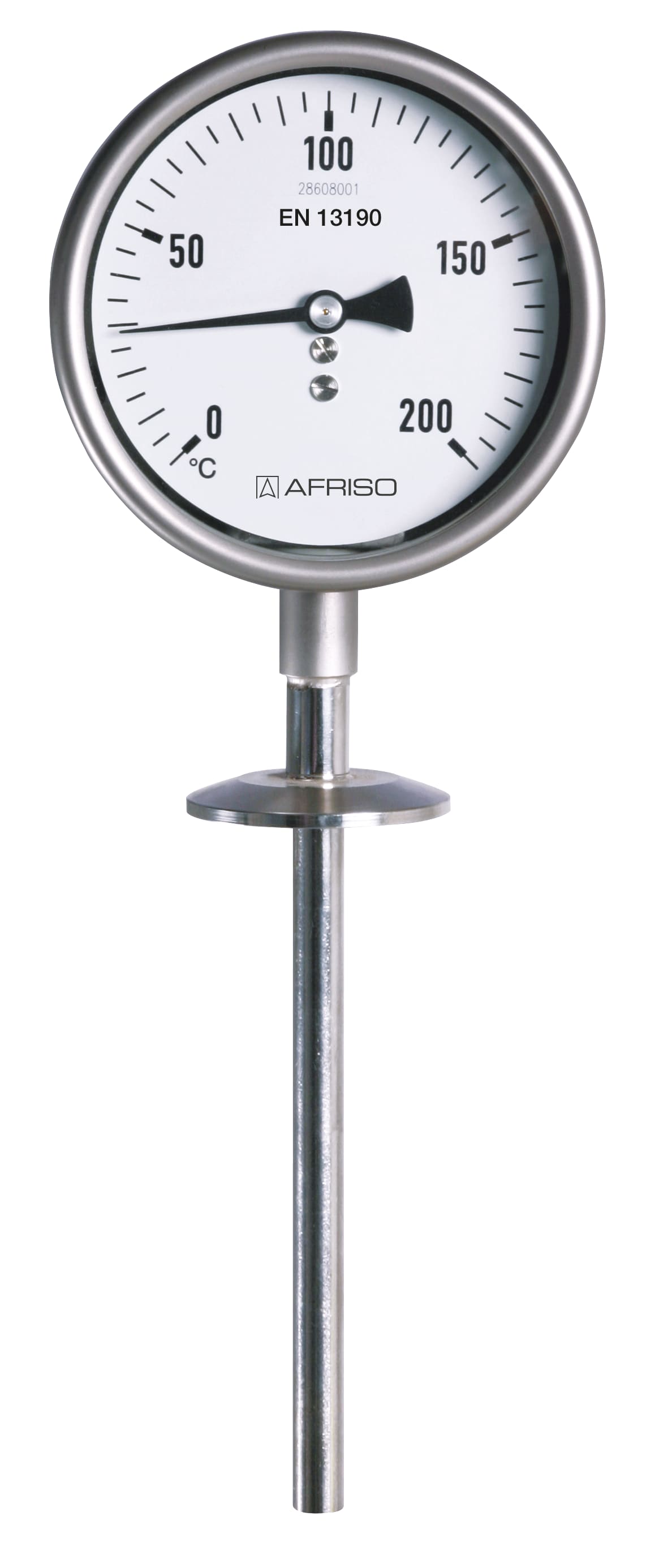

FTh 160 Ch D432

gas filled thermometer for chemical applications

Variants Documents

for chemical, process engineering and food industry applications
high measuring accuracy
fast response

For corrosive media. Meets the most exacting measuring demands, e.g. in process engineering as well as chemical and food industry applications.

	Type	housing ⌀	Range	Type	Type	Part no.
	FTh 160 Ch	160 mm	-20/+60 °C	FTh 160 Ch	D432	64343432
	FTh 160 Ch	160 mm	0/60 °C	FTh 160 Ch	D432	64363432
	FTh 160 Ch	160 mm	0/120 °C	FTh 160 Ch	D432	64375432
	FTh 160 Ch	160 mm	0/160 °C	FTh 160 Ch	D432	64379432
	FTh 160 Ch	160 mm	0/200 °C	FTh 160 Ch	D432	64383432
	FTh 160 Ch	160 mm	0/300 °C	FTh 160 Ch	D432	64391432
	FTh 160 Ch	160 mm	0/400 °C	FTh 160 Ch	D432	64399432
	FTh 160 Ch	160 mm	0/500 °C	FTh 160 Ch	D432	64403432

in-stock items
manufactured goods

Type: D4

Nominal size: 160 - 160

Measuring principle: Pressurised gas filling

accuracy class: 1 (EN 13190)

ranges °C: -20/+60 °C

Application area (EN 13190)

continuous load:: Full scale value

short-term:: 1.1 x full scale value

Operating pressure at thermowell

: max. 10 bar (max. Up to 300 °C)

Degree of protection: IP 65 (EN 60529)

Standard design

Connection

Stem:: Stainless steel 321, ∅ 10 mm, plain

mounting position: bottom

Dial

: Aluminium, weiß

: Scaling black

Pointer

: Aluminium, schwarz

Zero correction: at the side

movement: Brass

Housing

: Edelstahl 304

bayonet bezel

: Edelstahl 304

window

: Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

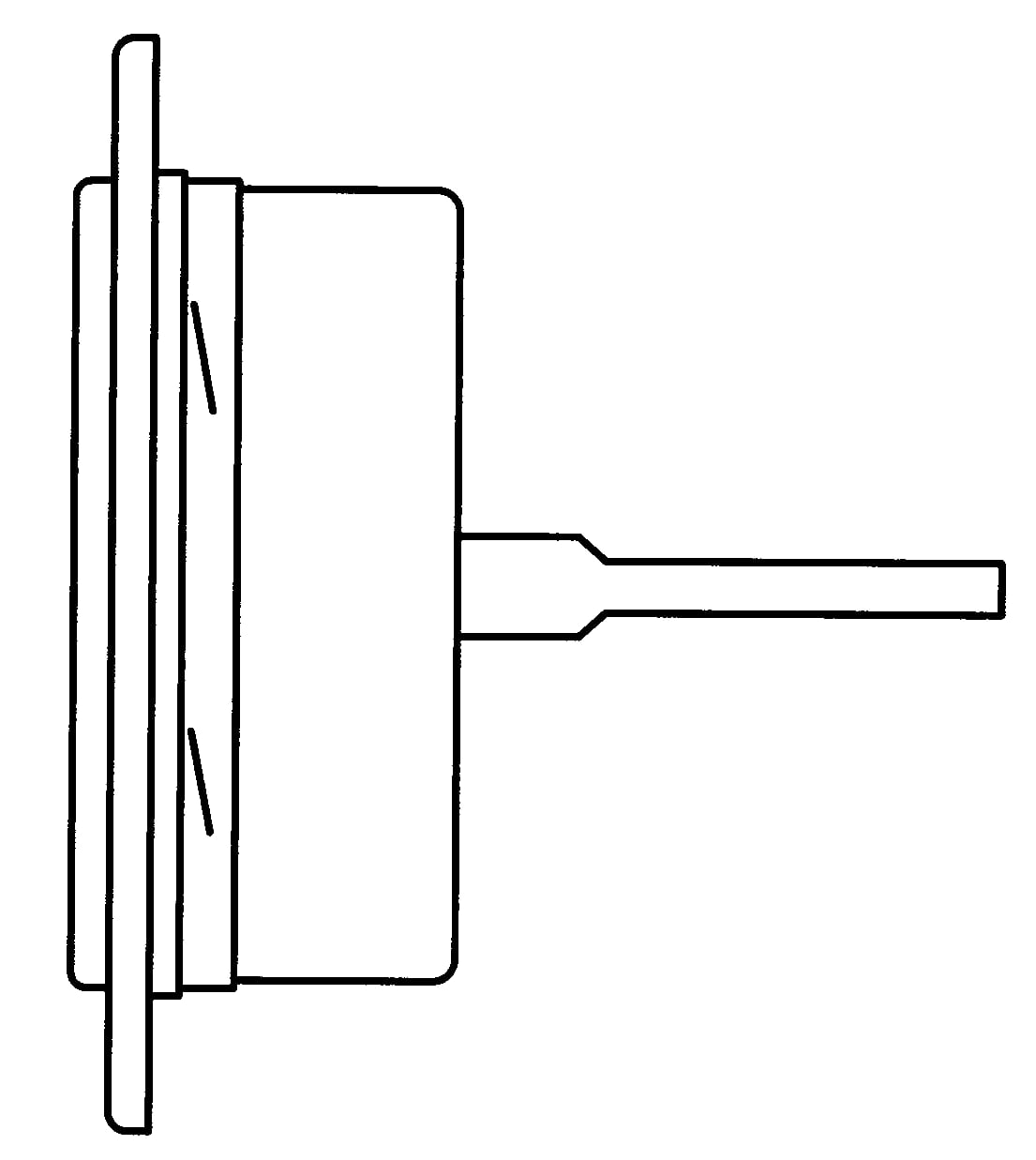

Version with capillary and 3-hole fixing, panel mounting bezel
